Swing-arm spraying device: The main mechanical structure that enables directional spraying through customized components including a water pump, water inlet, front-flushing, duckbill side nozzles, rear-spraying, and high-pressure cannon.
Liquid storage tank: The core container for storing dust suppression liquid.

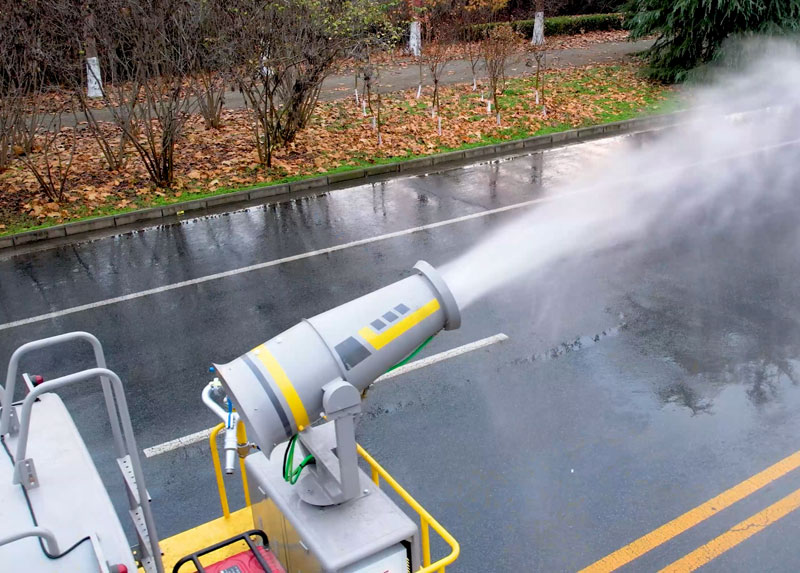

Mist cannon unit system: Nozzles, high-pressure mist pump, centrifugal fan, draft tube, and hydraulic pump.
Intelligent control system: PLC control module, dual frequency converters, and remote interaction module.
Auxiliary system: Generator set, filtration unit, and safety monitoring instruments.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Dust Suppression Truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Water Tank | Capacity | 5000Liters, 10000Liters, 15000Liters, 20000Liters |
| Tank Material | 5mm Q235 Carbon steel/ Stainless Steel | |
| Function | Equipped with fire valve, water valve, and filter gauze | |
| Equipped with front (rear, side) sprinkler | ||
| Equipped with rear working platform with water cannon | ||
| Head of delivery: 100M | ||
| Equipped with water pump | ||
| Maximum Spray Range(m) | 100 | |
| Maximum Spray Height(m) | 30 | |
| Spray Volume(L/min) | 0 ~ 160 | |
| Spray Water Pressure(Mpa) | 2 | |
| Nozzle Pitch Angle(°) | -10 ~ 60 | |
| Horizontal Rotation Angle(°) | -90 ~ 90 | |

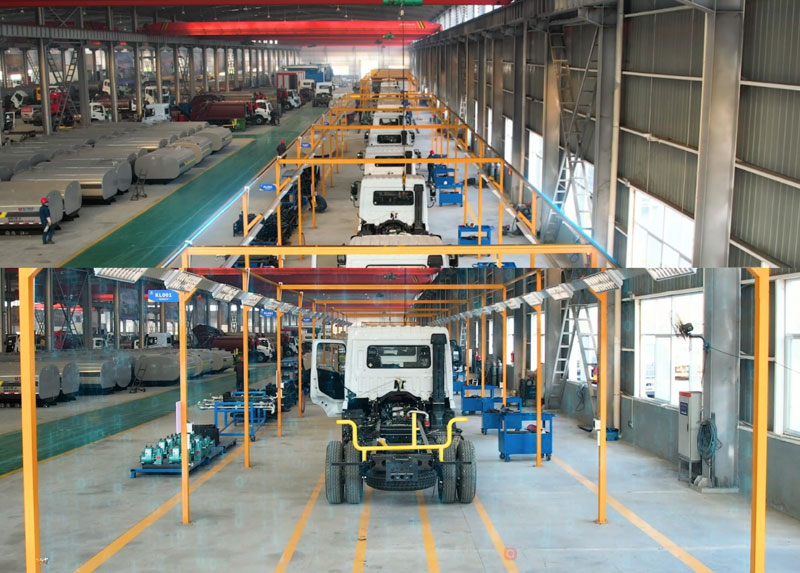

Adopt modular design and assembly line production to ensure production efficiency and quality.

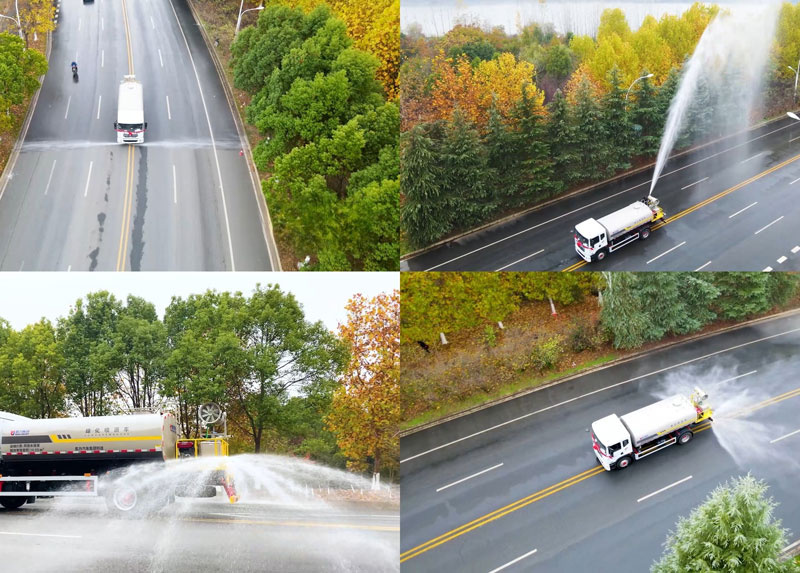

Standard with various washing functions such as omni-directional front spray, rear spray, side spray, and platform high cannon, fully covering cleaning needs and effectively improving cleaning efficiency.
Multiple range options for high-quality environmental dust reduction fog guns, with a maximum range of over 150 meters (requires high-power auxiliary engine), meeting different environmental needs.
