Hook Arm Mechanism: Electric control system, arm-pulling cylinder, telescopic arm, grappling hook, rear guide rail wheels, high-pressure quick connectors, locking hooks, enabling rapid garbage container loading/unloading and self-dumping functions.
Electro-Hydraulic System: Integrated multi-way valves, hydraulic cylinders, and hydraulic oil tank supporting fully automated operation and stable performance.
Sealed Garbage Truck Container (Optional): High-strength steel body with automatic opening/closing tailgate and leak-proof sealing structure.
Safety Components: Balance valves, hydraulic locks, rear outriggers, ensures stable handling process and equipment protection.
| SPECIFICATION | ||
| Truck Specification | ||

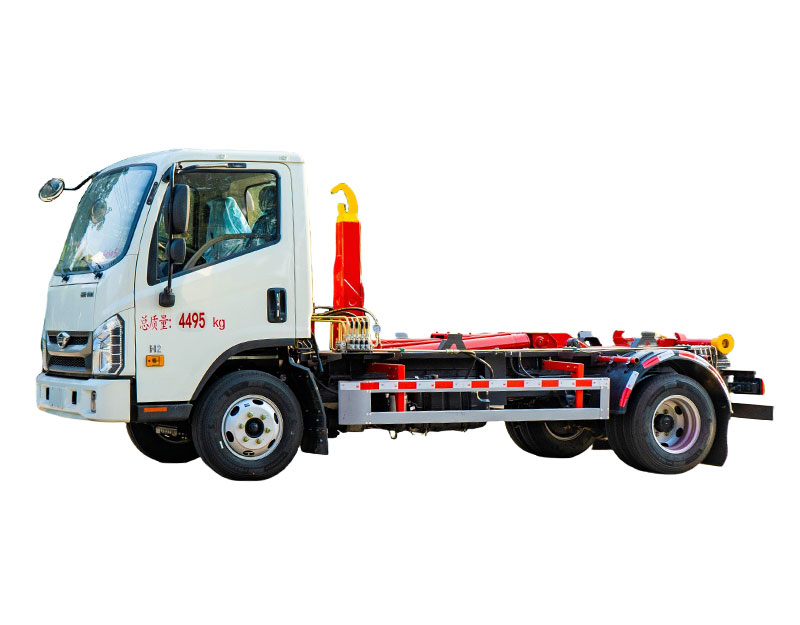

| Product Name | Hook Lift Garbage Truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Superstructure | Loading capacity | 2M3 to 28M3 |
| Dustbin Material | Anti-corrosive steel | |
| Hydraulic system | Chinese top brand muti-way valve and cylinders | |
| Control method | Manual control or remote control | |
| Self-discharging incline angle | 50° | |
| Lifting time | ≦60S | |
| Unloading time | ≦60S | |
Telescopic arm and lifting arm cylinder: Multi-stage telescopic structure, flexible adjustment of extension distance, hydraulic drive system for lifting arm cylinder, high-strength structural design, stable support for loading and unloading operations, adaptable to various working conditions.
Hook: Anti-slip and wear-resistant material, efficient grabbing and locking, ensuring the safe loading and unloading of garbage bins.

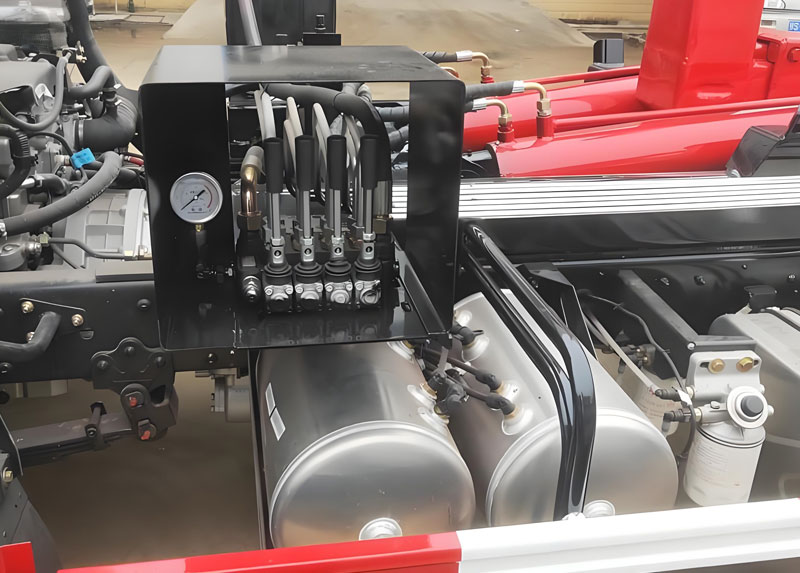

Multi-way valve: Integrated composite control function, multi-channel precise control of lifting arm, telescopic arm, and other components, enhancing operational stability. Learn more about hook arm garbage truck and swing arm garbage truck now!
