Sealed garbage compartment: High-strength steel, curved compartment body, built-in push plate, tilting mechanism.
Filling device components: Includes balance valve, back pressure valve, compaction valve, tilting frame, scraper, dual wastewater collection boxes, and sliding track structure, etc.
Hydraulic drive system: Composed of oil pump, oil cylinders, multi-way valve, oil cylinders, high-pressure filter, hydraulic oil tank, controls push plate, filling device, etc.
Electric control system: Integrated CAN control box, electromagnetic directional valve, electric control system, proximity switch, etc.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Garbage Compactor Truck (Waste Compactor Trucks) | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Water Tank | Capacity | 2,000Liters to 22,000Liters |
| Tank Material | 4mm/5mm Q235 Carbon steel/ Stainless Steel | |
| Function | 1. Our garbage compactor vehicle can choose 240L(single bin, double bins) and turnover device(plastic or steel garbage bin), compactor lorry can also choose ground hopper, swing arm device or other kinds of loading device. | |
| 2. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the refuse compactor vehicle, very convenient and efficient. With working device of emergency braking stop button. | ||
| 3. Garbage body of the waste compactor vehicle use frame design, elegant, strong structure, large effective capacity. | ||
| 4. Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 5. Through hydraulic system design, the compactor trucks for sale achieve the function of two-way garbage compression, that is improve the compressibility, make the compression ratio up to 1:2.5, the garbage can reach more then 600~800kg/m3 after compression. CAN electric automatic control. | ||

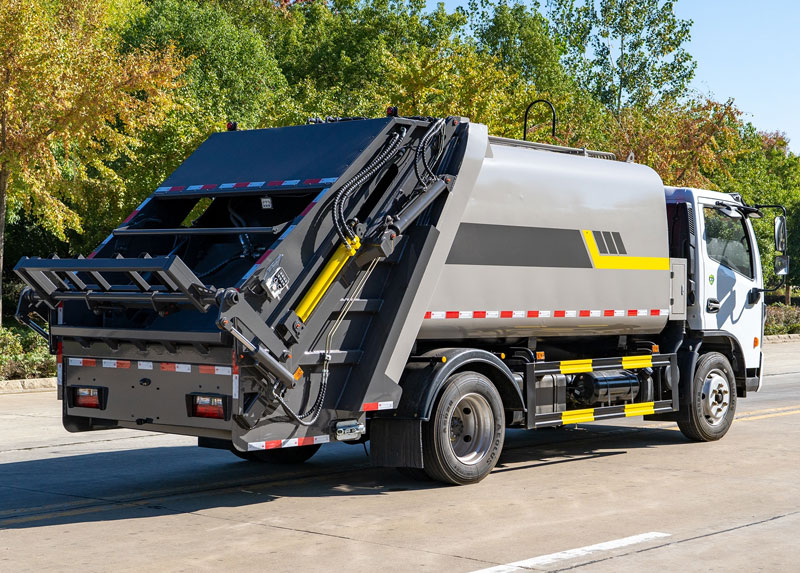

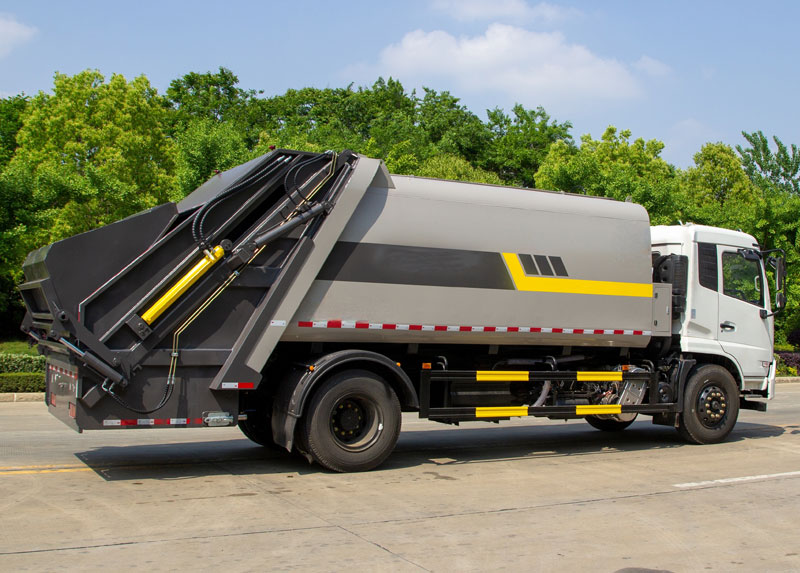

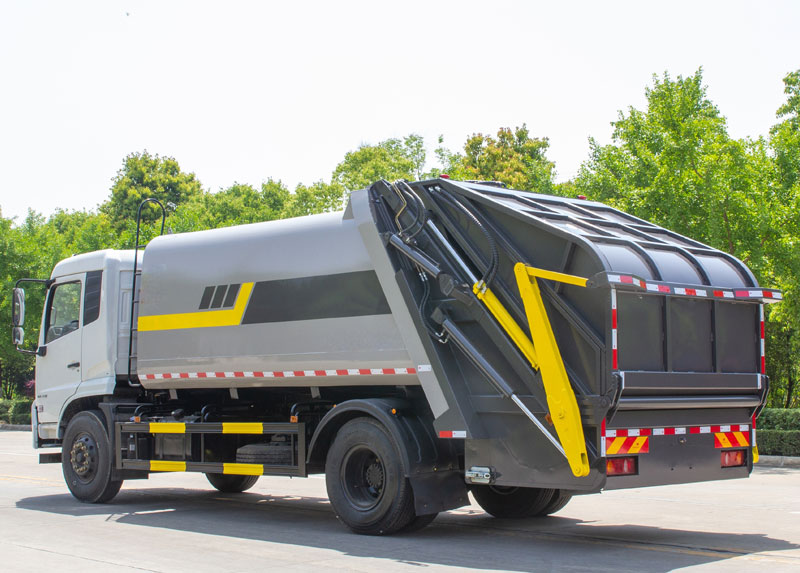

The rear hanging bucket device: Equipped with standard 120L/240L waste bins for high compatibility. Also compatible with 360L and 660L hopper lifting devices. Primarily applicable for garbage collection and transportation in urban districts and factory residential areas.

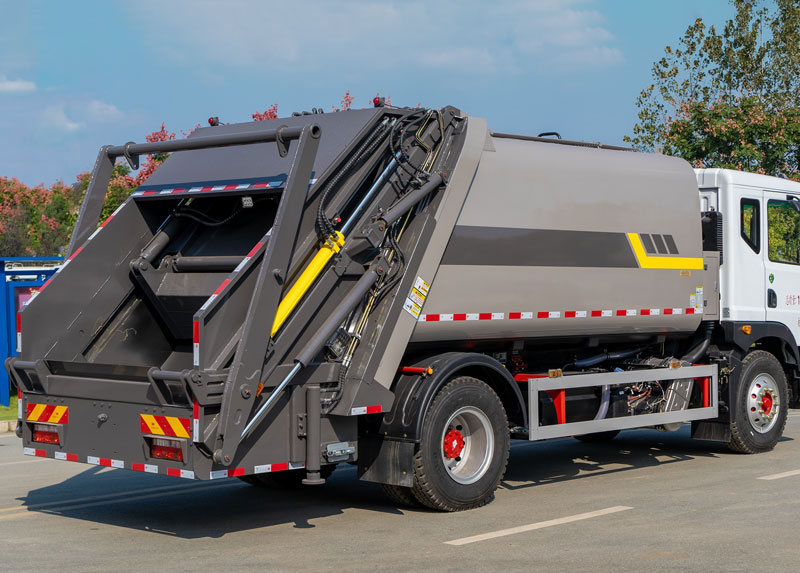

The tail triangular bucket device at the rear: Built-in dual bucket clamping mechanisms capable of holding two 120L/240L waste bins. Mainly used for garbage collection in city centers and waste transfer at suburban landfills. Features wide applicability, time-saving, and labor-efficient operation.
The large-scale landing hopper device: Primarily for partial waste transfer in medium-large cities. Compatible with forklifts and small dump trucks to directly unload waste into the hopper for recycling and re-transfer, achieving time-efficient and efficient operations.

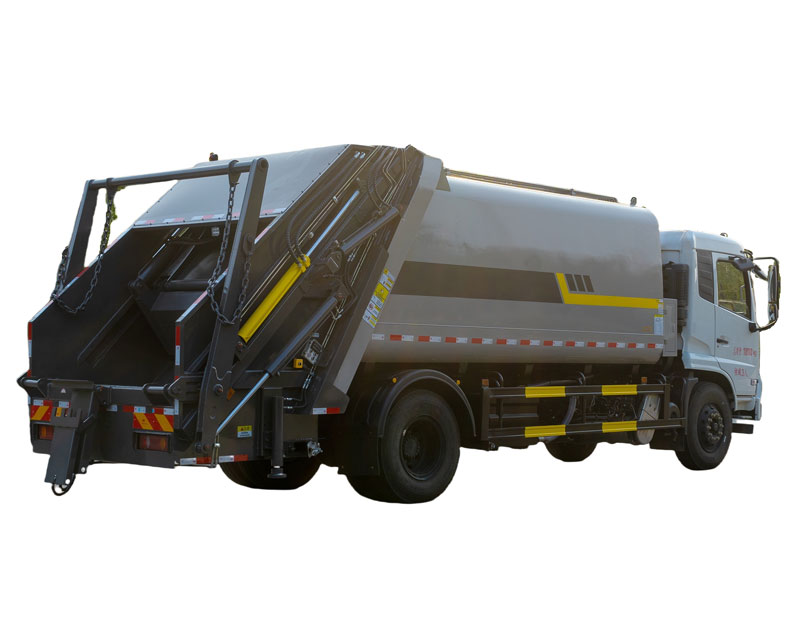

The tail swing arm device: Swing arm of the garbage truck for sale mainly serves garbage collection in sparsely populated areas. Supports approx. 3 m² swing-arm garbage hoppers (ground/pit-type hoppers). Collected waste is directly transported to transfer stations or landfills.
