Tank system: Oval-shaped carbon steel tank, sealed head structure.
Fecal suction components: Vacuum pump, fecal suction tank port with DN200 butterfly valve, 10-ton oil pump, four-way valve, water-gas separator, oil-gas separator, fecal suction/slurry suction hose, 360° rotating boom, 8-inch discharge outlet.
Safety protection: Anti-overflow valve, vacuum pressure gauge, preventing over-suction or system over-pressure.
Accessory devices: Hand-washing device, sight window. High-quality sanitation trucks for sale now!
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Vacuum sewage suction Truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Sewage Tanker | Capacity | 5m³ 8m³ 10m³ 15m³ 20m³ |
| Cylindrical type | Material | Q235 high tension steel, 5mm Tank body and End Plate. |
| Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle lifting. |
| Rear Door | Hydraulic controlled with sewage drain pipe | |
| Pump | High Efficiency Original China brand Model water cooling Vacuum Suction Pump or vacuum pump | |
| Pump System | 100mmΦ suction pipe, suction time ≤5min | |
| Effective suction range≥8 meters | ||
| Max vacuum degree ≤15 Kpa, dump angle ≥45 | ||
| Vacuum Pressure | -0.093Mpa | |
| Sewage Pipe | 10 meters Rubber Pipe (one unit pipe) | |
| Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device | |
Fecal suction trucks by the leading special vehicle manufacturers are equipped with 360° rotating booms, enhancing suction/discharge efficiency and flexibility to achieve full-range operation.

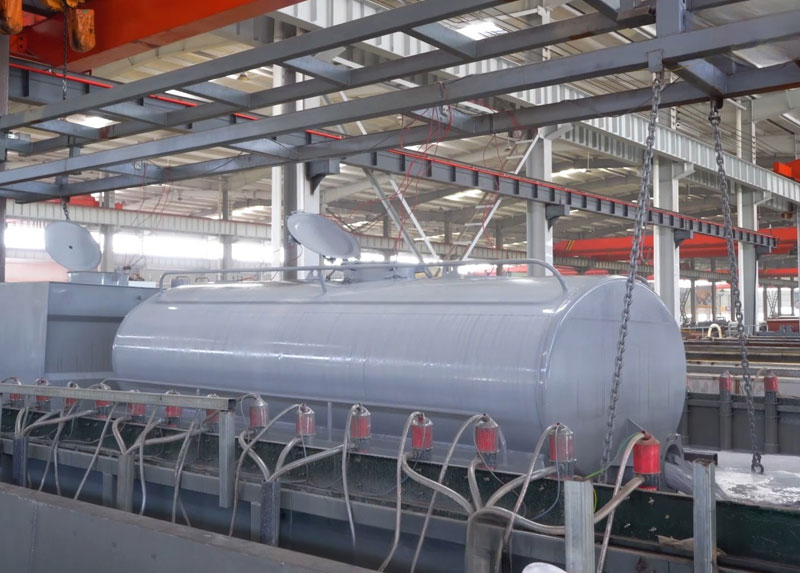

The tank is treated with an electrophoresis process to ensure superior corrosion resistance, extending service life.
Diverse customization options are available, such as installing water cannon sprinklers, rear sprinklers, mist cannons, etc., to meet diverse operational requirements.
