The core technology of the crane truck lies in its crane system: a high-power hydraulic-driven boom (straight/knuckle boom) enables flexible extension/retraction, while a 360° precision rotation device achieves multi-angle coverage. The intelligent control panel combined with stabilizing outriggers ensures efficient integrated lifting and transport operations. Safety valves, limit switches, and load monitoring systems provide real-time protection throughout operations, balancing power and precision.
| SPECIFICATION | |
| Truck Specification | |
| Product Name | Crane truck |
| Chassis Specification | |
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei |
| Transmission brand | Fast, ZF, Manual/ATM |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin |
| Upper body specification | |
| Crane Brand | XCMG, Sany Palfiger, Changxing, Hongchang Tianma, Shimei, Hercules, Fuman, Best crane |
| Max. lifting capacity | 2-25ton |

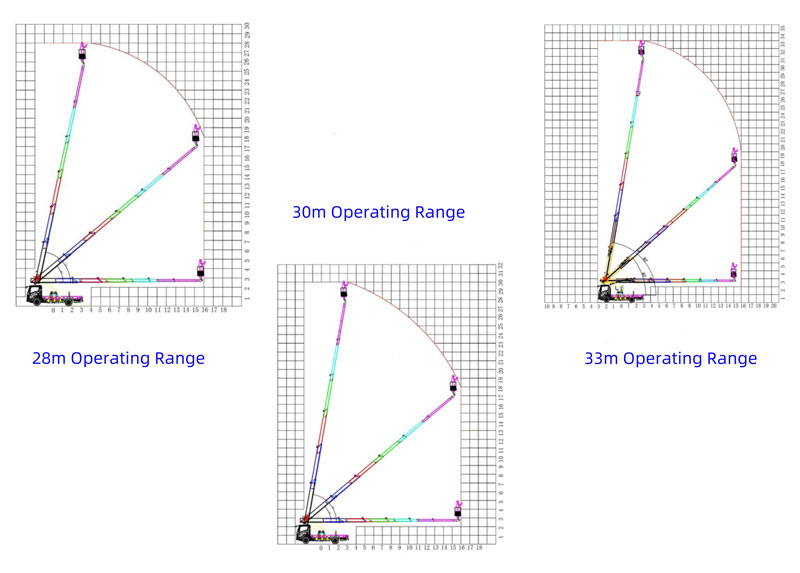

| Max. working height | 6-26m |
| Boom sections | 2-7sections |
| Type of Crane | Floding boom/Telescopic boom |
| Rotation angle | 360° all rotation |
| Cargo box material | Carbon steel |
| Cargo box Thickness | bottom: 3mm, side: 1.5mm |
| Rear bumper | Carbon steel |
| Side Under Run | Carbon steel |
| Mud guard / Mud Flap | With mudguard and rubber mud flap |
| Spare Wheel Bracket | 1 piece |
| Light | Electrical system in accordance to GB standard, complete with light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. |
| Painting | 1 Coat of anticorrosive prime, 2 coats of final paint. Colour as request. |

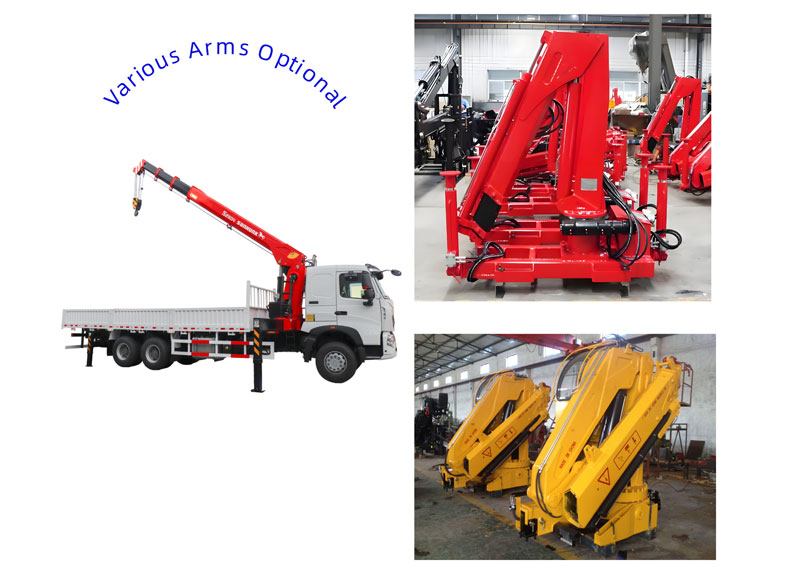

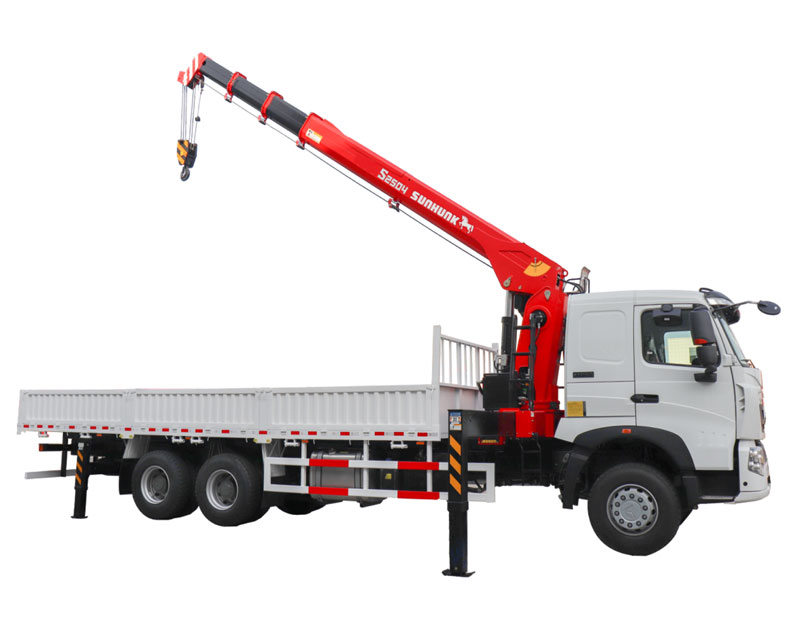

Boom type diversity: Straight booms with vertical extension are suited for high-altitude lifting, while knuckle booms with articulated folding excel in precise handling in confined spaces;
Operation flexibility: Straight booms offer extensive vertical coverage (some exceeding 30 meters), whereas knuckle booms provide wide horizontal operating angles, complemented by 360° rotation for dead-angle-free operation;
Superstructure integration: Hydraulic systems, slewing mechanisms, and outrigger modules are interconnected, intelligent control systems coordinate with multiple safety mechanisms, ensuring highly efficient and stable integrated lifting-transport operations.
