Compression Bin Body: Used for compressing and storing waste; the design emphasizes sealing performance to prevent the spread of waste odor;
Compression Mechanism: Includes components such as compression cylinders and pushing plates, employing physical compression technology to significantly reduce waste volume;
Dumping Mechanism: Facilitates the dumping and collecting of household waste, improving operational efficiency;
Electro-Hydraulic Control System: Enables automated operation of the device, including actions like compression, flipping, and discharge.
| SPECIFICATION | |
| Truck Specification | |
| Product Name | mobile compressed garbage container |
| Main system motor | 5.5-7.5 KW Siemens motor |
| Main system oil pump | Italy imported high pressure gear pump imported |
| Valve group | Italy imported ATOS electromagnetic valve, superimposed hydraulic lock, cartridge overflow valve, etc. |
| Hydraulic system pipeline | 1. Adopt international standard DIN 24° |
| 2. The hard pipe shall be a precise seamless bright pipe (the hard pipe and the pipe joint shall be non welded) | |
| Electric control unit | 1. Siemens PLC |
| 2. The external interface adopts touch screen | |
| 3. Schneider electric components are used for relays, travel switches, etc. | |
| 4. The pressure sensor adopts components customized by Honghui technology from Germany | |
| Air cooling device | The hydraulic oil tank is equipped with Honghui technology's high-efficiency low-noise air cooler to ensure that the system is operating at the set temperature |
| Wireless remote control device | Imported remote control device, which can operate effectively at any angle within 30 meters (this device can be operated according to the user's needs) |
| High pressure filter | Honghui technology high performance filter |

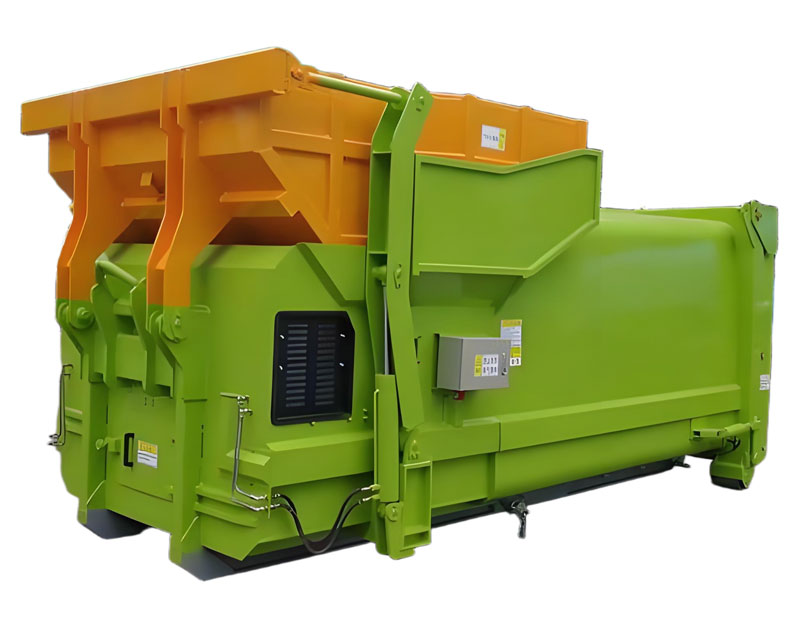

The mobile garbage station is an integrated compression device with compact footprint and aesthetic appearance, featuring characteristics such as high intelligence and low noise.
The equipment supports multiple loading methods, suitable for garbage bins, bagged waste, etc., and is widely used in municipal sanitation, residential areas, hospitals, and other locations.
Its compressor is connected to a hydraulic system, and the sealed design effectively prevents odor and sewage contamination.
It can be operated manually or fully automatically, improving work efficiency and reducing labor intensity for workers.
