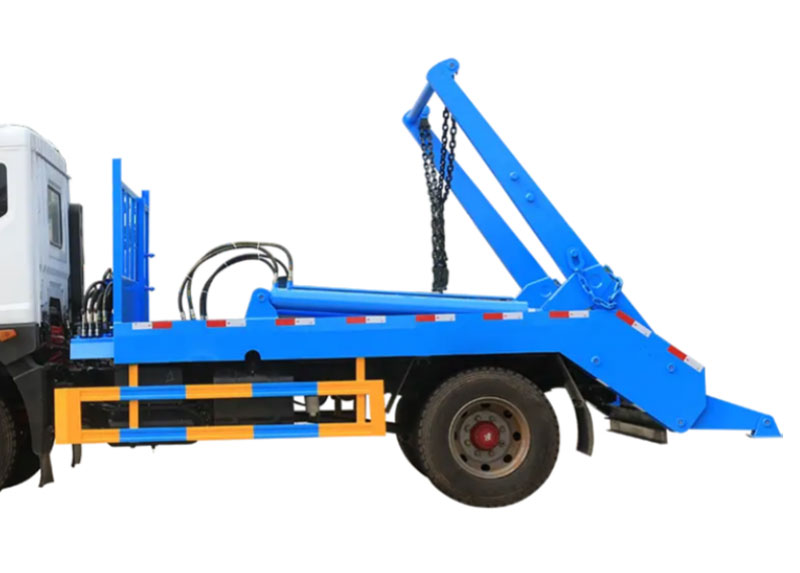

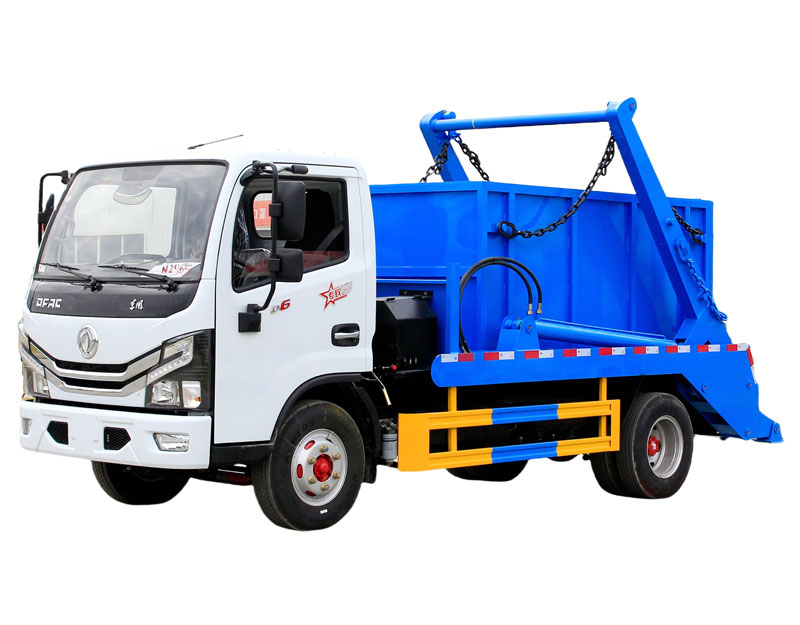

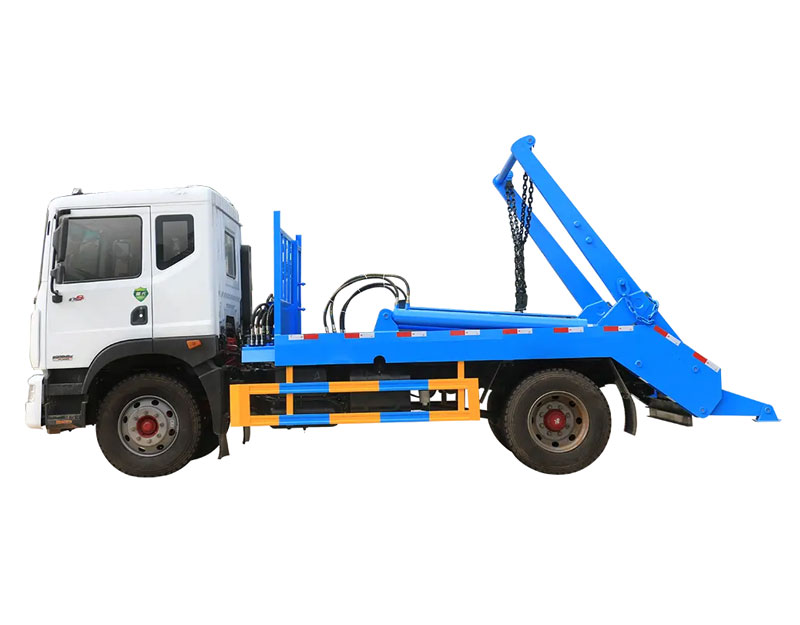

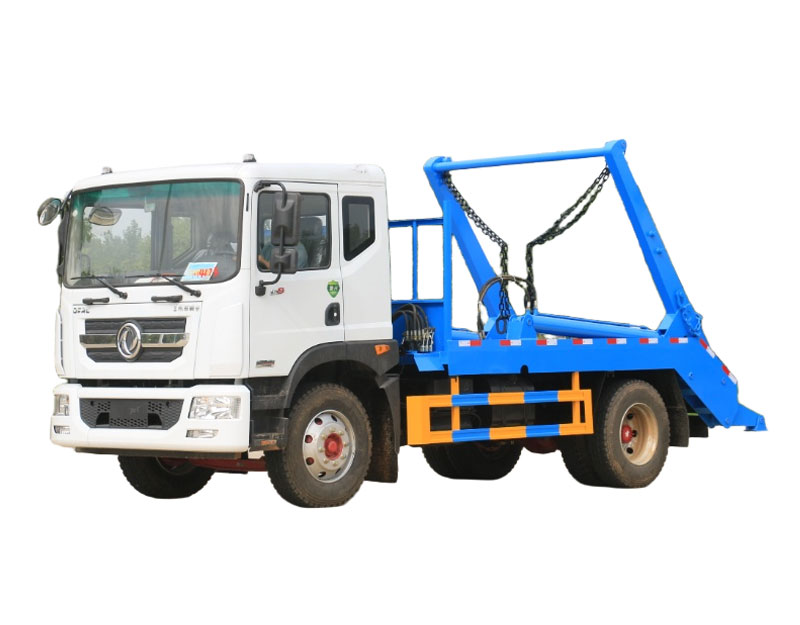

Swing arm garbage truck from the leading garbage truck company is equipped with hydraulic swing arm and alloy steel lifting chains, achieving efficient hoisting/transfer of bins; hydraulic support legs ensure operational stability. Hydraulic system includes multi-directional control valves, cylinders, and large-capacity oil tank, guaranteeing stable hydraulic power output. Optional independent-type refuse container adopts manganese steel frame structure, supporting ground or in-pit installation to facilitate fast and efficient loading/unloading operations.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Skip loader garbage truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC, IVECO, SHACMAN | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Garbage Bin | Capacity | 3m3, 5m3, 6m3, 8m3, 10m3, 12m3, 15m3, 16m3 |
| Tank Material | 5mm Q235 Carbon steel | |
| Function | Equipped with hydraulic lifting cylinders | |
| Equipped with different garbage bins (Pit type garbage bins and ground type garbage bins) | ||
| Equipped with hydraulic automatic operation. | ||
| Equipped with self unloading function, it can be lifted up and down by itself | ||
| It can realize the joint operation of one truck and multiple garbage bins | ||
The hydraulic cylinder converts hydraulic energy from the pump into mechanical energy, driving the swing arm to perform garbage bin lifting, dumping, and other actions, with strong dynamic load-bearing capacity.

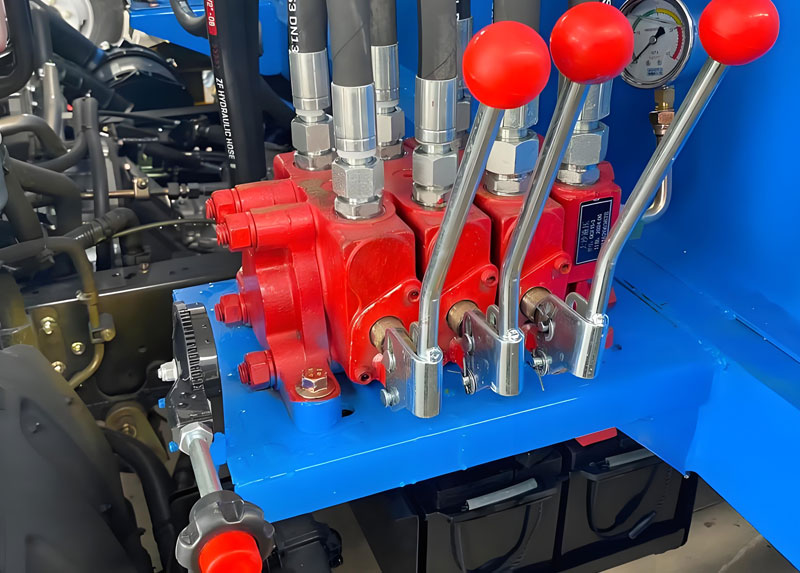

Utilizes multi-way directional control valves for precise activation/deactivation and directional switching, supporting continuous high-intensity operations; chrome-plated cylinder rod surface combined with dust-proof sealing rings extends service life.

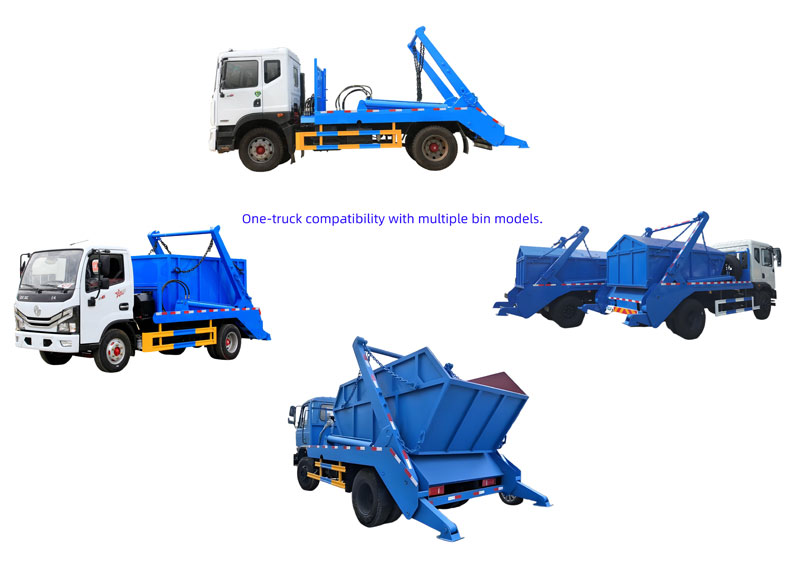

The garbage bin and vehicle body are separate, enabling one truck to coordinate with multiple bins for cyclic transportation, fully enhancing the vehicle’s transport capacity.
