Garbage Loading and Cleaning Mechanisms: Double-layer tank separates solid waste and sewage; hydraulic side-lift/bin flipping; efficient compression with push plate; cleaning device ensures hygiene.
Hydraulic Power System: Hydraulic cylinders drive lifting/dumping; gear oil pump and multi-way valves provide stable high-pressure oil flow.
Sealing and Unloading Mechanisms: Rear-door hydraulic locking prevents leakage; hydraulically controlled self-unloading tailgate supports rapid dumping of waste. Learn more from the special vehicle manufacturers.
Intelligent Control System: PLC control unit integrates electric, manual, and remote operations for automated shovel and scraper control.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Side Loader Garbage Truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Garbage Bin | Capacity | 2m3 to 20m3 |
| Tank Material | 4mm/ 5mm Q235 Carbon steel/ Stainless Steel | |
| Ways of loading | Side bucket lifting system | |
| Control system | One control Panel on the back, one control system in back of cabin | |
| Dispensing system | Equipped with air-tight dustbin, hydraulic system and operating system. | |
| Automatic loading, compressing and discharging, all handled by 1 person. | ||
| Sewage water collection tank to avoid any pollution during handling. | ||
| Large Pressure, Good Leakage Proof, Convenient Operation. | ||
| Dependable Security. | ||
| Electrical Control Panel for compacting system. | ||
| Cycling time<14~18s | ||
The cleaning device is equipped with renowned brand cleaning machines, water tanks, reels, and spray guns to ensure efficient cleaning;

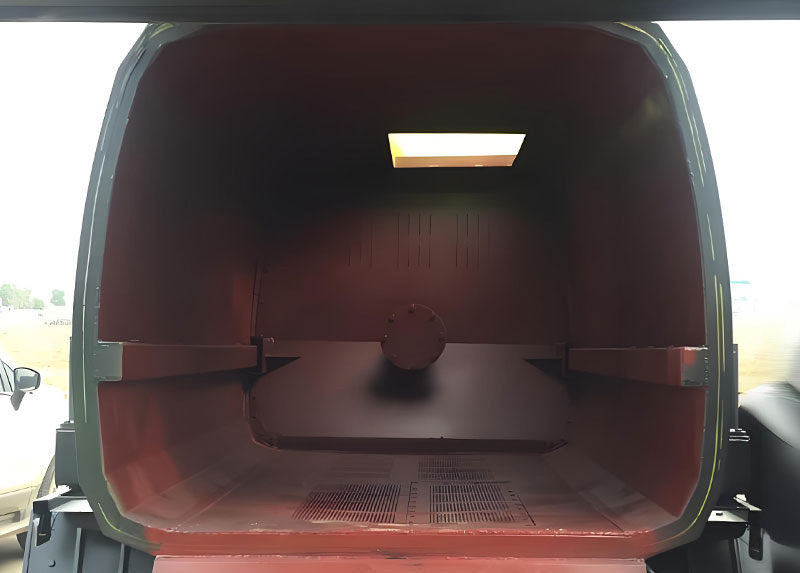

The tank of the truck from the professional garbage truck company, available in round or square configurations, features an upper layer for compressing and storing solid waste and a lower wastewater tank to collect and separate liquids, with a drain outlet at the bottom to ensure complete drainage;

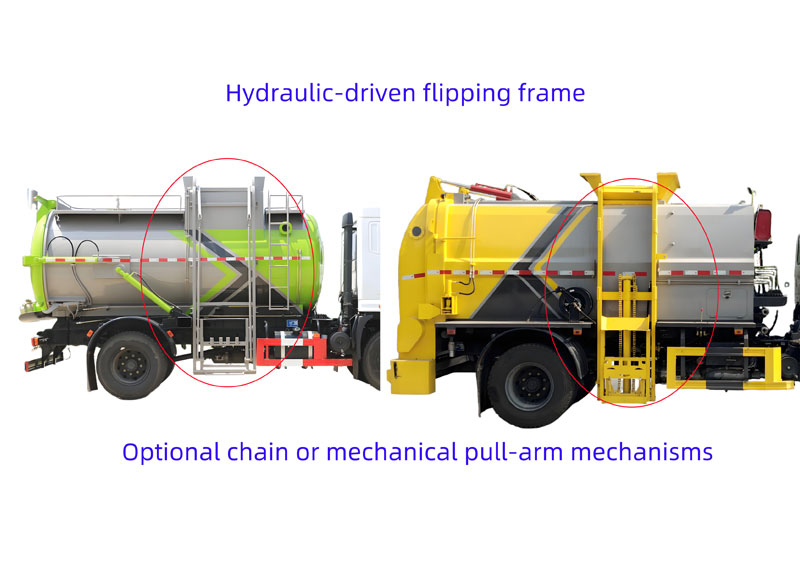

The hydraulic-driven flipping frame enables rapid dumping of barrel waste, supports both chain and mechanical pull-arm methods, enhancing operational efficiency and flexibility.
