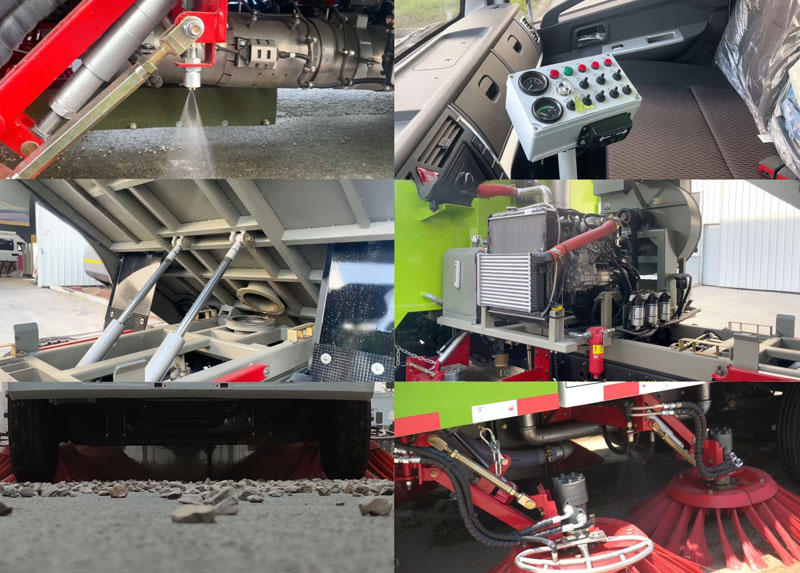

Power Module: Auxiliary engine, fan system
Sweeping System: Center-mounted four-sweeping discs, rear suction nozzle, side brushes/roller brushes
Tank System: Fully stainless steel garbage tank + clean water tank
Control Unit: Lifting cylinder, hydraulic system (sweeping disc lifting/extension), sensors
Spray Dust Suppression: Annular water spray rack + electric diaphragm pump (spray dust suppression)
| SPECIFICATION | |
| Truck Specification | |

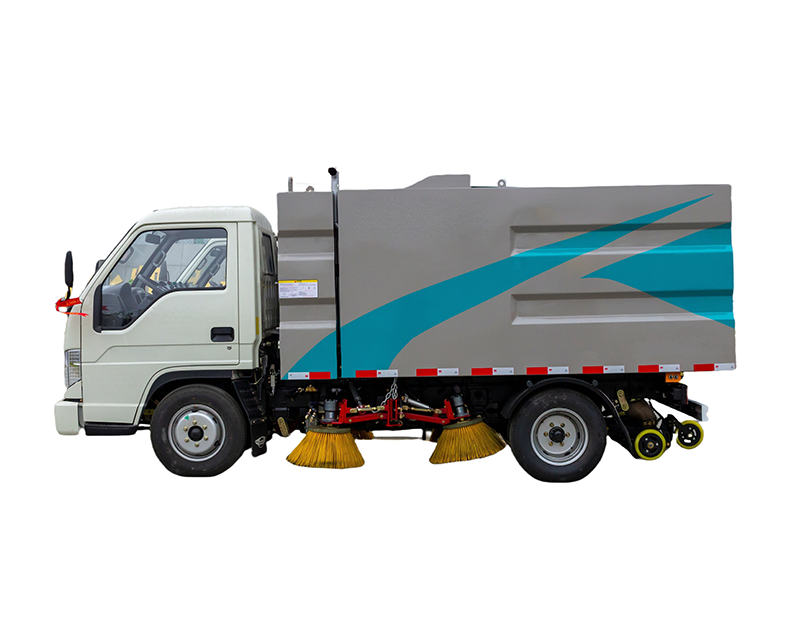

| Product Name | Road sweeper Truck |
| Chassis Specification | |
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei |
| Transmission brand | Fast, ZF, Manual/ ATM |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin |
| Upper body specification | |
| Working Performance | 1. Sweeping efficiency 95%; |
| 2. Max suction size 120mm; | |
| 3. Sweeping width 2.8-3.0m; | |
| 4. Max cleaning capacity 60000 ㎡/h; | |
| 5. Butterfly disc extend size ≥400mm; | |
| 6. Sweeping speed 3-20km/h. | |
| Deputy Engine System | |
| Deputy engine model | ISUZU OR Cummins engine |
| Fuel type | Diesel |
| Tank System | |
Water tank | Material: stainless steel |
| Volume: 1500L-6500 L | |
| Garbage tank | Material: stainless steel |
| Volume: 4000L-16000 L | |

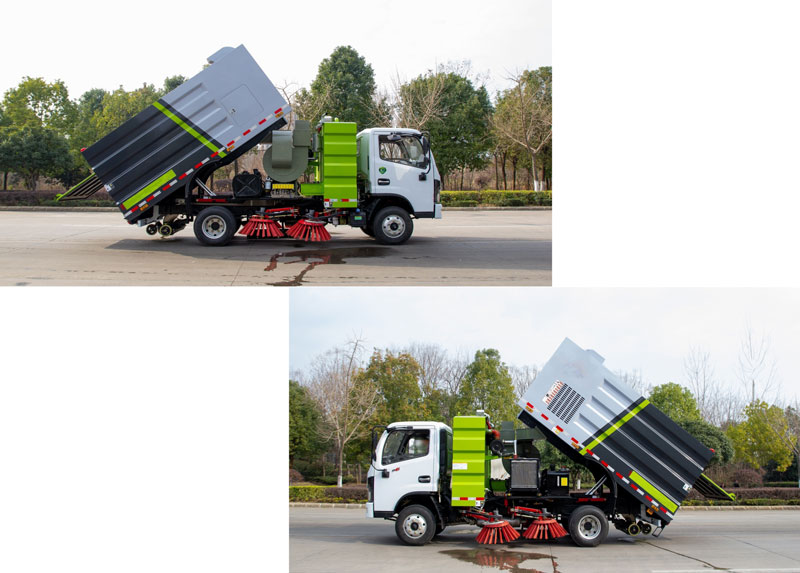

| Discharging door opening angle: ≥45° | |
| Hydraulic System | |
| Type | Electrical control |
| Main components | Gear pump, hydraulic motors, hydraulic cylinders, solenoid valve |
| System pressure | 16Mpa |
| Hydraulic oil tank capacity | 60L |
| Oil temperature | 60℃ |
| Electrical System | |
| Type | DC24V |
| Voltage | 24V |
| Battery | 24V |
| Spraying Water System | |
| Main components | Electric diaphragm pump, water filter, nozzle |
| Sweeping Device System | |
| Type | Centre installation 4pcs sweeping disc, hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response |
| Sweeping disc diameter | 850mm |
| Sweeping disc-angle | Forward 4-6° |
| Outword 4-7° | |
| Sucking Disc System | |
| Type | Single suction, hydraulic control, spring suspension |
| Suction entrance diameter | 200mm |
Core components use domestic and international renowned brands to ensure reliable quality.
Fan optimization design reduces noise by 5%, with auxiliary engine driving the fan and hydraulic system to ensure continuous operation during vehicle movement.

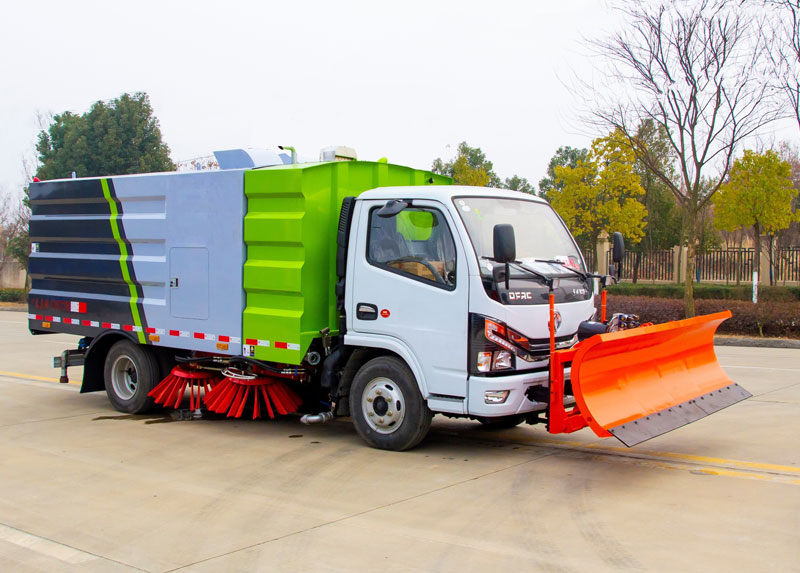

Customized functions (e.g., snowplow attachment) are provided to meet cleaning demands of different cities, improve efficiency, and ensure stable operation.
