LPG storage tanks include above ground storage tanks and underground storage tanks.
The core components of LPG above ground storage tanks include: tank body composed of pressure-resistant steel cylinder and head, saddle supports, manhole cover, liquid/vapor phase inlet/outlet pipes, liquid inlet, liquid discharge port, drain port, lifting lugs, safety valve, vent valve, level gauge, pressure gauge, thermometer, and other safety accessories.
The key components of underground storage tanks include the tank body, liquid inlet, liquid outlet, drain port, vent valve, safety valve, vapor phase balance port, thermometer, level gauge, pressure gauge, and manhole.
| Capacity (m³) | Nominal Diameter (DN) | Designed Pressure (MPa) | Working Pressure (MPa) | Hydro Test Pressure (MPa) | Tank Material | Corrosion Allowance (mm) | Thickness | Weight | Overall Dimensions (mm) | ||
| Shell | Head | Tank Body Weight (kg) | Filling | ||||||||
| 5 | 1600 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 10 | 2030 | 2500 | 3070*1620*2210 |
| 6 | 1600 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 10 | 2022 | 3000 | 3560*1620*2210 |
| 8 | 1600 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 10 | 3025 | 4000 | 4270*1620*2210 |
| 10 | 1600 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 10 | 4029 | 5000 | 5260*1620*2210 |
| 12 | 1800 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 12 | 5033 | 6000 | 5034*1820*2410 |
| 15 | 1800 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 12 | 6039 | 7500 | 6224*1820*2410 |
| 20 | 1800 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 10 | 12 | 7048 | 10000 | 8174*1820*2410 |
| 25 | 2000 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 12 | 6126 | 12500 | 8304*2024*2614 |
| 25 | 2100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 12 | 8059 | 12500 | 7594*2124*2714 |
| 25 | 2200 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 14 | 9060 | 12500 | 7008*2224*2814 |
| 30 | 1900 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 12 | 10070 | 15000 | 1100*1924*2480 |
| 30 | 2100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 12 | 12070 | 15000 | 9200*2126*2600 |
| 32 | 2300 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 14 | 14071 | 16000 | 8158*2324*2914 |
| 35 | 2100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 12 | 16080 | 17500 | 10500*2126*2600 |
| 40 | 2400 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 12 | 14 | 18093 | 20000 | 9270*2428*3018 |
| 50 | 2300 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 14 | 14 | 16127 | 30000 | 12508*2324*2914 |
| 60 | 2700 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 14 | 16 | 18135 | 32500 | 10962*2728*3318 |
| 65 | 2700 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 16 | 16 | 18170 | 40000 | 11832*2728*3318 |
| 80 | 3100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 18 | 18 | 19156 | 42500 | 11166*3132*3722 |
| 85 | 3100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 16 | 18 | 18204 | 50000 | 11966*3132*3695 |
| 100 | 3100 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 16 | 18 | 20410 | 50000 | 13866*3132*3722 |
| 120 | 3400 | 1.77 | ≤1.77 | 2.22 | Q345R | 1 | 18 | 20 | 24960 | 60000 | 13820*3436*4026 |

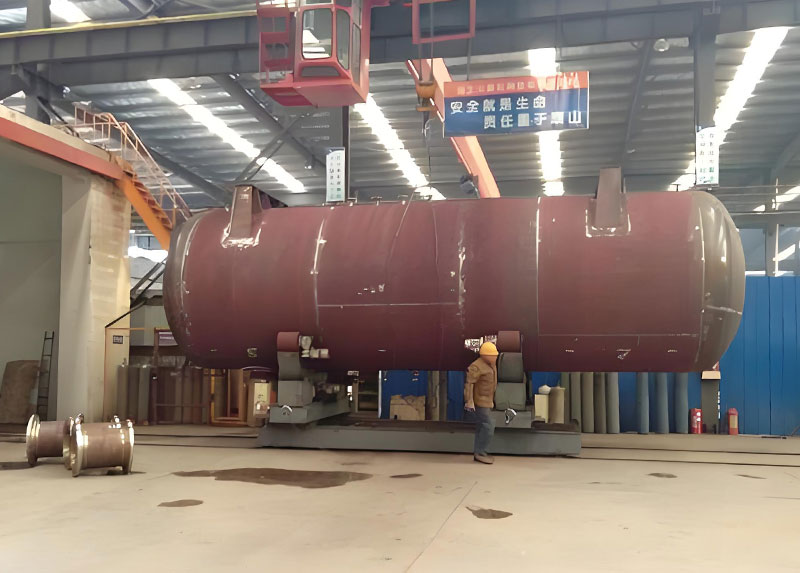

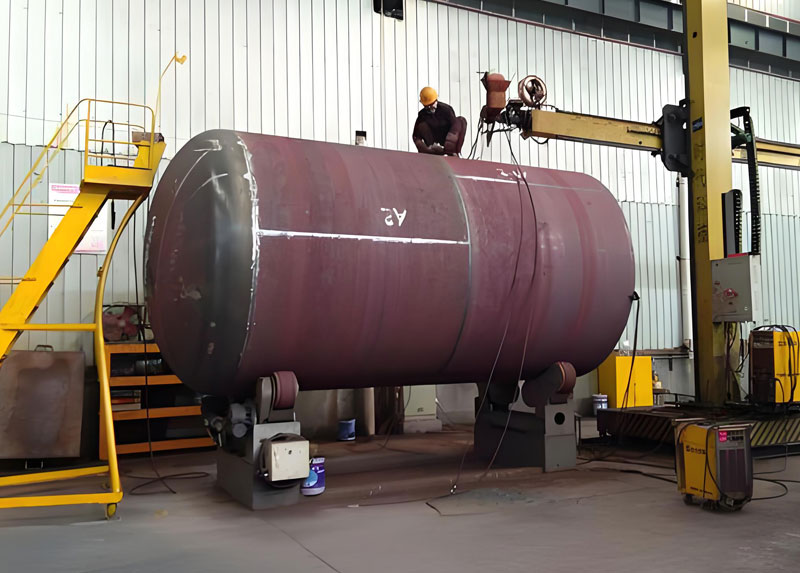

During production, LPG storage tanks undergo strict X-ray inspection to ensure flawless weld quality;

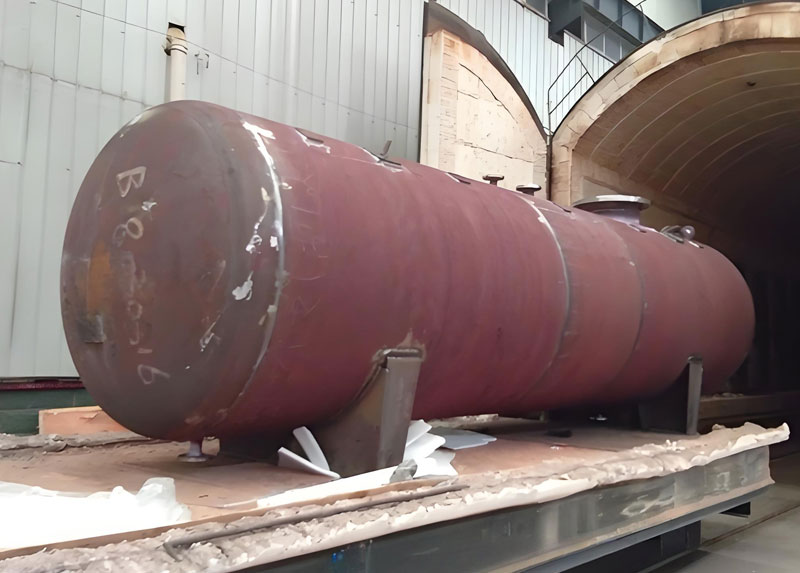

The tank body undergoes heat treatment to effectively enhance its strength and toughness;
The tank body's exterior undergoes grinding treatment to achieve a smooth surface, improving corrosion resistance and wear resistance, ensuring long-term safe and reliable use.
