1. Tank body adopts multi-layer anti-corrosion baking paint with reinforcement ring supports, integrated roof spray device and lightning protection system, showing strong corrosion resistance and weather resistance.
2. External-mounted instruments including level gauge and pressure gauge enable direct-reading data display for real-time safety control.

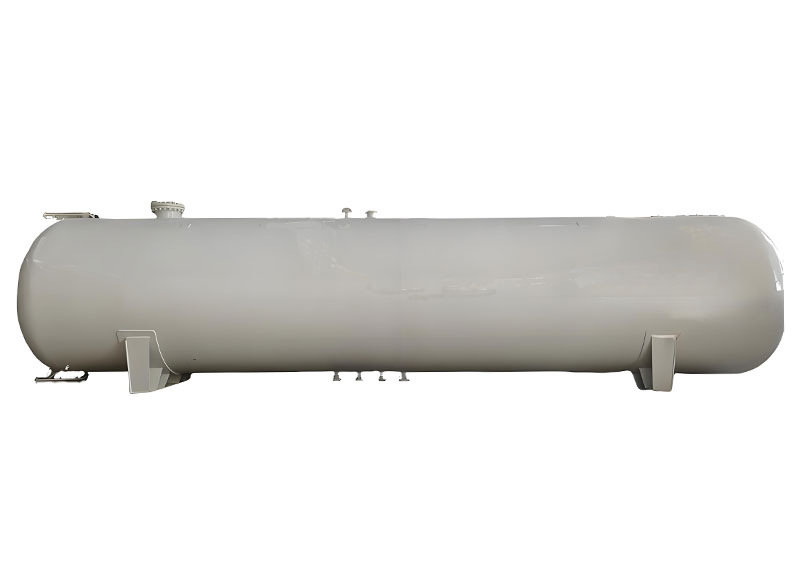

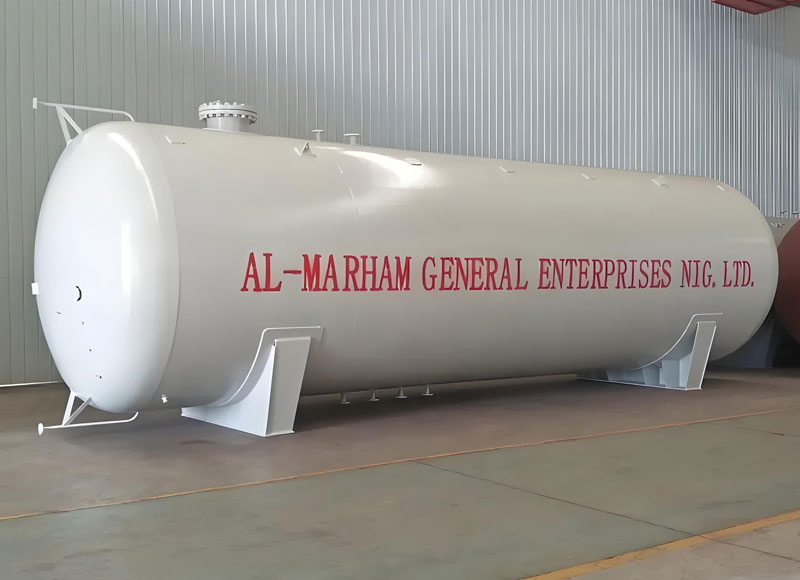

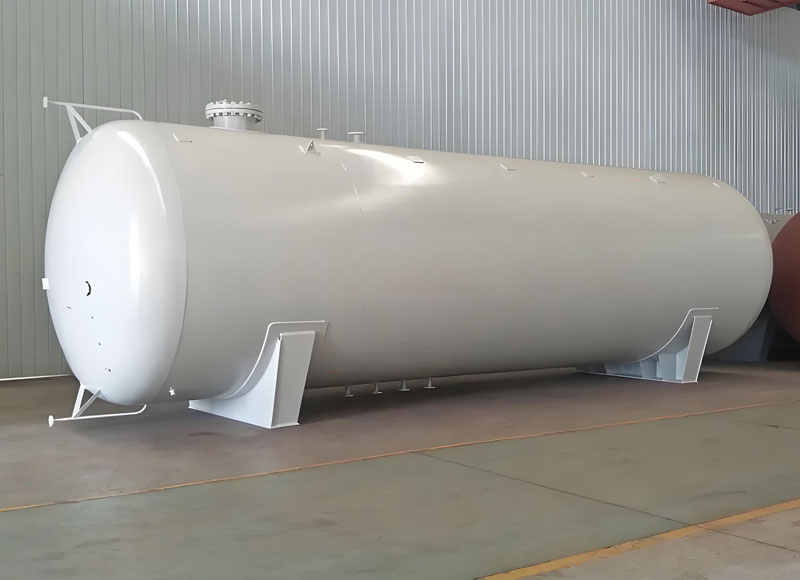

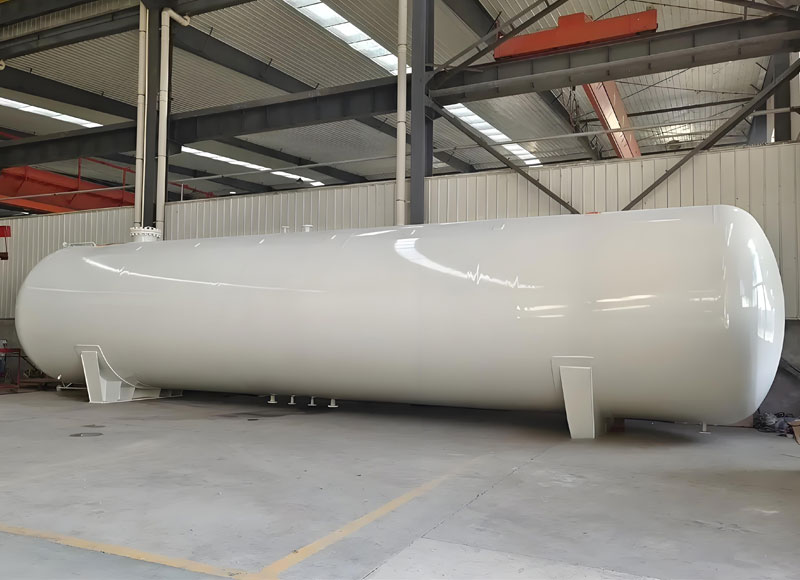

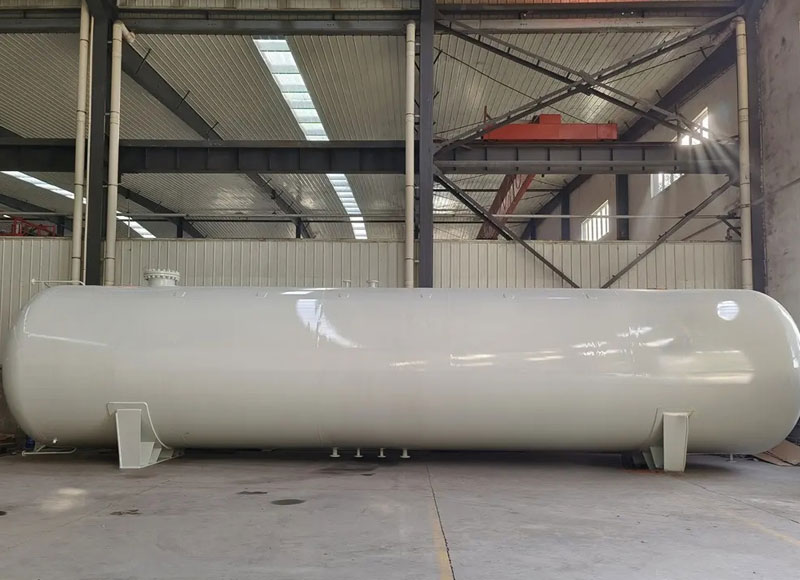

3. Cylindrical tank body with flanged unloading port, support base reserving maintenance access space, meeting quick installation and maintenance requirements.
4. Exposed spray pipeline design handles high-temperature exposure/operates under intense solar radiation, adapts to complex operating conditions.
Specification | |
| Tank Dimension(mm) | 13820×3436×4026 |
| Tank Weight(kg) | 47880 |
| Filling Weight(kg) | 24960 |
| Tank Capacity | 120CMB/120m³/120000 liter/120cubic meter |
| Tank Material | Q345R carbon steel |
| Tank Compartment Qty. | Single-chamber |
| Tank Thickness(mm) | 18 |
| Designed Pressure(MPa) | 1.77 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| Tank Filling Medium | Liquefied petroleum gas (propane) |
| Corrosion Allowance(mm) | 1 |
| Filling Ratio(ton/cbm) | 0.95 |
| Unit Volumetric Filling Capacity (kg/m³) | 420 |
| Head Thickness of LPG Tanks(mm) | 20 |
| Standard configuration | Safety valve, level gauge, liquid inlet, liquid outlet, water filling port, temperature gauge, pressure gauge, vapor phase balance line, return pipe, blowdown port, pneumatic emergency shut-off valve, external tank spray cooling ring pipe. |
| Other Services | Customized LOGO design as per customer needs! |
