1. ISUZU chassis, equipped with a 140-horsepower FAW Xichai engine and 6-speed gearbox, optimized for heavy-duty towing stability.
2. Reinforced heavy-duty structure with a 5mm steel flatbed frame, double sub-frames, and 10mm sliding channel, ensuring exceptional durability.
3. Intelligent hydraulic system with dual linkage control, 40 kN hydraulic winch, and 90 mm cylinder diameter, ensuring precise and powerful rescue operations.
4. Comprehensive safety and convenience with ABS anti-lock braking system, spring brake, front counterweight, and anti-slip accessories (straps/wedges) for safe and efficient rescue.
Chassis | |
| Brand | ISUZU |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 2800 |
| Loading Weight(kg) | 1500 |
| Overall Dimension(mm) | 5995×2300×2320 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 8PR |
| Wheelbase（mm） | 3600 |
| Front/Rear Overhang (mm) | 1115/1280 |
| Front/Rear Track(mm) | 1601/1590 |
| Approach/Departure angle(°) | 14/20 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 110 |
| ABS | Included |
| Transmission | Wanliyang 6-speed (6TS40) |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | FAW Tiger VN (1900mm width, 3-seater) |
| Frame | 180×65×(5+5) High-Strength Beam |
Engine (Other Engine Optional) | |
| Brand | Xichai |
| Model | CA4DB1A14E68 |
| Power(kw) | 100 |
| Horsepower(HP) | 135 |
Upper & Equipment | |
| Max Load Capacity | 5 Tons |
| Hydraulic Cylinders | Telescopic + Lifting (90mm Bore) |
| Fuel Tank | 120L Plastic Tank |
| Flatbed Length (mm) | 5600 |
| Winch System | 40KN Hydraulic Winch (25m Wire Rope) |

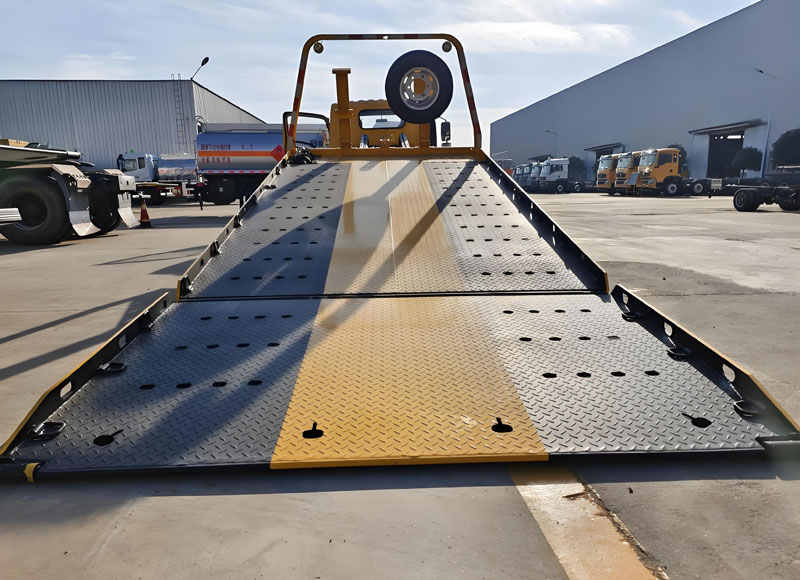

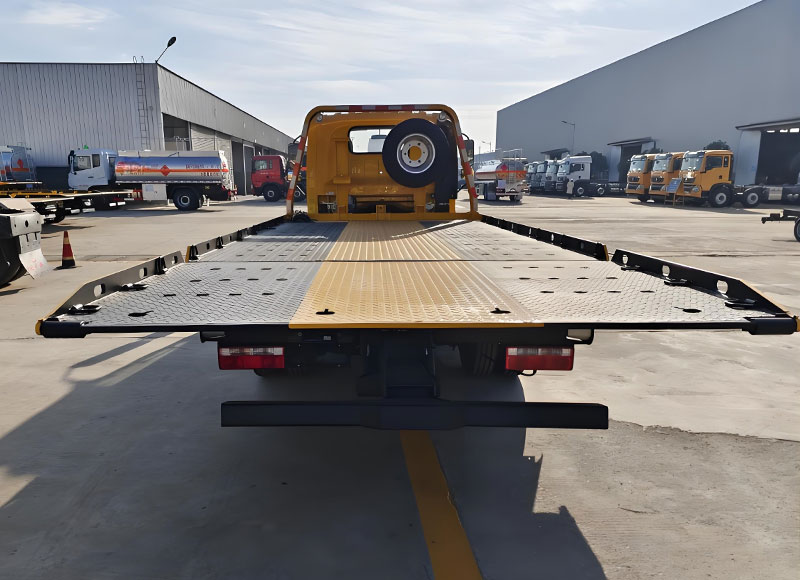

| Flatbed Material | 5mm Anti-Slip Checkered Steel Plate Thin Frame Design, Hydraulic Tilting Tailboard |
| Rear Tow Arm | Optional |
| Towing System | 90mm Bore Lifting Cylinder, Bilateral Linkage Controls |
| Structural Reinforcement | Dual Sub-Frames, 10mm Sliding Channels Iron Mudguards, Front Counterweight |
| Accessories | 4× New-Gen Tie-Down Straps, 2× L-Shaped Tire Holders, 2× Wheel Chocks，1× Chain Hook, 2× Trolleys, Toolbox |
| Remarks | Customized LOGO design as per customer needs! |
