1. The LPG skid station adopts explosion-proof motors and triple safety valve assemblies, integrating gas leakage alarms to achieve intrinsic safety protection.

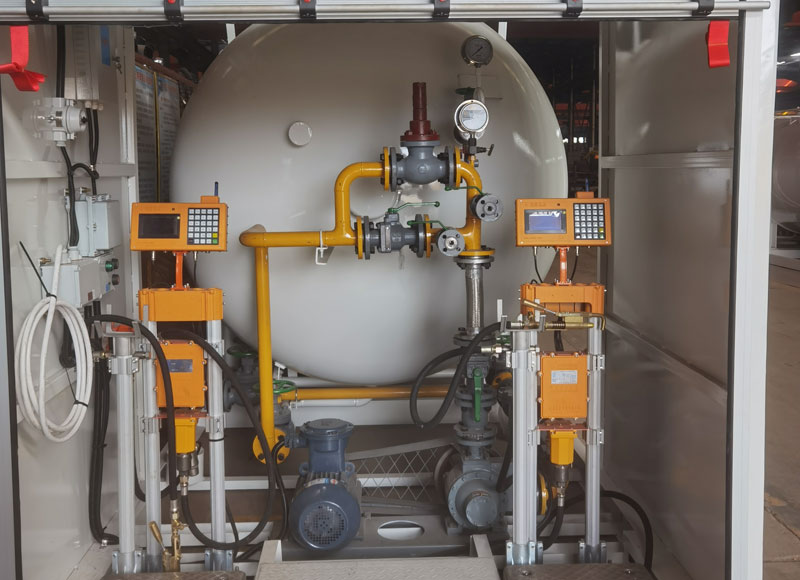

2. Dual gas pumps with high-precision electronic scales form a precise metering system, synchronized with liquid level indicators for closed-loop monitoring of delivery processes.
3. Submerged safety valves collaborate with tank spray systems and shock-absorbing hoses to reinforce modular structural integrity, ensuring damage resistance in extreme conditions.
4. Standardized flange interfaces paired with cylindrical filters and dual-display instrument clusters streamline quick-installation workflows.
Specification | |
| Over Dimension(mm) | 7800×2000×140 |
| Tank Weight(kg) | 5000 |
| Filling Weight(kg) | 7980 |
| Tank Capacity | 20CMB/20m³/20000 liter/20cubic meter |
| Tank Dimension(mm) | 1900×12×9164 |
| Tank Material | Q345R |
| Tank Compartment Qty. | Single-chamber |
| Tank Thickness(mm) | 12 |
| Designed Pressure(MPa) | 1.71 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| Tank Filling Medium | Liquefied petroleum gas (propane) |
| Corrosion Allowance(mm) | 1 |
| Head Thickness of LPG Tanks(mm) | 12 |
| Standard configuration | Two liquefied gas pumps with explosion-proof motors; two electronic scales; explosion-proof magnetic starter; explosion-proof lighting with explosion-proof switches; gas leakage alarm; float-type level gauge with percentage dial; recessed safety valve; pressure gauge; thermometer; safety return valve; check valve; shut-off valve; cylindrical filter; anti-vibration hose; inflation gun hose; sunshade canopy for operation area; tank spray device; flanged unloading port. |
| Other Services | Customized LOGO design of LPG skid station as per customer needs! |

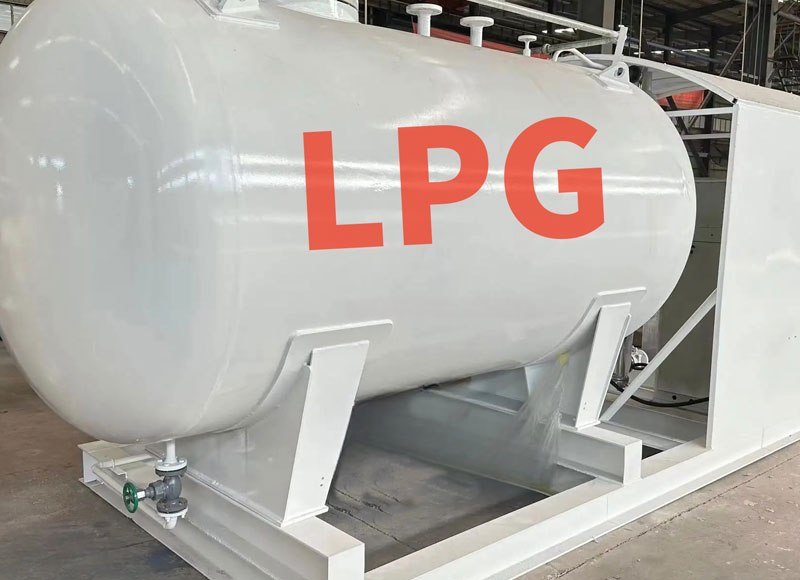

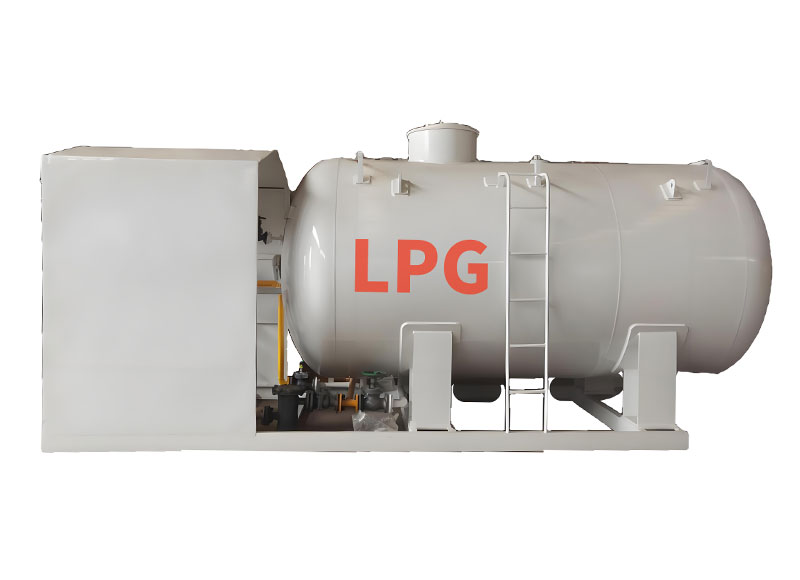

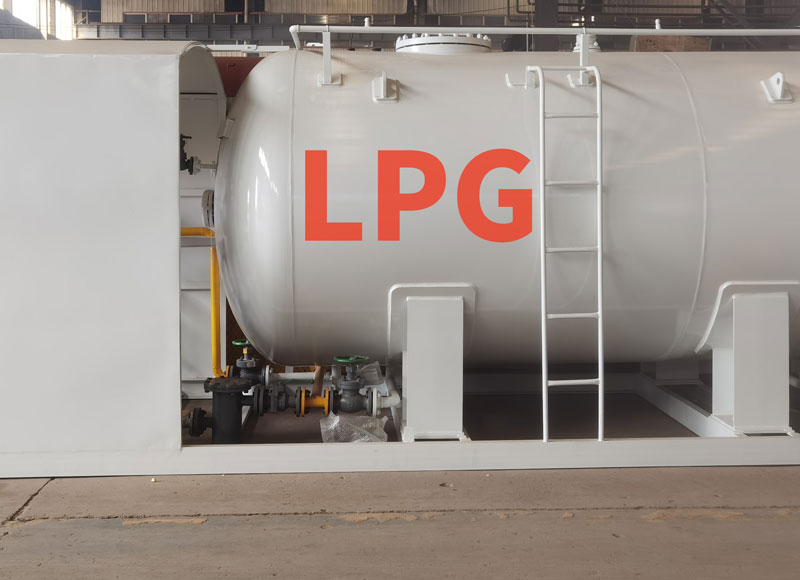

A 20cbm LPG skid station is designed for the storage, transfer, and handling of liquefied petroleum gas (LPG). It is typically used as a compact skid-mounted system for controlled LPG distribution and supply operations.
A standard LPG skid station usually includes a storage tank, pumping system, piping, and safety devices. These components work together to ensure controlled LPG transfer and stable operation.
Yes, the system can be customized based on operational requirements such as tank configuration, pump capacity, and safety system layout to match different LPG handling conditions.
LPG handling in a skid station is managed through a controlled pumping and pressure system. Safety components are integrated to ensure stable transfer, reduce leakage risk, and maintain operational control during use.
It is suitable for LPG storage and distribution operations that require a compact and integrated system for pumping and transfer within controlled industrial environments, often associated with LPG pump skid systems.
