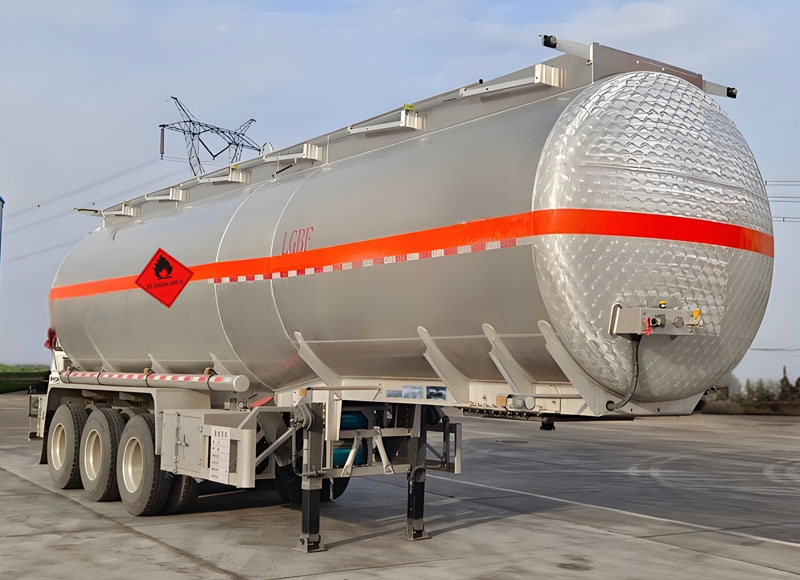

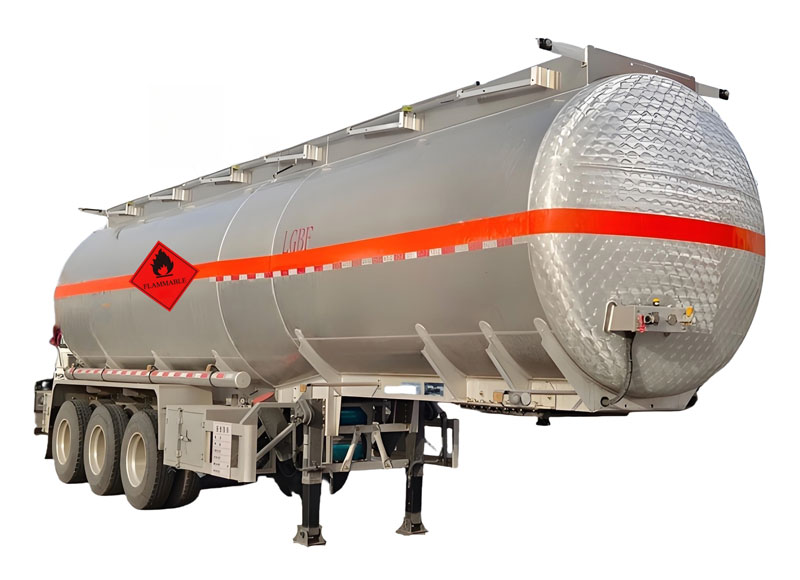

1. The tank body is made of 5182 aluminum alloy material, with a precise design of 8.5mm for the cylinder body and 10mm for the head. Combined with full-welded partitions and reinforcement ribs, the lightweight structure reduces weight.
2. The main welds use double-gun butt welding + automatic welding process. X-ray inspection complies with industry standards. The internal welds are smooth and flat, ensuring the sealing and safety of the medium during transport.
3. The chassis is equipped with a 10-ton Fuhua air suspension + EBS system, 28-ton single-acting legs + 12PR tires, adapted for complex road conditions. The aluminum alloy accessories are corrosion-resistant and free from the risk of oil contamination.
Chassis | |
| Over Dimension(mm) | 11030×2500×3860 |
| Gross Vehicle Weight(kg) | 40000 |
| Curb Weight(kg) | 6800,6380 |
| Loading Weight(kg) | 33200,33620 |
| Tyre Qty. | 12 |
| Tyre Spec. | 11.00R20 12PR,12R22.5 12PR |
| Wheelbase（mm） | 5250+1310+1310 |
| Front/Rear Overhang (mm) | -/1640 |
| Approach/Departure angle(°) | -/18 |
Upper Equipment | |
| Tank Capacity(cbm) | 42.6 |
| Tank Dimension(mm) | Front: 3930×2236, Rear: 5750×2388, |
| Tank Material | 5182 Aluminum alloy |
| Tank Compartment Qty. | Single-chamber , Multi-chamber customizable |
| Tank Filling medium | Methanol, Ethanol, Acetone |
| Tank Body thikness(mm) | 8.5 |
| Tank End Cap(mm) | 10 |
| Safety Valve | 2× Special Tank ports; 1× Aluminum alloy sea bottom value; 1× Voice prompt device; |
| Standard Configuration | 10-ton Fuhua axles with matching air suspension; Equipped with EBS; 50# Towing pin; 1×28-ton single-action support legs; 2×8 kg fire extinguishers; 1×Spare tire rack; 1×Toolbox |
| Other Services | Customized LOGO design as per customer needs! |
