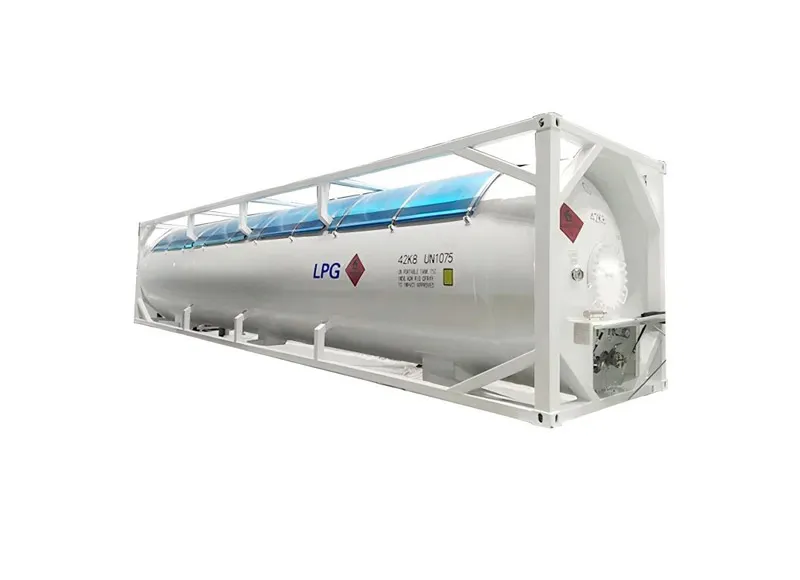

This 40FT T50 ASME ISO tank container provides a 52 m³ nominal tank capacity for LPG or other compatible Class 2 cargoes within the specified pressure range. The pressure vessel is manufactured to ASME VIII Division 1 with U Stamp and uses CCS classification. The tank measures 12192 × 2438 × 2591 mm, with a 1.61 MPa working pressure and a working temperature range from -40°C to 50°C.
| Production standards | ASME VIII-1 with U stamp | |||
| Classification Society | CCS | |||
| Overal Dimension(mm) | 12192×2438×2591 | |||
| Stacking Load(kg) | 20400 | |||
| MPGM(kg) | 36000 | |||
| Empty Weight(kg) | 15600 | |||
| Tank Capacity | 52CMB/52m³ | |||
| Tank Material | SA-612M | |||
| Tank Thickness(mm) | 14 | |||
| Head Thickness (mm) | 16 | |||
| Designed Pressure(MPa) | 1.8 | |||
| Working Pressure (MPa) | 1.61 | |||
| Hydro Test Pressure (MPa) | 2.5 | |||
| Vapor Pressure | ≤1.61MPa@50℃ | |||
| Working Temperature(℃) | -40~50 | |||
| Tank Filling Medium | LPG or other Class 2 within specified pressure range, and which are suitable for tank inside surface. | |||
| Other Services | Customized LOGO design as per customer needs! | |||
This 52 m³ T50 tank is intended for lpg transport projects requiring a 40FT ISO frame, ASME VIII Division 1 with U Stamp and CCS classification. Maximum permissible gross mass is 36,000 kg and empty weight is about 15,600 kg. SA-612M is used for the vessel, with a 14 mm tank thickness and 16 mm head thickness. Design pressure is 1.8 MPa, working pressure is 1.61 MPa and hydrostatic test pressure is 2.5 MPa. These values should be checked together with cargo and route requirements.
