1.Refueling system and auxiliary equipment are integrated; main pipelines and fittings are made of stainless steel or aluminum alloy, with no copper, cadmium, or zinc materials. Fuel-contact bolts are stainless steel or aluminum alloy, self-locking or with heavy-duty spring washers.
2.All parts and materials are brand new, unused, and meet performance, reliability, and environmental standards per national and industry regulations.
3.Operating temperature range: -15°C to +46°C.
4.The tank is equipped with a side-mounted float-type level gauge and a top-mounted electromagnetic level sensor.
5.Dual refueling systems: pressure refueling system and gravity refueling system.

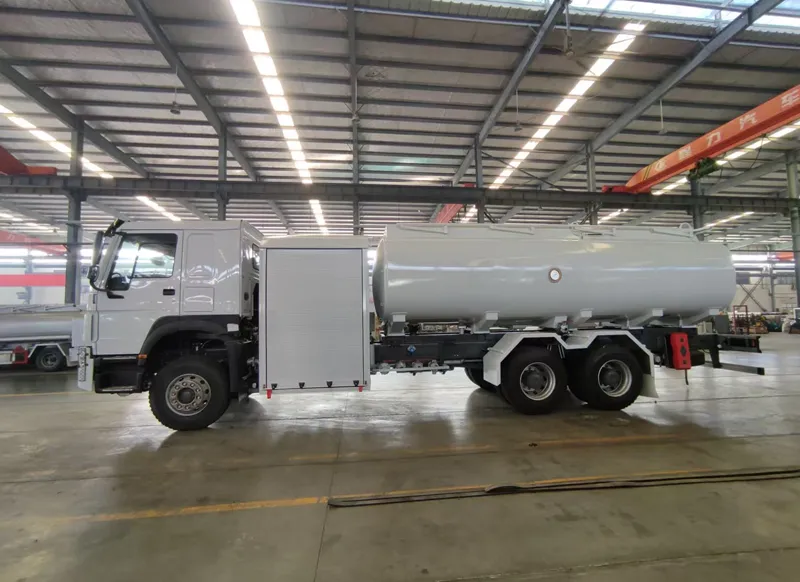

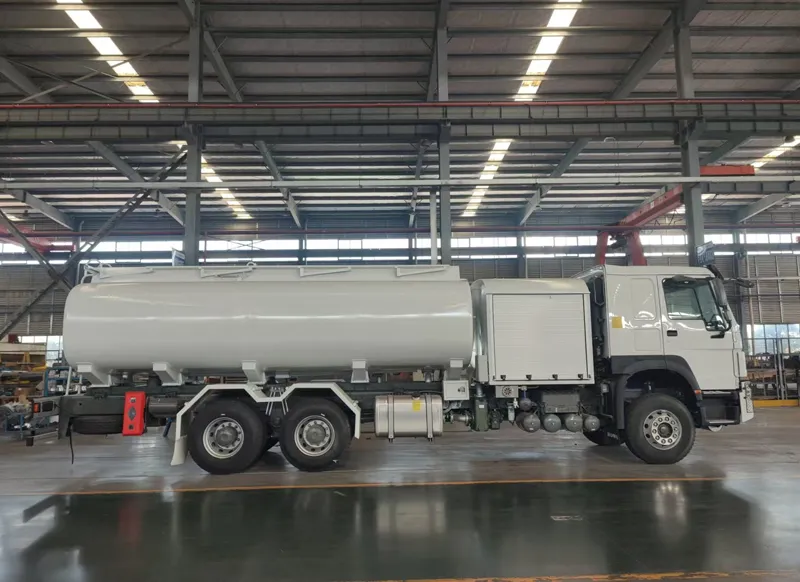

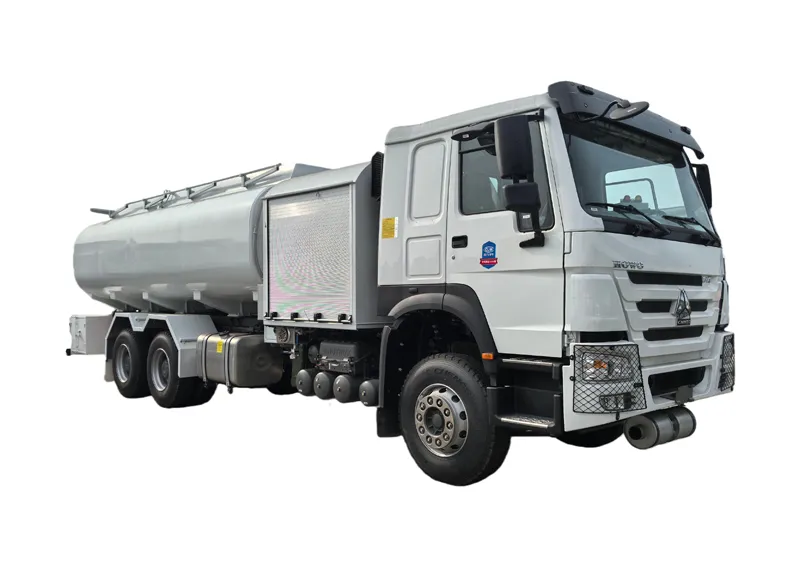

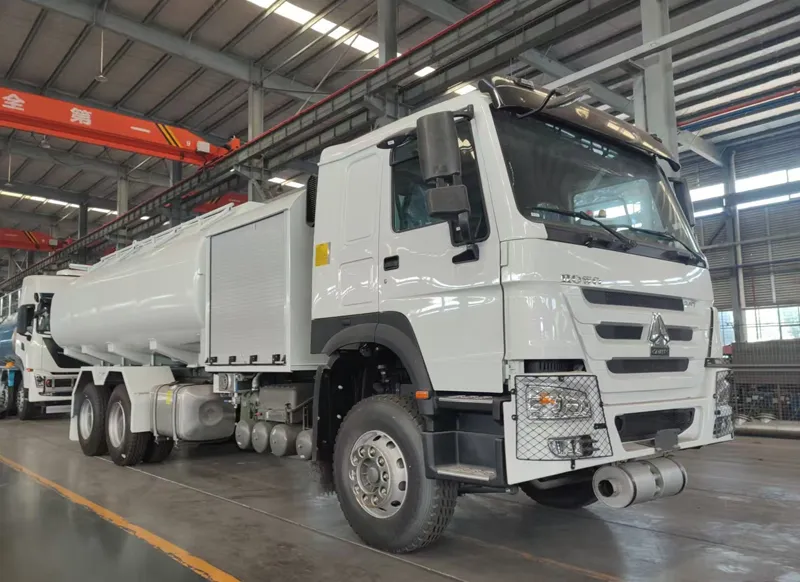

| Model: HOWO 20CBM Aviation Aircraft Tank Refuelling Trucks | |
Chassis | |
| Brand | HOWO, SHACMAN,FAW |
| Drive Type | 6x4 |
| Gross Vehicle Weight(kg) | 36000 |
| Curb Weight(kg) | 12000 |
| Loading Weight(kg) | 24000 |
| Tyre Qty. | 10 |
| Tyre Spec. | 11.00R20 |
| Wheelbase（mm） | 5100+1350 |
| Fuel Type | Diesel |
| ABS | Yes |
| Transmission | Fast 9JS150A |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | It can accommodate three people, With Air conditioner |
Engine | |
| Brand | Weichai |
| Model | WP10.310E53 |
| Horsepower(HP) | 310 |
Upper & Equipment | |
| Tank Filling Medium | Aviation kerosene, aviation gasoline |
| Tank Capacity(cbm) | 20000L/20CBM |
| Tank Material | Aluminium alloy or Stainless steel |
| Tank Thickness(mm) | 5.6 |
| Head Thickness(mm) | 5.7 |
Tank Compartment Qty.(pcs) | 1 |

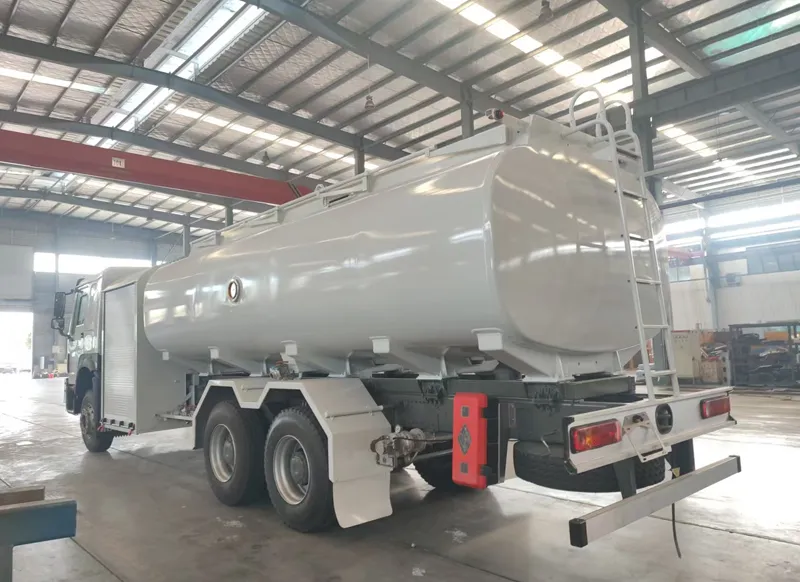

| Climbing Requiremen | Rear ladder |
| Manhole on top tanker | 2 European standard tank |
| Flowmeter | Grade 0.2 accuracy, diameter 50, flow rate of waist wheel |
| Filter separator | Rated flow is 400L/min, the rated working pressure is 1.0MPa, and the maximumallowable differential pressure is 0.15 Mpa. |
| Oil Pump | Branded centrifugal pump, maximum flow rate 1000 L/min, normal working pressure 0.20–0.40 MPa. |

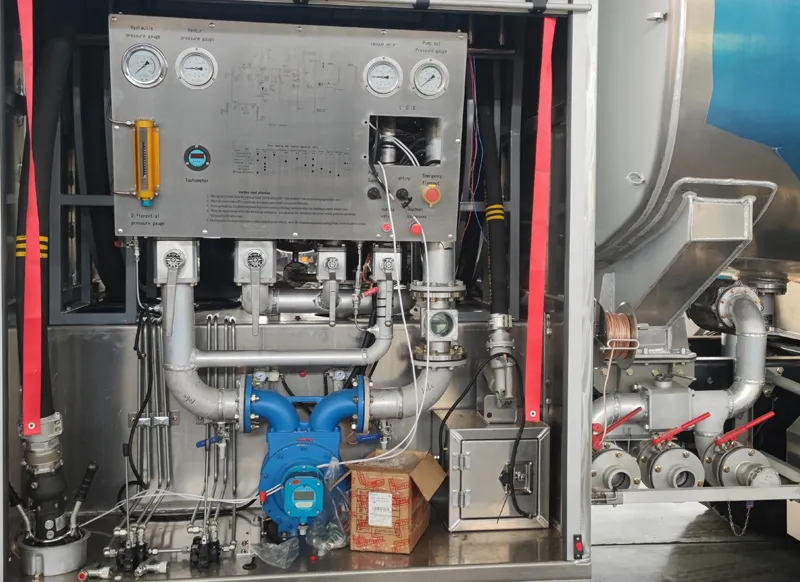

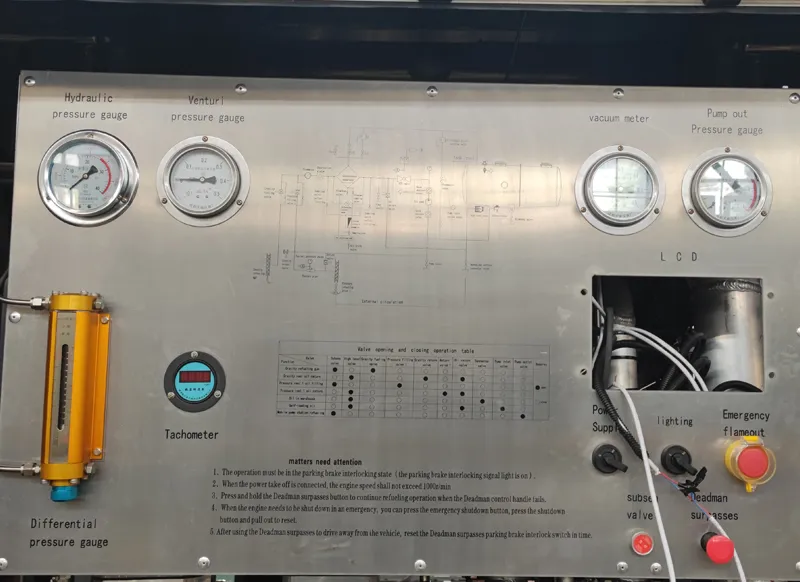

| Filter Separator | Working pressure 1.0 MPa, hydrostatic test pressure 2.0 MPa, equipped with original check valve, automatic air release valve, and safety valve; fitted with sight glass and independently piped to the main tank; includes 0–0.1 MPa piston-type differential pressure gauge. |
| Flow Meter | Accuracy not lower than 0.2%, mechanical or electronic readout, batch total resettable, cumulative total non-resettable, working pressure 1.0 MPa. |
| Refueling System | 1×1.5" 20 m gravity refueling hose with nozzle; 1×2.5" 25 m pressure refueling hose with coupling. Rated flow: 500 L/min (gravity), 1200 L/min (pressure). |
| Deadman System | Included,15 m control cable. |
| Remarks | Customized LOGO design as per customer needs! |
