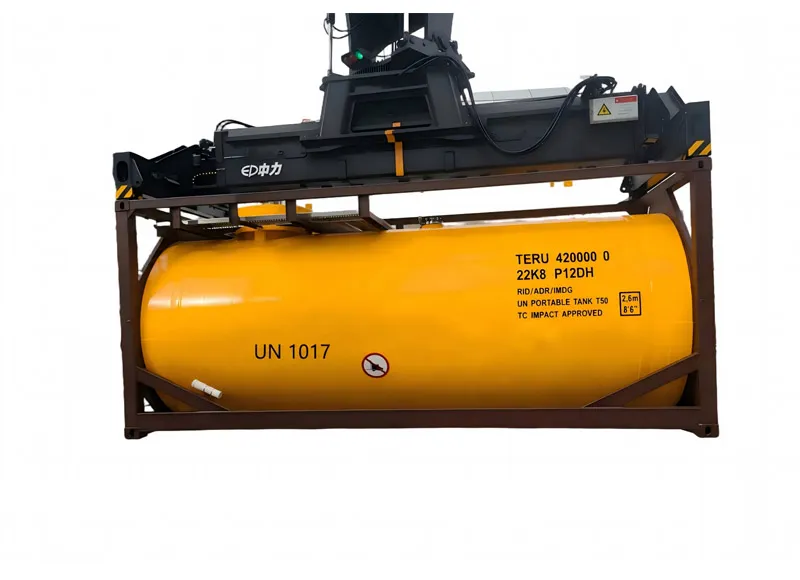

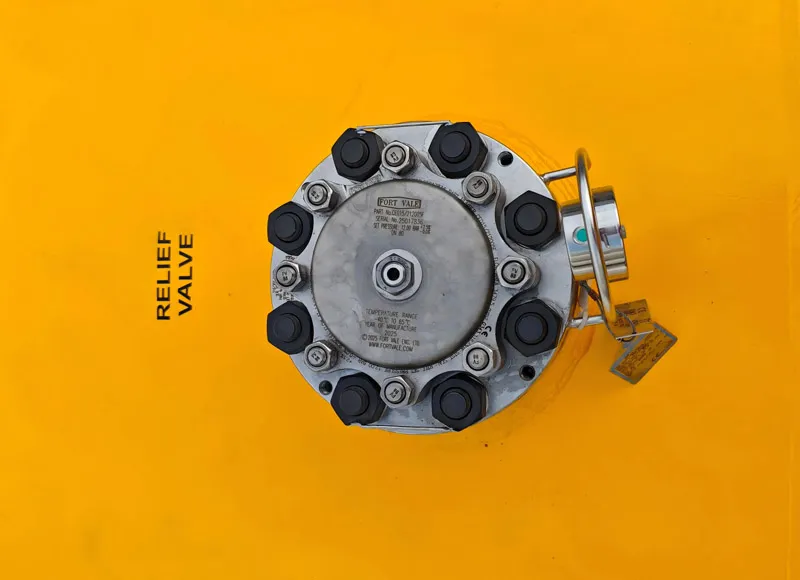

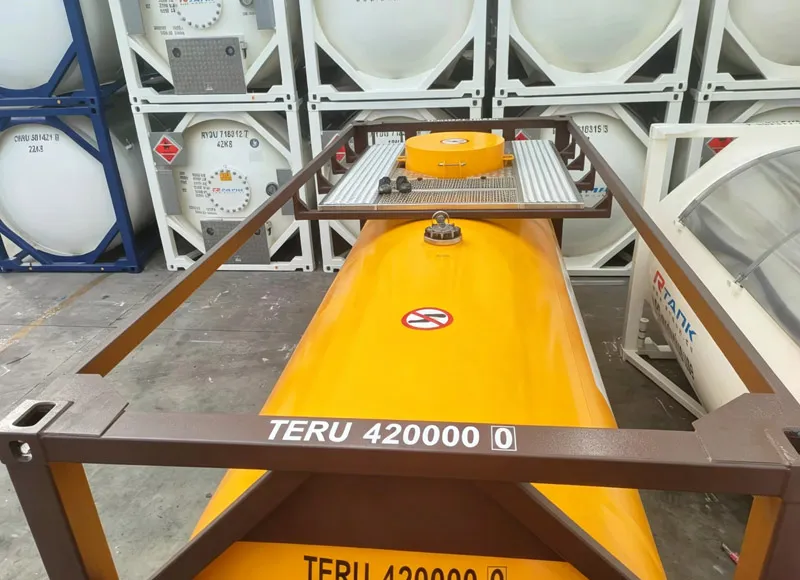

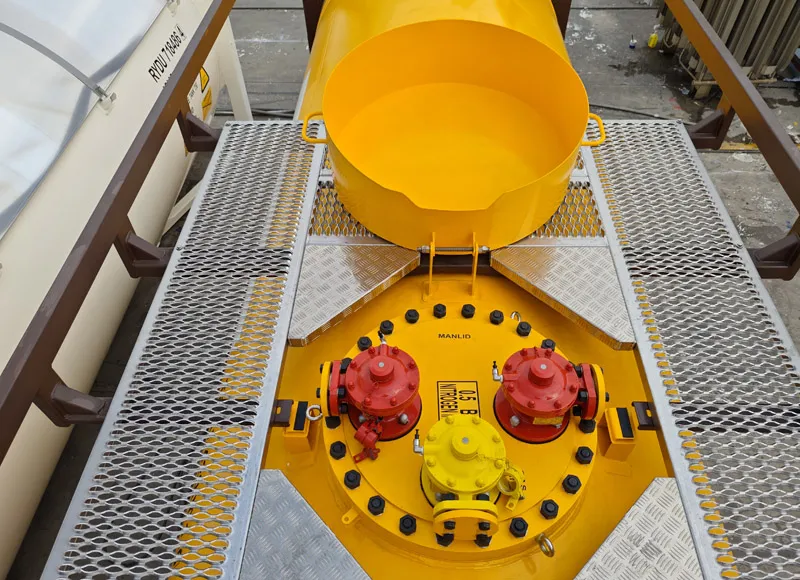

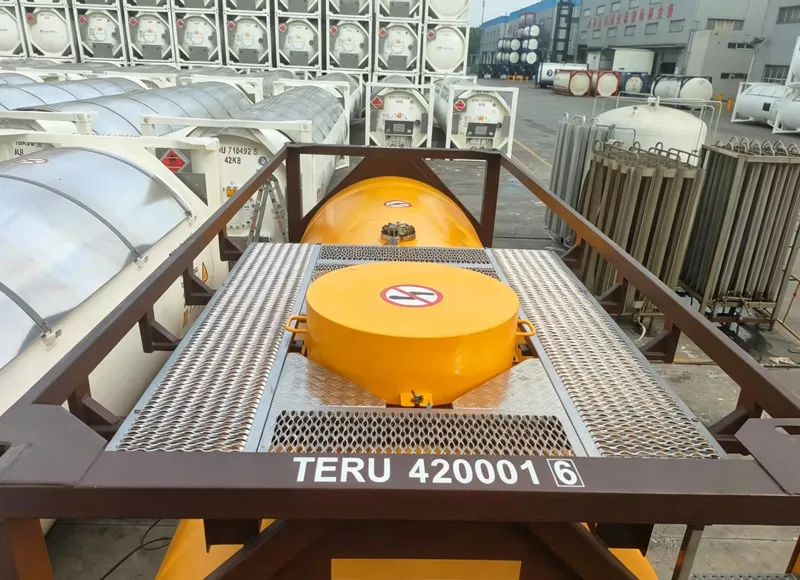

20FT ASME T50 Chlorine ISO Tank LR ABS Certified

Tank Regulations

ASME Code section VIII Div 1 ,2019ED (With ASME U

Stamp)

Frame Regulations

CSC, ISO1496/3(1CC)

General Regulations

IMDG/ADR/RID/US DOT(CFR49)-UN

Portable Tank T50, UIC, TIR, TC

Classification Society

LR or ABS

Capacity(Nominal: -1.5,+2%)

21000 liters

Frame Dimensions

6058 mm long x 2438 mm wide x 2591 mm high

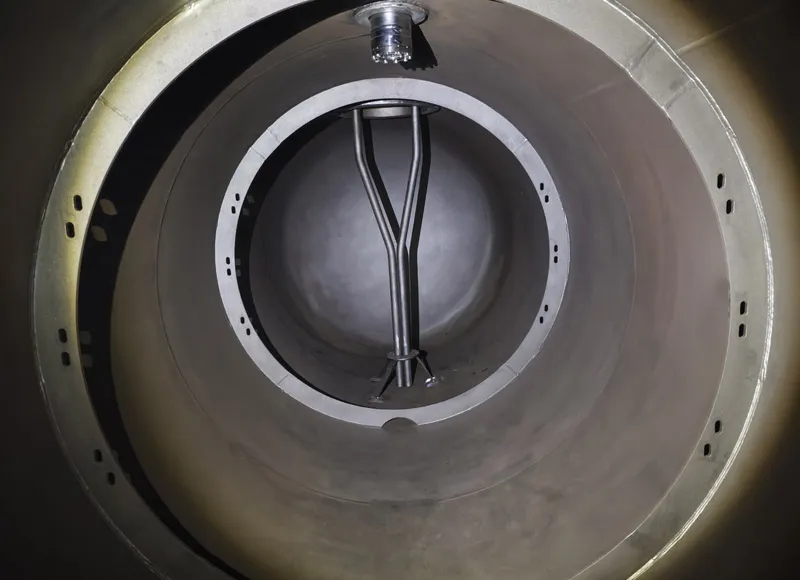

Tank Dimensions

φ2200 mm (I/DA) x5930 mm (L)

Shell Corrosion

2 mm

Increasing thickness(IMDG-TP19)

3mm

Shell Manufacture Thickness

16 mm Nominal

Head Corrosion

2 mm

Increasing thickness(IMDG-TP19)

3 mm

Head Before Forming Thickness

18 mm Nominal

Products

Chlorine (UN 1017)

Tare (Nominal:±3%)

7900 kg / (17415lbs)

Max. Payload

28100 kg / (61950 lbs)

Max. Gross

36000kg / (79365 lbs)

Stacking

9 Stacking weight @24000kg

Tank M.A.W.P

15.0 bar/217.5 psi

Tank Test Pressure

19.5 bar/283.0 psi

Tank External Pressure

1 bar/14.5 psi

Leakage Test Pressure

4 bar/58 psi

Tank Design Temperature

-40℃ to 55℃

MDMT

-40℃

Shell Material

ASME SA612/ SA612M (Normalizing)

Dished Ends Material

ASME SA612/ SA612M (Normalizing)

Frame to Shell Material

ASME SA 516 or equivalent.

Framework Material

SPA-H or equivalent

Corner Castings

To ISO 1161, standard ISO castings

Joint efficiencies

Shell:1.0

Ends:1.0

Nondestructive Examination

Radiography : Shell & Ends: full (100%)

Nozzle to vessel junction D weld joints,100% MT.

Heat Treatment

Post weld heat treatment acc. ASME code.
