1.MAWP 1.8 MPa, hydrostatically tested at 2.48 MPa for high safety.
2.Built with Q420DR vessel-grade steel, 11/12 mm thick with corrosion allowance.
3.ISO dimensions for seamless global intermodal logistics.
4.Supports custom logo and marking for international branding needs.
| Specification | |
| Filling Medium | LPG(Liquefied Petroleum Gas) |
| Size (FT) | 40 |
| Frame External Dimensions (mm) | 12192 × 2438 × 2438 |
| Container Code | 40K8 |
| Capacity (m³) | 44 |
| Filling Density | 420 |
| Tank Tare Weight (kg) | 10150 |
| Allowable Filling Weight(kg) | 18480 |
| Tank Material | Q420DR |
| Design Pressure (MPa) | 1.8/-0.04 |
| Maxallowable Work Pressure (MPa) | 1.8 |
| Hydrostatic Test Pressure (MPa) | 2.48 |
| Weld Joint Efficiency | 1.0 |
| Shell/Head Thickness (mm) | 11/12 |
| Corrosion Allowance (mm) | 1 |
| Design Temperature (℃) | -40~50 |
| Other Services | Customized LOGO design as per customer needs! |

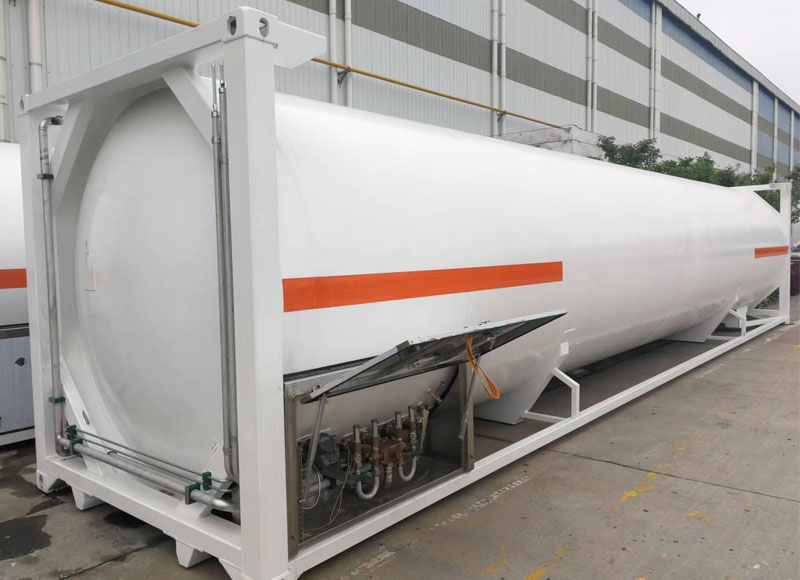

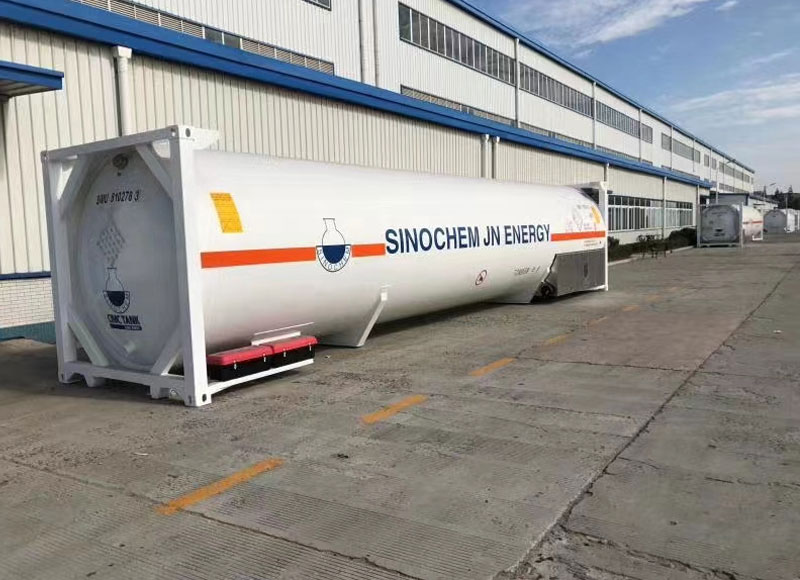

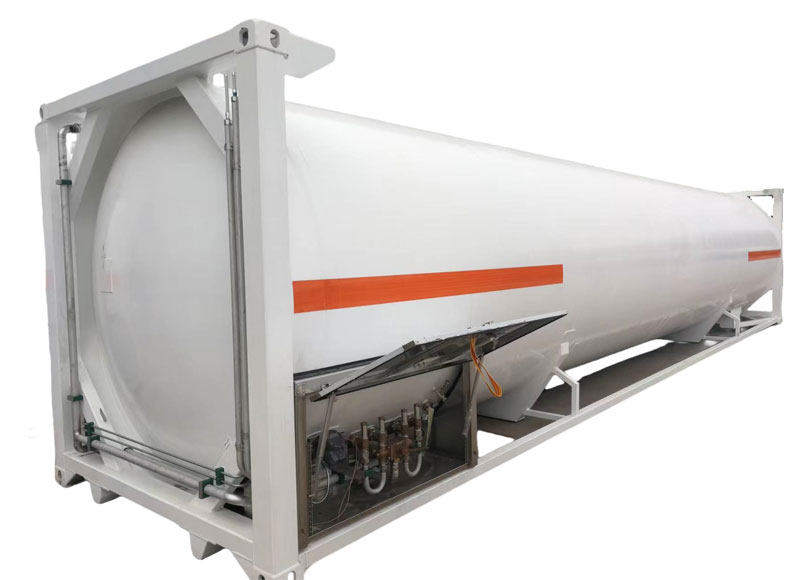

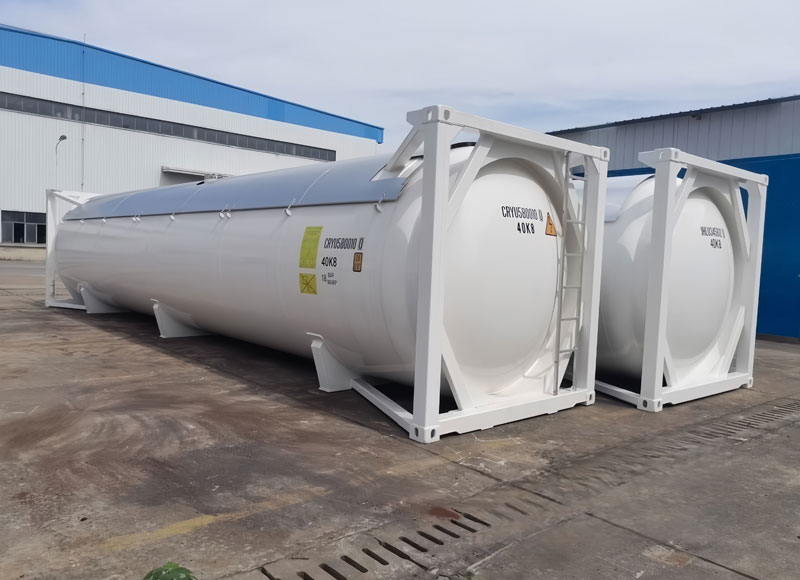

A 40ft LPG ISO tank container is designed for the bulk transportation and storage of liquefied petroleum gas (LPG). It follows iso tank container standards to ensure safe and standardized handling.
Unlike standard containers used for dry cargo, this type includes a pressure vessel inside a reinforced ISO frame, allowing it to safely carry liquefied gas instead of solid goods.
Yes, it is designed for multimodal transport including ship, rail, and road. Its handling and integration are supported by special vehicle manufacturers to ensure safe operation across systems.
Safety is achieved through pressure-rated design, standardized structure, and compliance with international ISO requirements that regulate tank strength and transport conditions.
They are commonly used in gas supply and bulk logistics systems where safe and standardized LPG transport is required.
