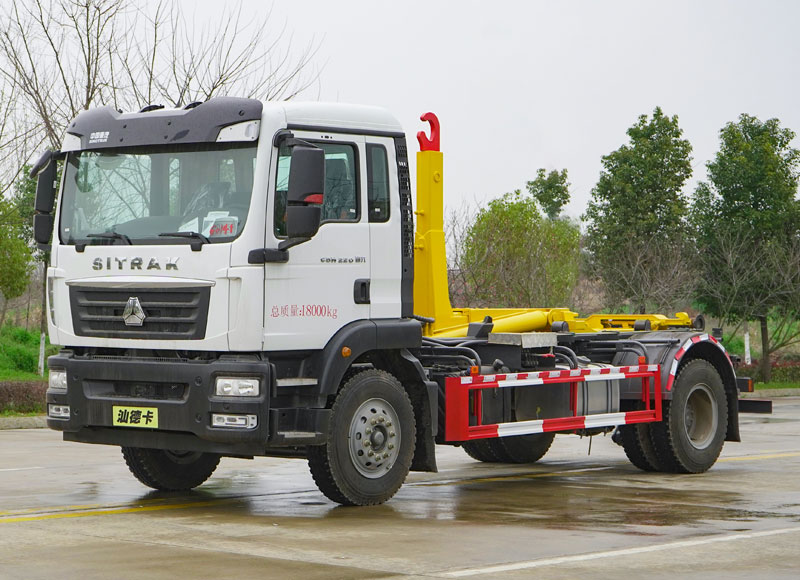

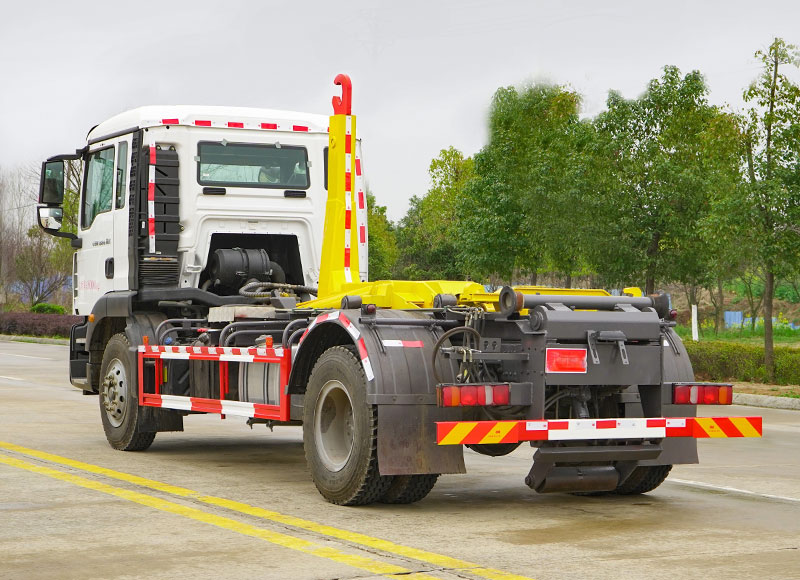

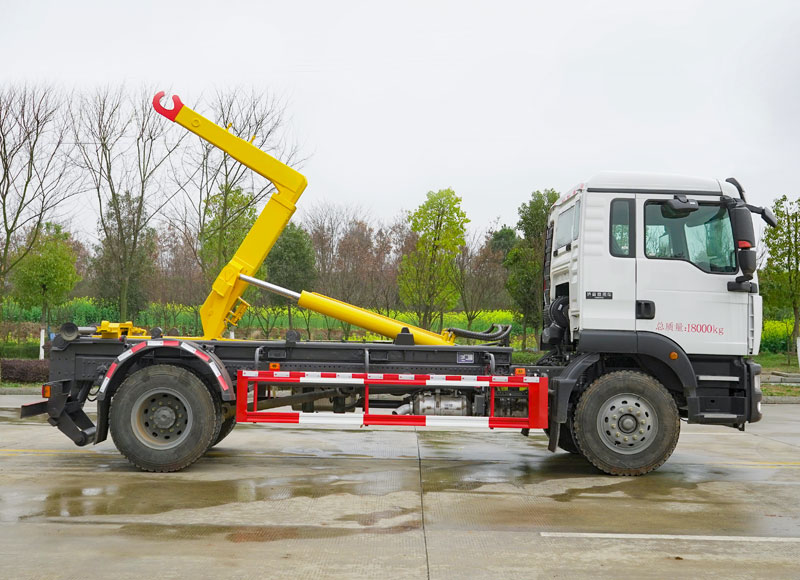

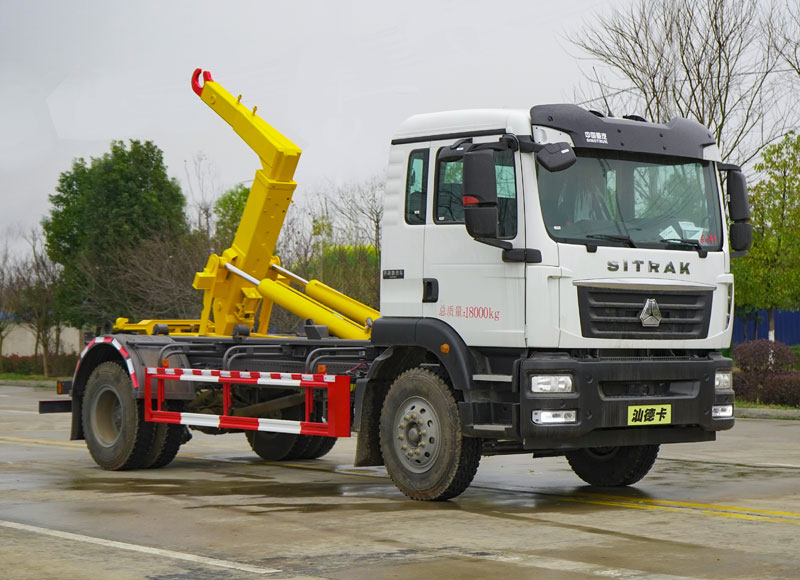

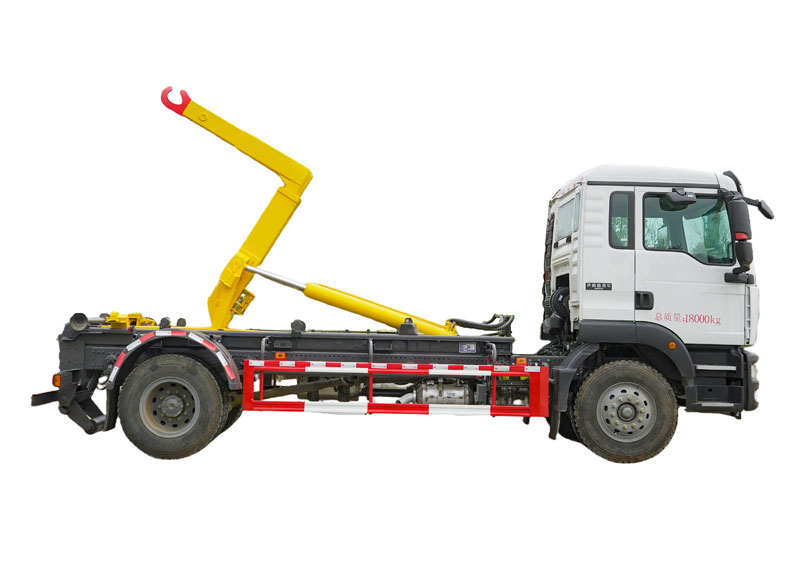

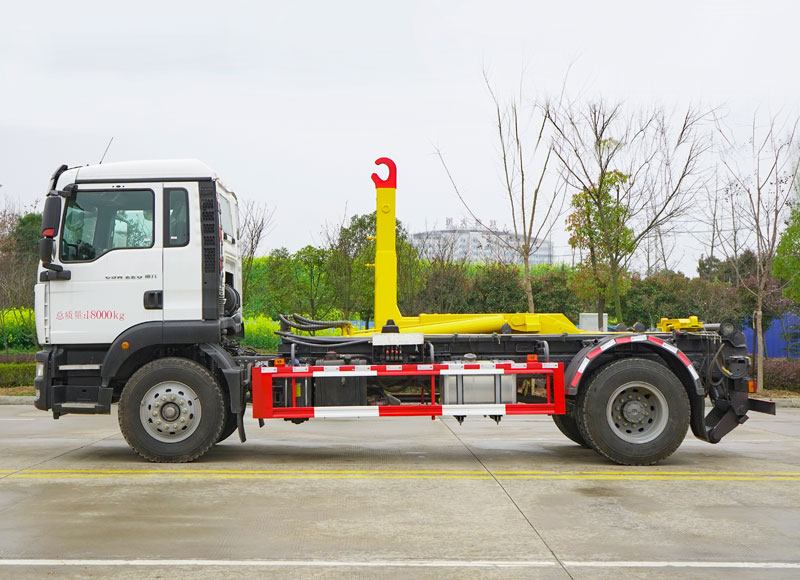

1. The hook arm garbage truck adopts Sitrak chassis, with hydraulic system composed of oil pump, multi-way valve, hydraulic cylinder, oil tank, etc., controlling lifting and dumping actions. Components use imported、domestic renowned brands, high stability with pressure set at 16Mpa.
2. Electrical control system integrates lifting/dumping operation, cabin lighting, and equipment power supply.
3. Dumping mechanism realizes cargo-box tilting via hydraulic drive, with tilting angle automatically controlled by the system.
4. Supports multi-container connection to reduce equipment configuration/space occupation. Optional 3-7m³ waste containers: domestic waste, heavy construction waste, industrial waste (specific type), compressed waste, corrosion-resistant containers.
Chassis | |
| Brand | Sitrak |
| Drive Type | 4×2 |
| Gross Vehicle Weight(kg) | 18000 |
| Curb Weight(kg) | 7880 |
| Loading Weight(kg) | 9990 |
| Overall Dimension(mm) | 7300×2500×3100 |
| Tyre Qty. | 6 |
| Tyre Spec. | 11.00R20 18PR,10.00R20 18PR |
| Wheelbase（mm） | 4500 |
| Front/Rear Overhang (mm) | 1450/1350 |
| Approach/Departure angle(°) | 16/21 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 110 |
| Transmission | 6-speed |
| ABS | Yes |
| Cab | Accommodate 2-3 people,LHD/RHD |
Engine(Other Engines Optional) | |
| Brand | Weichai |
| Model | WP7H220E62 |
| Power(kw) | 162 |
| Horsepower(HP) | 220 |
Upper Equipment | |
| Loading Capacity | 10T |
| Dustbin Material | Anti-corrosive steel |
| Hydraulic System | Import or Chinese top brand muti-way valve and cylinders |
| Control Method | Manual control or remote control |
| Self-discharging Incline Angle(°) | 53 |
| Lifting Time(s) | ≤60 |
| Unloading Time(s) | ≤60 |
| Other Services | Customized LOGO design as per customer needs! |
