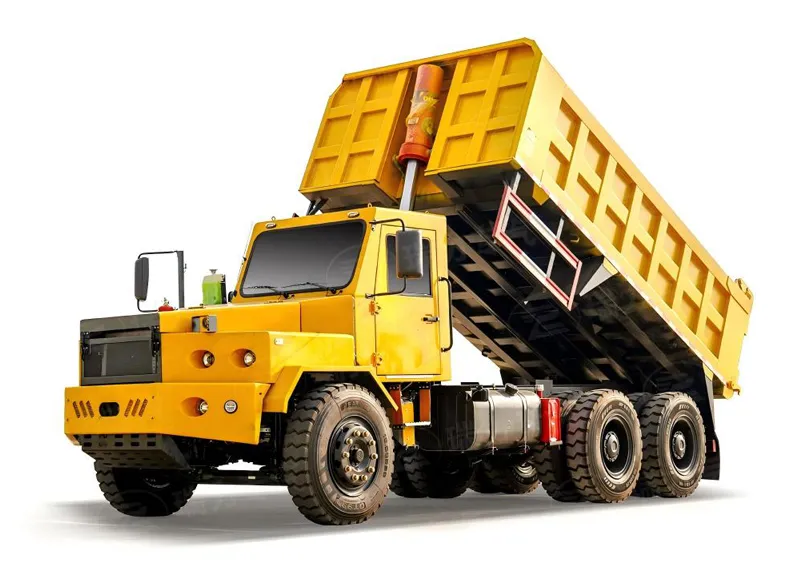

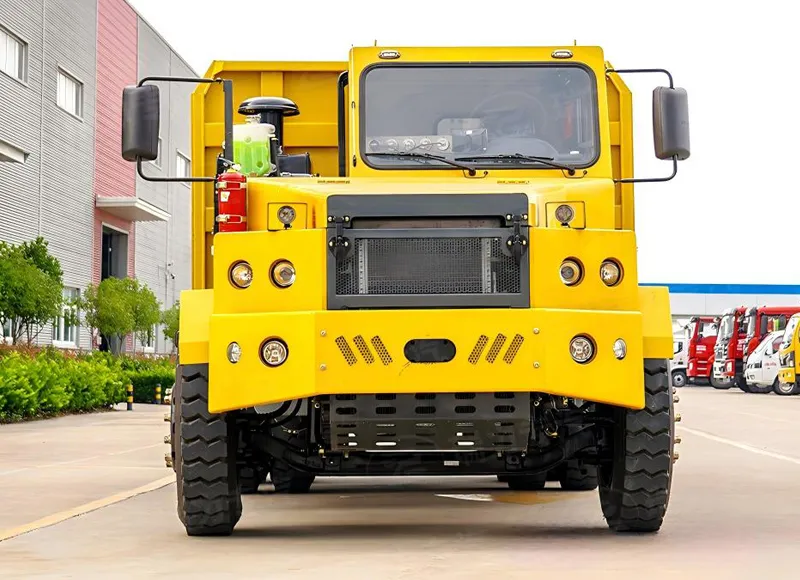

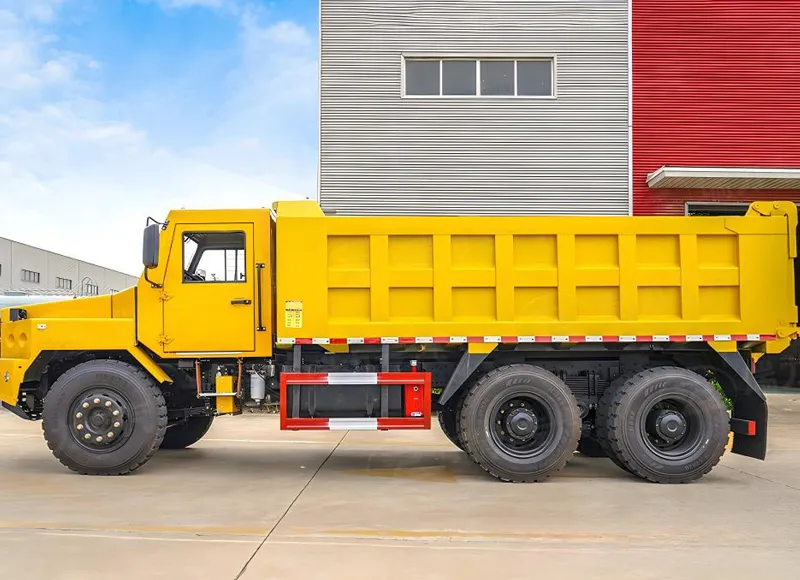

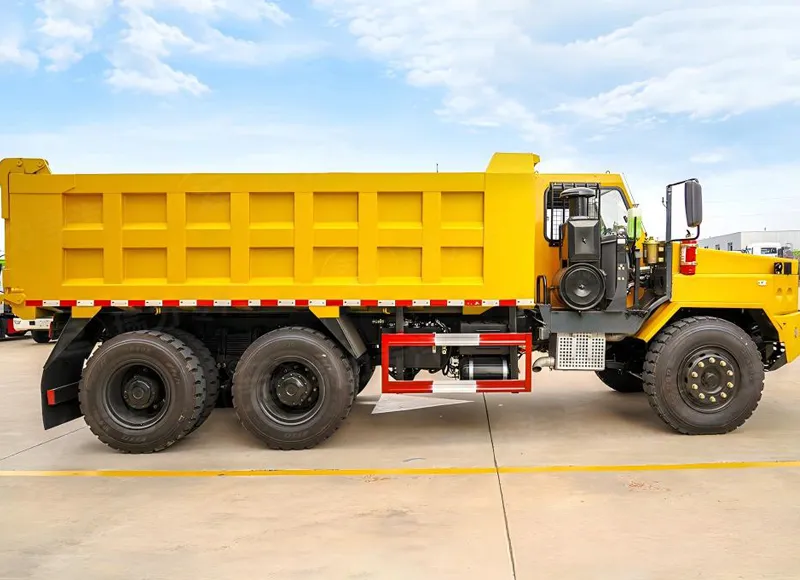

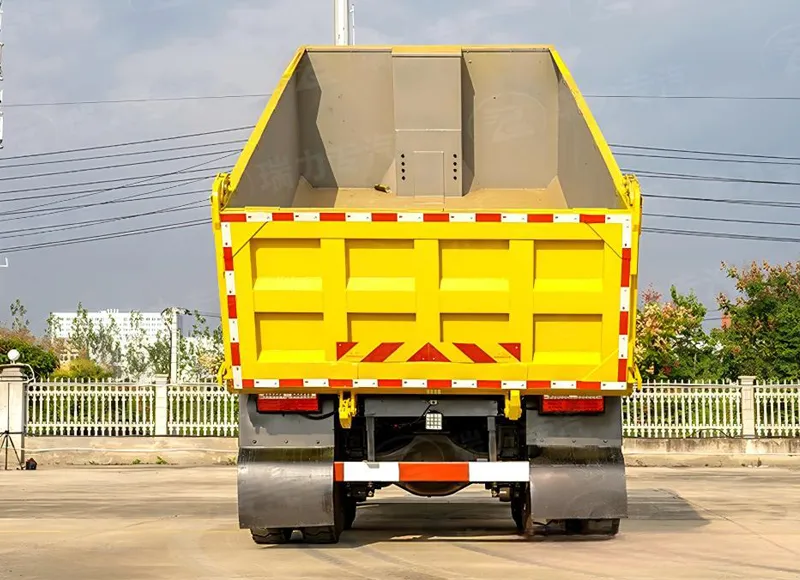

The 25T Mining Dump Truck is engineered for heavy-duty material transportation in mining, quarry, and large construction projects. Equipped with a powerful diesel engine, reinforced chassis, and high-strength dump body, it delivers excellent load capacity and reliable performance under demanding working conditions.
Its advanced hydraulic lifting system enables efficient unloading, while the durable suspension and braking system enhance safety and stability during operation. Designed for productivity and long service life, this mining dump truck provides a cost-effective solution for transporting ore, gravel, sand, and other bulk materials.
| Chassis | ||||
| Overall Dimensions (LxWxH) | 7450×2500×24500 mm | |||
| Transmission | Fast manual 7-speed gearbox | |||
| Tires | 10.00R20 Steel radial tires | |||
| Drive Type | LHD/RHD 6×4 | |||
| Applicable Working Conditions | Suitable for mining area operations | |||
| Engine Model | YC6L3300-T300 | |||
| Engine Power | 330 HP | |||
| Front Axle | 7.5t | |||
| Rear Axle | 16t | |||
| Frame | 300mm triple-layer reinforced frame | |||
| Cargo Box Internal Dimensions | 5300×2500×1200 mm | |||
| Cargo Box Plate Thickness | Bottom: 14 mm, Side: 10 mm | |||
| Cargo Box Material | Q355 | |||
| Lifting System | Front-mounted hydraulic cylinders | |||
| Carriage Box Volume Capacity | 15.9 m³ | |||
| Standard Load | 25000 KG | |||
| Self-Discharging Method | Rear double top dump | |||
| Brake Mode | Wet braking system optional | |||
| Steering Type | Hydraulic steering | |||
| Cab | Mine lifting safety ceiling | |||
| Front and Rear Wheelbase | 3670+400 mm | |||
| Certification | China Mining Safety Certification (issued by the Mine Safety Administration) | |||
A 25T mining dump truck is used for transporting bulk materials such as ore, rock, and soil in mining sites and heavy-duty construction operations.
It is built with a reinforced chassis and a heavy-duty cargo body designed for repeated loading and unloading in demanding working environments.

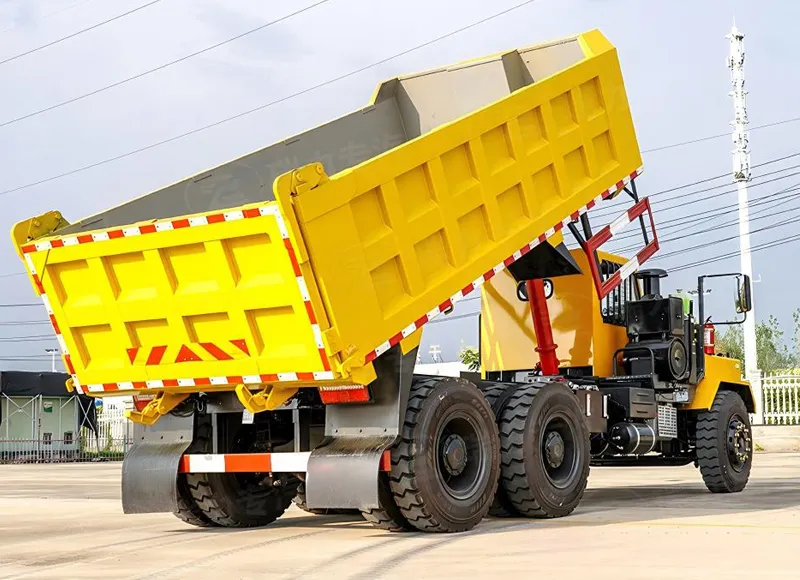

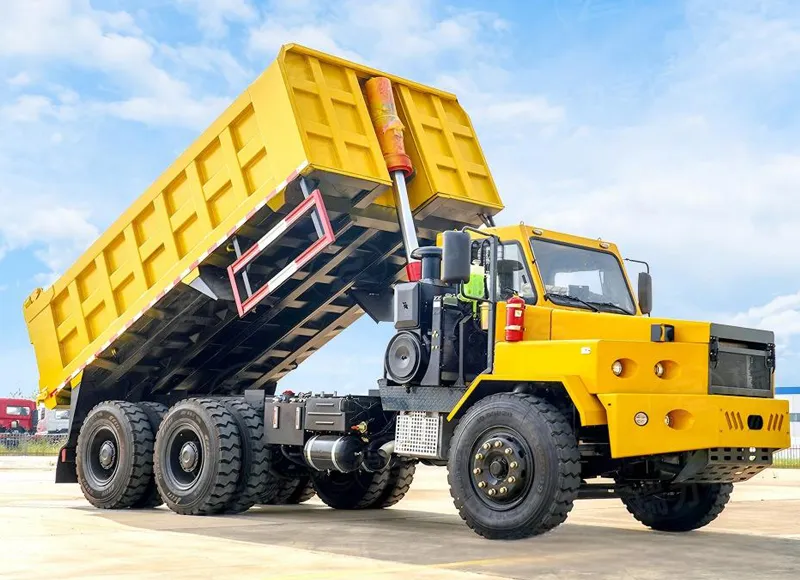

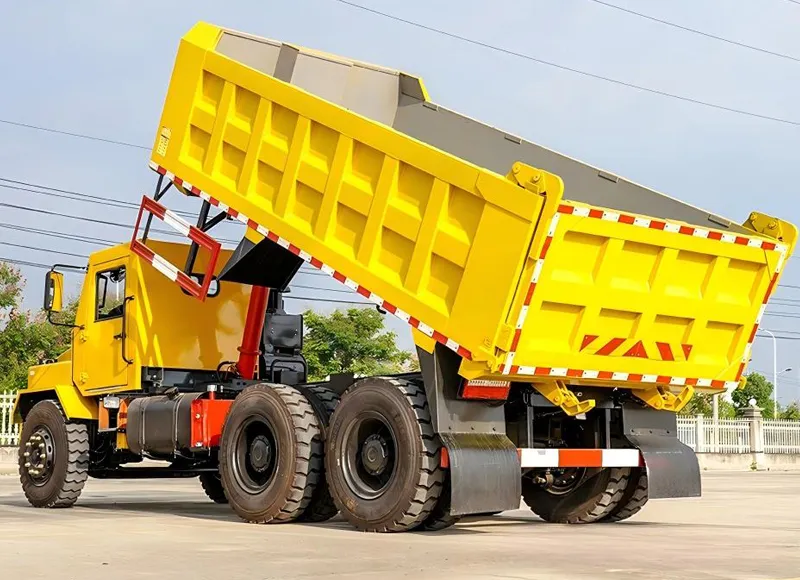

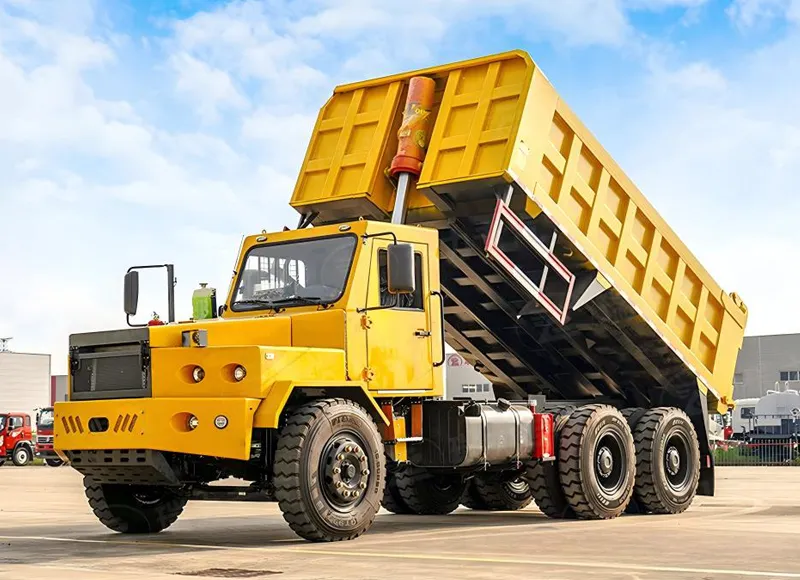

A mining dump truck uses a hydraulic lifting system to raise the cargo body so that materials can be discharged by gravity.
It is suitable for mining areas and heavy construction sites where continuous hauling of large volumes of materials is required, and it belongs to the general category of dump truck equipment used for bulk material transport.
