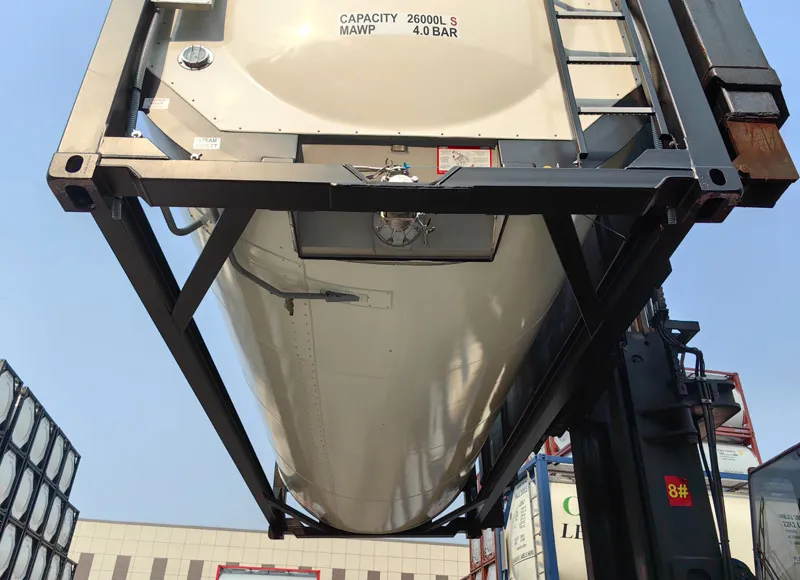

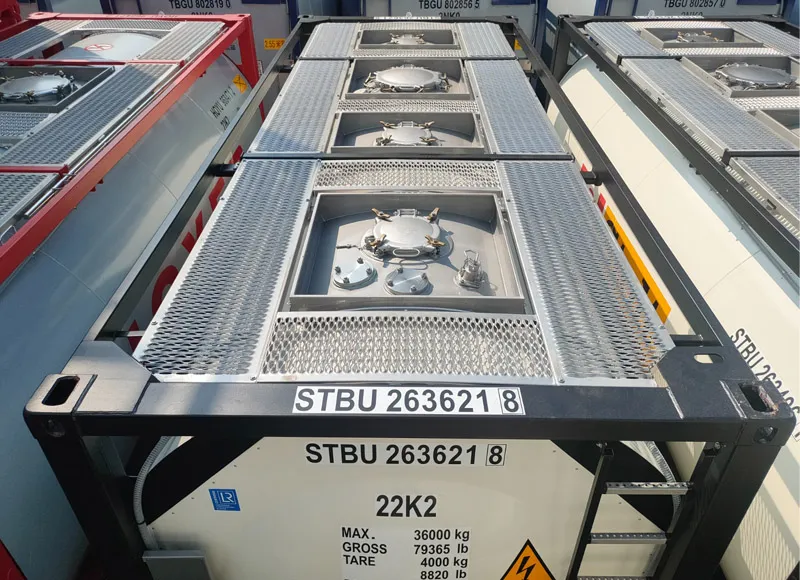

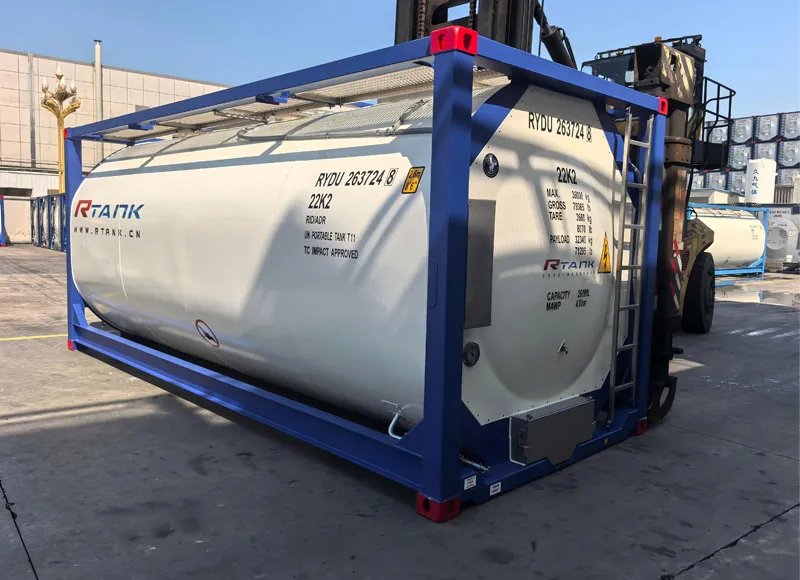

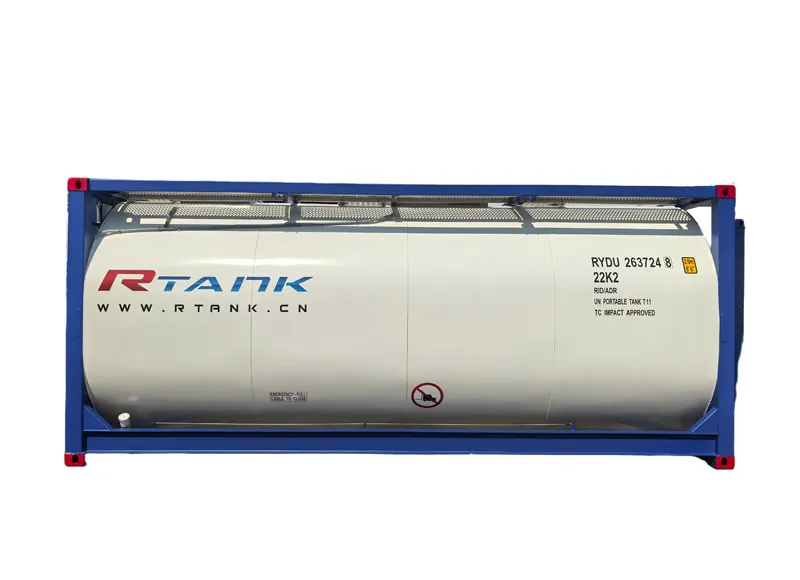

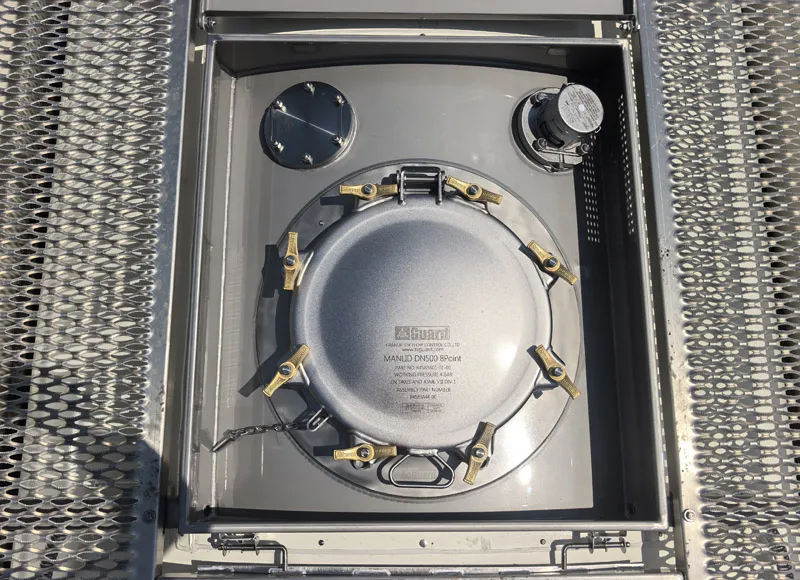

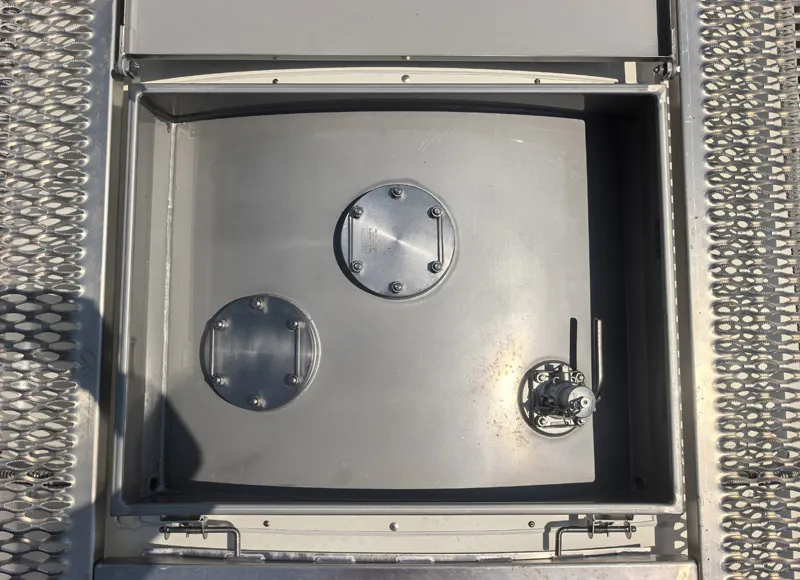

20FT T11 ASME ISO Tank Container for General purpose liquids

Tank Regulations

ASME VⅢ Div 1(NCS)where applicable

Frame Regulations

CSC, ISO1496/3(1CC)

General Regulations

IMDG/ADR/RID/US DOT(CFR49)-UN Portable tank T11,

UIC,TIR,TC

Classification Society

ABS or LR

Capacity(Nominal: -1.5,+2%)

26000 liters

Frame Dimensions

6058 mm long × 2438 mm wide × 2591 mm high

Tank Dimensions

φ2414 mm (I/DA) × 6020 mm (L)

Shell Calculated Thickness

4.18mm

Shell Corrosion

0.22mm

Shell Manufacture Thickness

4.4 mm

Head Calculated Thickness

4.4 mm

Head Corrosion

0.2 mm

Head After Forming Thickness

4.6 mm

Products

General purpose liquids

Tare (Nominal:±3%)

3550 kg / (7,825 lbs)

Max. Payload

32,450 kg / (71,540 lbs)

Max. Gross

36000kg / (79365 lbs)

Stacking weight

216000 kg

Tank M.A.W.P

4.0 bar/58.0 psi

Tank Test Pressure

6.0 bar/87.0 psi

Tank External Pressure

0.41 bar/5.9 psi

Tank Design Temperature

-40℃ to 130℃

Ambient Temperature

-20℃ to 65 ℃

Steam Tube M.A.W.P

4.0 bar/58.0 psi

Steam Tube Test Pressure

6.0 bar/87.0 psi

Shell Material

SANS 50028-7:1.4402.Equivalent to 316L. Max.carbon content 0.03%.Cold rolled.

Dished Ends Material

SANS 50028-7:1.4402.Equivalent to 316L. Max.carbon content 0.03%.Hot rolled.

Frame to Shell Material

ASME SA240304 or equivalent.

Steam Tubes

Duplex stainless steel S32101

Framework Material

SPA-H or equivalent.

Corner Castings

To ISO 1161,standard ISO castings.

Non Destructive Examination

Radiography

Shell:spot

Ends:full(100%)

Joint efficiencies

Shell:0.85

Ends:1.0
