1. Dongfang chassis, equipped with a Cummins 220-horsepower engine and FAST 8-speed gearbox, integrated with a hydraulic body support system, adaptable to complex road conditions and providing stable operational support.
2. The compartment adopts a polyurethane foam insulation layer and 304 stainless steel clean/waste water tanks, combined with anti-rust exterior panels and aluminum checkered non-slip flooring, ensuring equipment durability and thermal efficiency under extreme conditions.
3. Integrated 100,000 Kcal hot water boiler, 5KW heater, and customized shower facilities, supporting rapid field deployment and meeting bathing needs of 50–80 people per session.
4. Dual power redundant supply: 5KW generator + 200Ah auxiliary battery, combined with dual power conversion/isolation system, ensures continuous power supply in environments without external electricity access.
5. Equipped with lightning protection and grounding system, escape skylights, fire extinguishers, and a 360° warning system (long row warning light + 10 strobe lights), enhancing safety protection during field operations.

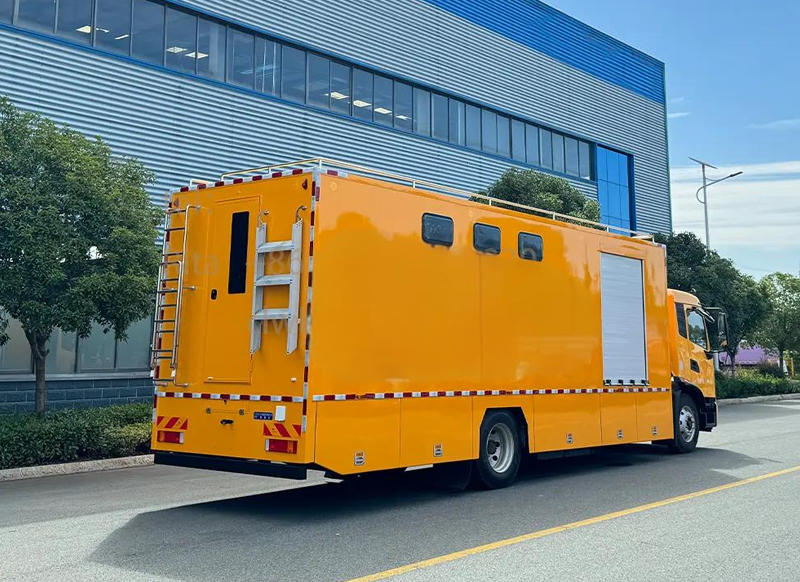

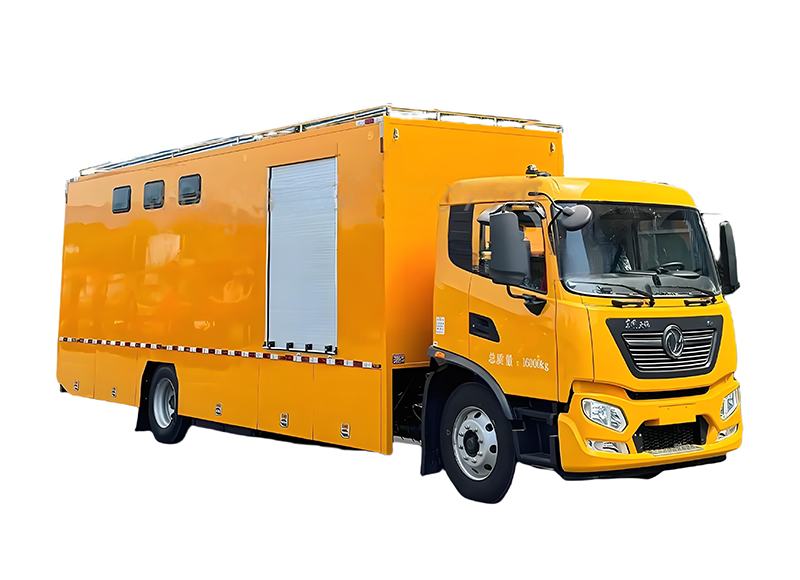

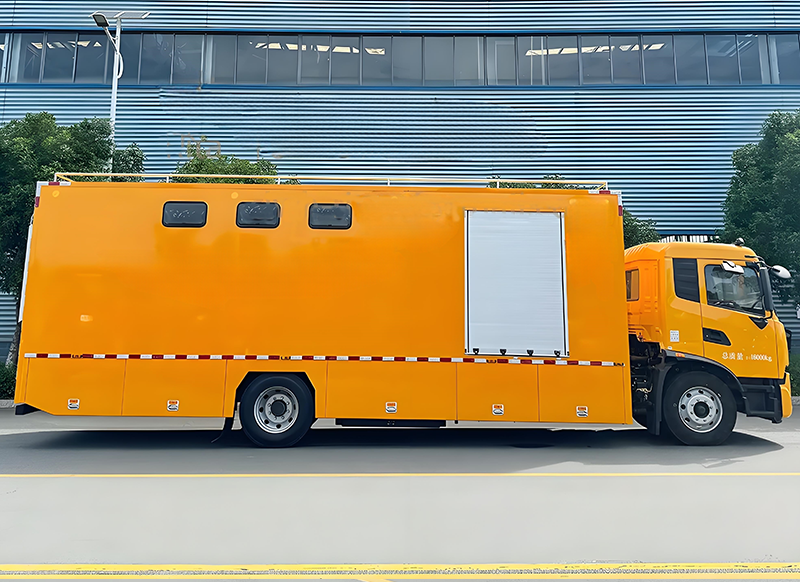

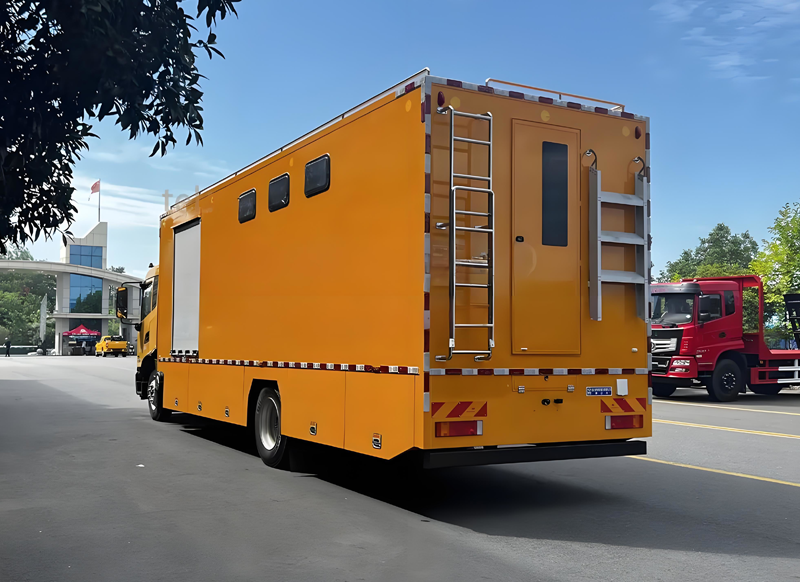

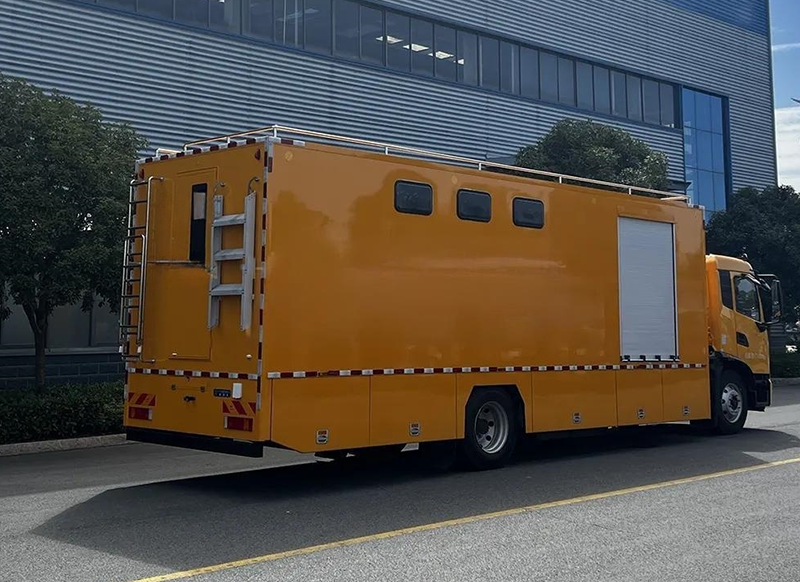

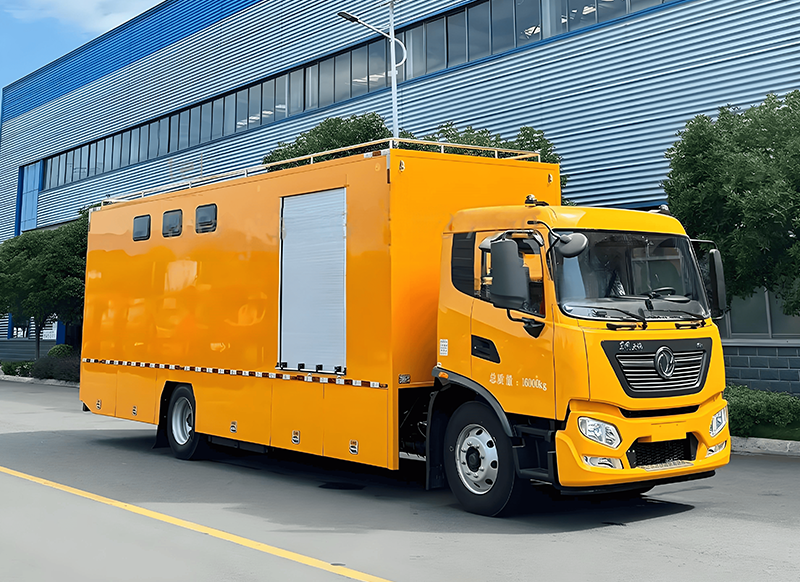

| Dongfeng Mobile Shower Car | |
| Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 16000 |
| Curb Weight(kg) | 15870 |
| Overall Dimension(mm) | 10700×2550×3980 |
| Tyre Qty. | 6 |
| Tyre Spec. | 10.00R2018PR |
| Wheelbase（mm） | 5800 |
| Front/Rear Overhang (mm) | 1400/3500 |
| Approach/Departure angle(°) | 14/8 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Gearbox | FAST 8-speed |
| Cab | 2-3 person |
| Engine (Other Engine Optional) | |
| Brand | Cummins |
| Model | D4.5NS6B220 |
| Power(kw) | 162 |
| Horsepower(HP) | 220 |
| Upper & Equipment | |
| Compartment | Body Hydraulic Support System, Body Frame and Skin Modification, Anti-Rust Treatment, Polyurethane Foam Insulation Treatment, Skirt Modification |
| Standard Configuration | 2×Escape Skylight; 2×Ventilation Fan; 1×Slide-out Ladder(304 Stainless Steel); 1×Portable Ladder(Aluminum Alloy); 2×Fire Extinguisher 1×Hot Water Boiler (100,000 kcal) 1×Changing Locker( Stainless steel / Glass panel optional) 1×Changing Bench 1×1000L Clean Water Tank(304 Stainless Steel) 1×200L Waste Water Tank(304 Stainless Steel) 1×Liquid Level Indicator 1×Water Pump,1×Filter |
| Remarks | Customized LOGO design as per customer needs! |
