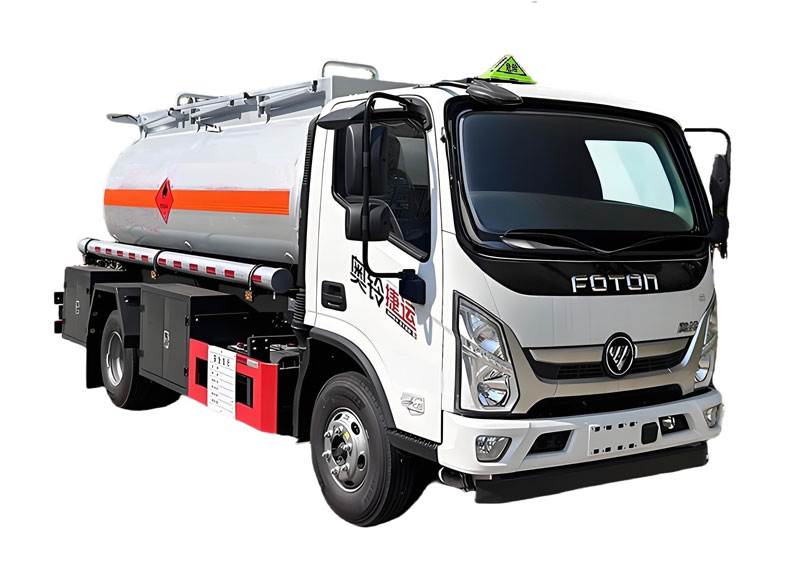

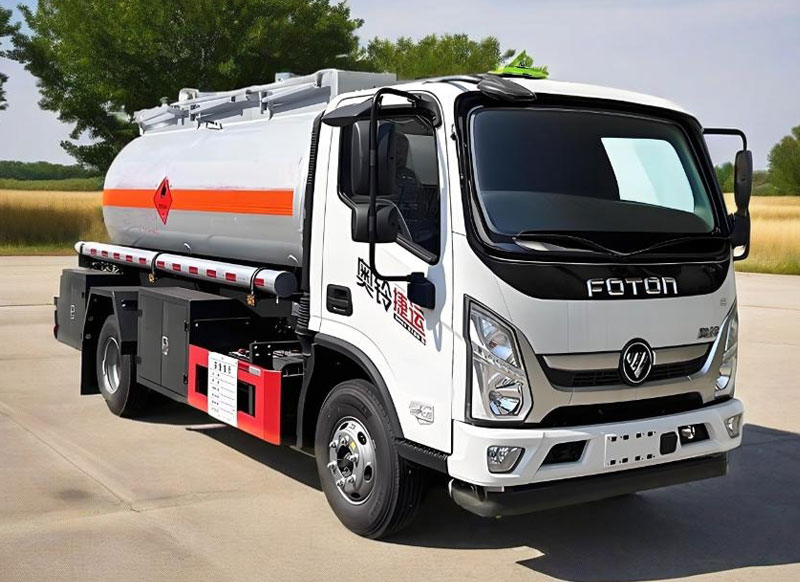

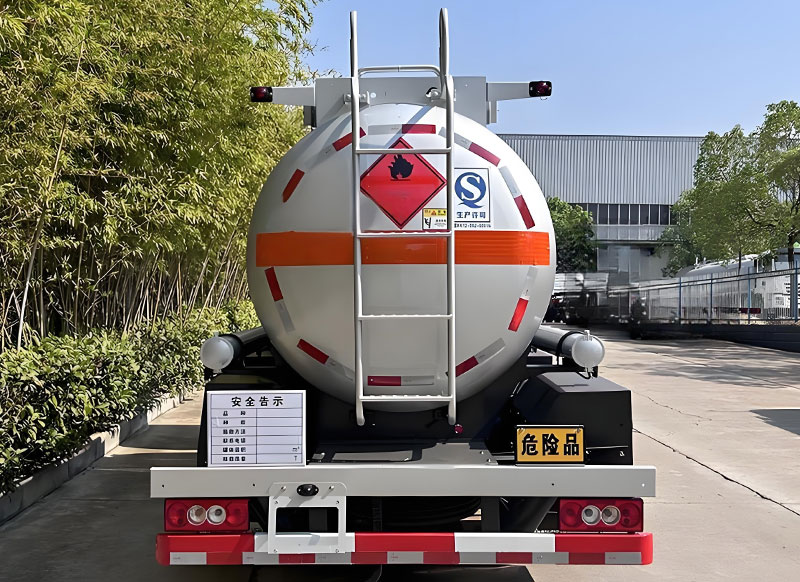

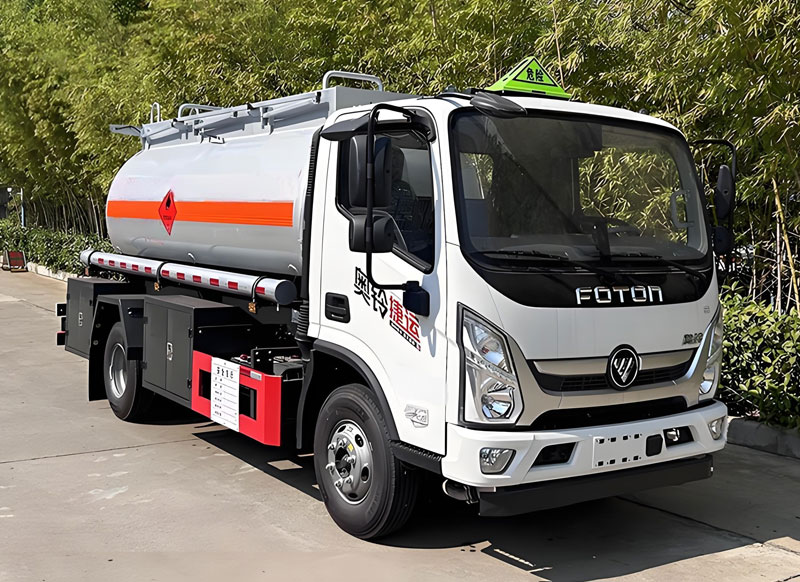

1. This chemical tank adopts a Foton chassis, Quanchai engine, and 5-speed manual gearbox.
2. The tank body is made of Q235 anti-corrosion carbon steel with a plate thickness of 4.2mm. All main welds strictly follow non-destructive testing processes and fully comply with X-ray non-destructive testing requirements.
3. The tank body is equipped with a chemical-specific tank port, a submarine valve, safety valve, breathing valve, rupture disc, vacuum valve, with redundant safety protection configurations to ensure safety during transportation and loading/unloading processes.
4. The tank body comes standard with a single compartment, while multi-compartment configurations can be customized to meet diverse transportation needs.
5. Anti-surge baffles are added inside the tank to minimize liquid surging and enhance transportation stability.
6. The tanker is equipped with a chemical-grade pump and dedicated pipeline connections for efficient liquid transfer control.
Chassis | |
| Brand | Foton |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 2750 |
| Loading Weight(kg) | 1615 |
| Overall Dimension(mm) | 5400×1950×2160 |
| Tyre Qty. | 6 |
| Tyre Spec. | 6.50R16LT 10PR |
| Wheelbase（mm） | 2850 |
| Front/Rear Overhang (mm) | 1130/1420 |
| Approach/Departure angle(°) | 20/12 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes ,CM4XL-4S/4M |
| Transmission | 5-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Quanchai |
| Model | Q23-115C60 |
| Power(kw) | 85 |
| Horsepower(HP) | 115 |
Upper Equipment | |
| Tank Capacity(cbm) | 2.1 |
| Tank Dimension(mm) | 3000×1020 |
| Tank Material | Q235 carbon steel |
| Tank Thickness(mm) | 4.2 |
| Tank Compartment Qty. | Single-chamber |
| Tank Filling medium | Methanol or ethanol |
| Standard Components | 1×Chemical pump; 1× Chemical-standard tank ports; 1× Submarine valve; 1×Voice prompt alarm system; 1×Safety valve; 1×Breathing valve; 1×Bursting disc; 1×Vacuum valve; 1×Tool kit; 2× hoses for liquid transfer; 2× fire extinguishers; 1× flame arrester; 1×Top guardrails; 1×Rear access ladder; |
| Other Services | Customized LOGO design as per customer needs! |
