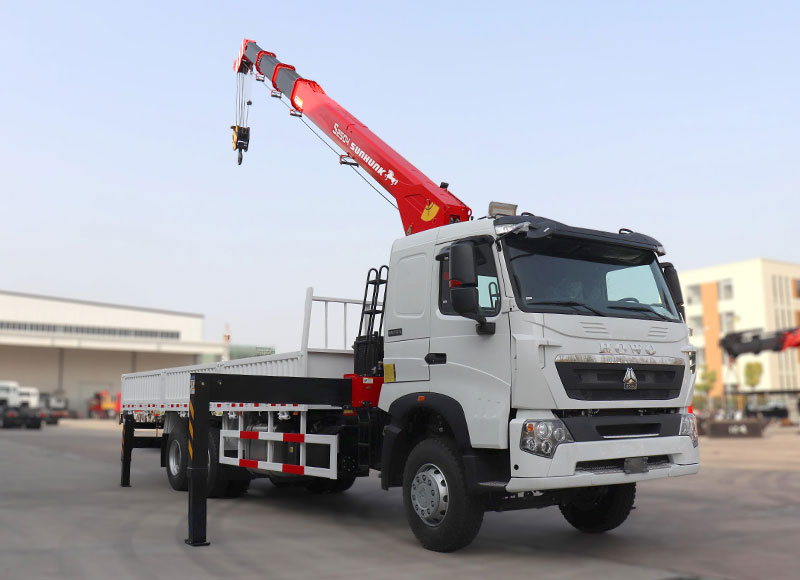

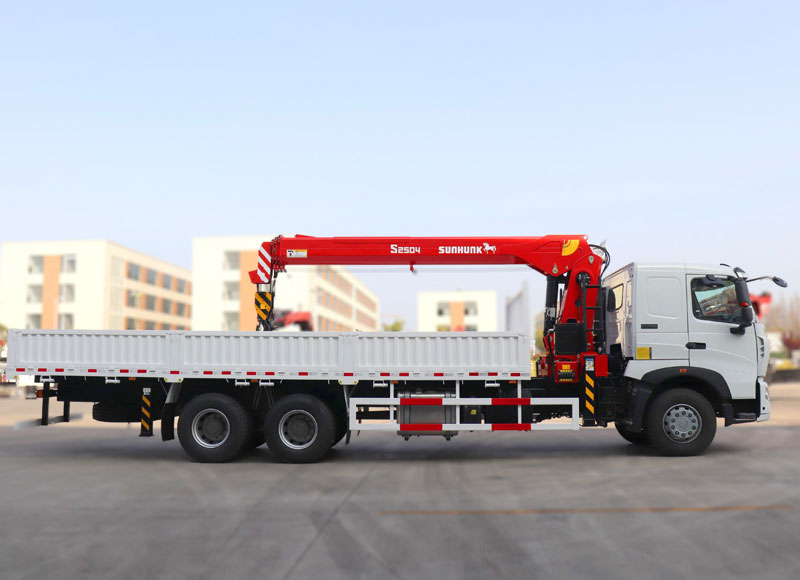

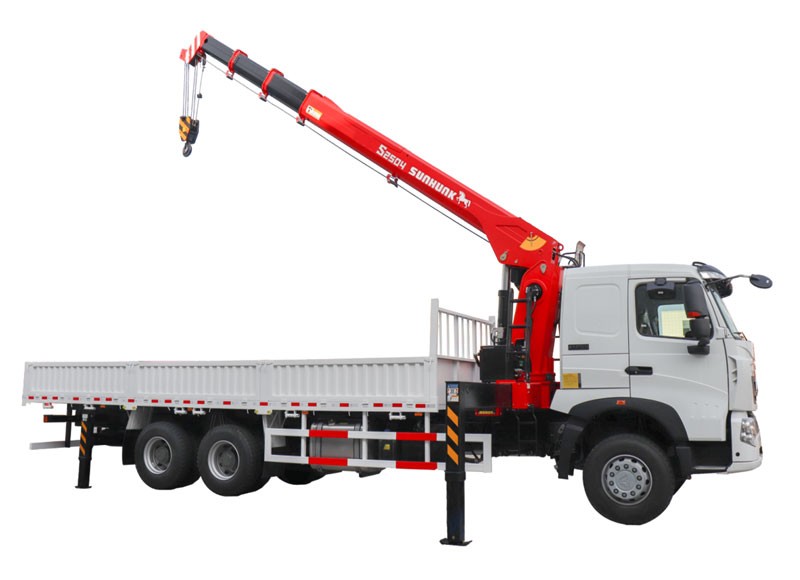

1. The chassis adopts CNHTC Group HOWO chassis with a double-layer frame, front and rear multi-leaf spring suspension (11/10 leaf springs), and a lightweight body design, balancing high torsional rigidity with overall load-bearing capacity.
2. Equipped with a Yuchai 350 horsepower engine and a 12-speed gearbox, the efficient powertrain is perfectly suited for heavy-duty transport, maintaining smooth performance even under complex operating conditions.
3. The vehicle is constructed with Q690 high-strength steel and fitted with a slewing reducer rated at 4400 N·m torque, delivering powerful operational performance.

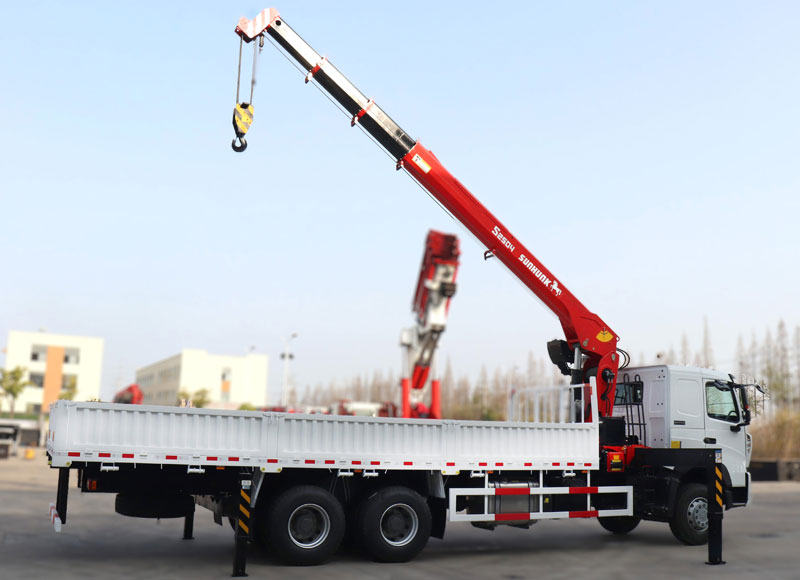

4. The main boom consists of four octagonal sections, with an operating radius of 15.0 meters and a maximum lifting height of 17.1 meters, providing significant operational advantages.
5. An intelligent cooling system ensures hydraulic system stability, while four outriggers provide extended support, enhancing lifting safety.
Chassis | |
| Brand | Shacman |
| Drive Type | 6x4,RHD/LHD |
| Gross Vehicle Weight(kg) | 25000 |
| Curb Weight(kg) | 16280 |
| Load Weight(kg) | 8525 |
| Overall Dimension(mm) | 12000×2550×3820,3920,3850,3750,3650 |
| Tyre Qty. | 10 |
| Tyre Spec. | 315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20 |
| Wheelbase（mm） | 5800+1350 |
| Front/Rear Overhang (mm) | 1430/3420 |
| Approach/Departure Angle(°) | 19/8 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Transmission | 12-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons |
Engine(Other Engine Optional) | |
| Brand | CNHTC Group |
| Model | MC07H.35-60 |
| Power(kw) | 257 |
| Horsepower(HP) | 350 |
Upper & Equipment | |
| Cargo Box Dimension(mm) | 8100×2450×550 |
| Cargo Box Material | Carbon steel |
| Rated Lifting Capacity (kg) | 10000 |
| Rated Lifting Moment (t.m) | 25 |
| Fully Extended Boom Length (m) | 15.2 |
| Maximum Lifting Height (m) | 17.1 |
| Number of Boom Sections | 4 |
| Maximum Elevation Angle (°) | 75 |
| Slewing Angle (°) | 360 |
| Outrigger Span (mm) | 6000 |
| System Flow Rate (L/min) | 64 |
| Crane Self-weight (kg) | 4000 |
| Rated System Pressure (MPa) | 30 |
| Standard Accessories | Tail lights, signal lights, reversing lights, nameplate light, and side marker lights,reflective tapes. |
| Remarks | Customized LOGO design as per customer needs! |
