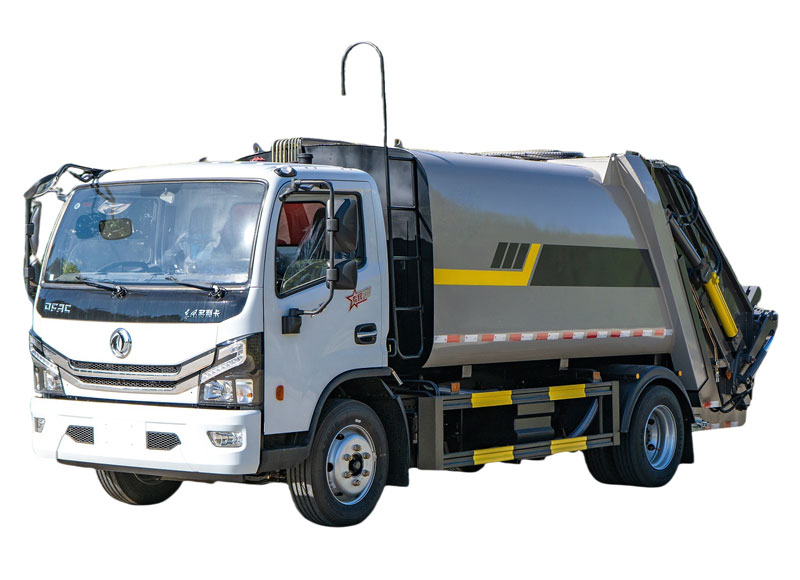

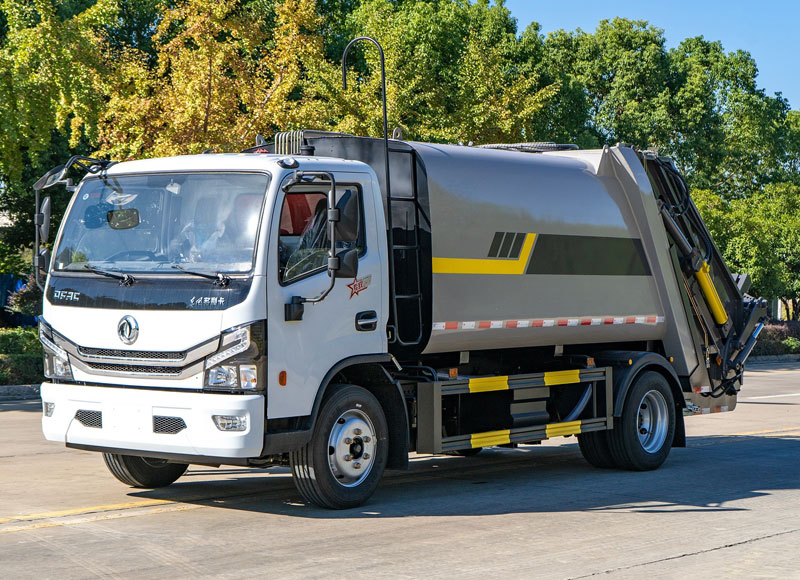

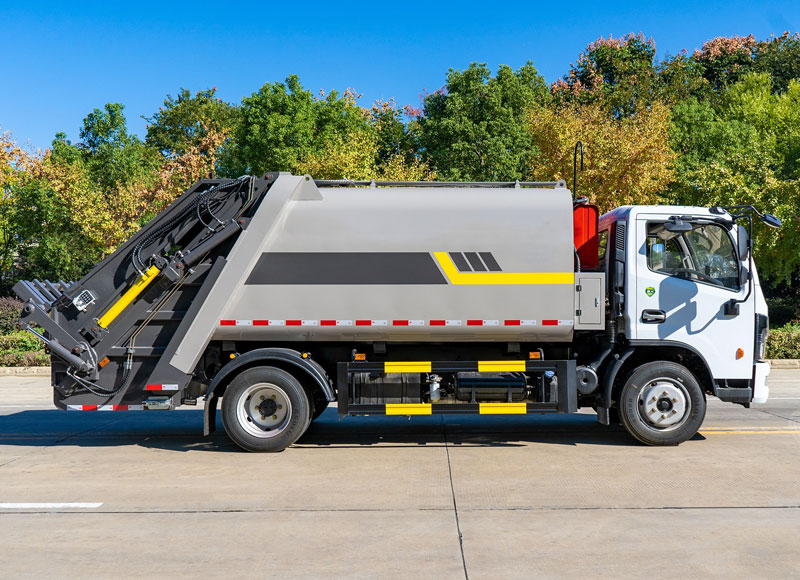

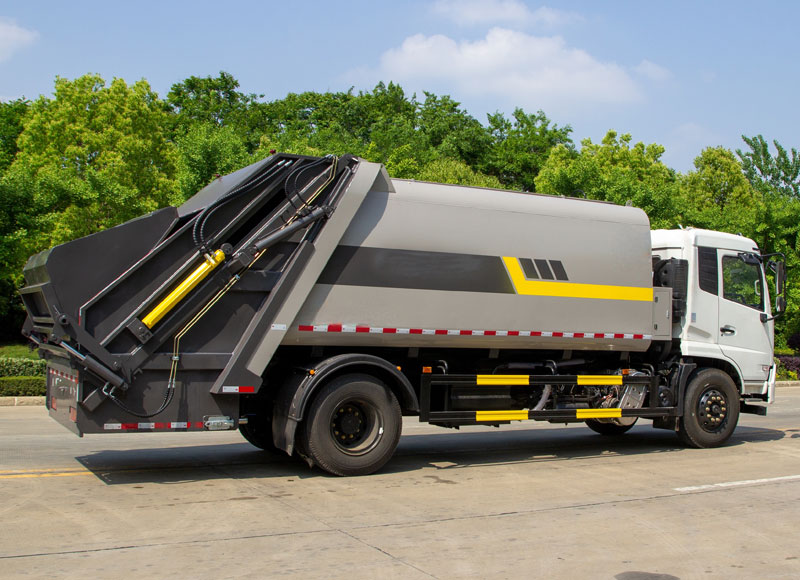

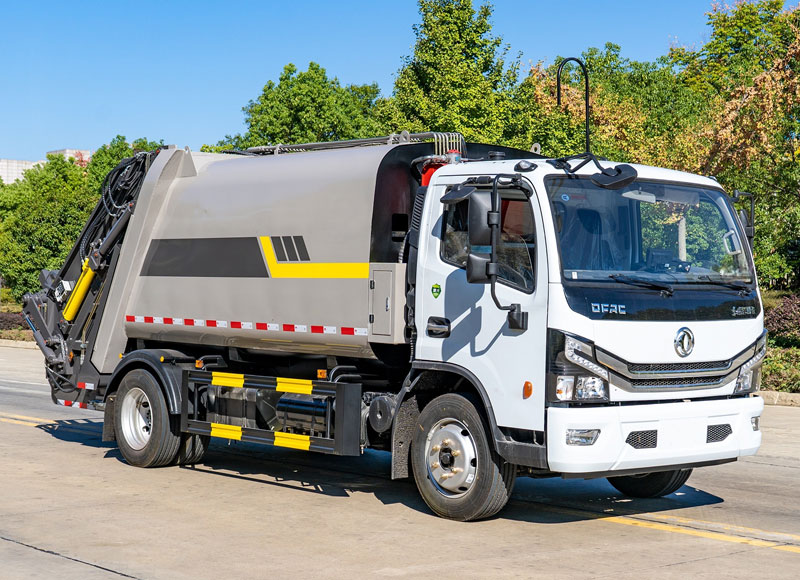

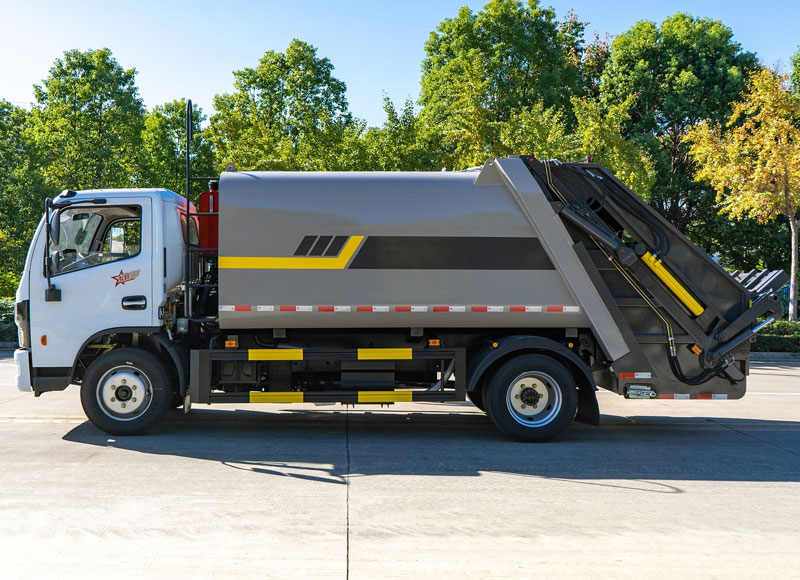

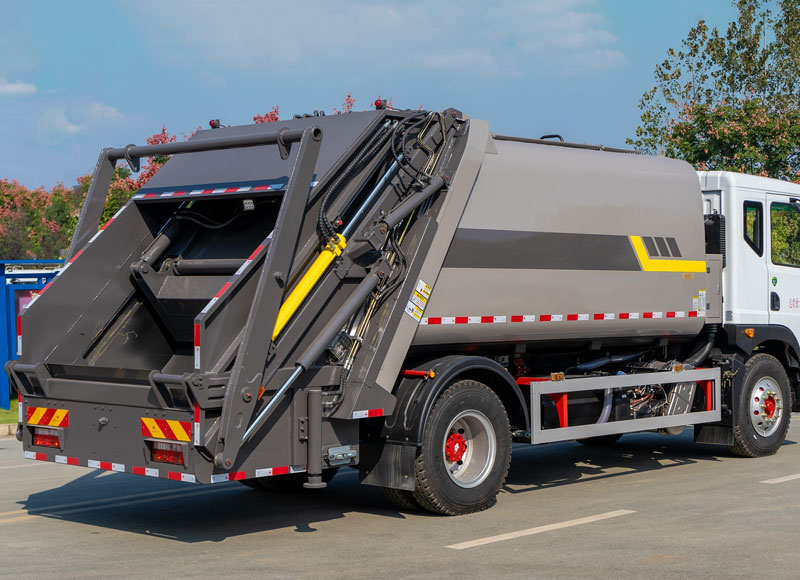

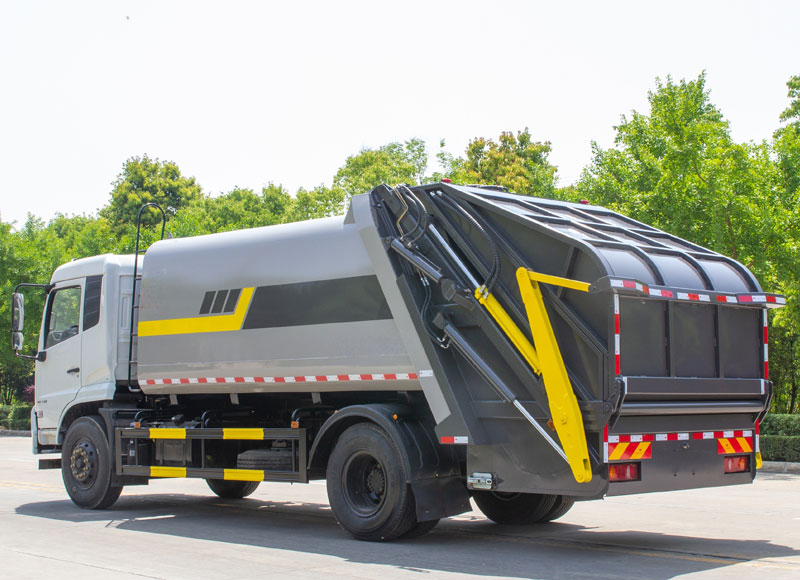

1. Dongfeng 10.5m³ compression garbage truck adopts Dongfeng Duolika chassis equipped with YuChai 165HP engine + 8-gear transmission, delivering strong power and smooth operation. Adapts to complex road conditions, ensuring garbage transfer efficiency and reliability.
2. Arc streamlined manganese steel box body formed by single rolling, weld-free and leak-proof. Excellent deformation resistance and corrosion resistance, effectively increases volume efficiency, extends service life, and reduces maintenance costs.
3. Imported CAN bus system supports triple operation modes (manual/automatic/semi-automatic), remote control + multi-position operation. Automatically adjusts engine power, achieving energy saving ≥15%.
4. External cylinder + bidirectional compression technology (compression ratio 1:2.5, single cycle ≤20S). Equipped with dual sewage tanks, night lighting, and drainage system. Integrates environmental protection, safety, and convenience.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 11995 |
| Curb Weight(kg) | 6830,7140,7400 |
| Loading Weight(kg) | 4970,5035,4660,4725,4400,4465 |
| Overall Dimension(mm) | 7350/7537/7450×2280/2400×2780/3200 |
| Tyre Qty. | 6 |
| Tyre Spec. | 245/70R19.5 |
| Wheelbase（mm） | 3800 |
| Front/Rear Overhang (mm) | 1130/2020,1317/2020,1130/2180 |
| Approach/Departure angle(°) | 21/13 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 103,89 |
| ABS | Yes |
| Transmission | 8-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY30165-60 |
| Power(kw) | 121 |
| Horsepower(HP) | 165 |
Upper Equipment | |
| Waste Tank Capacity | 10.5CBM/10.5m³/10500Liters |
| Waste Tank Material | Manganese steel |
| Feeding Cycle Time(s) | 12-20 |
| Compression Ratio | 1:2.5 |
| Unloading Time(s) | ≤60 |
| Operation Modes | Electrical control, manual, remote control |
| Sewage Collection Tanks | Two combined with diversion-type sewage collection device, effectively preventing leakage and avoiding secondary pollution |
| Tail Structure | Rear hanging bucket device or Tail triangular bucket device or large-scale landing hopper device or Tail swing arm device |
| Other Services | Customized LOGO design as per customer needs! |

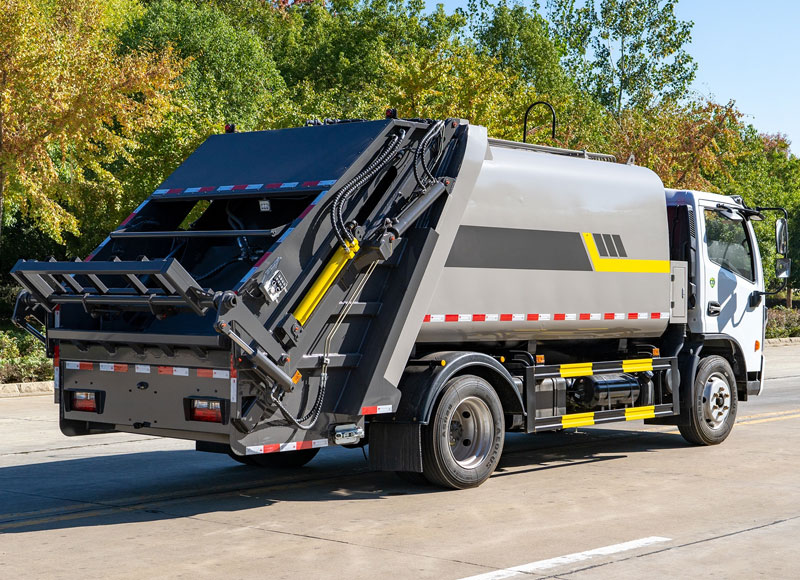

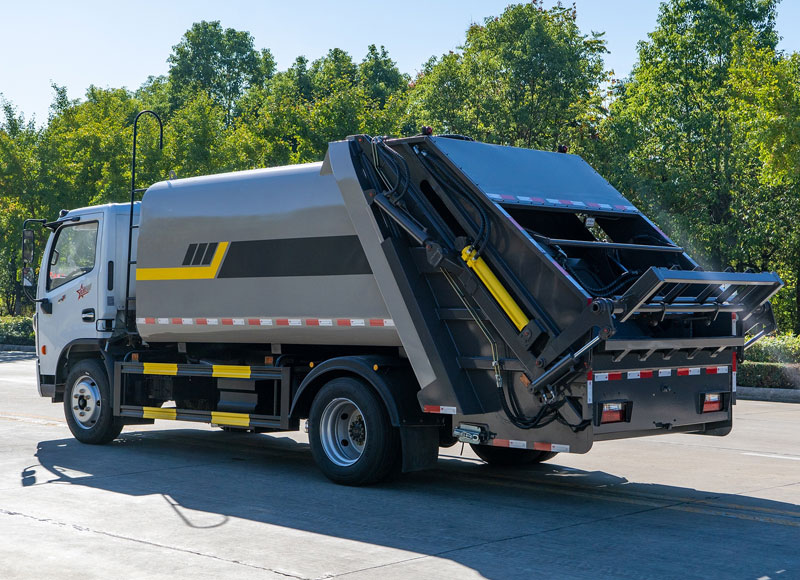

1. The rear hanging bucket device, equipped with standard 120L/240L waste bins for high compatibility. Also compatible with 360L and 660L hopper lifting devices. Primarily applicable for garbage collection and transportation in urban districts and factory residential areas.
2. The tail triangular bucket device at the rear, built-in dual bucket clamping mechanisms capable of holding two 120L/240L waste bins. Mainly used for garbage collection in city centers and waste transfer at suburban landfills. Features wide applicability, time-saving, and labor-efficient operation.
3. The large-scale landing hopper device, primarily for partial waste transfer in medium-large cities. Compatible with forklifts and small dump trucks to directly unload waste into the hopper for recycling and re-transfer, achieving time-efficient and efficient operations.
4. The tail swing arm device mainly serves garbage collection in sparsely populated areas. Supports approx. 3 m² swing-arm garbage hoppers (ground/pit-type hoppers). Collected waste is directly transported to transfer stations or landfills.
