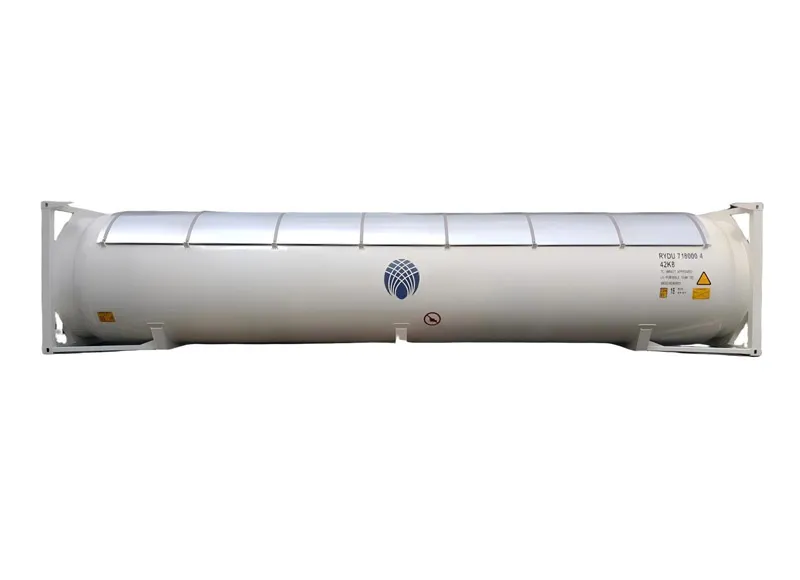

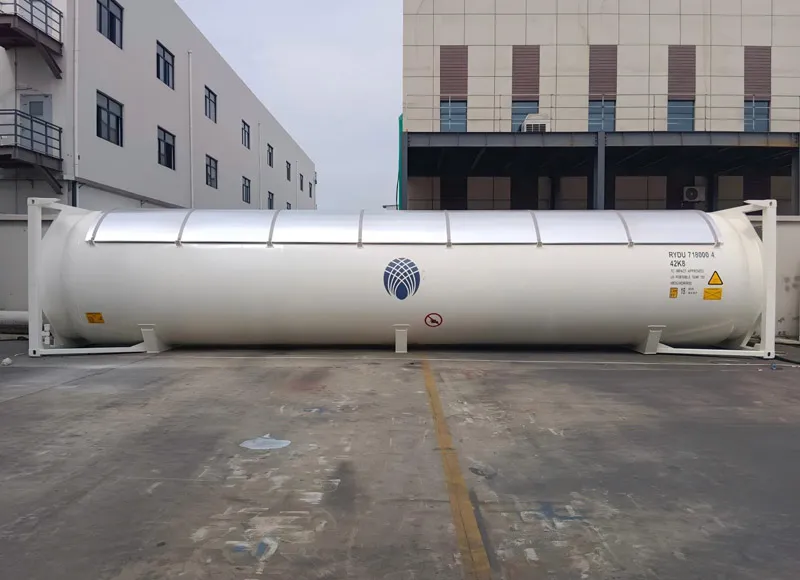

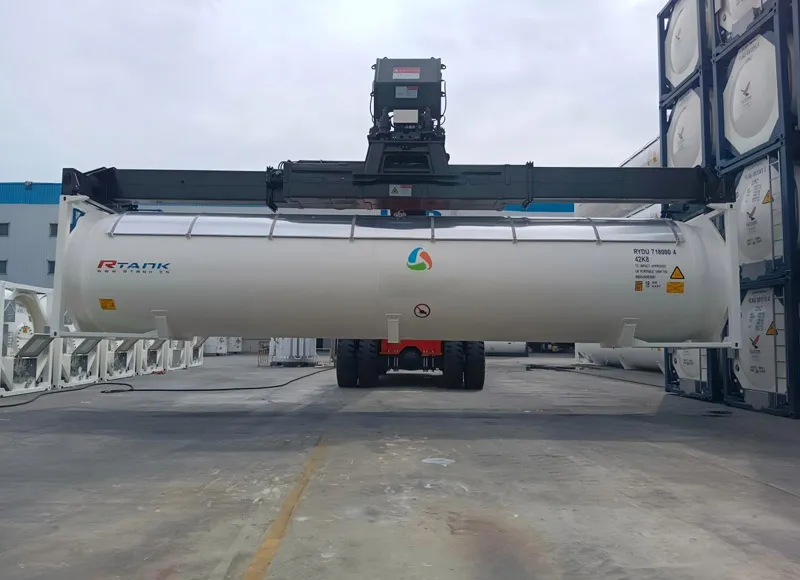

The 40FT ASME T50 ISO tank container combines a 52,100 L nominal capacity with ASME Section VIII Division 2 (2023 edition), an ASME U2 Stamp and ABS classification. The tank is configured as a 40FT UN Portable T50 unit for LPG or compatible Class 2 cargoes within the specified pressure range, with IMDG, ADR and RID requirements applied according to the project. Maximum gross mass is 39,000 kg, maximum payload is 27,300 kg and MAWP is 1.8 MPa.
Tank Type | 40' UN Portable T50 tank | ||
Tank Regulations | ASME Code section VIII Div-2 2023ED,with ASME U2 Stamp | ||
Frame Regulations | CSC, ISO1496/3(1AA) | ||
General Regulations | IMDG/ADR/RID/-UN Portable Tank T50, UIC, TIR, TC | ||
Classification Society | ABS | ||
Capacity(Nominal: -1.5,+2%) | 52100 liters | ||
Products | LPG or other Class 2 within specified pressure range, and which are suitable for tank inside surface. | ||
Frame Dimensions | 12192 mm × 2438 mm × 2591 mm | ||
Tank Dimensions | φ2386 mm (I/DA) × 12040 mm (L) | ||
Shell Thickness | 12.1 mm | ||
Shell Corrosion | 1mm | ||
Head After Forming Thickness | 11mm | ||
Head Corrosion | 1mm | ||
Tare (Nominal:±3%) | 11700Kg(25800lbs) | ||
Max. Payload | 27300 kg / (60180 lbs) | ||
Max. Gross | 39000 kg / (85980 lbs | ||
Stacking | 213360kg | ||
Tank M.A.W.P | 1.8 MPa / 260 psi | ||
Tank Test Pressure | 2.39 MPa /346.6psi | ||
Tank External Pressure | -0.1MPa /14.5 psi | ||
Leakage Test Pressure | 0.5MPa/72.5 psi | ||
Tank Design Temperature | -40℃ to 55℃ | ||
MDMT | -40℃ | ||
Tank Shell | ASME SA612M, Normalized | ||
Dished Ends | ASME SA612M, Normalized | ||
Frame to Shell Material | ASME SA 516M Gr485 or equivalent | ||
Framework Material | SPA-H or equivalent | ||
Corner Castings | To ISO 1161, standard ISO castings. | ||
If your project calls for ABS classification and ASME VIII-2 with U2 Stamp, we recommend this 52,100 L configuration. If your project calls for CCS classification and ASME VIII-1 with U Stamp, we recommend comparing our separate 52 m³ 40FT T50 configuration.
Two 40FT T50 configurations are available for different technical requirements: this ABS / ASME VIII-2 / U2 model and a separate CCS / ASME VIII-1 / U-Stamp model. Classification, ASME basis, capacity and maximum gross mass are confirmed according to the project specification.
