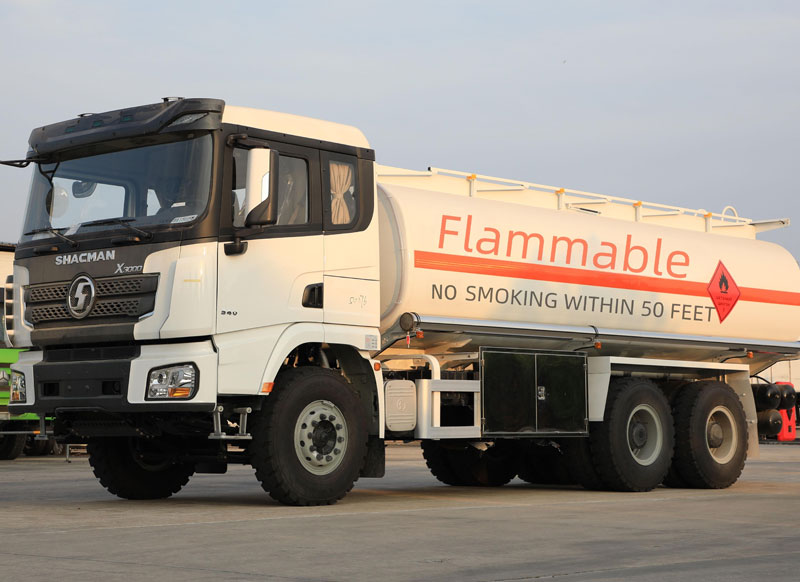

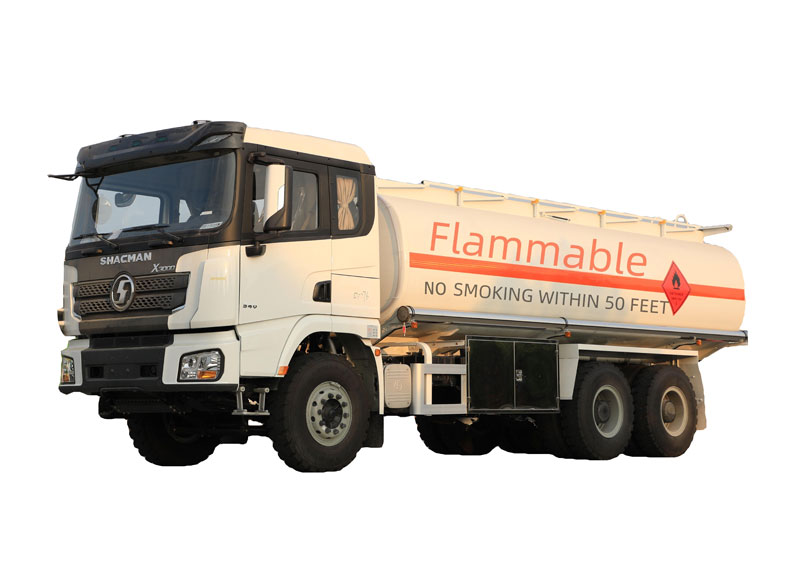

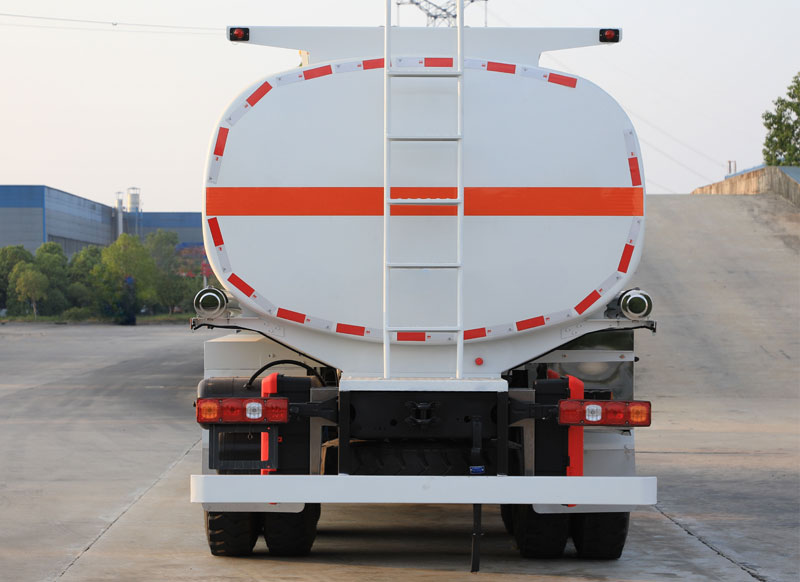

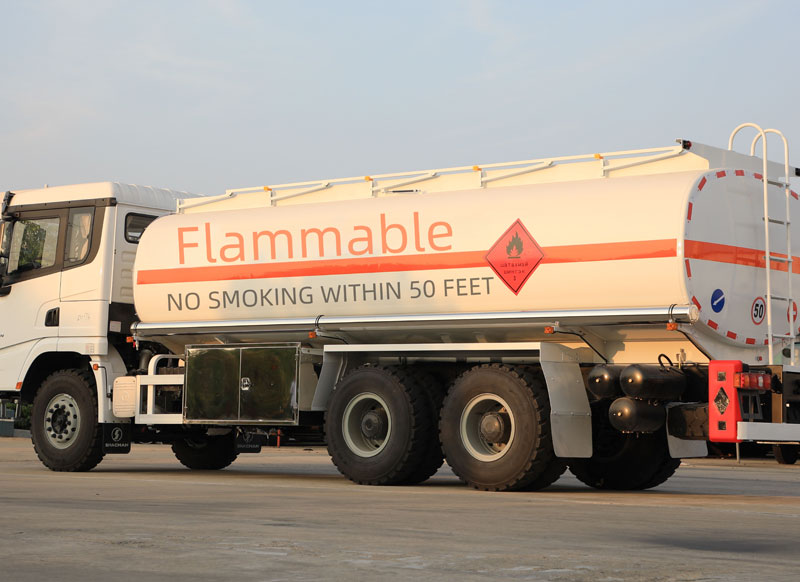

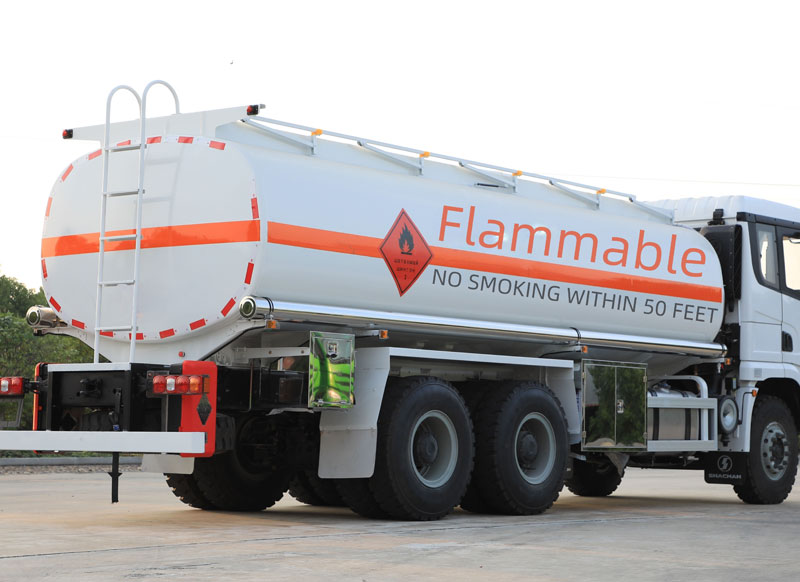

1. Adopts Shacman chassis, WP7.270E61 high-torque engine, delivering superior power.
2. Tank capacity 20,000L, aluminum alloy material. The tank undergoes NDT (Non-Destructive Testing) process, sandblasting, and baking paint finish** for enhanced safety and durability.
3. Standard components: Pump with overflow valve; single compartment; two EU-standard tank ports; one bottom valve; voice prompt alarm system; integrated bottom loading system + vapor recovery system; full vehicle lightweight design.
4. Optional installations: Flow meter; fuel dispenser; hose reel; and fuel nozzle.
Chassis | |
| Brand | Shacman |
| Drive Type | Left hand drive/8x4 |
| Gross Vehicle Weight(kg) | 26000 |
| Curb Weight(kg) | 11870 |
| Loading Weight(kg) | 14000 |
| Overall Dimension(mm) | 9900×2550×3450 |
| Tyre Qty. | 10 |
| Tyre Spec. | 295/80R22.5 18PR |
| Wheelbase（mm） | 4375+1400 |
| Front/Rear Overhang (mm) | 1525/2600 |
| Approach/Departure angle(°) | 16/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 79 |
| ABS | Yes |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | WEICHAI |
| Model | WP7.270E61 |
| Power(kw) | 257 |
| Horsepower(HP) | 350 |
Upper Equipment | |
| Tank Capacity(cbm) | 20 |
| Tank Material | Aluminium alloy |
| Tank Dimension(mm) | 7000×2300×1600 |
| Tank Compartment Qty. | Single-chamber |
| Tank Filling medium | Gasoline |
| Standard Components | 1×Pump with overflow valve; 2× EU-standard tank ports; 1× Bottom valve; Voice prompt alarm system; 1×Complete bottom loading system; 1×Toolbox; 2× Fire extinguishers. 1×Rear access ladder; 2× Oil pipelines Safety guardrail; |
| Optional Components | Flow meter, high-flow fuel dispenser, 15-meter auto-rewind hose reel and fuel nozzle |
| Other Services | Customized LOGO design as per customer needs! |
