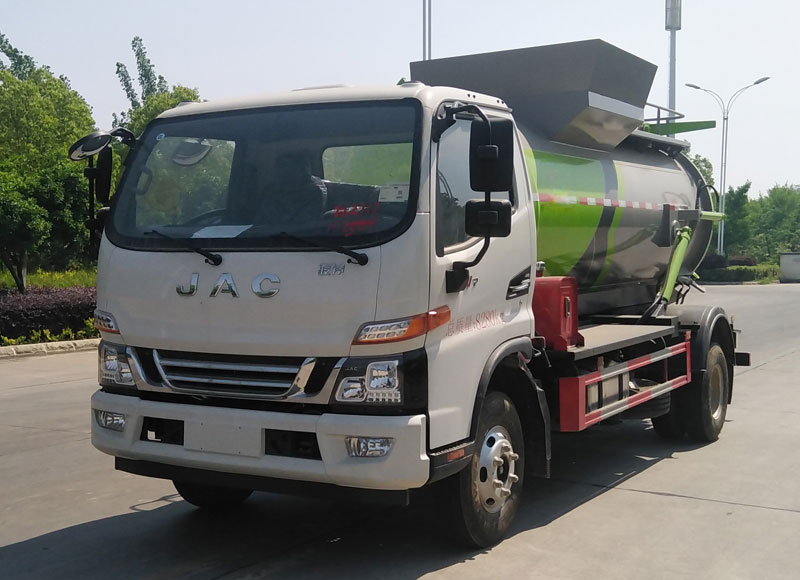

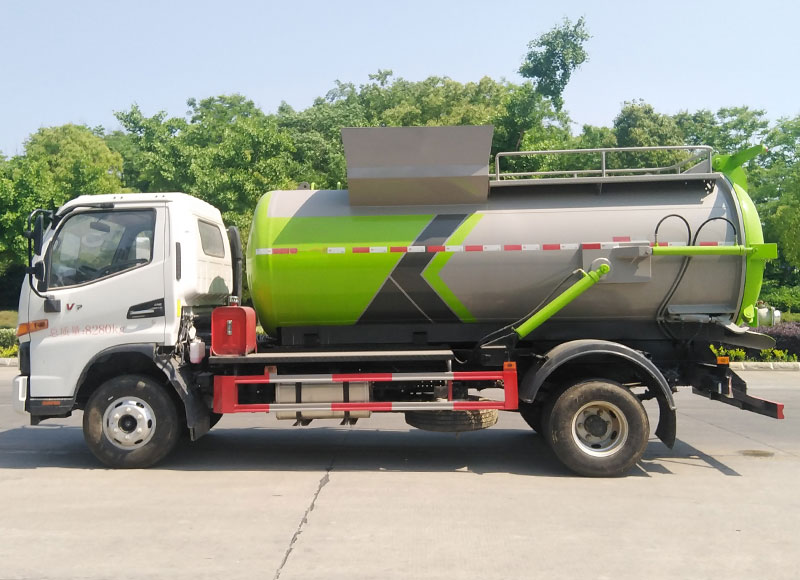

1. Cylindrical tank structure design ensures optimal performance, enhancing overall frame rigidity while improving aesthetic appeal.
2. Round tank material: 5mm high-quality carbon steel with effective volume of 7 cubic meters (m³).
3. Hydraulic system components: Hefei Wanye oil pump, Zhongmei/Weisen Bohr multi-way valve, Weisen Bohr hydraulic cylinder, ensuring system stability.

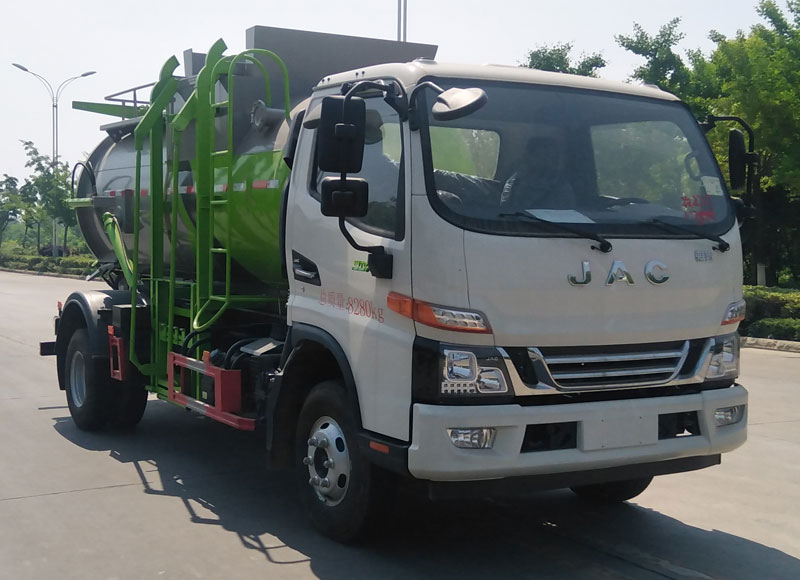

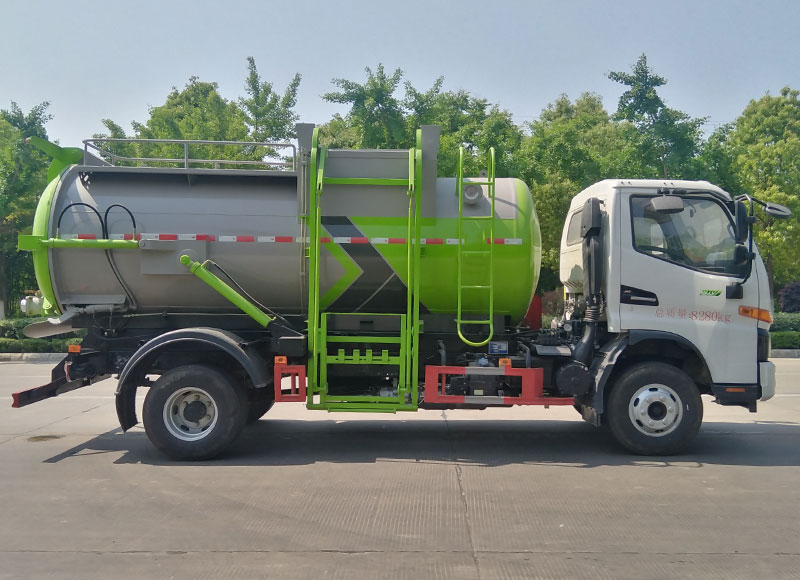

4. Right side of the body equipped with a hydraulic hoisting mechanism for bins, compatible with national standard 120/240L garbage bins. Cylinder-driven linkage enables tipping and resetting. Hoist aligns with feed port to prevent misoperation.

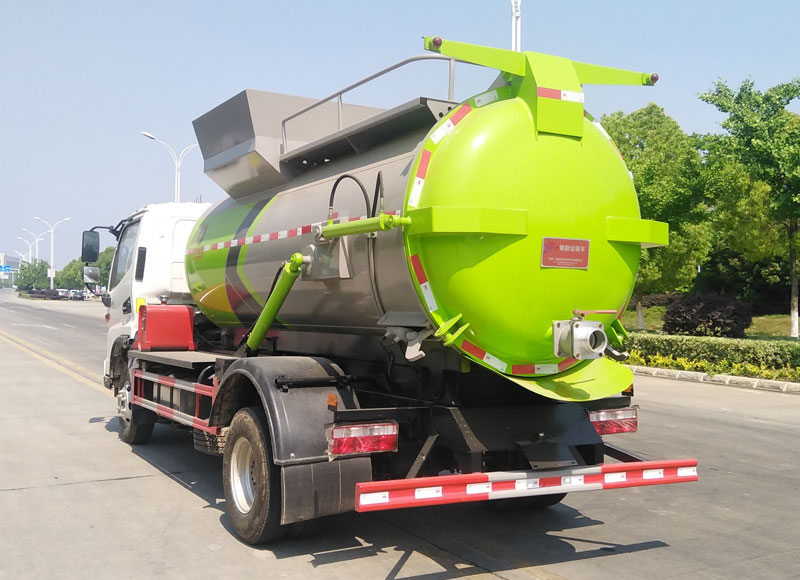

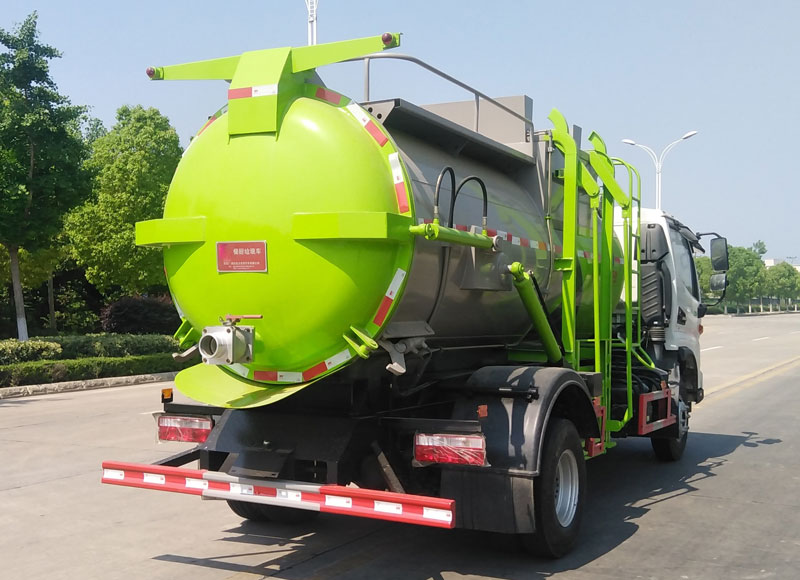

5. Rear cover hydraulically controlled and cylinder-locked, featuring wear/corrosion-resistant silicone sealant to enhance sealing, prevent wastewater leakage, odor emission, and eliminate secondary pollution.
Chassis | |
| Brand | JAC |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 8280 |
| Curb Weight(kg) | 5230,5480 |
| Loading Weight(kg) | 2855,2605 |
| Overall Dimension(mm) | 6350×2300,2350×2900 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.50R16LT 14PR |
| Wheelbase（mm） | 3845 |
| Front/Rear Overhang (mm) | 1051/1454,1075/1430 |
| Approach/Departure angle(°) | 25/21 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 100 |
| ABS | Yes |
| Transmission | 6-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yunei |
| Model | D30TCIF2 |
| Power(kw) | 120 |
| Horsepower(HP) | 163 |
Upper Equipment | |
| Tank Capacity | 7m³/7CBM/7 Ton/7000 L |
| Multi-way Valve | Zhongmei/Weisen Bohr |
| Oil pump | Wanye oil pump |
| Cylinder | Weisen Bohr |
| Operation Mode | Electronic control、Manual control、Remote control |
| Other Services | Customized LOGO design as per customer needs! |
