Multi-stage lifting arm: Hydraulically driven folding/telescoping for precise control over working height;
Rotation device: Platform 360° rotation to extend coverage radius, basket 360° rotation;
Intelligent control system: The engineering trucks are integrated safety limit and emergency descent functions;
Balance legs: Hydraulic leveling and anti-tipping protection;
Emergency device: Automatic power-off locking and dual protection, collaboratively ensuring safe and efficient high-altitude operations.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Telescopic boom Manlift truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| Working condition | Maximum operating height | 16m-50m |
| Rotation | 360° | |
| Boom Type | 3Sections telescopic boom | |
| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently |
| Boom luffing time | 80s | |
| Slewing speed of boom | 65 s/r | |
| Outrigger release time | 40s | |
| Basket | Rated loading weight | 200kgs |
| L*W*H (mm) | 1200x700x1150 | |
| Bucket material | Carbon steel, stainless steel, aluminum alloy, fiberglass for optional | |
| Operation system | Operation | Electrical operation of working platform and ground remote control. Emergency operation device and basket electric control device. |
| Control system | Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation. | |
| Leveling system | Hydraulic automatic leveling | |

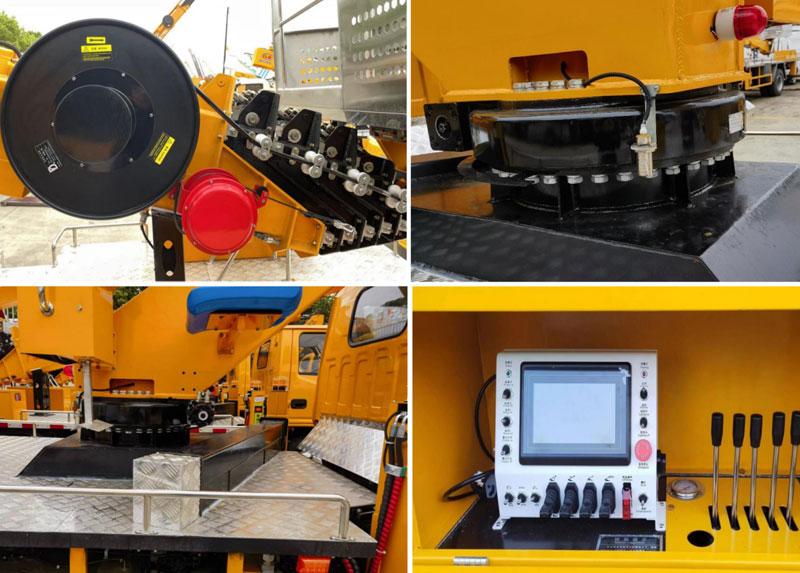

The electric control system integrates engine start/stop, main arm length display, and full-range control functions, greatly improving safety with soft start/stop technology. Equipped with a hexagonal synchronous telescopic arm structure, compact and efficient with a wide coverage range.

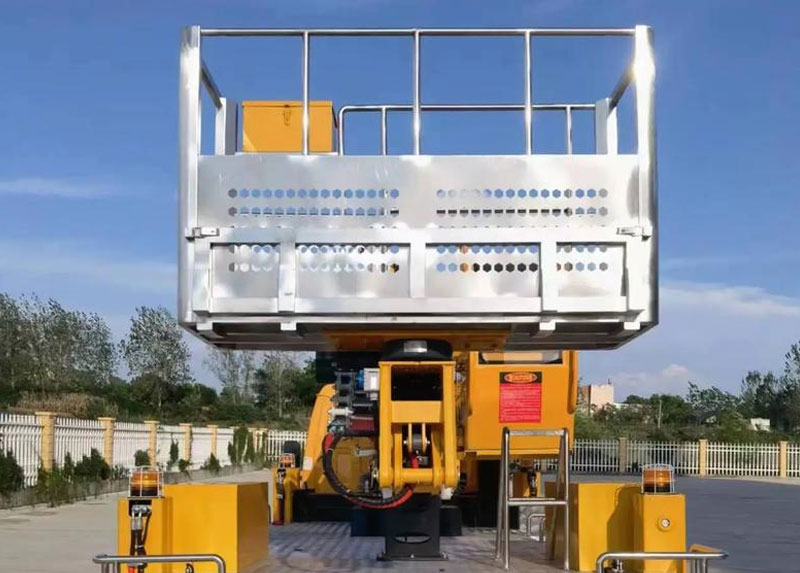

The platform offers 360° rotation, while the high-strength stainless steel basket enables flexible operation. Controls support platform rotation and front/rear tilt adjustment, with an adjustable swivel mechanism.

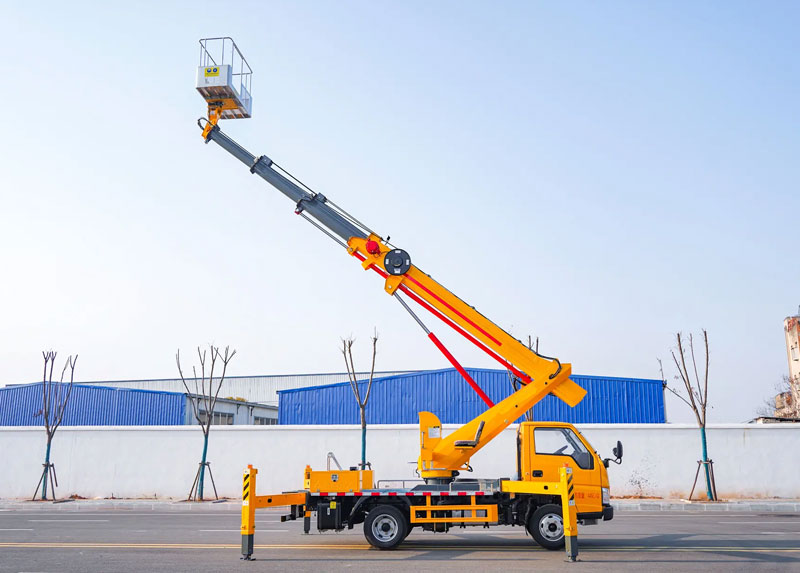

Different telescopic boom lengths correspond to varying operational ranges, adapting to diverse operational needs.
