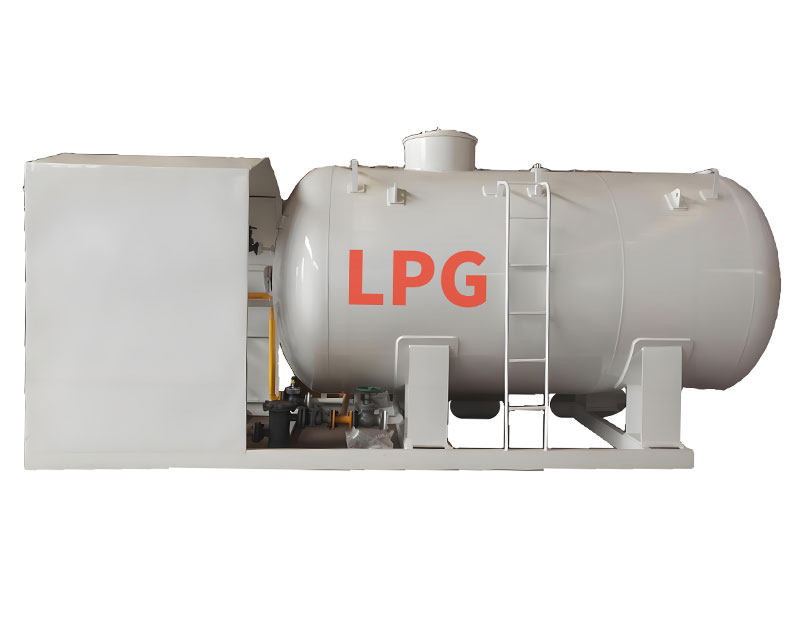

Vehision’s LPG skid station integrates liquefied gas storage tanks, motors, pumps, compressors, electronic filling scales, valves, and other equipment to provide efficient liquefied gas filling solutions. It is equipped with explosion-proof motors, liquid level gauges, safety valves, pressure gauges, thermometers, and alarms to ensure safe operation. The design incorporates liquid phase, gas phase, and reflux systems, along with emergency shutoff valves and concentration alarms, ensuring safe transportation and storage of liquefied gas.
| SPECIFICATION | |
| Tank Specification | |
| Volume of Tank | 5/10/15/20/25cbm |
| Filling Weight | 2500/5000/7500/10000/12500kg |
| Tank Weight | 2950/3050/5060/7500/8030kg |
| Thickness of Shell (mm) | 10mm |
| Thickness of Endplate (mm) | 10mm |
| Tank Diameter (mm) | 1600mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R/ ASME SA516 |
| Filling Medium | Liquefied Petroleum Gas (Propane) |
| Design Pressure | 1.77 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 420-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Other Equipment | |
| LPG pump | YQB15-5, 1 set |
| Motor | 5.5kW 380V, 1 set |
| LPG dispenser | LPG dispenser, double nozzle. |
| Inflatable gun | 3 sets, can be equipped with professional interface, according to user requirements |
| Shockproof hose | 2 liquid phase and 2 gas phase, stainless steel |
| Liquid level gauge | Magnetic flip type and floating ball type |
| Thermometer | m33x2 |
| Pressure gauge | m20x1.5 |
| Spray device | DN15 galvanized pipe surrounds the tank body for a week. When the temperature is high, the spray can be adjusted automatically to effectively reduce the temperature. |
| Sun-shield | It is made of 4mm thick aluminum plate to prevent the storage tank from overheating. |
| Pipes, valves, flanges and standard parts shall be provided according to the actual situation. | |
Vehision supplies LPG skid units from 5 to 100 m³, with 5–30 m³ commonly used for small and medium-sized projects.
Choose the capacity based on daily LPG demand, filling volume, refill frequency, available site space, future expansion, and local regulations. A suitable reserve capacity can reduce delivery frequency and support future growth.

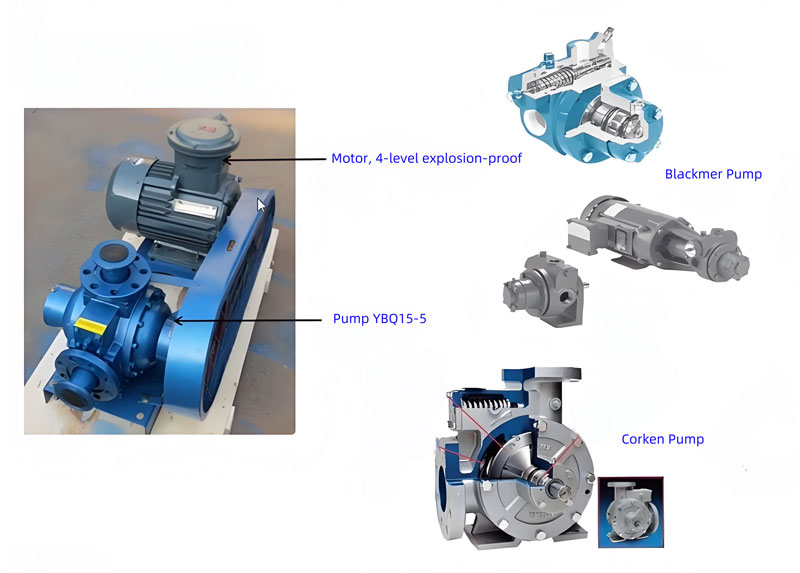

The LPG motors and pumps can be configured with industry-renowned brands such as Blackmer pumps, Corken pumps, and YBQ15-5 pumps to ensure high efficiency and safety performance.

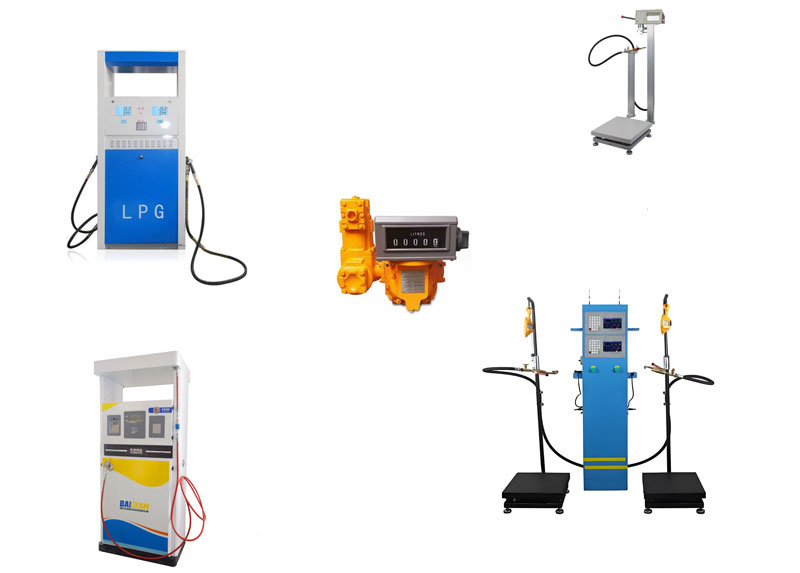

The LPG dispensers, flow meters, and filling scales enable precise measurement and stable flow, ensuring efficient and safe refueling operations.

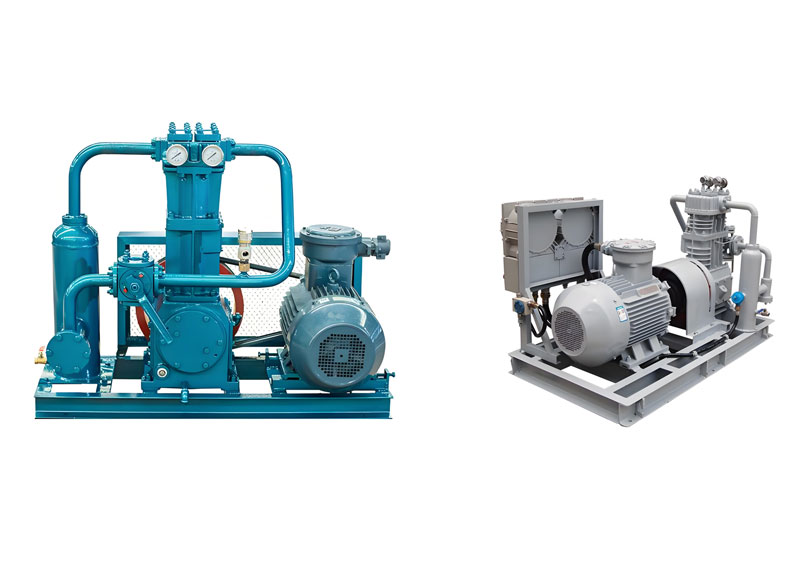

The LPG compressor is highly efficient and durable, ensuring smooth liquefied gas transportation and supporting long-term stable operation.
An LPG skid station is a pre-assembled, skid-mounted system that combines LPG storage, transfer, filling or dispensing, and safety-control equipment in one unit. This type of skid LPG system can reduce on-site installation work and support decentralized LPG distribution projects.
Vehision offers LPG skid station tanks from 5 to 100 m³. Capacities of 5–30 m³ are commonly used, while larger sizes can be configured for specific project requirements.
Yes. It can be equipped with filling pumps, manifolds, filling guns, electronic scales, control systems, and safety devices. The filling positions and configuration can be customized.
Provide daily demand, required tank capacity, filling method, destination country, site layout and preferred pump/dispenser brands.
