Tank structure: Tank body, bulkhead plate, manhole cover;
Safety protection: Explosion-proof breathing valve, overflow sensor, pressure relief device;
Electrostatic conduction system: Static-conductive drag strip, tank body grounding terminal;
Loading/unloading system: Bottom loading/unloading valve, vapor recovery port;
Monitoring devices: Liquid level gauge, temperature sensor;
Overflow prevention design: High-level alarm, automatic shut-off valve;
Auxiliary facilities: Handrail frame, platform guardrail, anti-splash baffle
SPECIFICATION | |
Tank Information | |
Tank Volume | 30cbm/40cbm/45cbm/50cbm/55cbm/60cbm |
Tank Material | Carbon Steel/Stainless Steel/Aluminum Alloy Steel |
Loading Medium | Diesel/ Petroleum/ Gasoline/ Crude Oil/ Palm Oil, etc. |
Tank Compartments | 1/2/3/4/5/6/7/8/10/15/19 |
Manhole standard | API Standard/ Regular Standard. |
Trailer Specification | |
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, Height 500mm, Bottom Flange 16mm, width 140mm. |
Axle | 2 axle/ 3 axles / 4 axle |
BPW/ FUWA/ L1 13 ton | |
Suspension | Heavy Duty Mechanical Suspension |
Floor | 3mm checker plate |
Leaf Spring | 10 piece Leaf spring |
King Pin | JOST brand 2" Bolt-in King Pin |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
Wheel Rim | 8.25-22.5 wheel rim 13 pieces / 9pieces |
Tire | 11R22.5 tire with one spare tire. 13 pieces /9pieces |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |

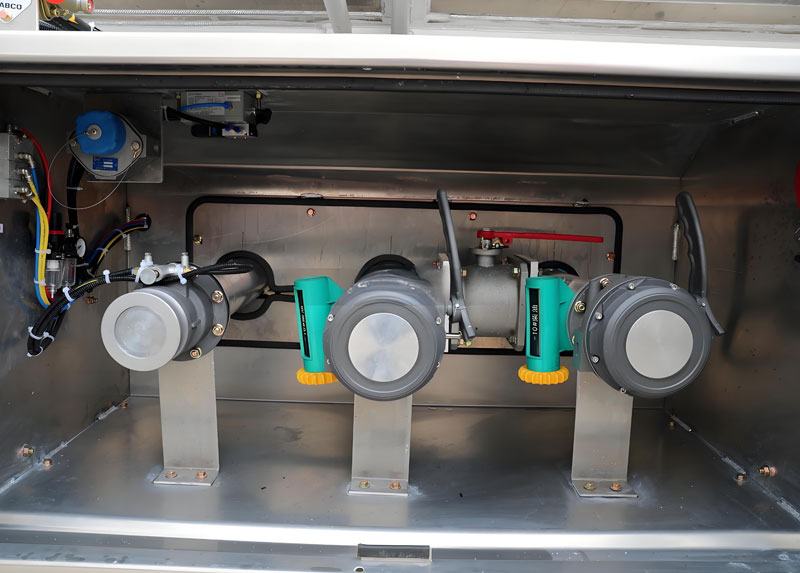

Safety configurations: The discharge box is equipped with an oil discharge valve, vapor recovery valve, emergency shut-off device, static wire reel, anti-overflow probe socket,Static grounding strip, etc., ensuring operational safety and zero oil waste.
Lightweight design: The tank adopts a lightweight design. The head section is first plasma-cut, then shaped by an expanding machine, and finally sealed at the edges using a flanging machine, effectively ensuring strength and impact resistance.

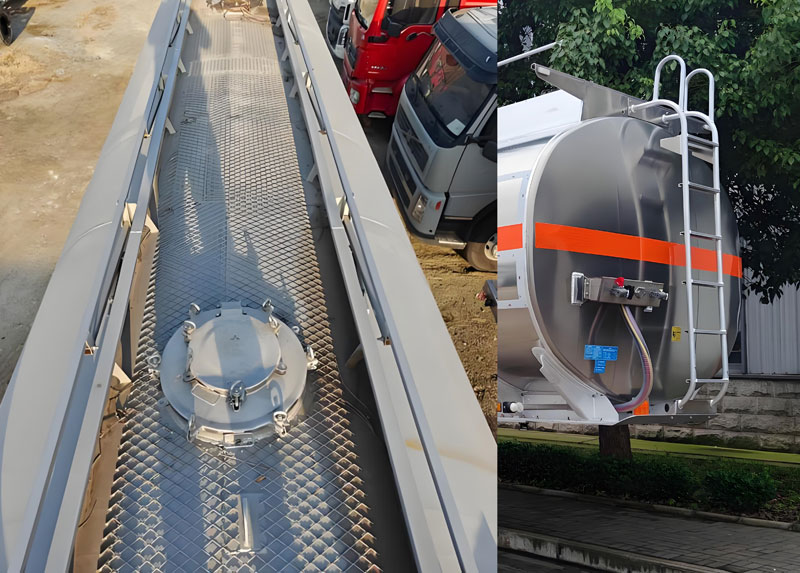

User-friendly ladder: The tank top features a manhole cover and anti-slip net, with elevating guardrails on both sides and a safety ladder at the rear, facilitating operator access and inspection of the tank top.
