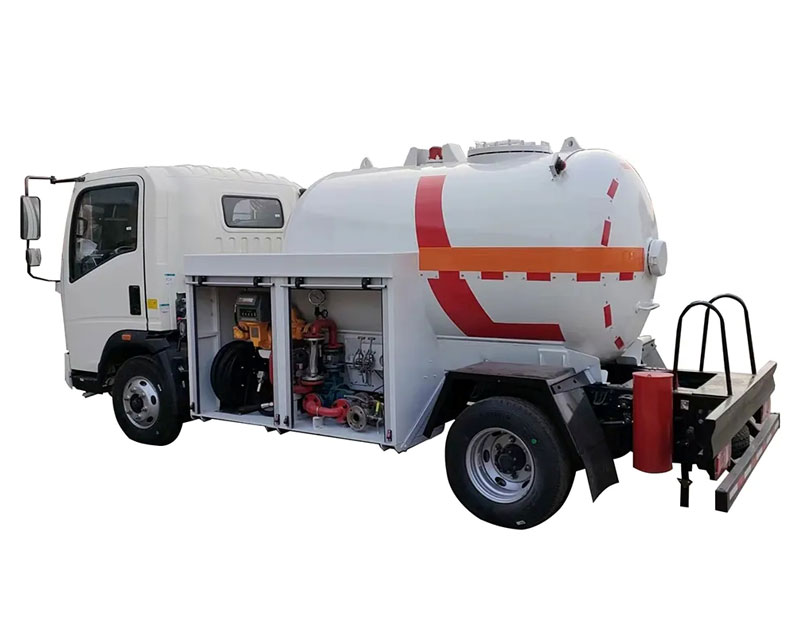

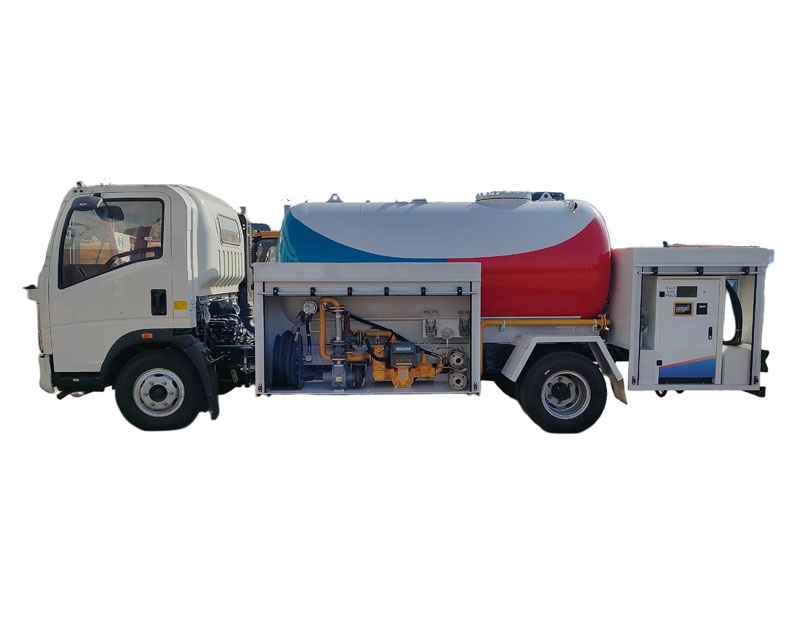

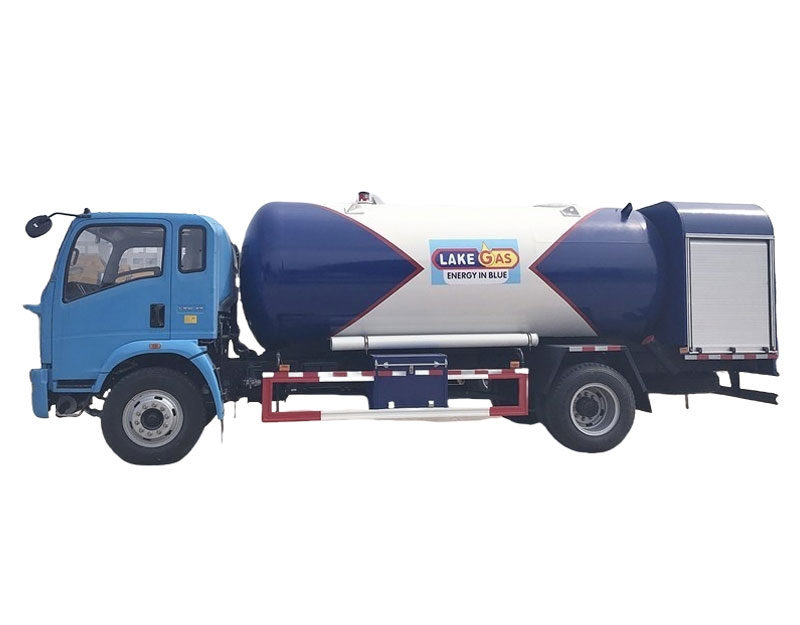

The core components of the LPG tank Truck include the tank, the integrated unloading system with explosion-proof safety valves and emergency shut-off valves, dual redundancy level/pressure monitoring devices, and an air suspension chassis. The tank as one of the specialty trucks is equipped with anti-liquid boards and vacuum insulation layers, with a fire arrestor and explosion-proof materials at the rear. Optional fueling equipment includes flow meters, safety return valves, and various optional fueling machines and level gauges, providing efficient fueling functionality to meet different needs.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | LPG tranport truck | |
| Overall dimensions (L×W×H) | About 10720*2496*3420mm | |
| Chassis Specification | ||
| Cabin | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Fuel type of engine | Diesel | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Upper body specification | ||
| LPG Tank | Capacity | 10cbm/ 15cbm/20cbm/25cbm/30cbm/35cbm |
| Tank Material | Q345R high tension steel, 10mm Thick Tank Body | |
| Tank Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.55 ton/M3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm | |

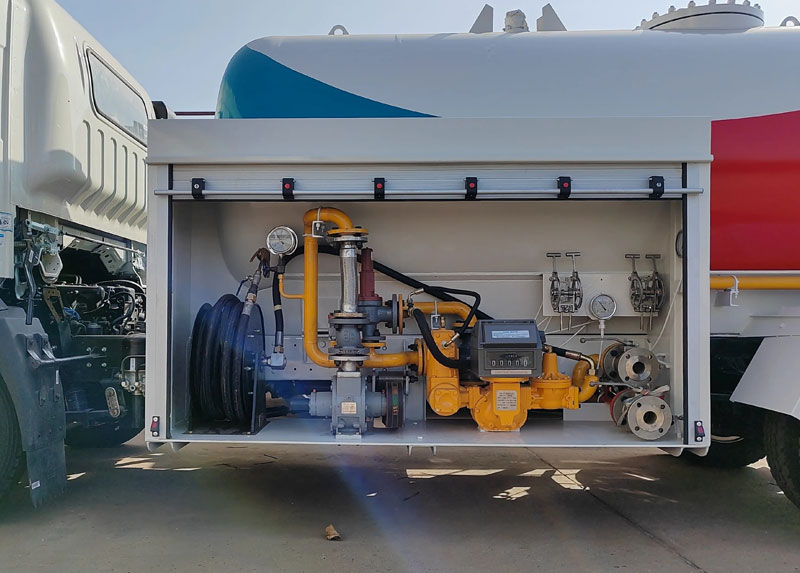

| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides. Sun-shield | |
| Standard | Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |

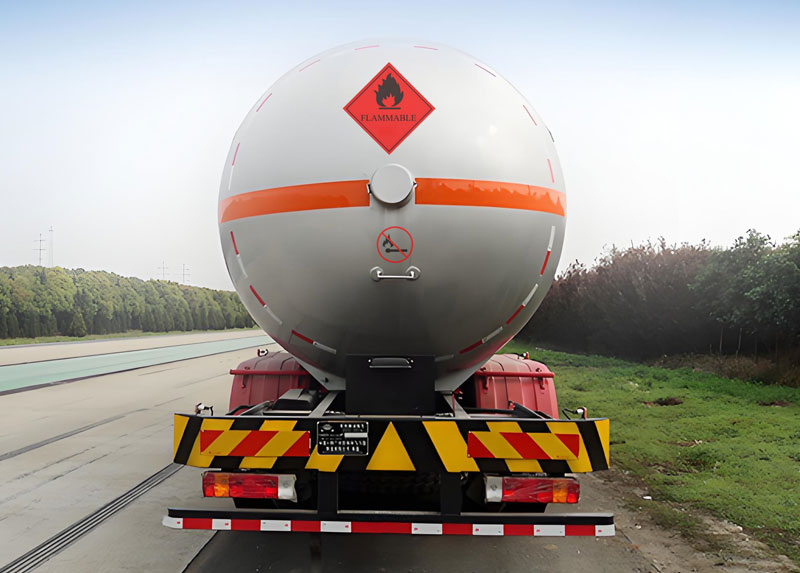

The liquefied gas tanker's tank body adopts a circular or spherical design to ensure strength and rigidity while reducing material consumption.

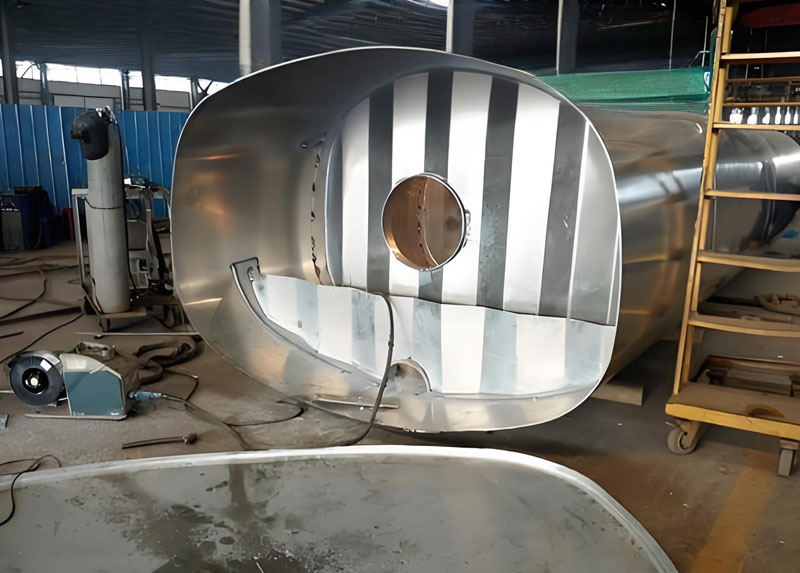

The tank interior is equipped with anti-surge baffles, further enhancing stability through multiple damping holes to ensure safe transportation.
The safety devices is equipped with safety valves, pressure gauges, thermometers, float level gauges, and emergency shut-off valves to enhance the safety and reliability of liquefied LPG gas transport.
