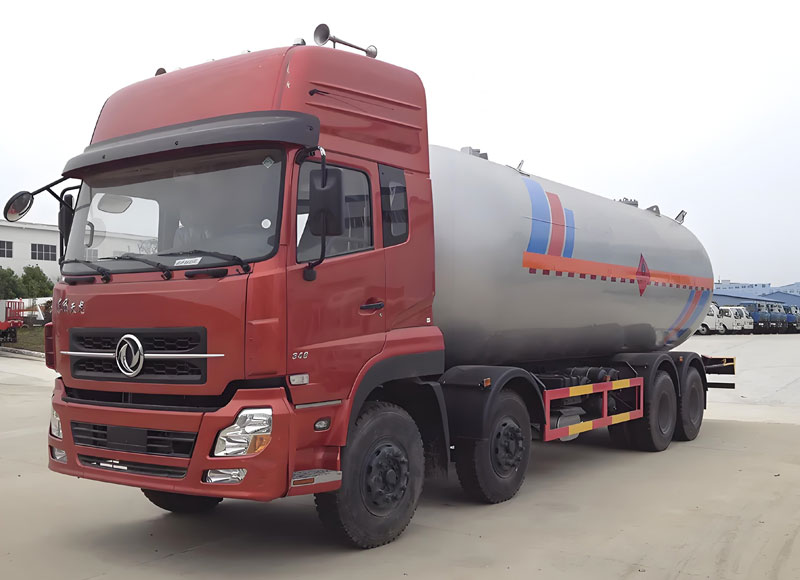

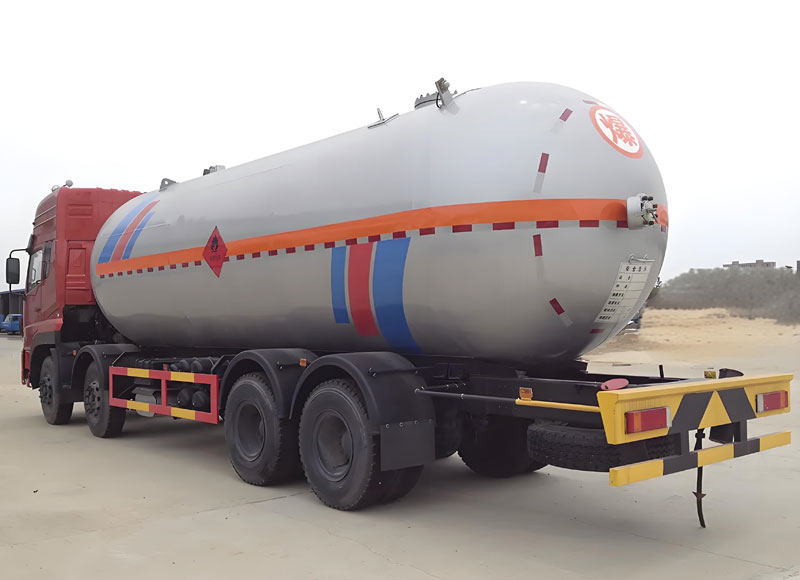

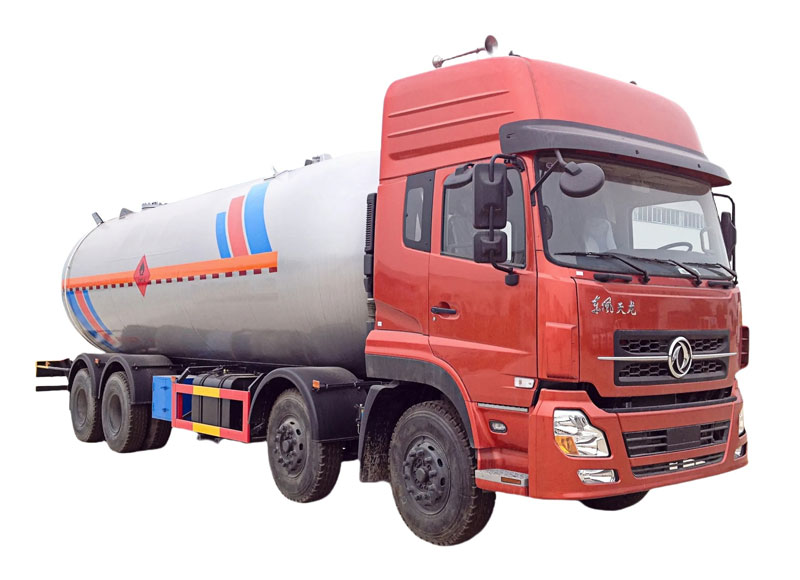

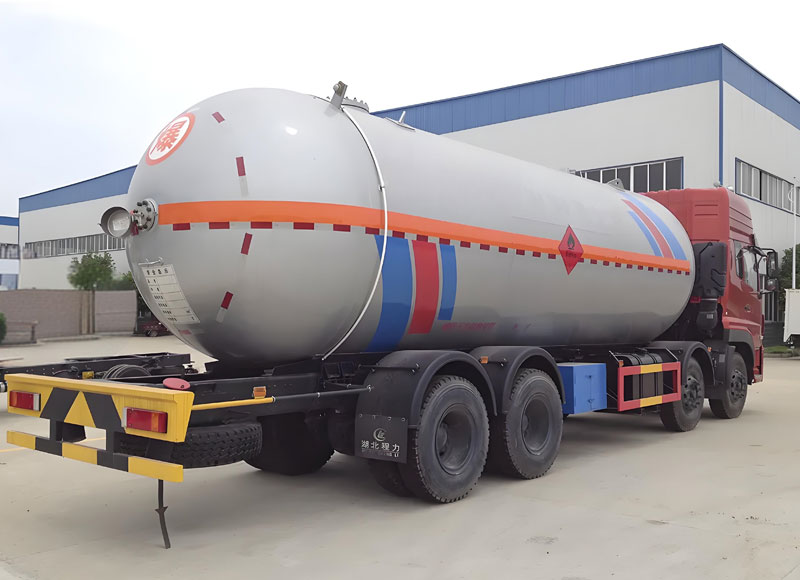

1. The Dongfeng 8X4 37.2CBM Truck mounted LPG Tanker is designed to provide a reliable and efficient solution for transporting liquefied petroleum gas (LPG).
2. The vehicle is constructed with durable Q345R carbon steel, ensuring a robust and long-lasting structure capable of withstanding frequent use. Its body dimensions (11700×2495×3690mm) and tank dimensions (2350×10×8960mm) offer ample space for storage and transportation.
3. Equipped with a single liquid-level outlet pipeline, the truck simplifies the piping layout, reduces the risk of leakage, and enforces the mandatory use of "dedicated tanks," strictly prohibiting the mixing of different liquids.
4. Sealing and pressure control are achieved through emergency shut-off valves, safety valves, and liquid level monitoring devices, combined with anti-static and fire-fighting equipment to prevent leaks and fires.
5. Pressure stability is maintained through safety relief valves and check valves, pipeline impacts are mitigated by anti-vibration hoses, and emergency gas shut-off is secured by actuators equipped with wheels.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/8x4 |
| Gross Vehicle Weight(kg) | 32000 |
| Curb Weight(kg) | 16246 |
| Loading Weight(kg) | 15624 |
| Overall Dimension(mm) | 11200×2500×3800 |
| Tyre Qty. | 12 |
| Tyre Spec. | 11.00R20 14PR |
| Wheelbase（mm） | 1900+4550+1350 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 100 |
| ABS | Yes |
| Transmission | 12-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY-340 |
| Power(kw) | 252 |
| Horsepower(HP) | 340 |
Upper & Equipment | |
| LPG Tank Capacity(cbm) | 37.2 CMB/37.2 m³/37200 liter/37.2 cubic meter |
| LPG Dimension(mm) | 2475×12×8186 |
| LPG Tank Material | Q345R Carbon Steel |
| LPG Tank Thickness(mm) | 10 |
| Designed Pressure(MPa) | 1.71 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| LPG Tank Filling Medium | LPG |
| Corrosion Allowance(mm) | 1 |
| Core Components of LPG Vehicle | Single liquid LPG outlet, safety valve, thermometer, pressure gauge, emergency shut-off valve, flange-face connected ball valve, float-type liquid level gauge with percentage dial, iron fender, fire extinguisher, anti-static grounding tape. |
| Remarks | Customized LOGO design as per customer needs! |
