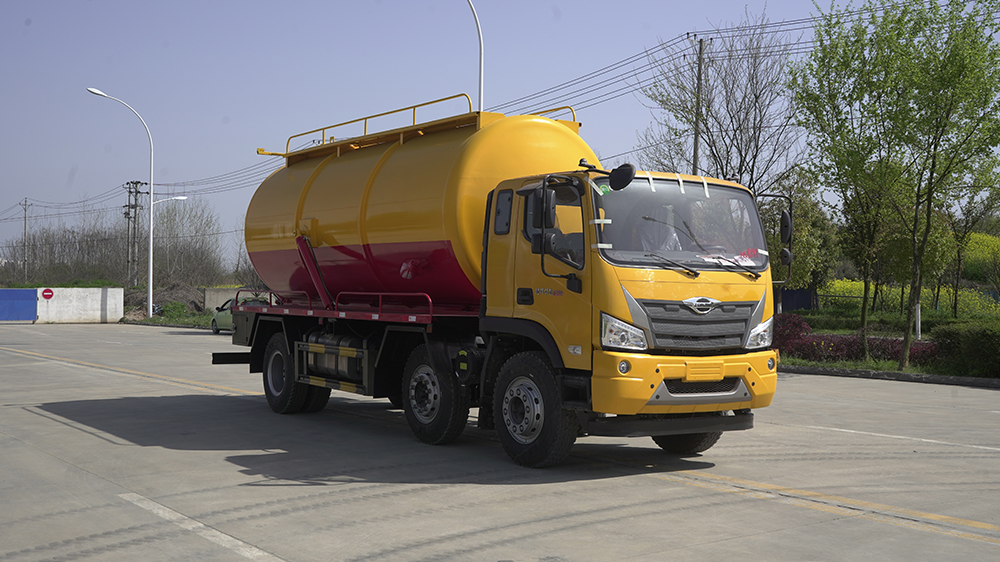

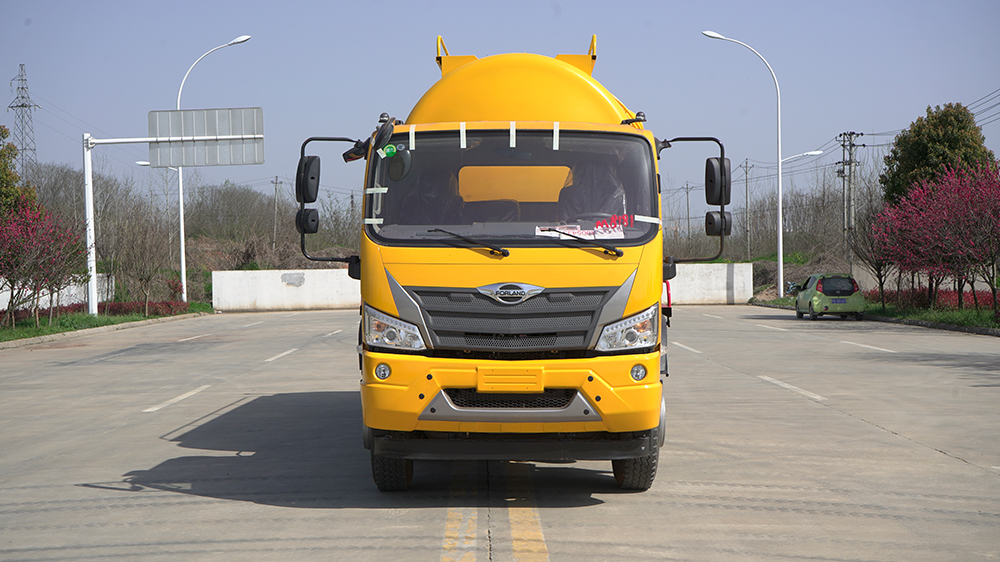

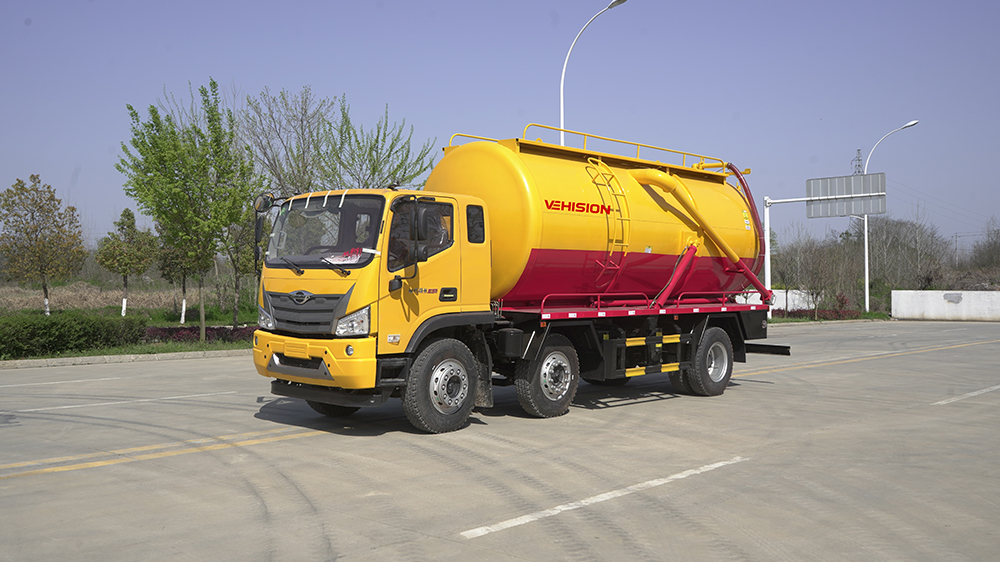

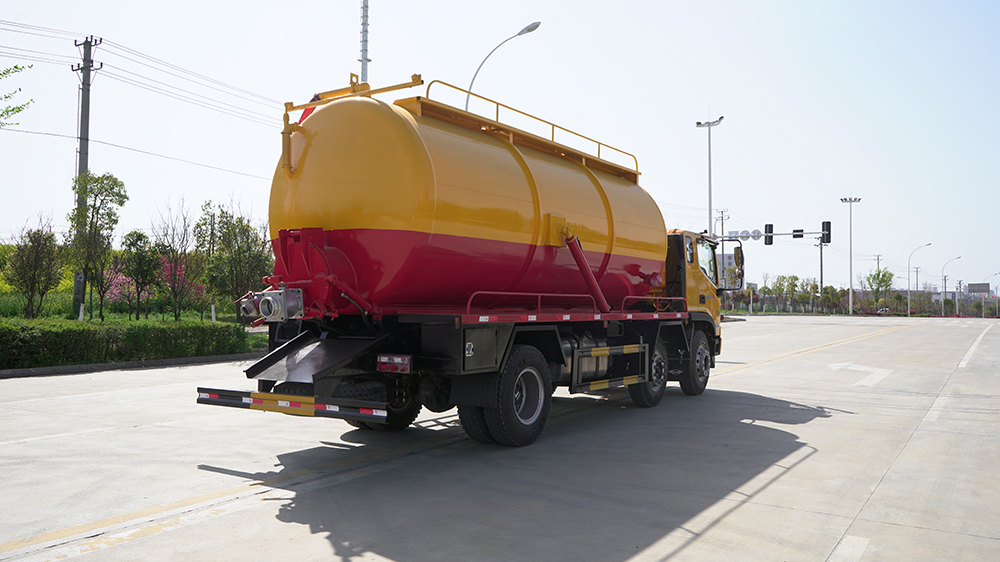

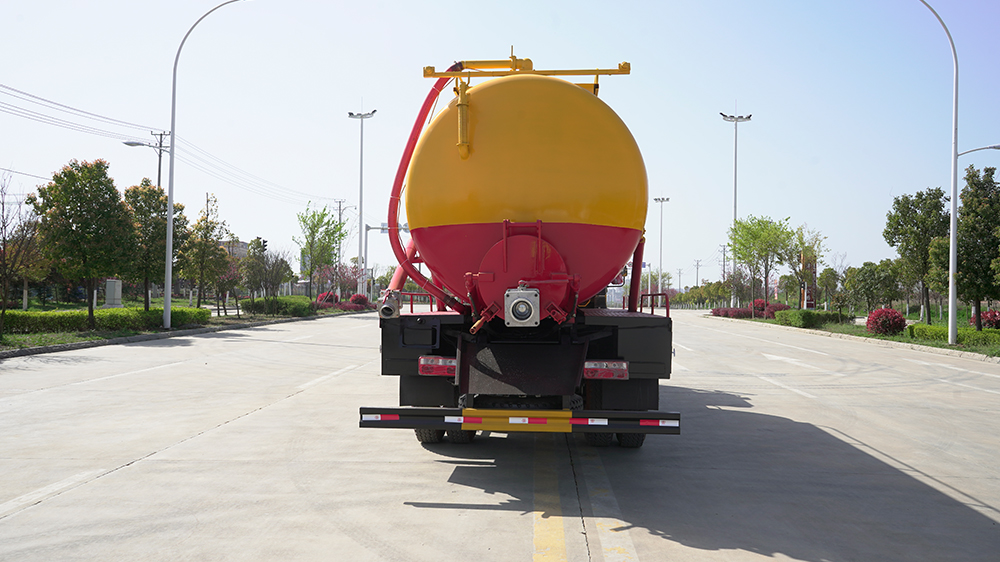

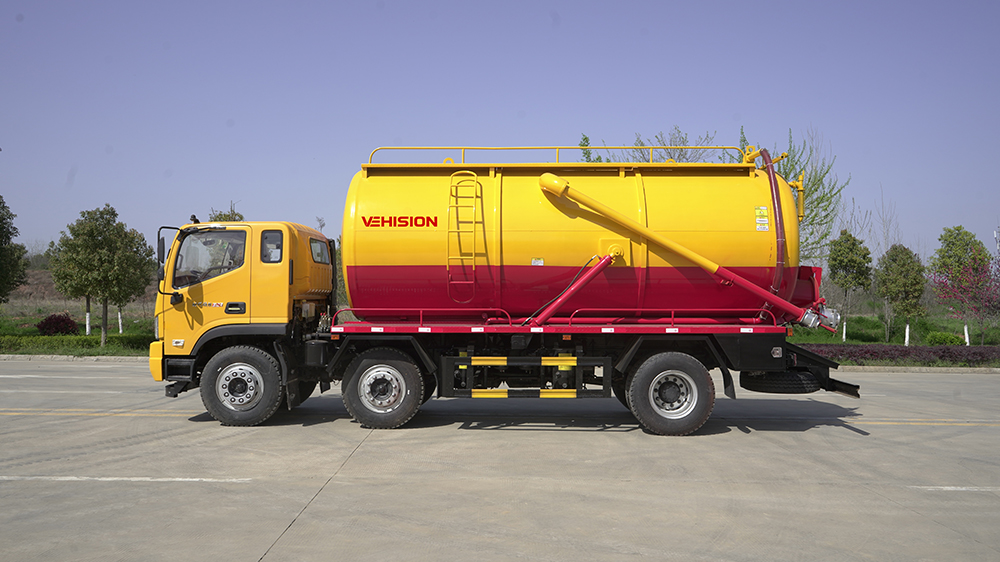

1.The sewage suction truck adopts an original Foton chassis with a Weichai engine, offering strong power and, combined with dual 10-ton vacuum pump, ensures performance under heavy loads and complex road conditions.
2.Equipped with a high-power vacuum pump, featuring strong suction and efficient operation, capable of quickly extracting various liquid, semi-liquid, and debris-containing media.
3.The tank structure is well-designed, utilizing one-time molding and dual-lift self-dumping, combined with an anti-overflow system to effectively enhance safety and durability.
4.Offers three functions: vacuum suction, pressure discharge, and gravity discharge, with an advanced pipeline system for simple operation and easy maintenance.
| Chassis | |
| Brand | Foton |
| Drive Type | Left hand drive/6×2 |
| Gross Vehicle Weight(kg) | 24500 |
| Curb Weight(kg) | 11680,10800 |
| Loading Weight(kg) | 12625,13505 |
| Overall Dimension(mm) | 9150,9620×2500,2550×3750,3800,3900 |
| Tyre Qty. | 8 |
| Tyre Spec. | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR |
| Wheelbase（mm） | 1800+3600 |
| Front/Rear Overhang (mm) | 1260/2490,1260/2960 |
| Approach/Departure angle(°) | 20/13 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 90 |
| ABS | Yes |
| Transmission | 9-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 person |
| Engine(Other Engines Optional) | |
| Brand | Weichai |
| Model | WP4.6NQ220E61 |
| Power(kw) | 162 |
| Horsepower(HP) | 220 |
| Upper Equipment | |
| Tank Capacity | 19.7 m³/19.7 CBM/19.7 Ton/19700L |
| Tank Overall Dimension(mm) | 6100×2100 |
| Tank Material | Optional with carbon/stainless steel alloy |
| Tank Thickness(mm) | 8 |
| Hydraulic System Pressure (MPa) | 18 |
| Standard Function Configuration | The tank features a dished head design. The rear tank head is permanently sealed without hydraulic opening. The tank is equipped with hydraulic lifting and self-dumping functions. There is a sewage inspection pipe on the upper part of the rear tank head, and a 600mm sewage outlet at the lower part of the rear head. A 150mm ball valve is installed at the sewage outlet, with hydraulic opening and mechanical locking. Equipped with dual 10-ton vacuum pumps, a water-oil separator, an anti-overflow valve, and side marker lights with electric power. |
| Sewage Suction Hose | 1×8-meter |
| Other Parts | Oil-gas separator, water-gas separator, pressure-vacuum gauge, multi-way valve, gear pump, anti-overflow valve, and sewage discharge valve,etc. |
| Other Services | Customized LOGO design as per customer needs! |
