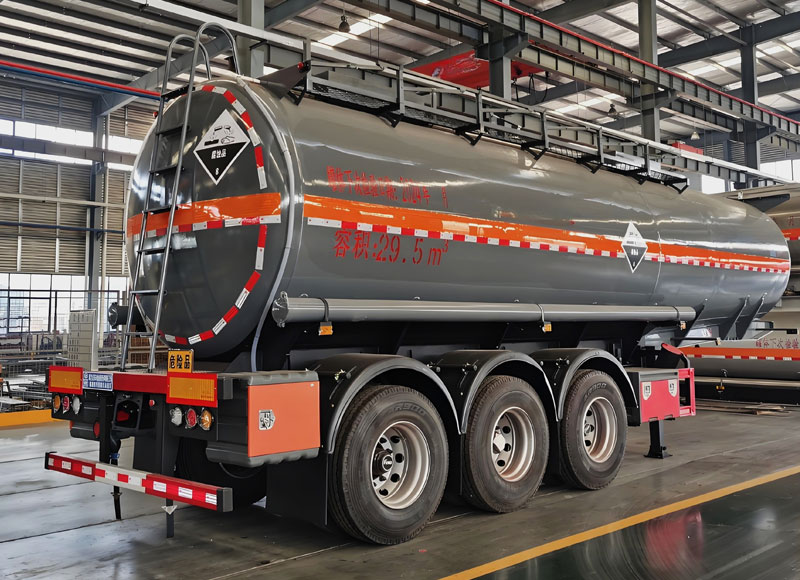

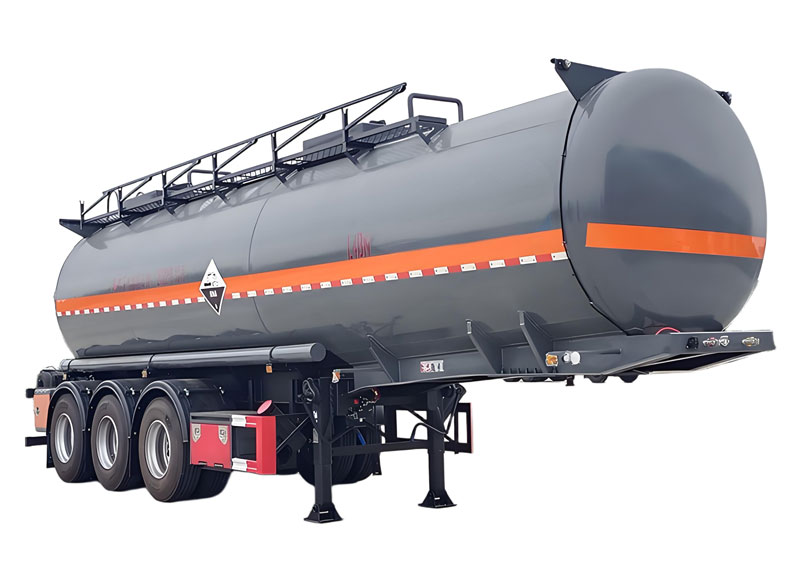

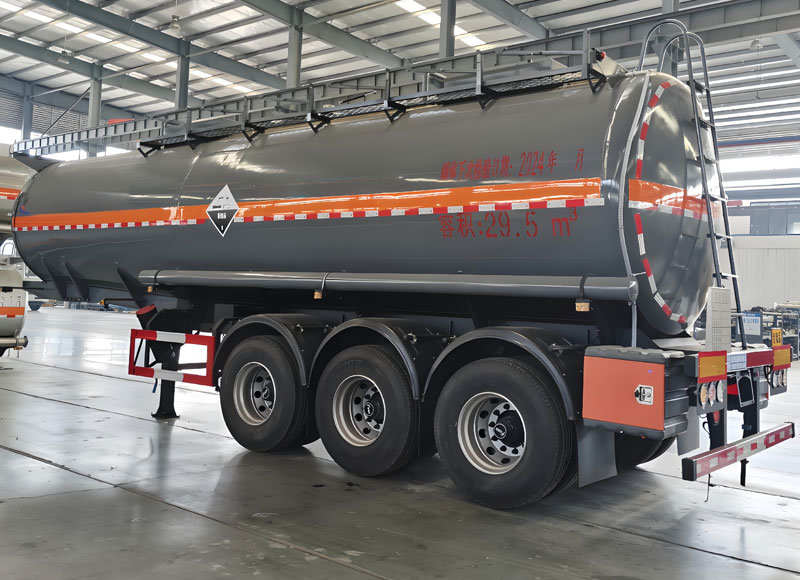

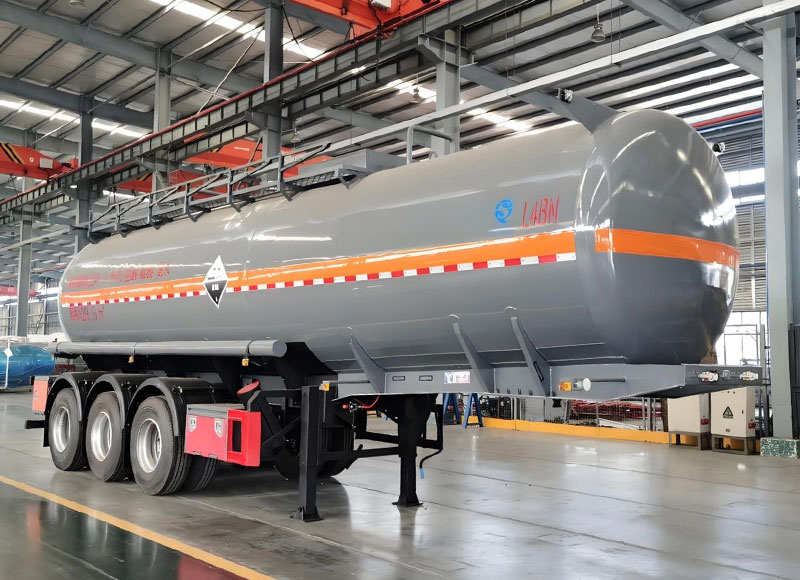

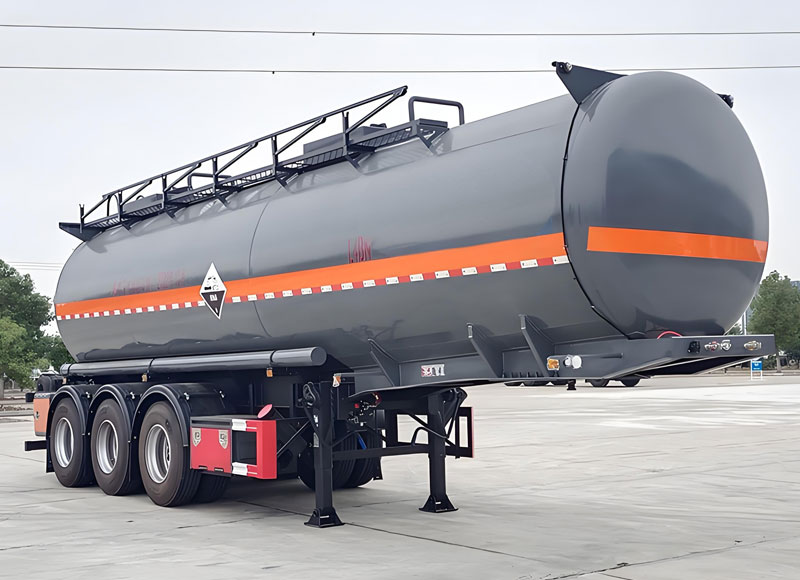

1. Q235 carbon steel tank body (4.2mm thickness) with 16mm plastic lining layer, head thickened to 4.75mm, suitable for transporting highly corrosive liquids.
2. Equipped with stainless steel fluorine-lined bottom valve (with voice alarm), PTFE ball valves, stainless steel safety valve, and plastic feed inlets for comprehensive leak-proof and corrosion resistance.
3. Tri-axle semi-trailer adopts 10-ton Fuhua axles + disc brakes + EBS + air suspension, paired with 12R22.5 vacuum tires and 28-ton landing legs, ensuring safe heavy-load transportation.
Chassis | |
| Over Dimension(mm) | 10200×2500×3800 |
| Gross Vehicle Weight(kg) | 40000 |
| Curb Weight(kg) | 9000 |
| Loading Weight(kg) | 31000 |
| Tyre Qty. | 12 |
| Tyre Spec. | 12R22.5 12PR |
| Wheelbase（mm） | 4700+1310+1310 |
| Front/Rear Overhang (mm) | -/1450 |
| Approach/Departure angle(°) | -/17 |
Upper Equipment | |
| Tank Capacity(cbm) | 29.5 |
| Tank Dimension(mm) | 9700×1950×2150 |
| Tank Material | Q235 carbon steel |
| Tank Compartment Qty. | Single-chamber , Multi-chamber customizable |
| Tank Filling medium | Corrosive Substances |
| Tank Lining Material | 16mm thick plastic-lined |
| Tank Body thikness(mm) | 4.2 |
| Tank End Cap(mm) | 4.75 |
| Inlets | 2×plastic manholes |
| Safety Valve | 1× stainless steel safety valve |
| Rear Outlets | 1 x stainless steel fluor-lined submerged valve with voice alarm 2 x PTFE ball valves with self-draining ports |
| Other Services | Customized LOGO design as per customer needs! |
