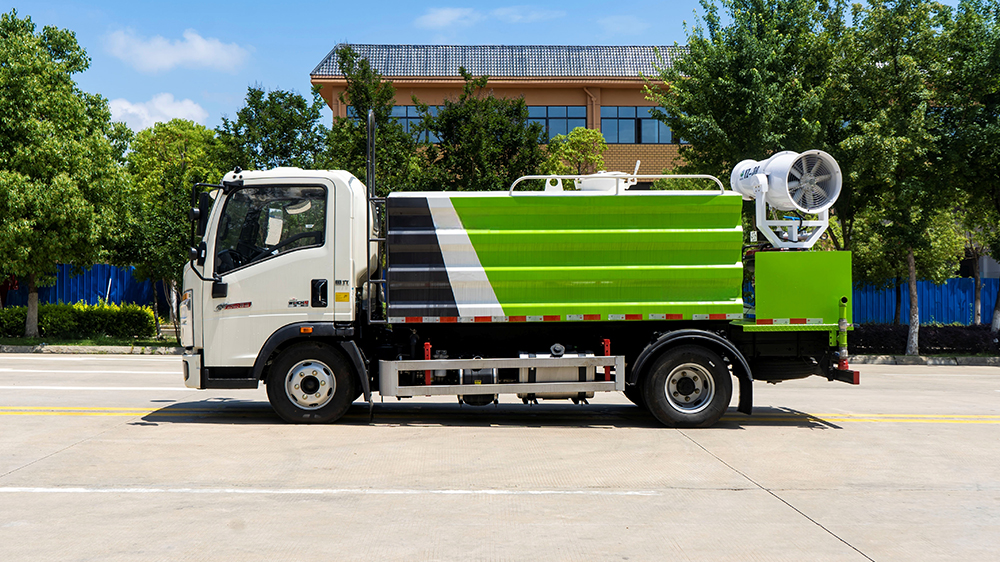

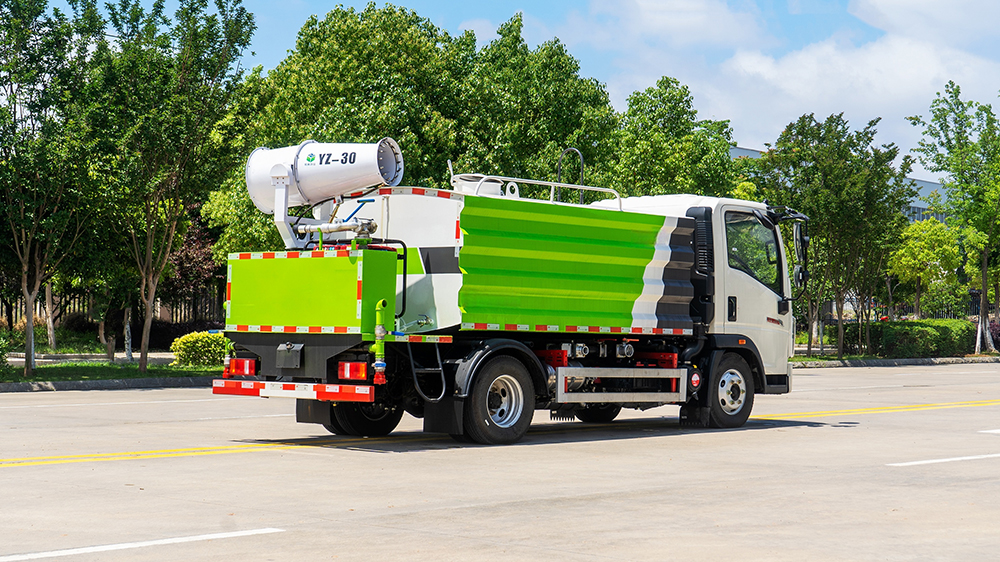

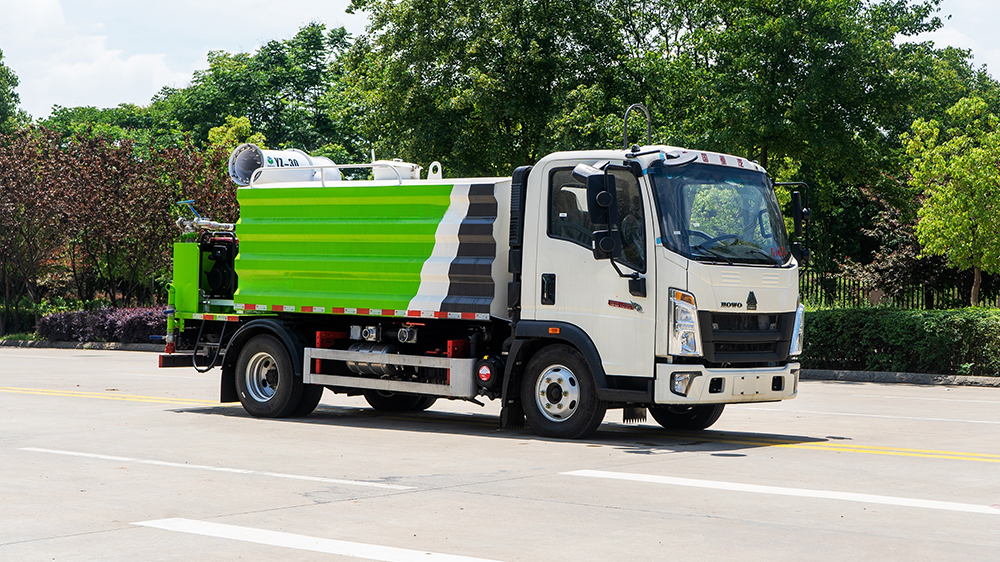

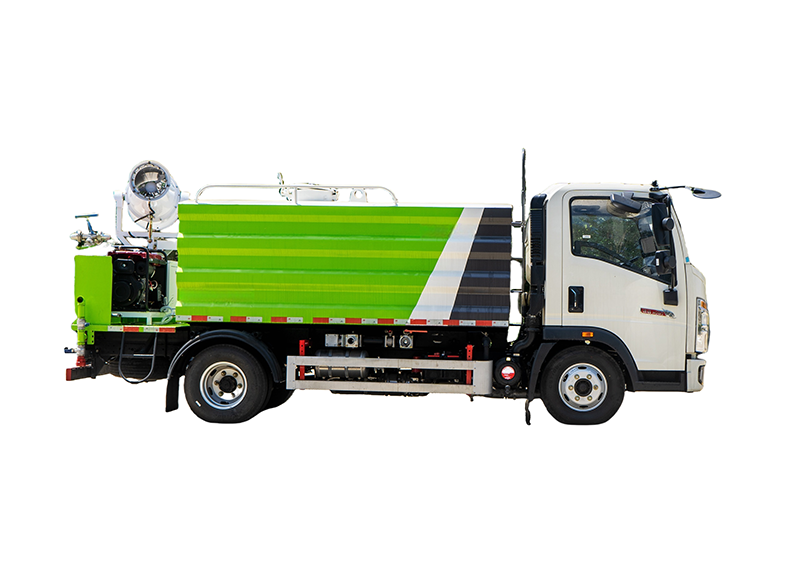

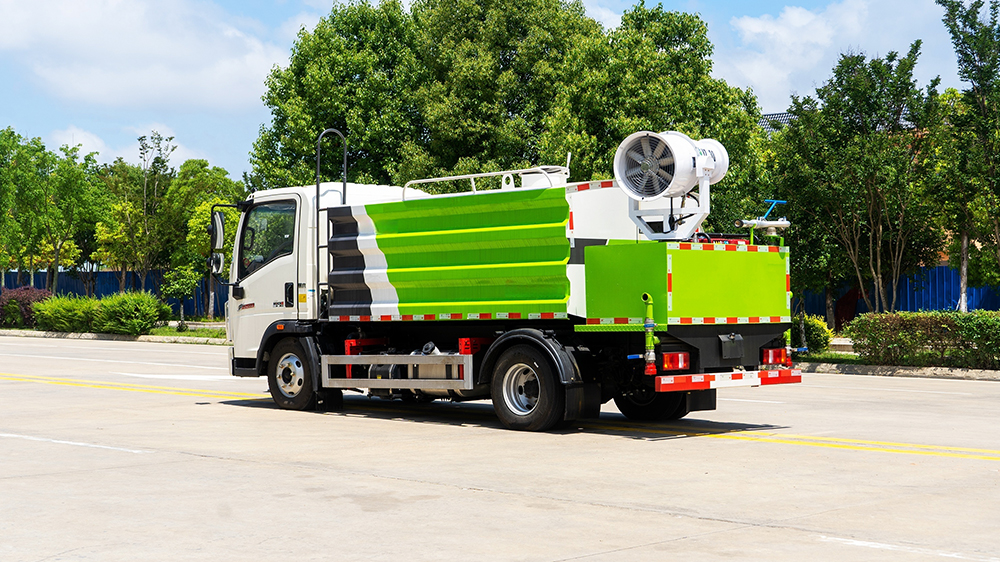

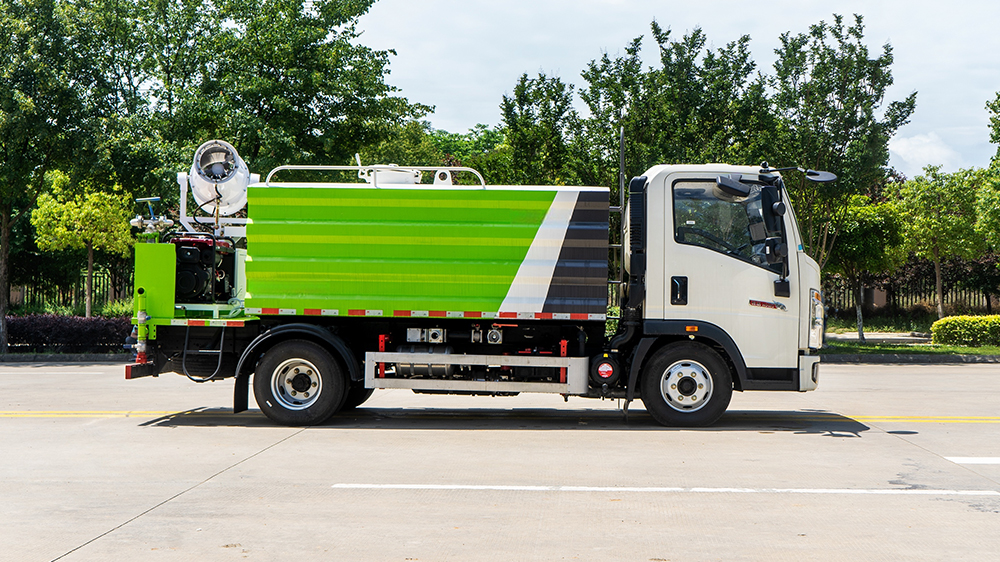

1. The vehicle consists of a tank, water pump, power take-off, ball valves, filters, sprayer, and watering devices, featuring excellent performance, high efficiency, easy maintenance, and an effective rear-mounted mist cannon for dust and haze suppression.
2. The tank side walls are formed using CNC bending machines, and the bottom and top plates are integrally spliced for stronger structure, resulting in a novel, simple, and aesthetically pleasing appearance.
3. The pipeline is equipped with a pressure gauge for real-time monitoring, while the rear of the tank features a water level indicator and an operation platform with protective railings to ensure operator safety and convenience.
4. The mist cannon truck is equipped with a water pump that supports both irrigation and emergency low-pressure firefighting, can be fitted with pesticide spraying systems, and allows pneumatic control of all watering valves from inside the cab to improve efficiency and reduce labor intensity.
5. The vehicle has a compact structure, reasonable layout, and complete configuration, with a rear-mounted tank level gauge and a safe operation platform with ladder access for easy observation and maintenance.
| Chassis | |
| Brand | HOWO |
| Drive Type | 4×2 |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 3600 |
| Loading Weight(kg) | 765 |
| Overall Dimension(mm) | 5995×2080×2850,2900 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 10PR,7.50R16LT 8PR |
| Wheelbase（mm） | 3280 |
| Front/Rear Overhang (mm) | 1160/1555,1180/1535 |
| Approach/Departure angle(°) | 18/16 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 6-Speed |
| Cab | 2-3 person,LHD/RHD |
| Main Engine(Other Engines Optional) | |
| Brand | Weichai |
| Model | WP2.3NQ130E61 |
| Power(kw) | 96 |
| Horsepower(HP) | 130 |
| Upper Equipment | |
| Tank Capacity | 7 m3/cbm |
| Tank Dimension(mm) | 3100×1850×1250 |
| Tank Material | Carbon steel |
| Front Flushing Width(m) | 18 |
| Rear Spraying Width(m) | 12 |
| Water Cannon Range(m) | 35 |
| Vertical Suction Lift(m) | 7 |
| High-pressure water cannon | Capable of 360° rotation, adjustable to a jet mode with a maximum range of 35 meters or a mist mode with a maximum range of 15 meters; adjustable spray patterns include direct jet, heavy rain, moderate rain, light rain, and drizzle. |
| Dust Suppression Standard Configuration | Universal front flushing, rear spraying, side spraying, high-pressure water cannon, water pump, and mist cannon,etc. |
| Other Services | Customized LOGO design as per customer needs! |
