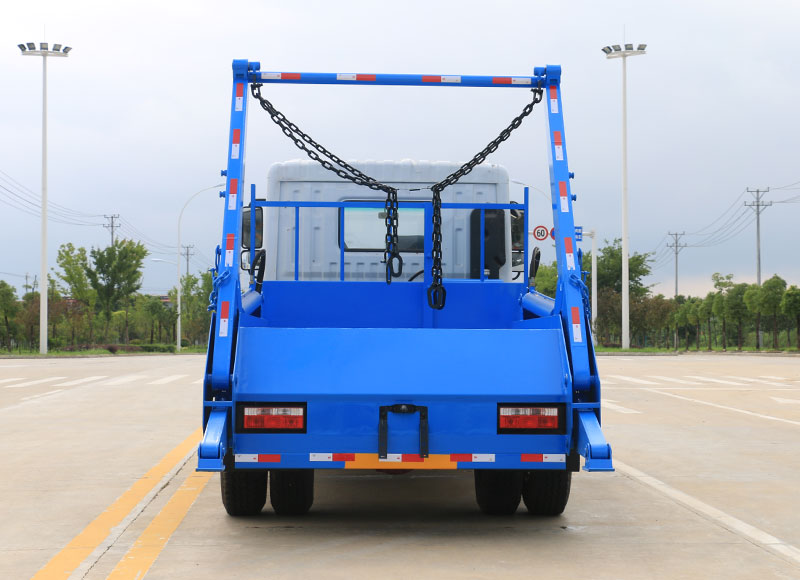

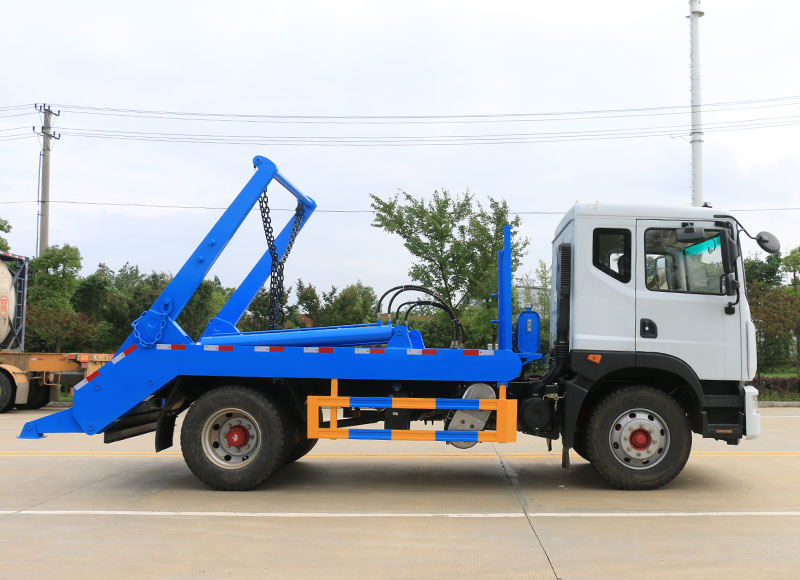

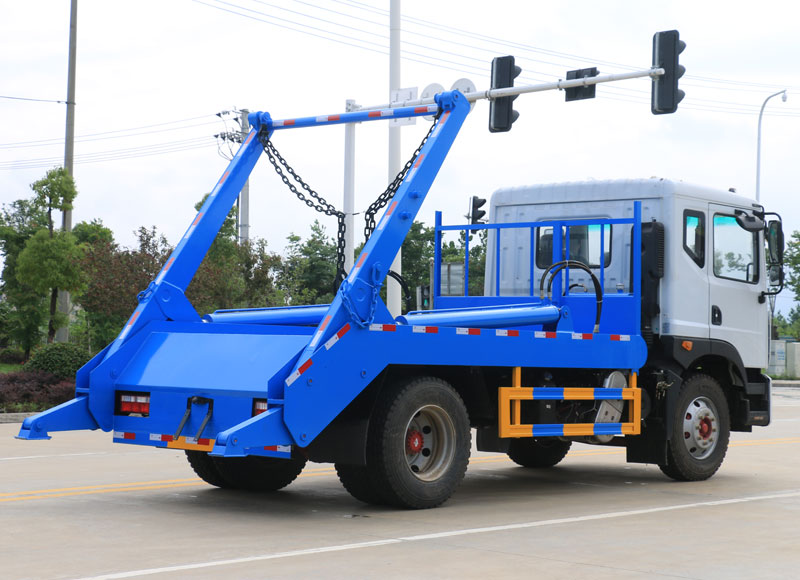

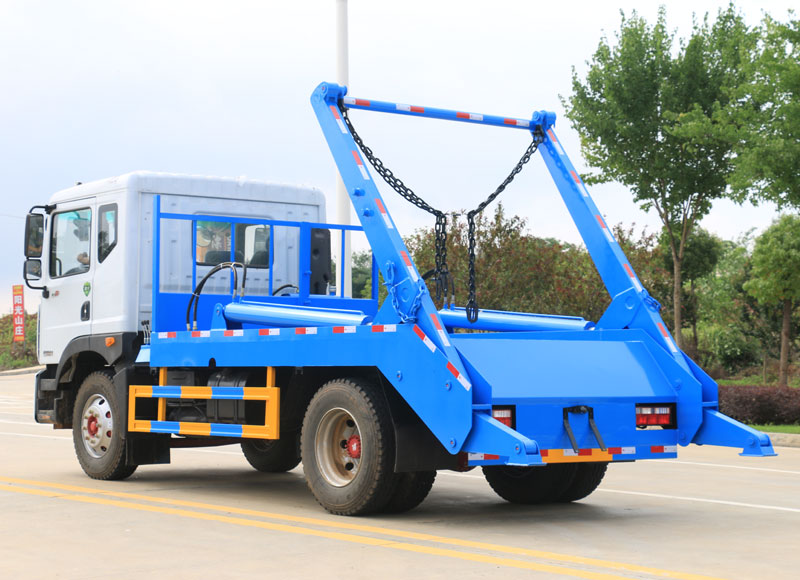

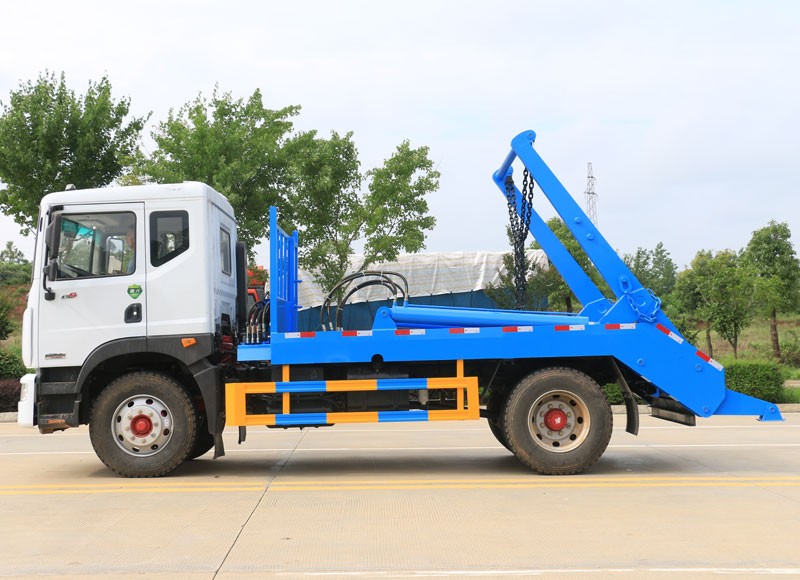

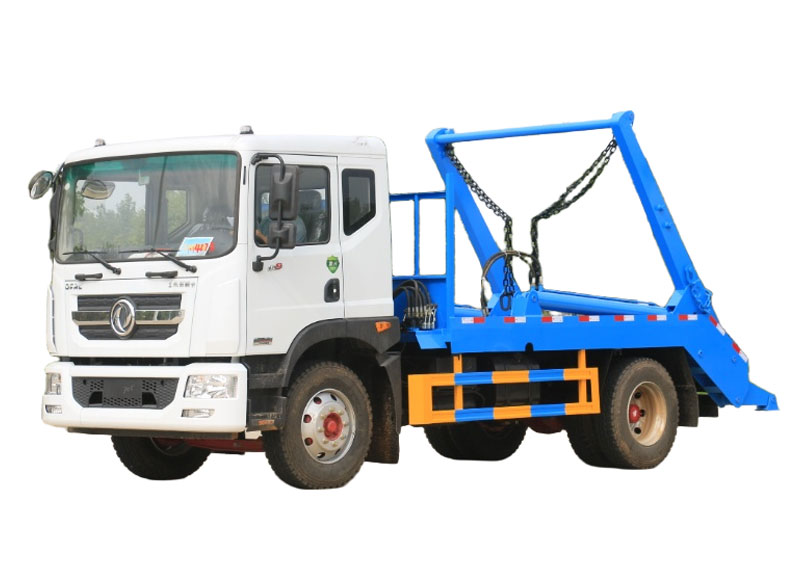

1. Swing-arm garbage truck adopts Dongfeng chassis with integrated hydraulic lifting system, equipped with Cummins engine.
2. Vehicle-body and garbage container detachable design ("one truck with multiple containers") reduces equipment costs. Supports multi-container rotation transport, improves short-distance garbage cleaning efficiency. Suitable for municipal sanitation in towns.
3. Hydraulic system includes oil pump, multi-directional control valve, hydraulic oil cylinder, balance valve, and oil pipelines. Powers self-lifting/self-dumping functions. Completes loading/unloading cycle in 60 seconds, significantly reducing manual labor intensity.
4. Supports manual/electric control operation for flexible demand adaptation.
Chassis | |
| Brand | Dongfeng |
| Drive Type | 4×2,LHD/RHD |
| Gross Vehicle Weight(kg) | 16200 |
| Curb Weight(kg) | 6450 |
| Loading Weight(kg) | 9620,9555 |
| Overall Dimension(mm) | 7360×2500×3350,3450,3550 |
| Tyre Qty. | 6 |
| Tyre Spec. | 9.00R20 16PR,10.00R20 18PR,295/60R22.5 18PR |
| Wheelbase（mm） | 3950 |
| Front/Rear Overhang (mm) | 1260/2150 |
| Approach/Departure angle(°) | 19/11 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 105 |
| ABS | Yes |
| Transmission | 8-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Cummins |
| Model | B6.2NS6B230 |
| Power(kw) | 169 |
| Horsepower(HP) | 230 |
Upper Equipment | |
| Match the bin capacity | 8-10m³/8-10 CBM/8-10 Ton/8000-10000L |
| Dustbin Material | Carbon steel |
| Hydraulic System Pressure | 6MP,Import or well-known brand muti-way valve and cylinders |
| Control Method | Electric/Manual/Manual-electric |
| Self-discharging Incline Angle(°) | 53 |
| Lifting Time(s) | ≤60 |
| Unloading Time(s) | ≤60 |
| Other Services | Customized LOGO design as per customer needs! |
