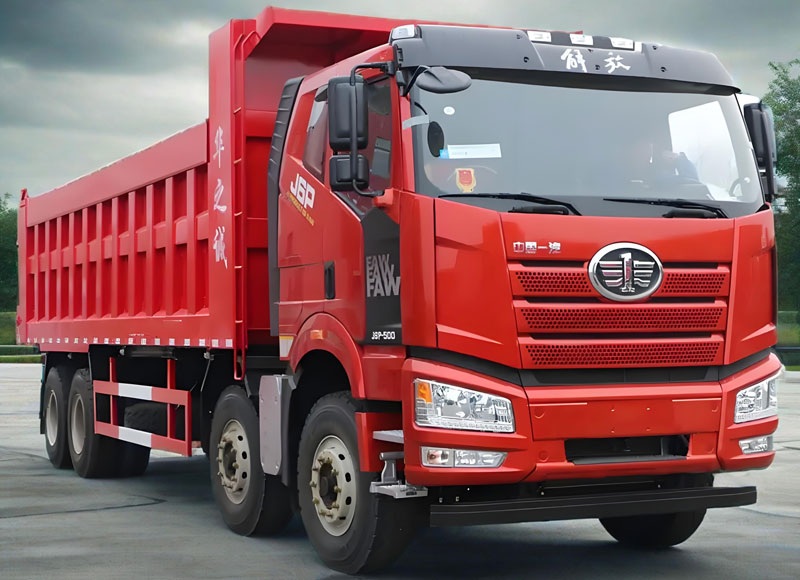

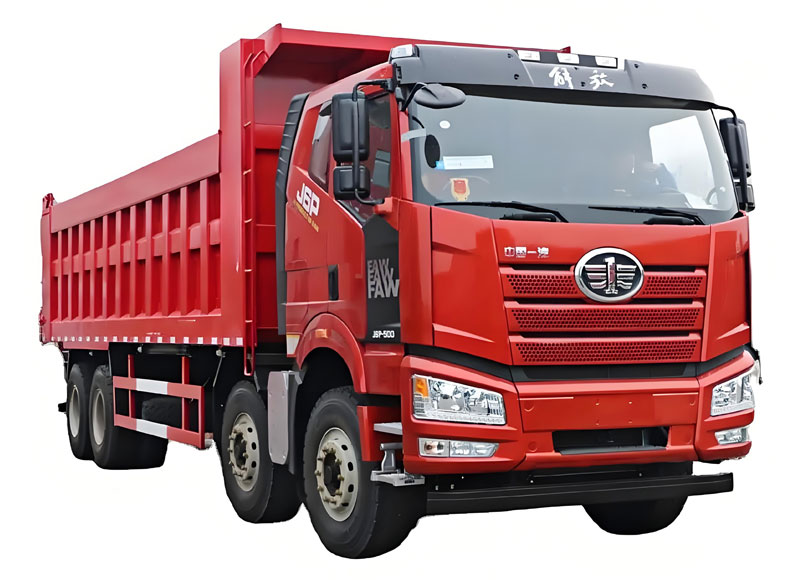

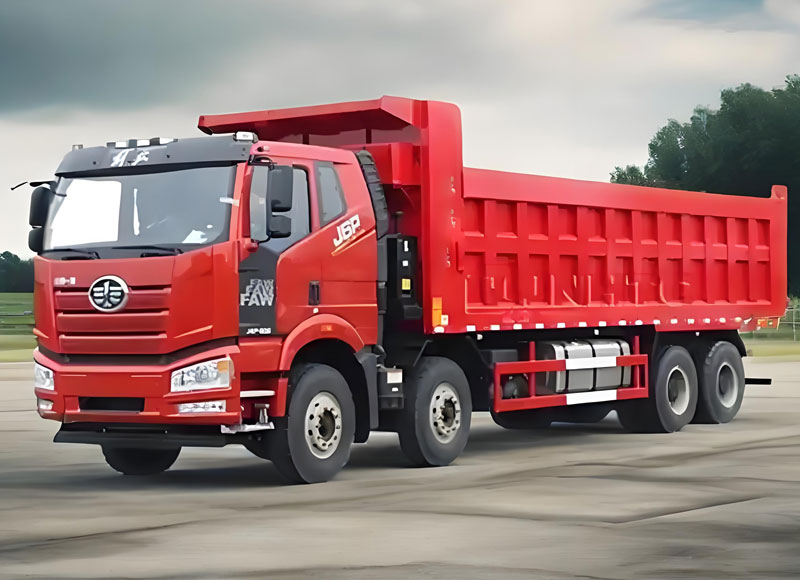

1. The chassis adopts FAW J6P, equipped with Xichai CA6DM3 series 600 hp engine, matched with 12-speed gearbox (CA12TAX260FR) and wheel reduction axle with 5.921 ratio, delivering maximum torque exceeding 2,300 N·m to meet continuous power demands for heavy-duty transportation and complex working conditions.
2. Features 300×80×(8+5) mm double-layer frame and front 9/rear 10 multi-leaf spring suspension system, combined with 8X4 all-wheel drive design, supporting 31-ton total mass to ensure torsional resistance and load-bearing stability.
3. Equipped with 12.00R20 18PR tires, enhanced puncture resistance through high tread strength and 18-layer carcass structure, suitable for heavy-load operations in harsh terrains like mines and construction sites.
4. Standard configurations include engineering cab roll-over protection frame, front-mounted hydraulic oil cooler, full-vehicle waterproof electrical circuits module, and mud-resistant sealed wheel-side reduction axle, ensuring reliability in high-intensity operations such as mining and muck transportation.
Chassis | |
| Brand | FAW |
| Drive Type | Left hand drive/8x4 |
| Gross Vehicle Weight(kg) | 31000 |
| Curb Weight(kg) | 15305 |
| Load Weight(kg) | 15500 |
| Overall Dimension(mm) | 12000×2550×3990 |
| Tyre Qty. | 12 |
| Tyre Spec. | 12.00R20 18PR |
| Wheelbase（mm） | 2000+4800+1350 |
| Front/Rear Overhang (mm) | 1500/2350 |
| Approach/Departure Angle(°) | 24/25 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 89 |
| ABS | Included |
| Transmission | 12-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 persons |
Engine (Other Engine Optional) | |
| Brand | Xichai |
| Model | CA6DM3-60E610 |
| Power(kw) | 445 |
| Horsepower(HP) | 605 |

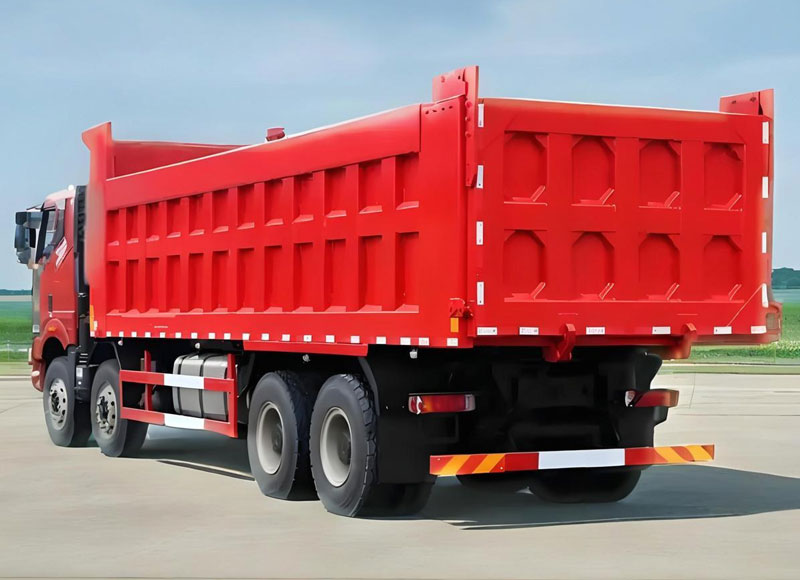

Upper & Equipment | |
| Dumper Box Capacity | 31m³/31Ton/31CBM |
| Dumper Box Dimension(mm) | 9100×2350×1500 |
| Dumper Box Material | Carbon steel |
| Self-dumping Method | Rear dumping |
| Dumper Box | Standard U-shaped body, optional styles include three-door, five-door, Tianzi grid, vertical grid, boat-shaped, U-shaped, large five-door, rear double doors, crossbeam type. |
| Standard Accessories | Tail lights, signal lights, reversing lights, and side marker lights,reflective tapes. |
| Remarks | Customized LOGO design as per customer needs! |
