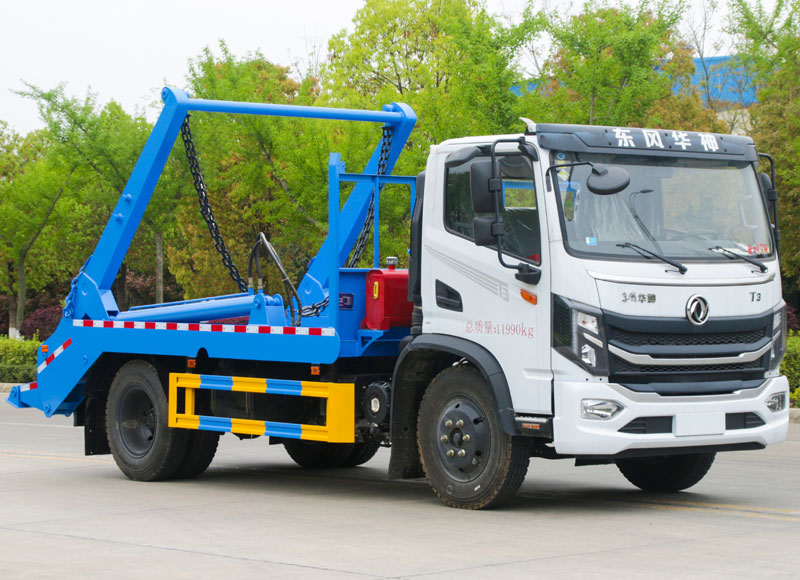

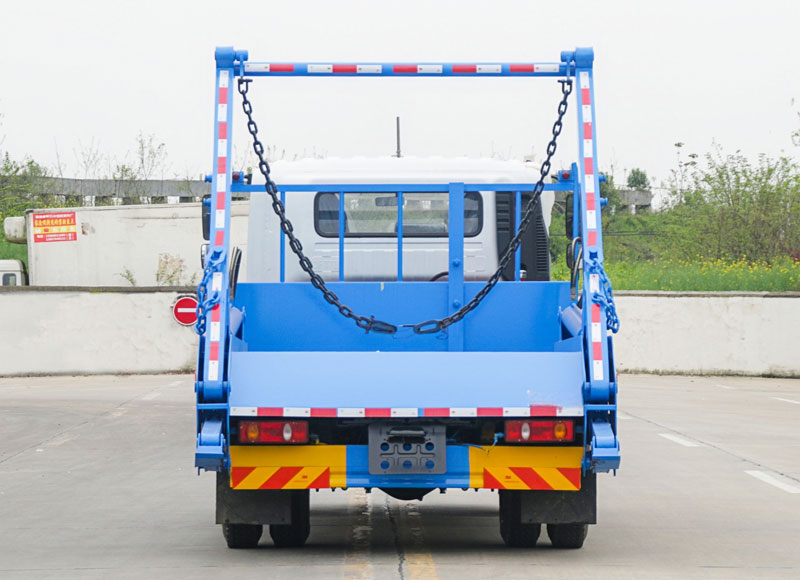

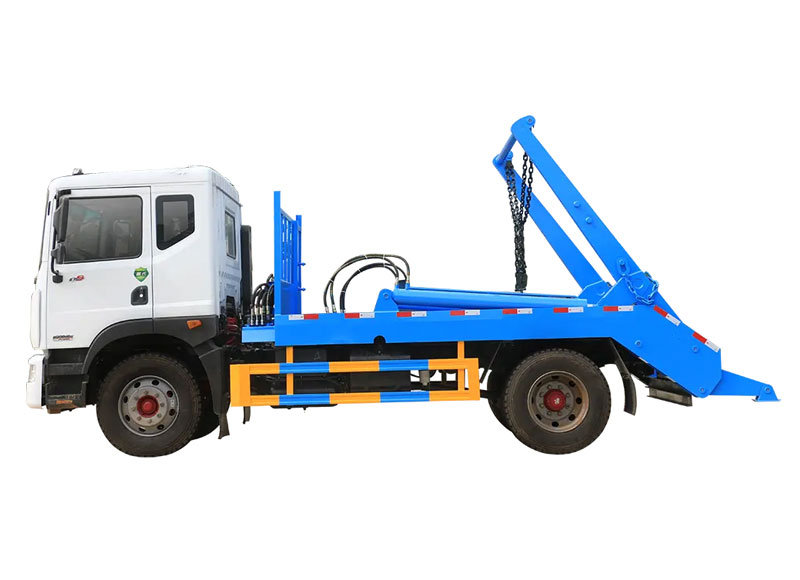

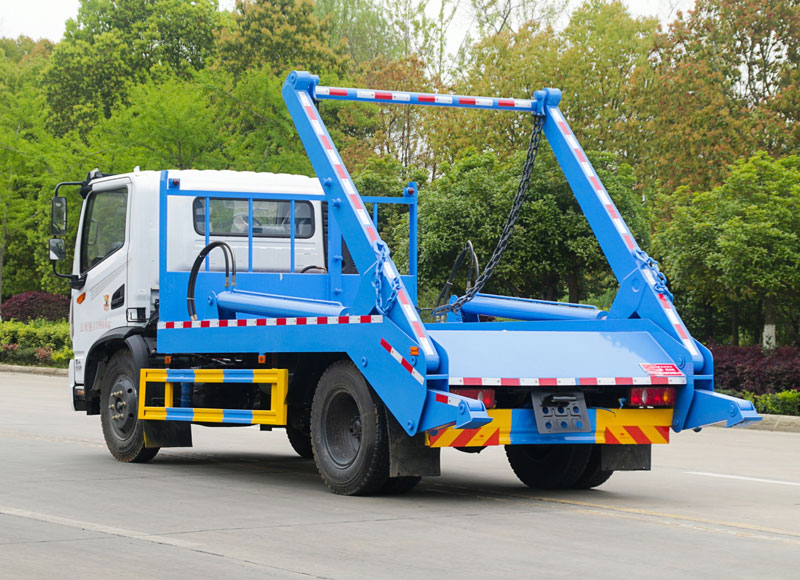

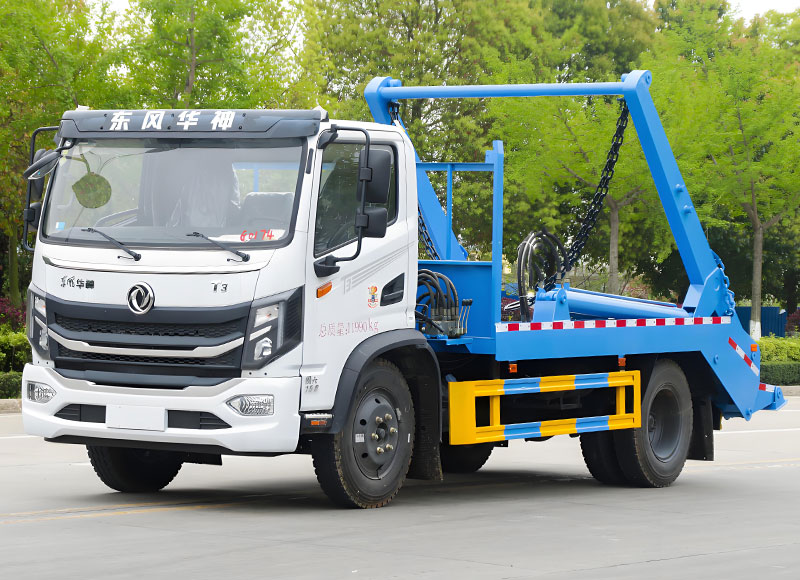

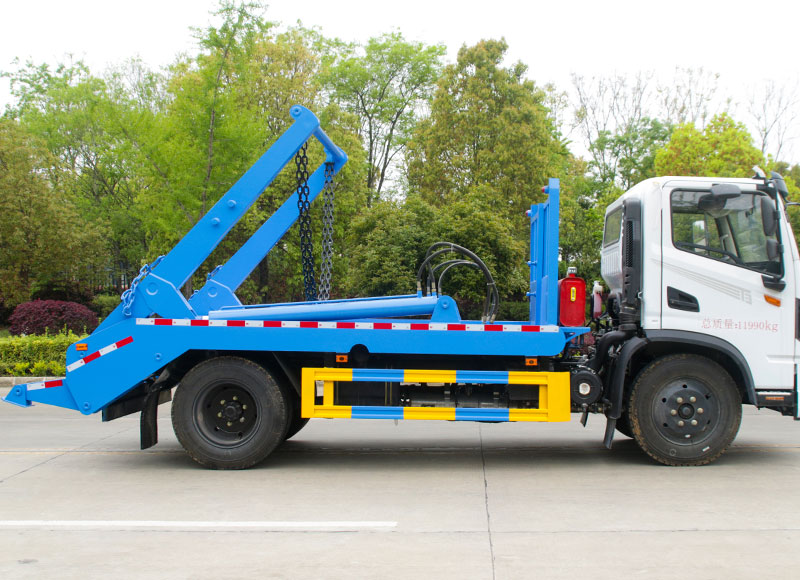

1. Swing-arm garbage truck adopts Dongfeng chassis with integrated hydraulic lifting system, paired with YuChai 165HP engine.
2. Vehicle-body and garbage container detachable design ("one truck with multiple containers") reduces equipment costs. Supports multi-container rotation transport, improves short-distance garbage cleaning efficiency. Suitable for municipal sanitation in towns.
3. Hydraulic system includes oil pump, multi-directional control valve, hydraulic oil cylinder, balance valve, and oil pipelines. Powers self-lifting/self-dumping functions. Completes loading/unloading cycle in 60 seconds, significantly reducing manual labor intensity.
4. Supports manual/electric control operation for flexible demand adaptation.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 11990 |
| Curb Weight(kg) | 5080,5330,5500 |
| Loading Weight(kg) | 6780,6715,6530,6465,6360,6295 |
| Overall Dimension(mm) | 6900,6920,6950,6980,6800,6820,6850,6880×2350,2450,2480×2910,3010,3110,3250 |
| Tyre Qty. | 6 |
| Tyre Spec. | 8.25R20 14PR,8.25R20 16PR,245/70R19.5 16PR |
| Wheelbase（mm） | 3800 |
| Front/Rear Overhang (mm) | 1200/1800,1220/1800,1250/1800,1280/1800,1200/1900,1220/1900,1250/1900,1280/1900 |
| Approach/Departure angle(°) | 17/11 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 88 |
| ABS | Yes |
| Transmission | 5-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY30165-60 |
| Power(kw) | 121 |
| Horsepower(HP) | 165 |
Upper Equipment | |
| Match the bin capacity | 5-6m³/5-6 CBM/5-6 Ton/5000-6000L |
| Dustbin Material | Carbon steel |
| Hydraulic System Pressure | Import or Chinese top brand muti-way valve and cylinders |
| Control Method | Electric/Manual/Manual-electric |
| Self-discharging Incline Angle(°) | 53 |
| Lifting Time(s) | ≤60 |
| Unloading Time(s) | ≤60 |
| Other Services | Customized LOGO design as per customer needs! |
A 6cbm swing arm garbage truck is used for collecting and transporting detachable waste containers in small to medium-scale municipal sanitation operations.
The swing arm system uses a hydraulic lifting mechanism to swing and load waste containers onto the truck body for transport and unloading.
It is designed to operate with compatible detachable waste containers that can be lifted and repositioned using the swing arm mechanism.
Yes, it can be configured based on operational needs such as container compatibility and hydraulic system setup, making it suitable for different municipal waste collection scenarios where a swing arm garbage truck is used.
