1. The new generation high-performance kitchen waste truck features an optimized curved body design, made of 4mm thick high-quality steel, with an effective capacity of 6 cubic meters.
2. Equipped with a hydraulic oil pump and multi-way valve, ensuring the stability of the hydraulic system, the right-side hydraulic bucket lifting mechanism efficiently handles 120/240-liter waste bins.

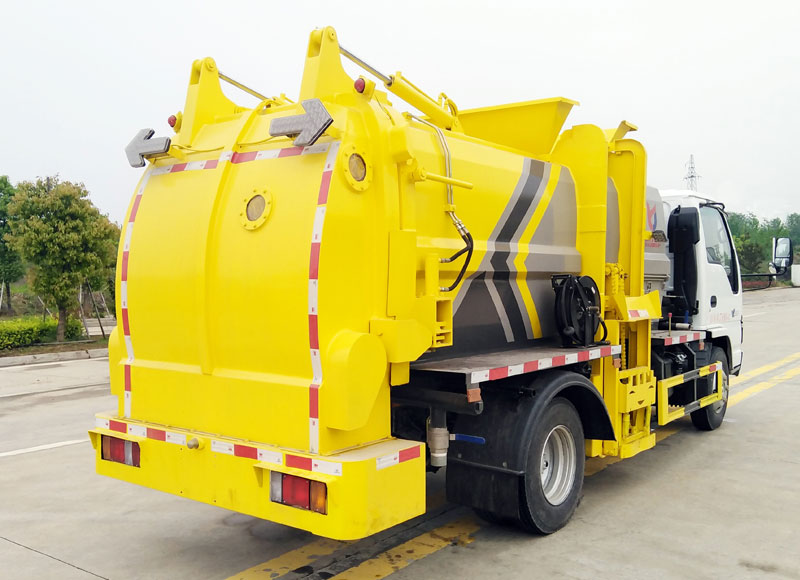

3. The rear cover features a hydraulic opening and locking device with silicone rubber sealing strips, preventing secondary pollution and ensuring a leak-proof design to maintain cleanliness inside the waste bin.
4. The bottom of the waste bin is equipped with numerous filtering holes to effectively separate solids and liquids from kitchen waste, enhancing loading capacity.
5. The truck is equipped with a hydraulic-driven high-pressure cleaning system that can clean the entire vehicle, ensuring long-term efficiency and hygiene during use.
Chassis | |
| Brand | ISUZU |
| Drive Type | 4×2,LHD/RHD |
| Gross Vehicle Weight(kg) | 7300 |
| Curb Weight(kg) | 4500,4700 |
| Loading Weight(kg) | 2670,2470 |
| Overall Dimension(mm) | 6150×1950×2560,2690 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 14PR,7.00-16LT 14PR |
| Wheelbase（mm） | 3360 |
| Front/Rear Overhang (mm) | 1015/1775 |
| Approach/Departure angle(°) | 24/13 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 95 |
| ABS | Yes |
| Transmission | 6-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | ISUZU |
| Model | 4KH1N6MD |
| Power(kw) | 103 |
| Horsepower(HP) | 140 |
Upper Equipment | |
| Tank Capacity | 6m³/ 6CBM/6Ton/ 6000 L |
| Multi-way Valve | Zhongmei/Weisen Bohr |
| Oil pump | Wanye oil pump |
| Cylinder | Weisen Bohr |
| Operation Mode | Electronic control、Manual control、Remote control |
| Other Services | Customized LOGO design as per customer needs! |
