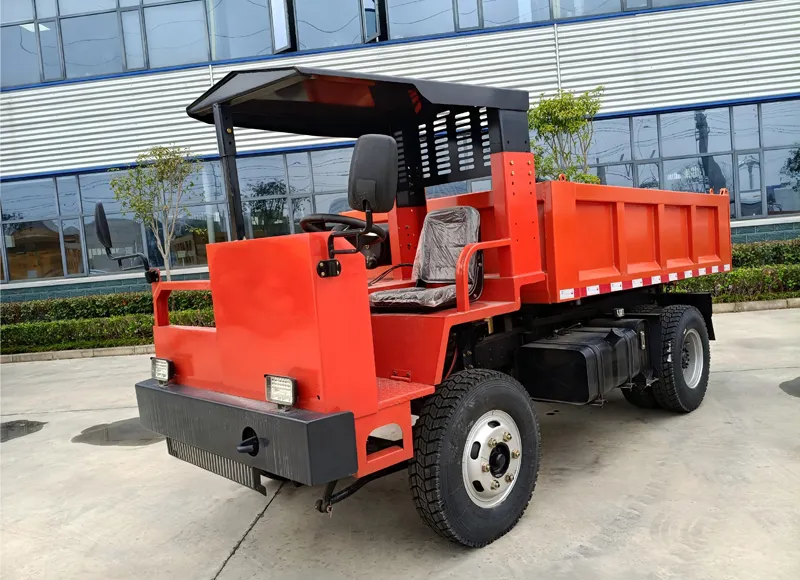

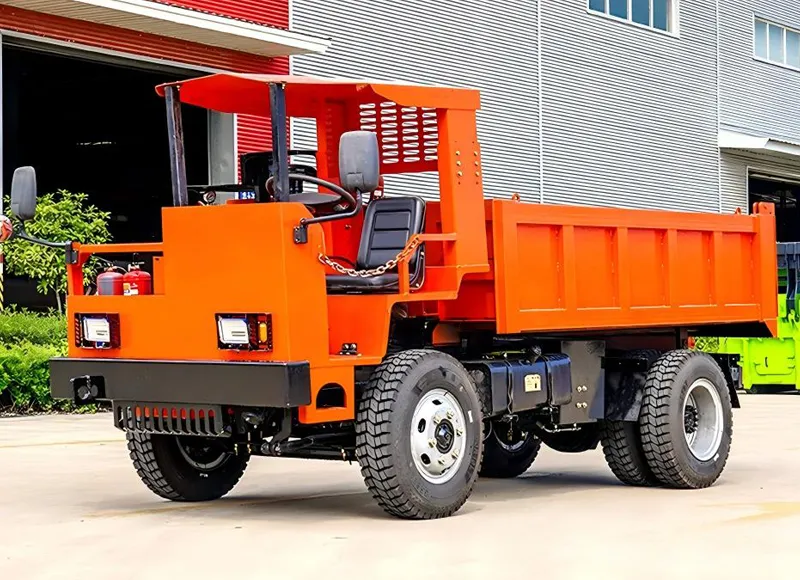

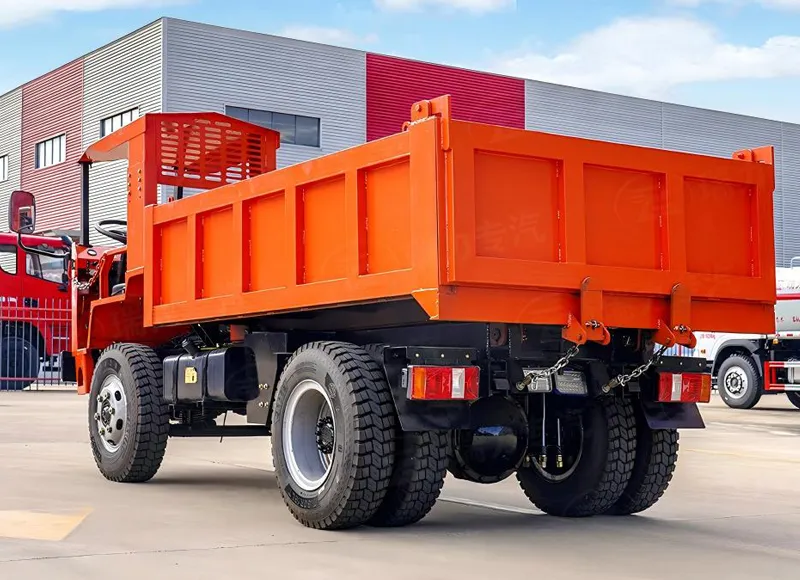

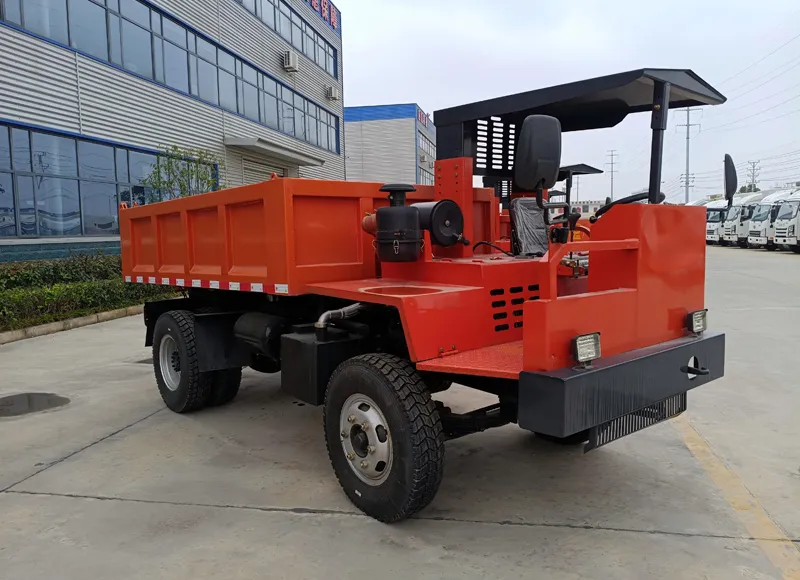

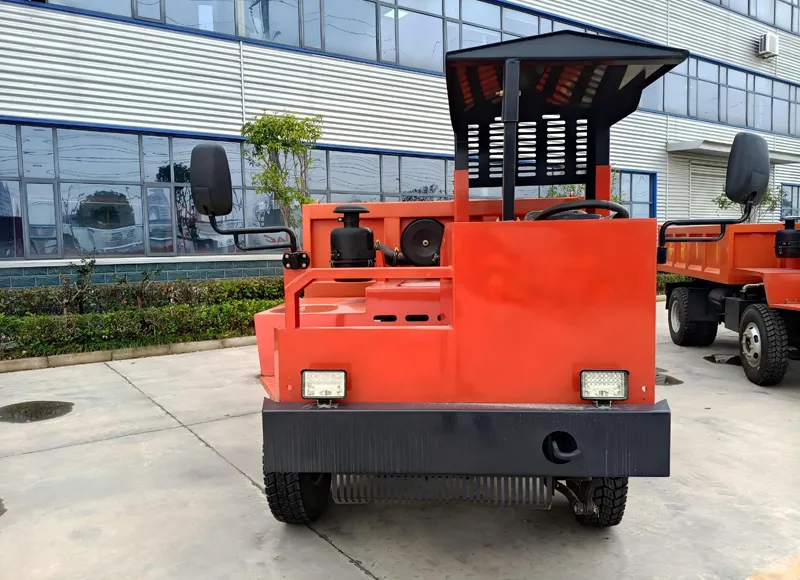

Mining operations require reliable and high-capacity transportation equipment. The 8T mining dump truck from Vehision is designed to deliver powerful performance, durability, and efficiency in demanding mining environments. Equipped with a reinforced chassis, high-strength cargo box, and advanced hydraulic lifting system, this truck ensures stable operation and high material transport capacity.
Its robust power system and heavy-duty structure make it ideal for transporting ore, sand, gravel, and other bulk materials in mines, quarries, and construction sites. With a focus on safety, reliability, and productivity, it helps mining companies improve operational efficiency and reduce overall transportation costs.
| Chassis | ||||
| Overall Dimensions (LxWxH) | 4670x 1850 x2120 mm | |||
| Transmission | Yanshida manual 5-speed gearbox with auxiliary transmission | |||
| Tires | 7.50R16 Steel radial tires | |||
| Drive Type | LHD/RHD 4×2 or 4×4 | |||
| Applicable Working Conditions | Suitable for mining area operations | |||
| Engine Model | YN4102QB | |||
| Engine Power | 95 HP | |||
| Front Axle | 1069 model | |||
| Rear Axle | 1089 model (dual rear axle configuration) | |||
| Frame | 190 double-layer 8 mm frame | |||
| Cargo Box Internal Dimensions | 2960 x 1750 x 750 mm | |||
| Cargo Box Plate Thickness | Bottom: 6 mm, Side: 8 mm | |||

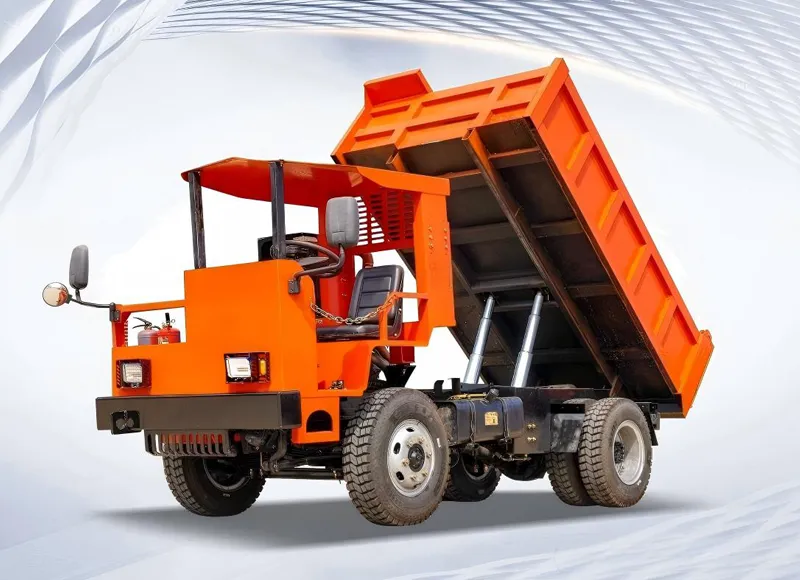

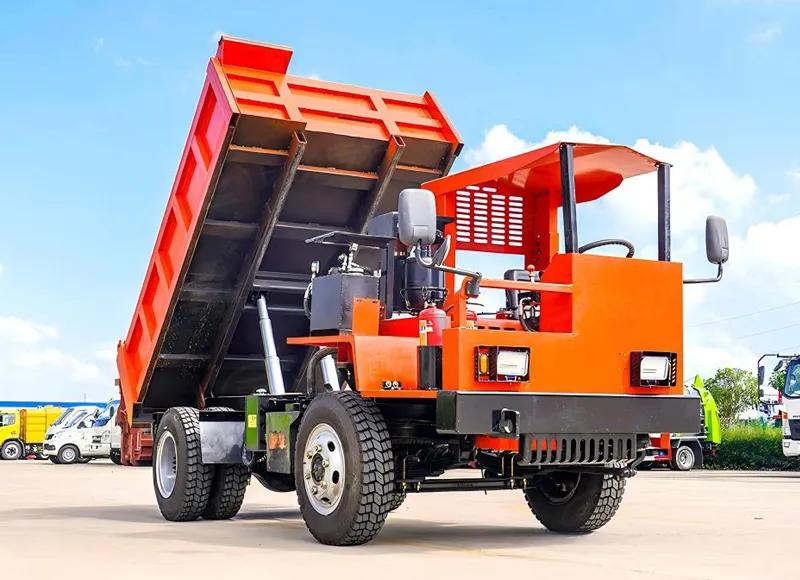

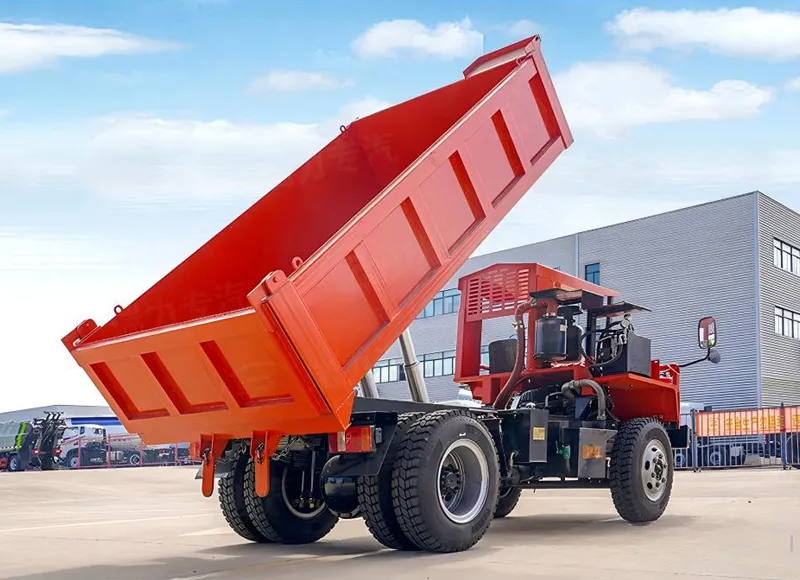

| Lifting System | Dual built-in hydraulic cylinders | |||
| Carriage Box Volume Capacity | 3.9 m³ | |||
| Standard Load | 8000 KG | |||
| Self-Discharging Method | Rear double top dump | |||
| Number/Model of Spring Plate | Front 7 pieces, Back 8 pieces, Secondary 6 pieces, 70 × 10 mm | |||
| Brake Mode | Spring-applied air brake,wet braking system optional | |||
| Steering Type | Hydraulic steering | |||
| Cab | Mine lifting safety ceiling | |||
| Front and Rear Wheelbase | 2600 mm | |||
| Weight | 2390 KG | |||
| Cab Height | 2080 mm | |||
| The Carriage Lifts to the Highest Point | 2910 mm | |||
| Minimum Ground Clearance | 210 mm | |||
| Max. Angle of Climb | 14° | |||
| Certification | China Mining Safety Certification (issued by the Mine Safety Administration) | |||
