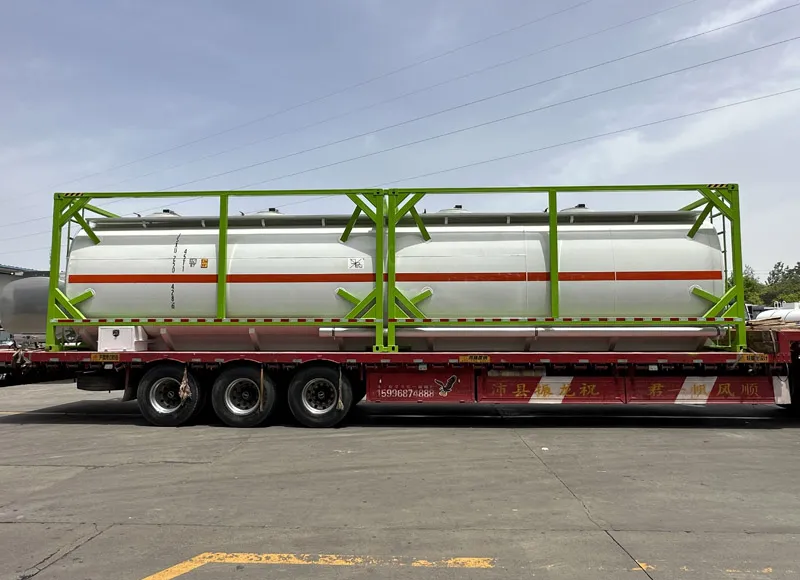

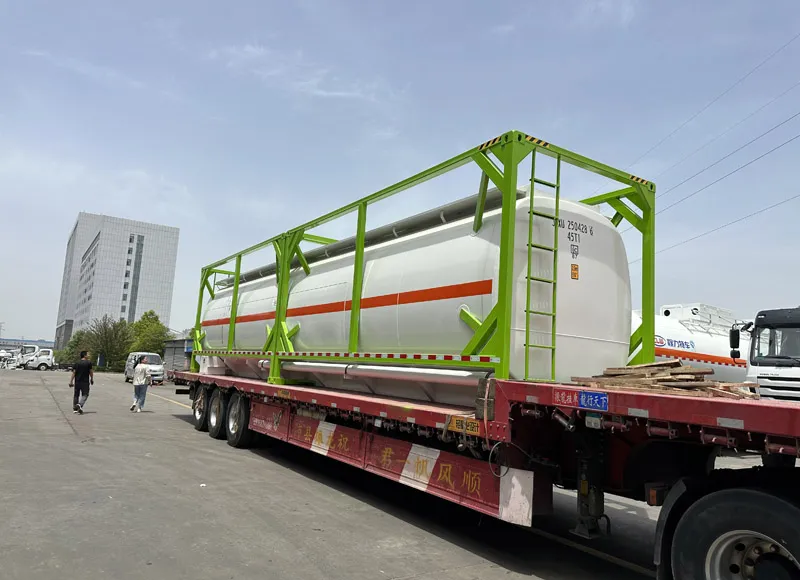

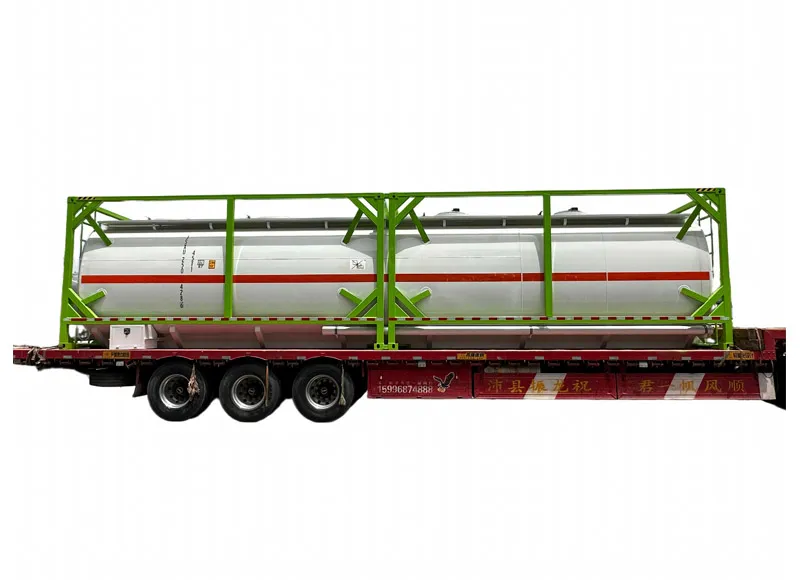

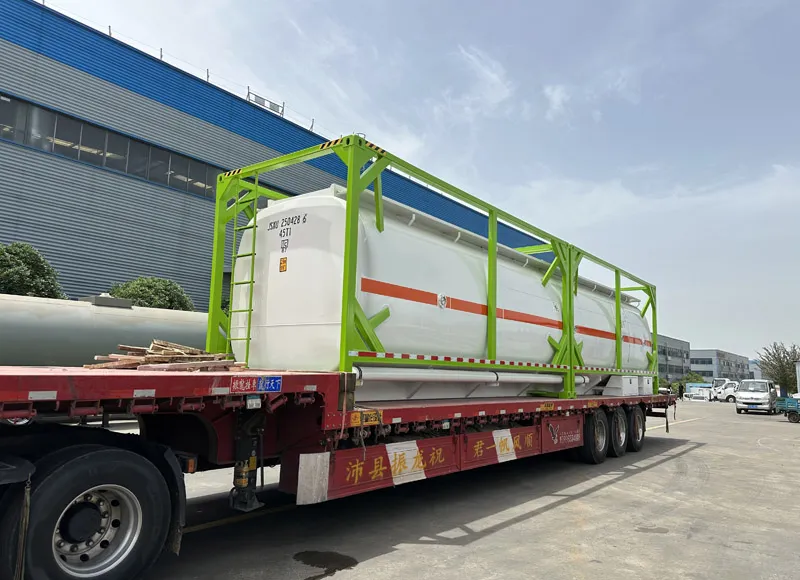

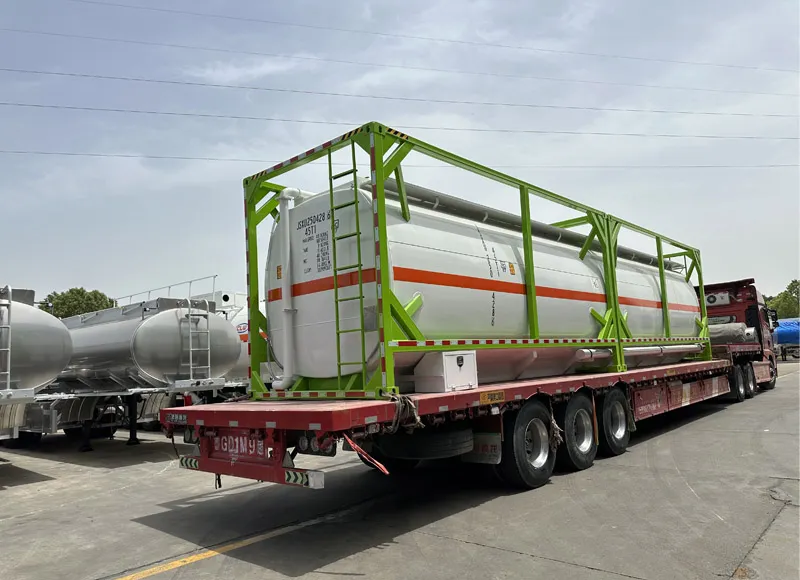

40FT T4 UN Portable Full Frame Collar ISO Tank Container

Tank Type

40FT ISO full frame collar tank.

Type UN Portable Tank T4 un-insulated.

Top side rails fitted.

Frame Dimensions:

12192mm×2438mm×2591mm

Capacity

37500L±1%

Max Total Mass R

36000kg

Empty Box Mass T

6500kg±3%

Max Allowable Leading

29500kg

Working Pressure

1.77bar

Test Pressure

2.65bar

Max.Allowable Vac cum

0.21bar

Designed Temperature

-40℃ to 65℃

Vessel Material

16MnDR

Shell Thickness

6.0mm

Ends Thickness

8.0mm

Corrosion Allowance

0.15mm

Frame Material

GB/T 1591-Q355D or SPA-H(or equivalent)

Frame to Shell

Q345E(-40℃)

Corner Casting

ISO 1161-8 off

Vessel Design Code

CCS

Radiography

Shell: Spot

Ends: Full

Inspection Agency

CCS

Cargo carried

See dangerous cargo lists for UN Portable T4 tank,It does not corrode the material of the tank

Stacking

Each container ls approved for 10 high stacking

Design Approvals

CCS

Painting

Framework: All carbon steel parts shall be sandblasted to Swedish Standard Sa2.5 (Sa2½) in accordance with the specification.

First coat:Epoxy zinc rich primer 30 micron min DFT

Intermediate:Epoxy primer 40 micron min DFT

Final coat:Polyurethane 50 micron min DFT

TOTAL120 micron min DFT

Colour

Frame:Blue

Canbody:White
