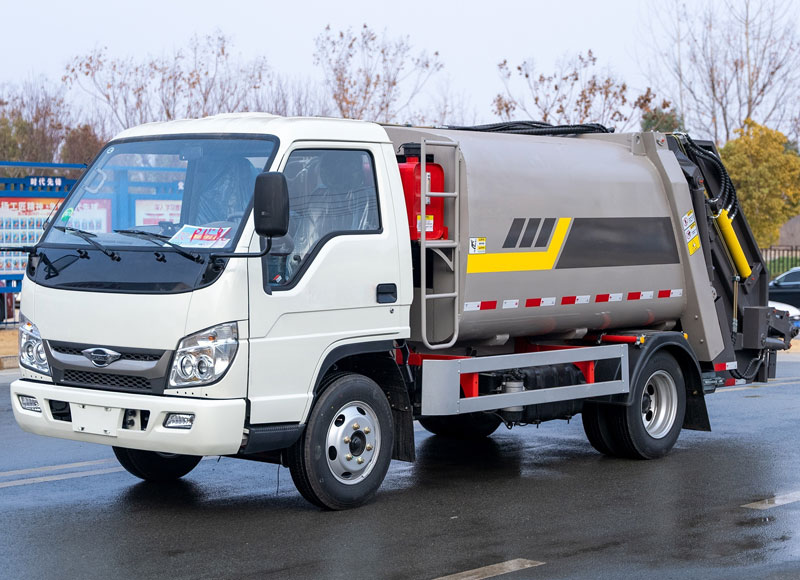

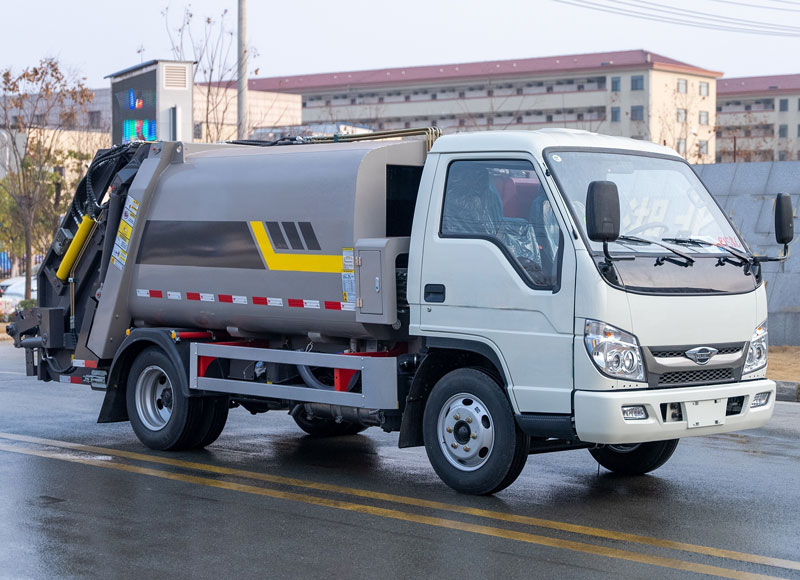

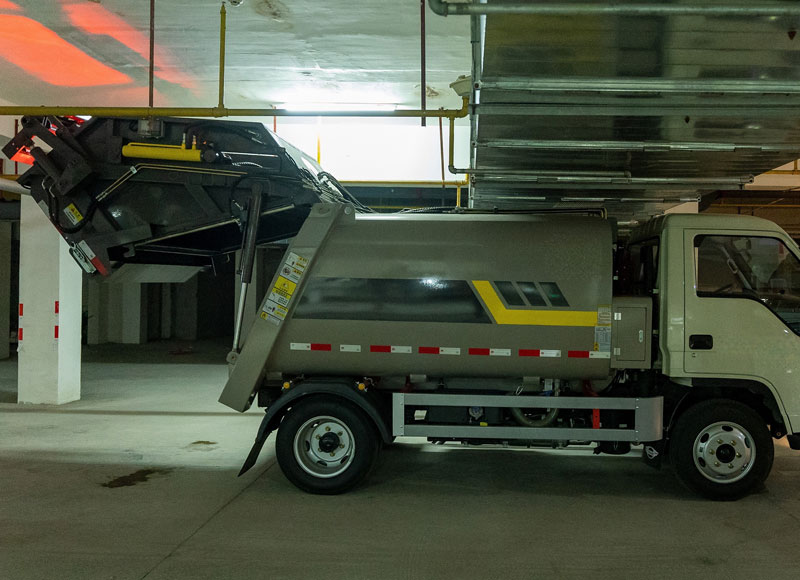

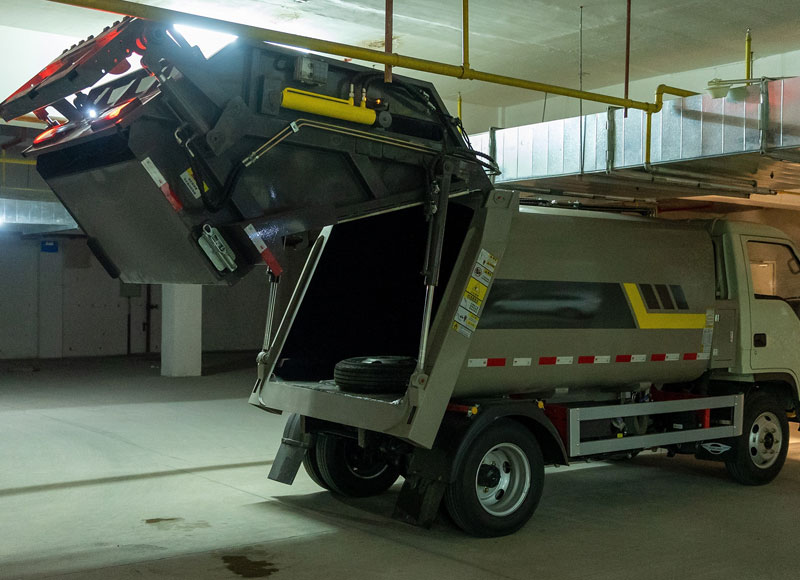

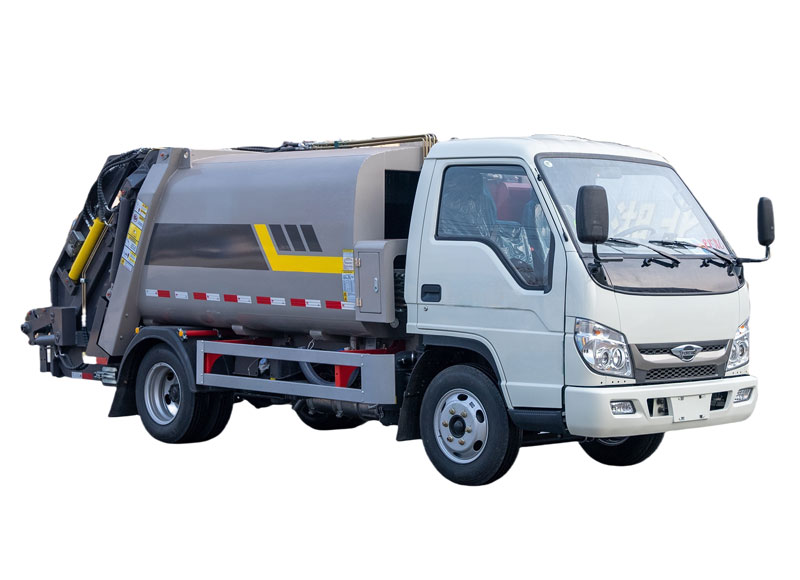

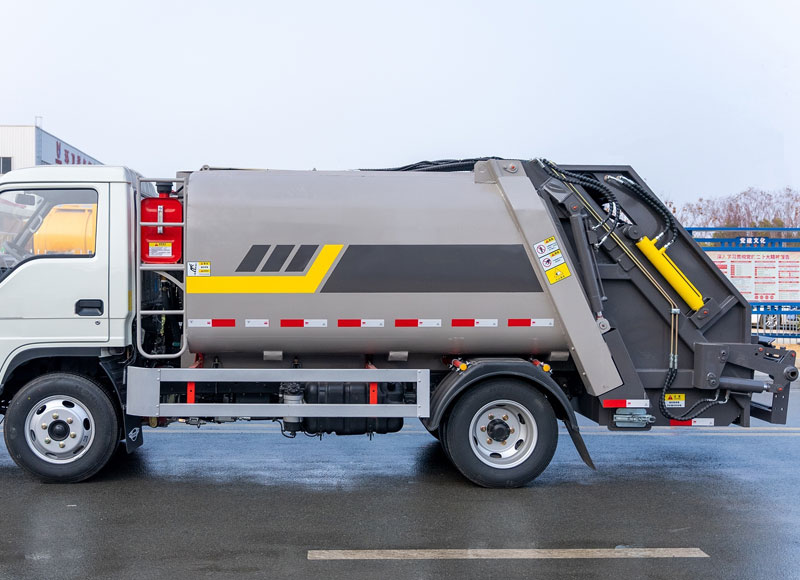

1. The 5.8 m³ Compression Garbage Truck adopts Foton chassis, equipped with Quanchai 132 HP engine and 6-speed transmission, which is small in stature and can shuttle in any environment with narrow space, such as basement, small streets, etc., so as to guarantee the efficiency and reliability of garbage transfer.
2. Arc streamlined manganese steel box body formed by single rolling, weld-free and leak-proof. Excellent deformation resistance and corrosion resistance, effectively increases volume efficiency, extends service life, and reduces maintenance costs.
3. Imported CAN bus system supports triple operation modes (manual/automatic/semi-automatic), remote control + multi-position operation. Automatically adjusts engine power, achieving energy saving ≥15%.
4. External cylinder + bidirectional compression technology (compression ratio 1:2.5, single cycle ≤20S). Equipped with dual sewage tanks, night lighting, and drainage system. Integrates environmental protection, safety, and convenience.
Chassis | |
| Brand | Foton |
| Drive Type | 4×2,RHD/LHD |
| Gross Vehicle Weight(kg) | 4495 |
| Curb Weight(kg) | 3865 |
| Loading Weight(kg) | 500 |
| Overall Dimension(mm) | 5995×2000×2450 |
| Tyre Qty. | 6 |
| Tyre Spec. | 6.50R16LT 10PR,195/75R16 10PR |
| Wheelbase（mm） | 2850 |
| Front/Rear Overhang (mm) | 1130/1765 |
| Approach/Departure angle(°) | 20/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 105 |
| ABS | Yes |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Quanchai |
| Model | Q23-132E60 |
| Power(kw) | 97 |
| Horsepower(HP) | 132 |
Upper Equipment | |
| Waste Tank Capacity | 5.8CBM/5.8m³/5800Liters |
| Waste Tank Material | Manganese steel or Carbon steel |
| Feeding Cycle Time(s) | 12-20 |
| Compression Ratio | 1:2.5 |
| Unloading Time(s) | ≤25 |
| Operation Modes | Electrical control, manual, remote control |
| Sewage Collection Tanks | Two combined with diversion-type sewage collection device, effectively preventing leakage and avoiding secondary pollution |

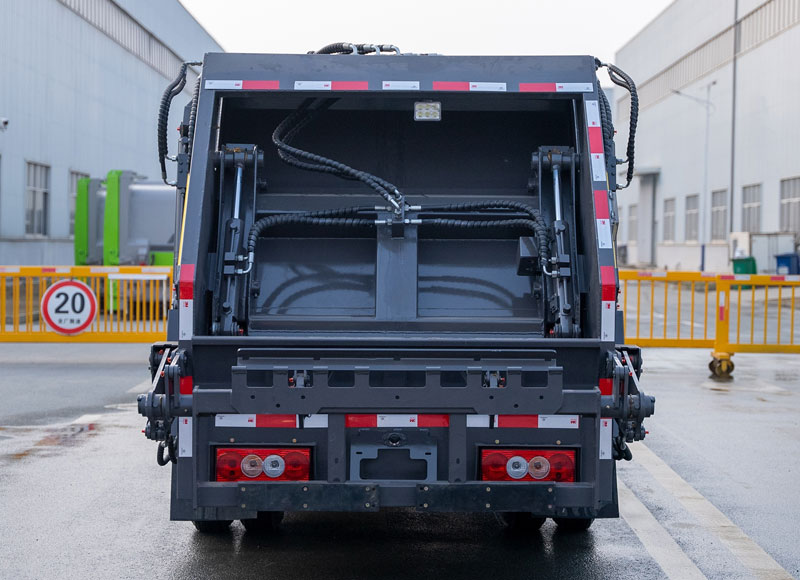

| Tail Structure | Hopper flipping plate type or triangular hopper type or large floor-mounted hopper type |
| Other Services | Customized LOGO design as per customer needs! |
