1. Dongfeng standard cargo chassis, equipped with Yuchai 165-horsepower engine, matched with 6-speed gearbox, 192 double-layer frame, standard ABS, exhaust brake, ECU speed limiter, and intelligent safety system with FCWS/LDWS dual warning, enhancing active safety protection.
2. Corrugated side panels + 3mm checkered steel floor, covered with anti-static rubber mat, hot-dip galvanized hinges are rust-proof and durable.
3. Reflective markings, hazardous goods signs, grounding strap, and fire extinguisher, meeting hazardous materials transportation regulations.

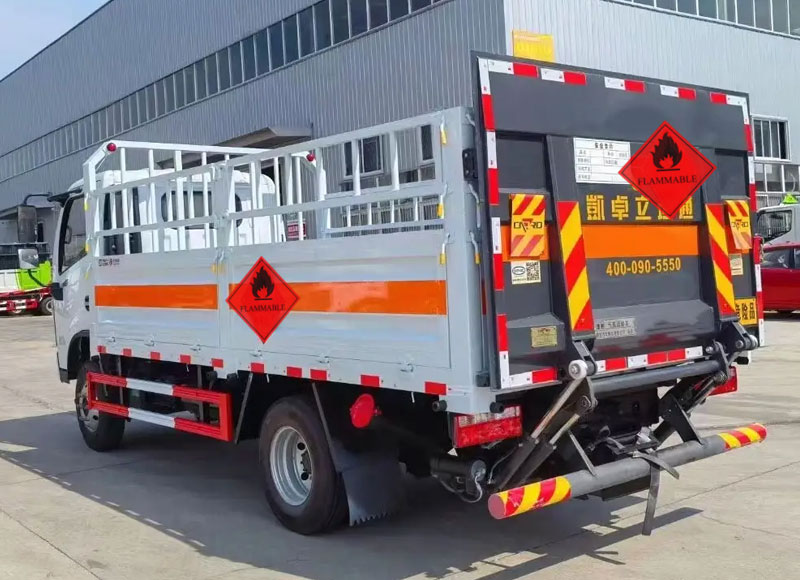

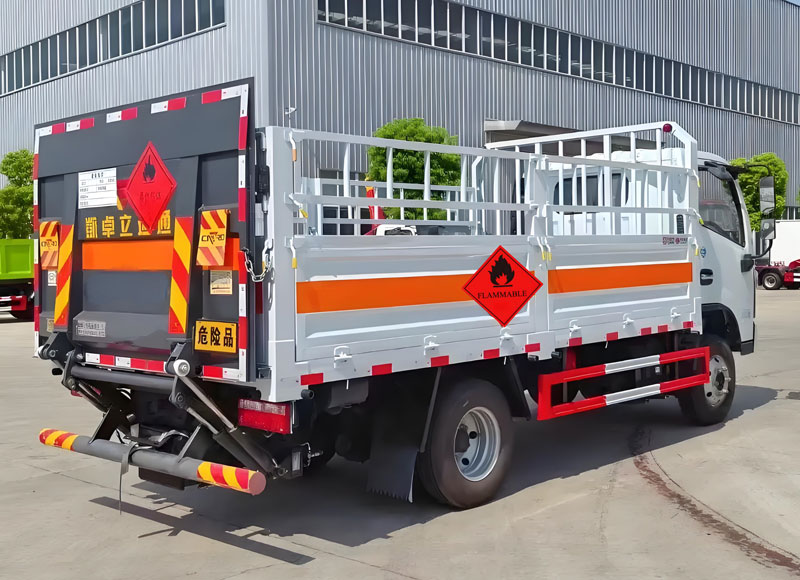

4. Optional hydraulic tailgate, removable high side panels and movable pillars, flexible loading and unloading design suitable for diversified gas cylinder transport needs.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 11950 |
| Curb Weight(kg) | 4700 |
| Load Weight(kg) | 7055 |
| Overall Dimension(mm) | 7010×2500×2520 |
| Van Dimension(mm) | 5200×2350×600 |
| Tyre Qty. | 6 |
| Tyre Spec. | 245/70R19.5 16PR |
| Wheelbase(mm) | 3800 |
| Front/Rear Overhang (mm) | 1130/2080 |
| Approach/Departure Angle(°) | 24/10 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Included |
| FCWS | Included |
| LDWS | Included |
| Transmission | 6-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 3 persons,Air Conditioning, Power Windows, Central Locking |
| Frame Structure | 192mm Double-layer |
| Braking System | Exhaust Brake, Spring Brake |
| Safety Configurations | Power Switch, ECU Speed Limiter, Dual Alert System (FCWS, LDWS) |
Engine (Other Engine Optional) | |
| Brand | Yuchai |
| Model | YCY30165-60 |
| Power(kw) | 121 |
| Horsepower(HP) | 165 |
Upper & Equipment | |
| Filling Medium | Flammable gas, non-flammable and non-toxic gas |
| Side Panels | Corrugated structure |
| Floor Configuration | 3mm checkered steel plate + anti-static rubber sheet,anti-rust process |
| Painting Process | Two-component acrylic paint |
| Hardware | Hot-dip galvanized hinges |
| Safety Features | GB-standard reflective markings, warning signs, onboard tools, fire extinguisher, warning triangle, hazardous material labels, grounding static strap |
| Optional Configurations | Removable high guardrail Movable pillars Hydraulic lift tailgate |
| Remarks | Customized LOGO design as per customer needs! |

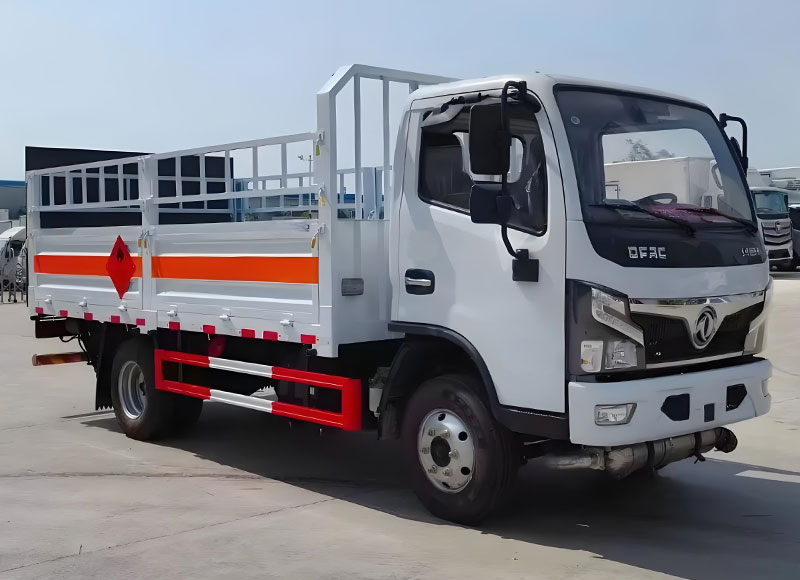

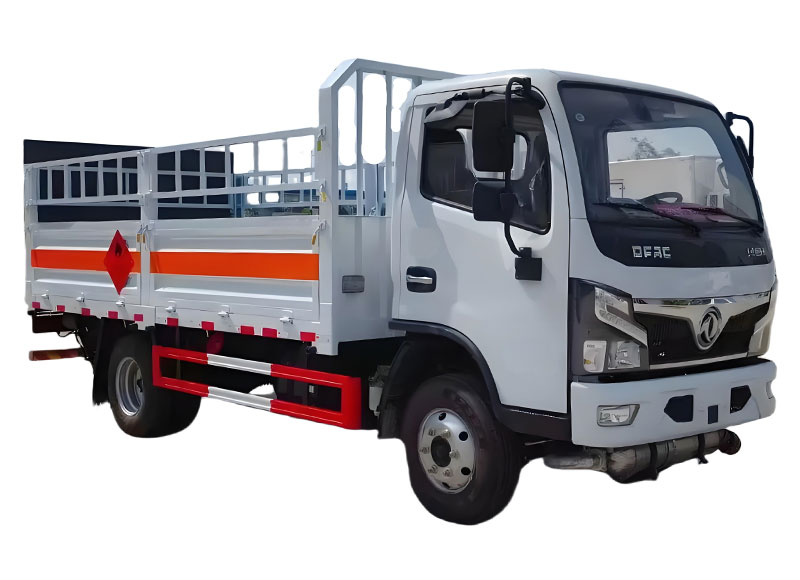

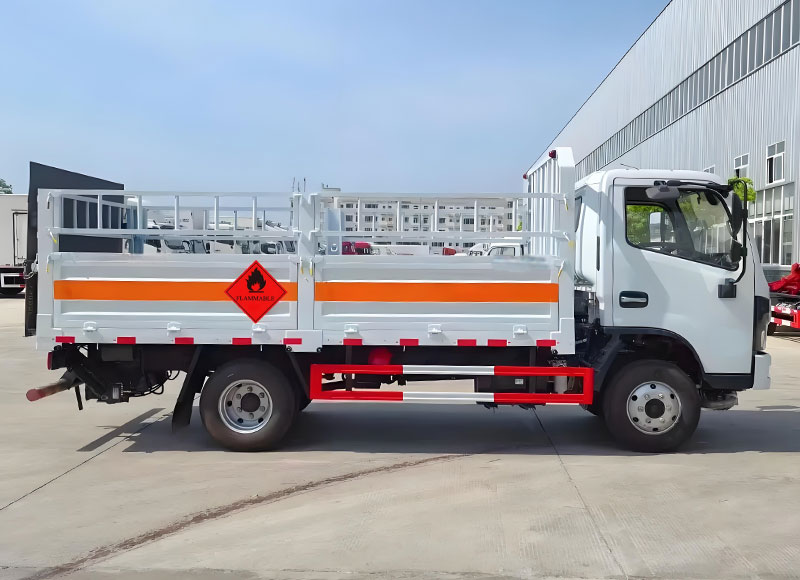

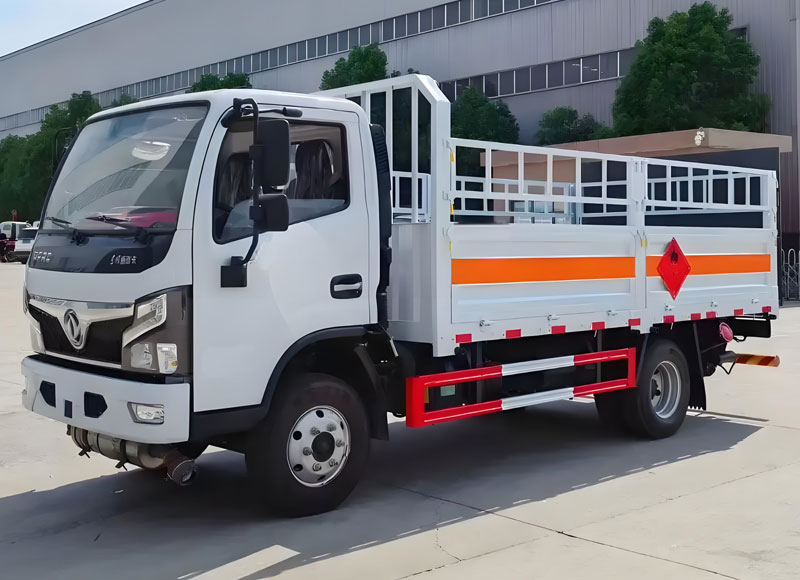

A Dongfeng gas cylinder transport truck is used for transporting gas cylinders safely between storage sites, distribution centers, and end users in industrial and commercial gas supply operations.
It is designed to carry standard industrial and commercial gas cylinders, ensuring stable loading and transportation during gas distribution logistics.
Gas cylinders are typically fixed using dedicated racks and securing structures on the truck body to help prevent movement and improve stability during transport.
Safe operation requires proper cylinder fixation, balanced loading, and compliance with transportation safety practices to ensure stability during gas delivery operations.
Yes, it can be adapted for various gas distribution scenarios depending on operational needs, and is commonly classified under gas cylinder transport truck solutions used in industrial gas logistics.
