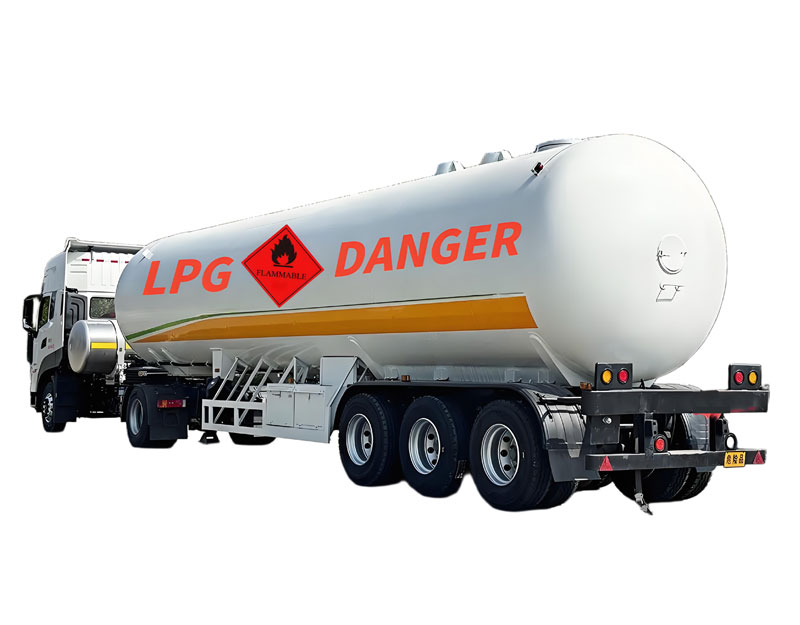

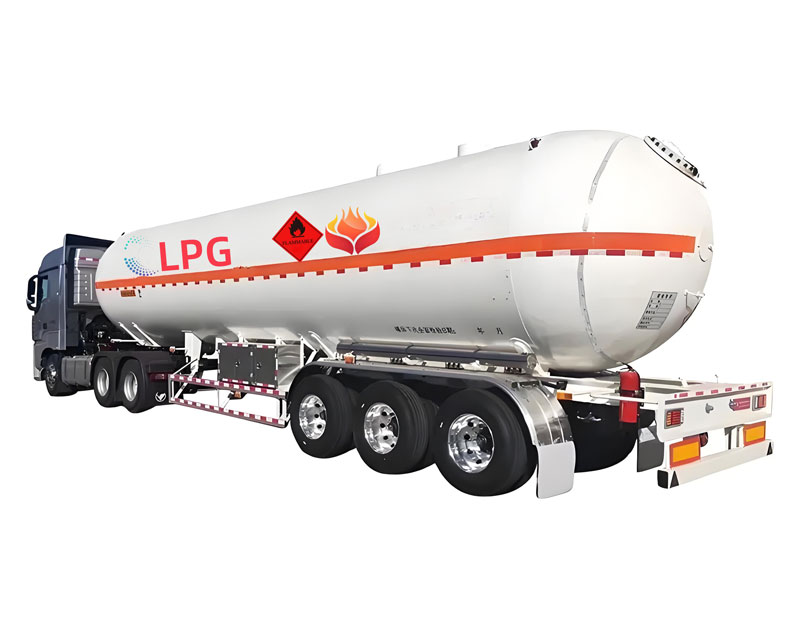

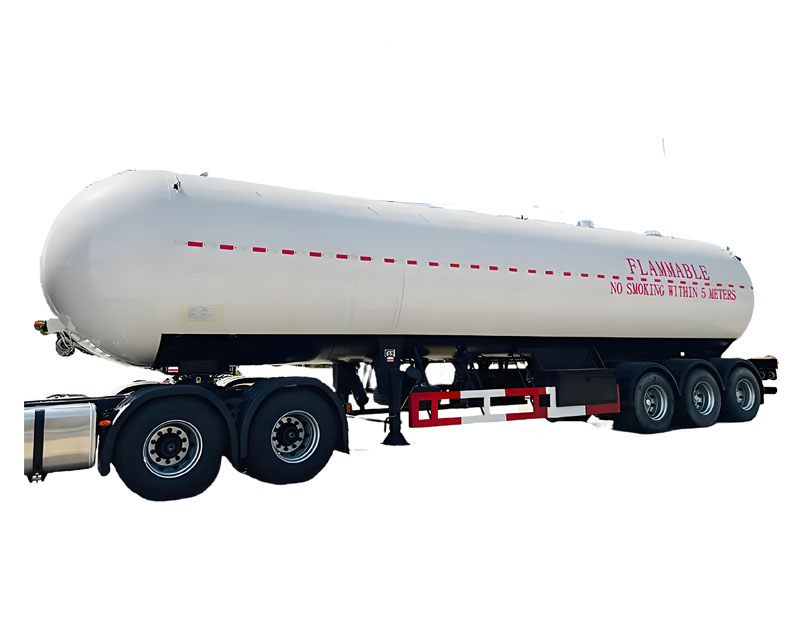

Configuration of the LPG Semi Trailer: 13-ton Fuwa axle + leaf spring suspension, equipped with steel wheels and tubeless tires; single liquid outlet with dual-side loading/unloading system integrated with dual valve boxes/toolboxes, built-in safety valves, thermometers, pressure gauges, and emergency shut-off valves; landing legs, 90# fifth wheel coupling, standard with fire extinguishers, anti-static tapes, and LED lights. Optional upgrades include dual independent liquid discharge, BPW axles, carbon steel material tank body, dual spherical heads, flange-faced ball valves, and sunshades. Propane semi trailers for sale at competitive prices now!
| SPECIFICATION | |
| Tanker Essential Information | |
| Volume of Tank | 40cbm/50cbm/55cbm/58cbm/60cbm |
| Overall Dimensions(L*W*H)(mm) | 12700*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2450*11.5*12340 |
| Estimated Tare Weight (kg) | 15480 |
| Payload(kg) | 23520 |
| Total Weight(kg) | 39000 |
| Wheelbase(mm) | 6865+1310+1310 |
| Shell of Tanker | |
| Products | Liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, ethylene oxide |
| Fluid Property | Flammable |
| Design Temperature(°C) | -50°C~60°C |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body: Q345R, 12mm |
| End plate: Q345R, 12mm, double ellipse | |
| Main beam: Q345 | |
| Safety Accessories | Safety valve, Level Gauge, Thermometer, Pressure Gauge, Emergency cut-off valve, Ball valve |
| Trailer Specification | |
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, Height 500mm, Bottom Flange 16mm, width 140mm. |
| Axle | 3 axles |
| BPW 13 ton | |
| Suspension | German design mechanical suspension |
| Leaf Spring | 13-piece leaf spring. 11x100 |
| King Pin | JOST brand 2" Bolt-in King Pin |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 9.00R22.5 wheel rim, 13 pieces |
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces |
| Spare Tire | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |

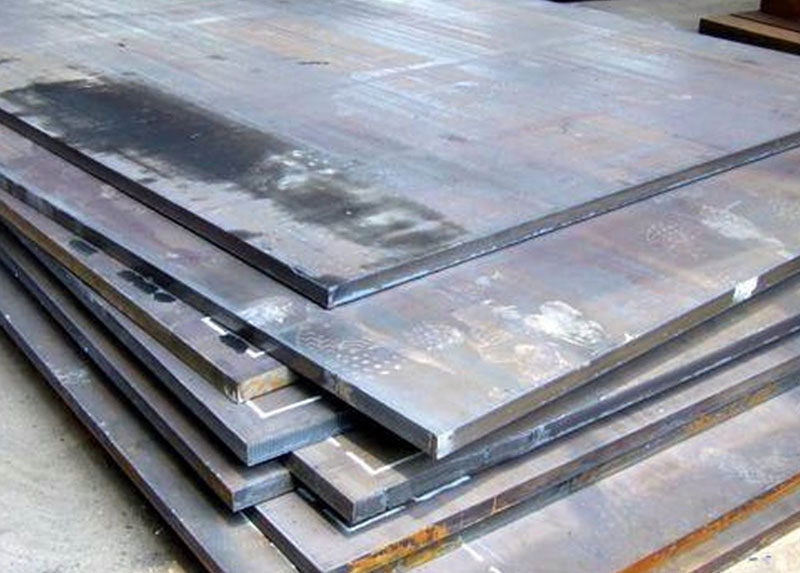

The LPG propane transport trailer adopts Q345R high-strength steel, with strict X-ray non-destructive testing and helium mass spectrometer inspection applied to weld joints, weld seams, tank heads, and geometric positions of pressure-bearing components.

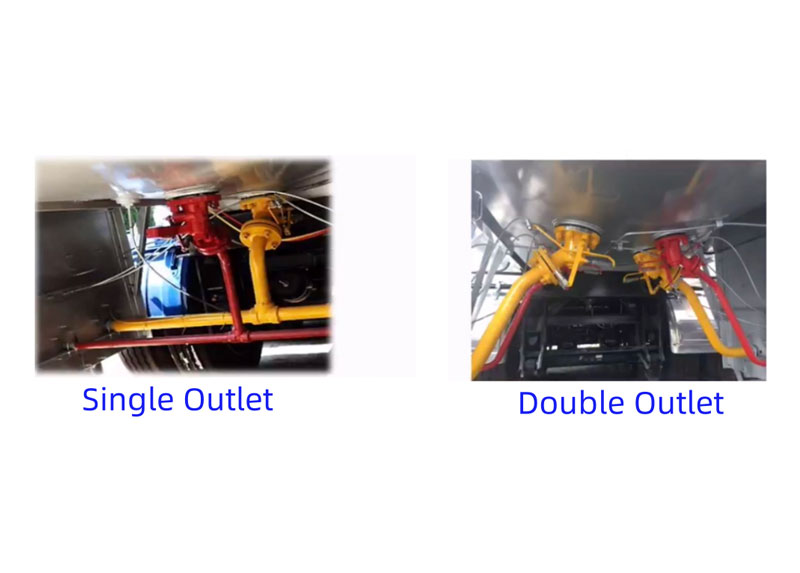

The LPG gas transport vehicle is standard with a single liquid outlet (DN50), optionally equipped with dual liquid outlets (DN50×2). Independent liquid circuit design adapts to high-frequency loading/unloading demands, and the optional configuration can double the loading/unloading efficiency.

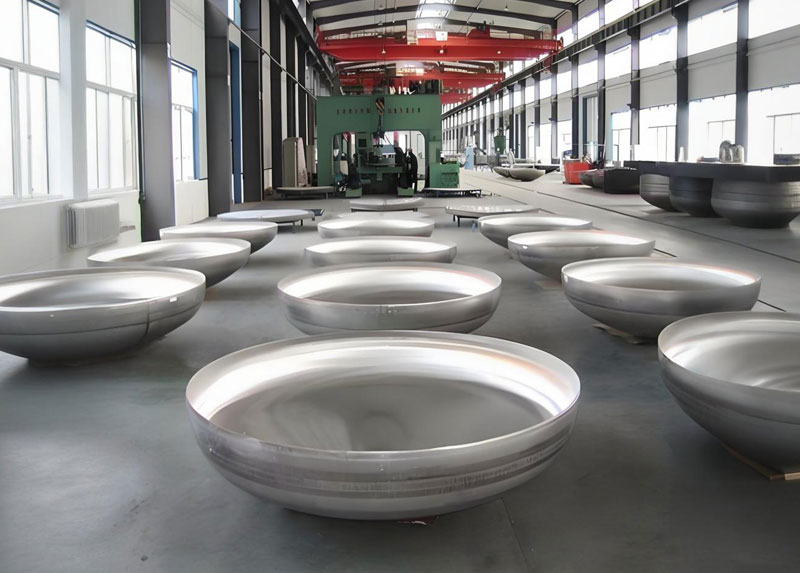

The LPG spherical tank heads are made of stainless steel, formed through internationally standardized hemispherical stamping, featuring fewer welds and high pressure resistance to meet high-pressure sealing requirements for storage tanks.
Vehision offers standard capacities of 40, 50, 55, 58, and 60 CBM. Other capacities can also be customized according to project requirements and local regulations.
LPG semi trailers are suitable for high-capacity trunk transport and requires a tractor unit, while LPG tank trucks are complete rigid vehicle better suited to local or regional delivery. Add a comparison table for capacity, maneuverability, route type, unloading frequency, tractor requirement and typical buyer.
Yes. LPG commonly includes propane and butane, but the exact medium, design pressure, material and certification must be confirmed for the ordered tank.
The current page lists safety valves, level gauges, thermometers, pressure gauges, emergency cut-off valves, fire extinguishers and anti-static tapes.
Provide the required capacity, transported medium, destination country, applicable standards, payload requirements, axle preference, and loading or unloading requirements. Vehision will recommend a suitable trailer configuration.
