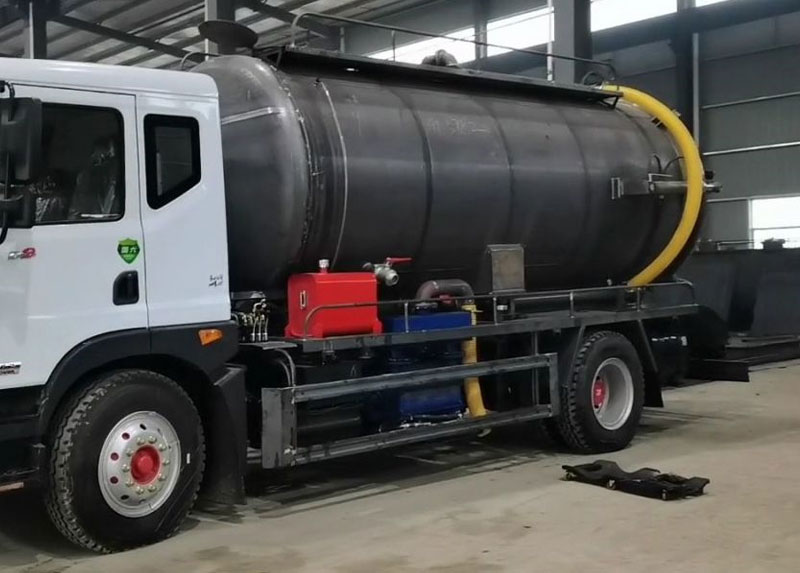

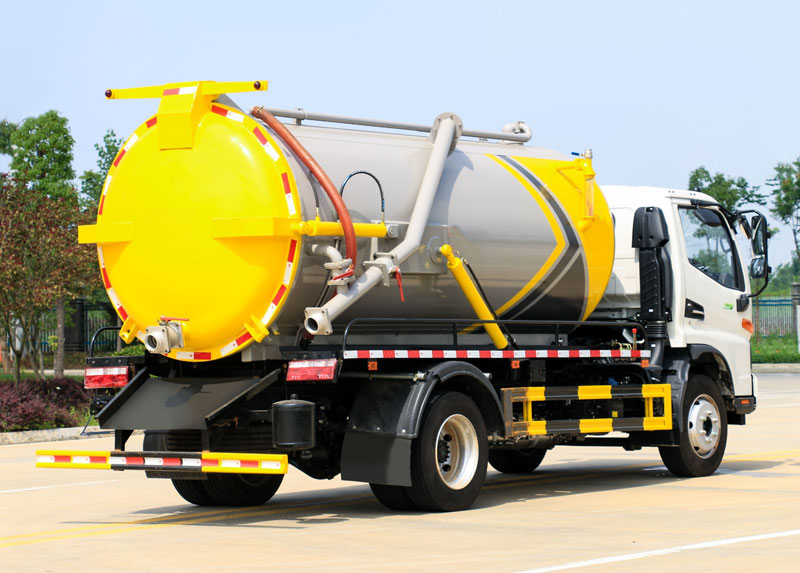

Tank system: Elliptical/cylindrical tank body; anti-corrosion and anti-rust coating;
Vacuum power unit: Vacuum suction pump; hydraulic oil tank; gear pump; multi-way valve; oil-gas separator; water-gas separator;

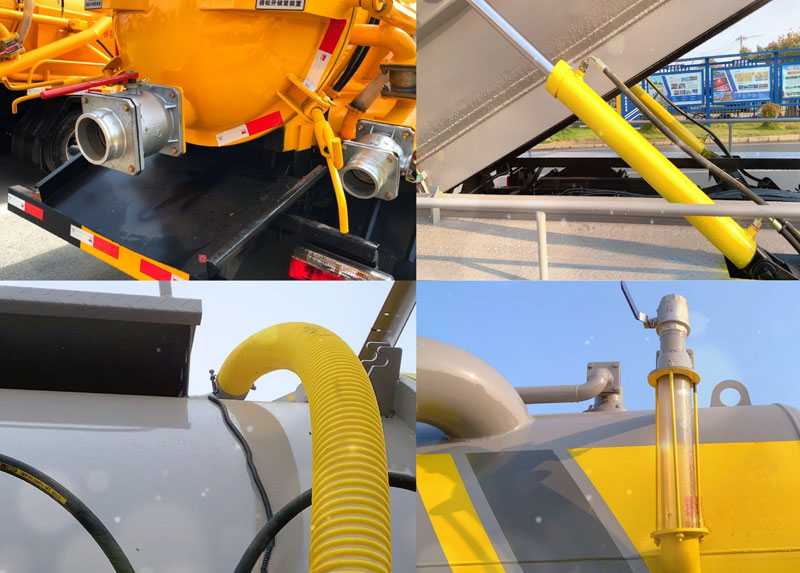

Suction and discharge system: Rigid suction hose + flexible hose; drain valve; rear cover locking device; four-way valve;
Safety protections: Anti-overflow valve; vacuum pressure gauge; emergency pressure relief device; safety support rod; sight tube;
Cleaning system: High-pressure cleaning machine (optional); built-in flushing water tank and spray piping.
| SPECIFICATION | ||
| Truck Specification | ||
| Product Name | Sewer jetting Truck | |
| Chassis Specification | ||
| Chassis brand | Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC | |
| Drive type | 4X2, 6X4, 8X4, 4X4, 6X6, 8X8 | |
| Engine brand | Cummins, ISUZU, Wechai, Yuchai, Yunnei | |
| Transmission brand | Fast, ZF, Manual/ ATM | |
| Tire brand | Tri-angle, Double Coin, Good year, Michelin | |
| Vehicle Description | ||
| GVW | 7300kg-31000 kg | |
| Tanker Description | ||
| Tanker | Capacity | 5cbm-25 cbm |
| Material | 5/6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Vacuum Pump | Type | Vacuum pump |
| Flux | 45(L/S)-1200(L/S) | |
| Rating speed | 500~2500(r/min) | |
| Shaft power | 4-112 (kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Famous Pump Co., Ltd. | |
High pressure water pump | Type | High pressure pump, Imported brand |
| pressure | 13-22 MPA | |
| Flux | 122(L/m)-285(L/m) | |
| Rating speed rpm | 1480-1800 rpm | |
| Shaft power | 31.6-108 (kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5min | |
| Effective suction range ≥ 8 | ||
| Max vacuum degree ≤ 15 Kpa | ||
| dump angle ≥ 45 | ||
| Standard configuration | Equipped with Inspect window, discharge valve, cleaning apparatus, 5 meter long suction pipe, oil-water separators, overflow valve, etc. | |
| Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. | ||
| Rear door can be opened and closed hydraulically. | ||
| Optional configuration | Tanker material: stainless steel. | |
| Vacuum pump: Italy or Spain vacuum pumps. | ||
| Anti-rust coating inside tank. | ||
Equipped with three functions: vacuum suction, pressure discharge, and gravity drainage; advanced piping design facilitates installation and maintenance.
Tank body is constructed from high-quality carbon steel or stainless steel via single rolling forming; surface coating process ensures quality and aesthetics.
Features high suction power, long suction range, self-suction and self-discharge capabilities, high work efficiency, simplified operation, and improved operational efficiency.
