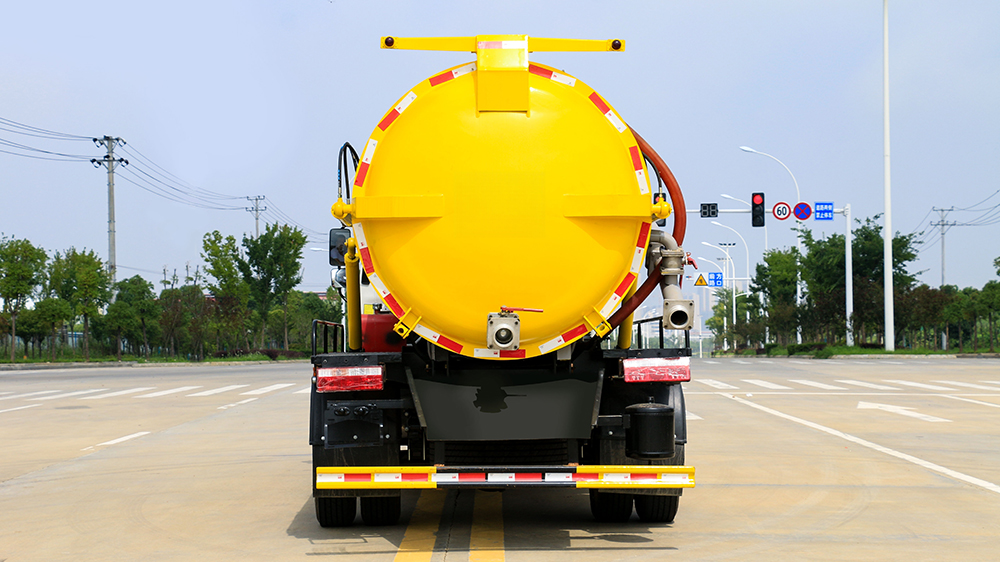

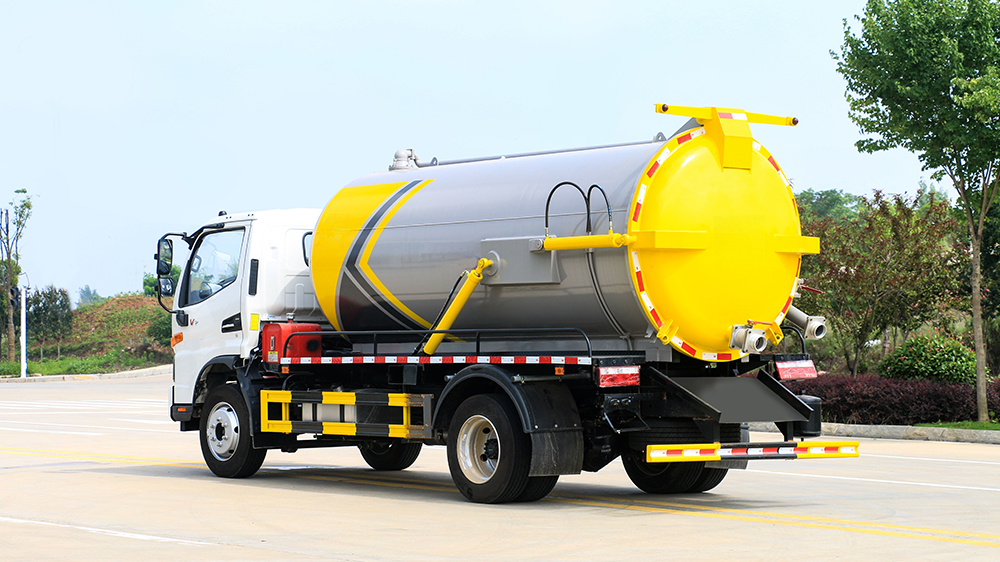

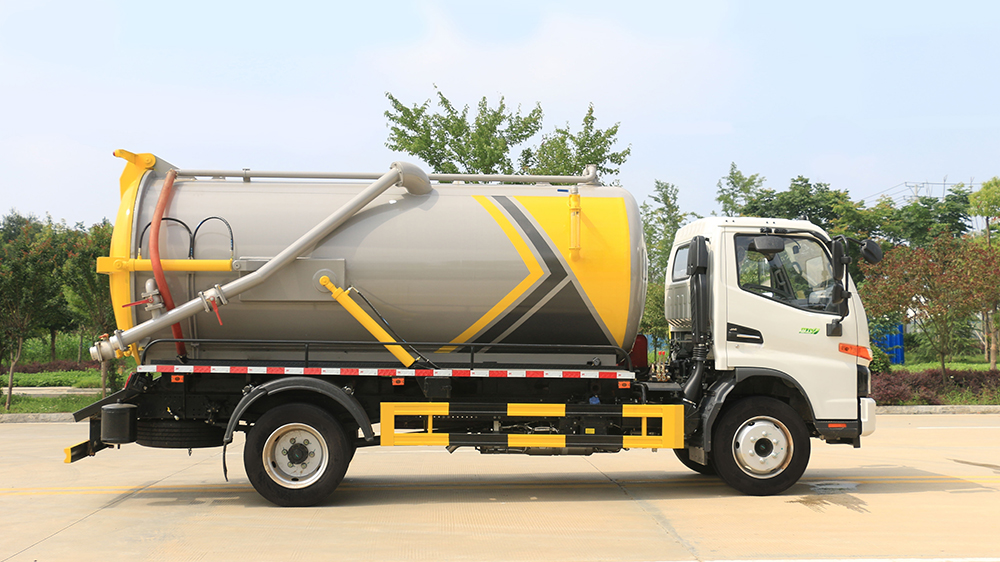

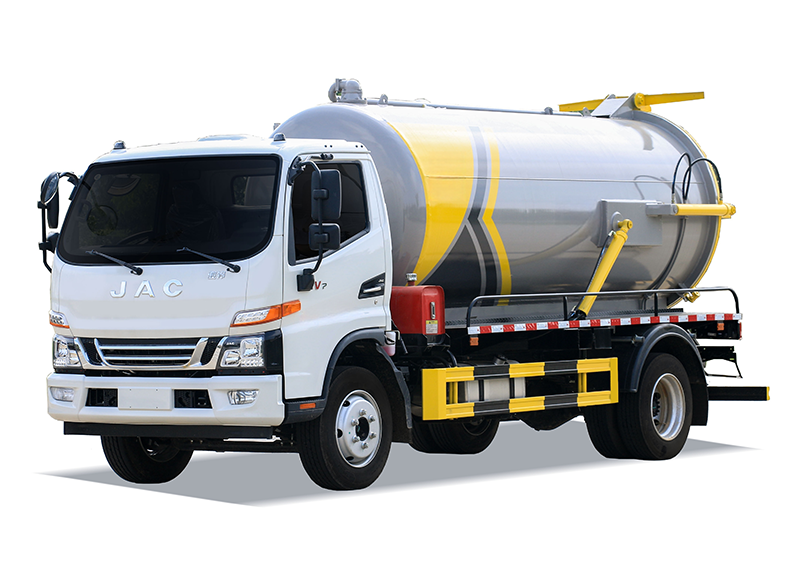

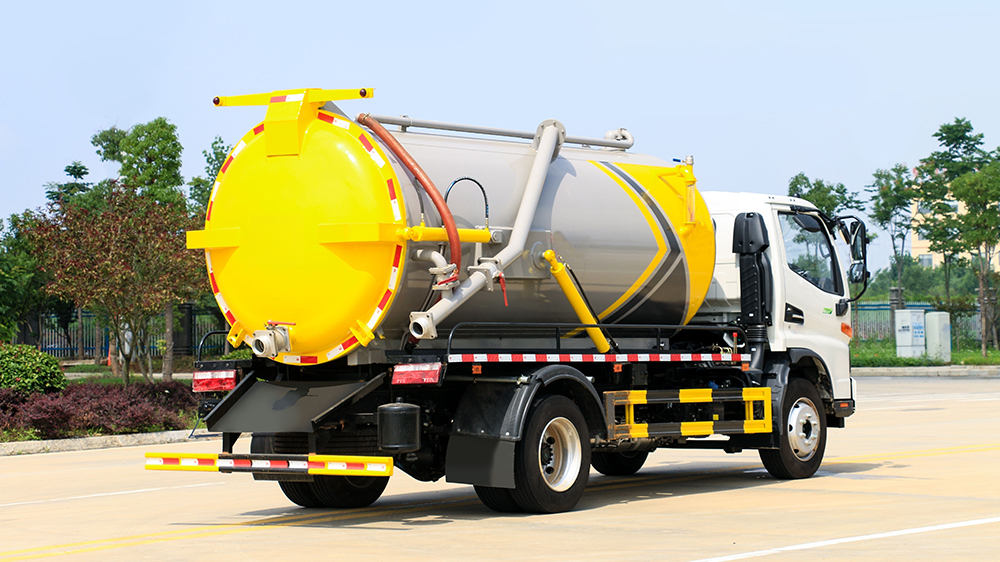

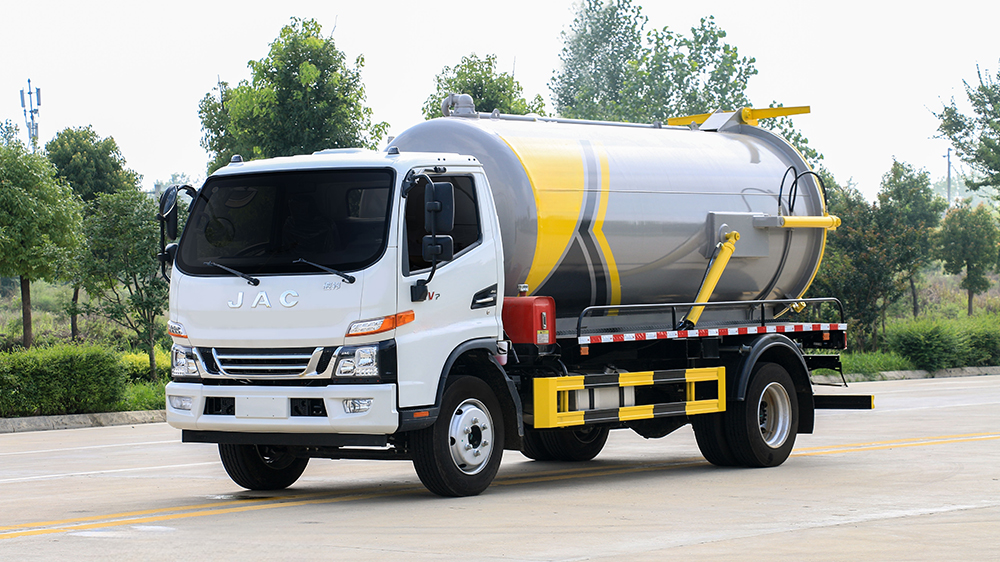

1.The sewage suction truck adopts an original JAC chassis with a Yuchai engine, offering strong power and, combined with a 5-ton vacuum pump, ensures performance under heavy loads and complex road conditions.
2.Equipped with a high-power vacuum pump, featuring strong suction and efficient operation, capable of quickly extracting various liquid, semi-liquid, and debris-containing media.
3.The tank structure is well-designed, utilizing one-time molding and dual-lift self-dumping, combined with an anti-overflow system to effectively enhance safety and durability.
4.Offers three functions: vacuum suction, pressure discharge, and gravity discharge, with an advanced pipeline system for simple operation and easy maintenance.
| Chassis | |
| Brand | JAC |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 11920 |
| Curb Weight(kg) | 5440,5710 |
| Loading Weight(kg) | 6285,6015 |
| Overall Dimension(mm) | 6750×2360×3050 |
| Tyre Qty. | 6 |
| Tyre Spec. | 245/70R19.5 14PR,245/70R19.5 16PR,8.25R20 16PR |
| Wheelbase（mm） | 3845 |
| Front/Rear Overhang (mm) | 1075/1830 |
| Approach/Departure angle(°) | 20/12 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 100 |
| ABS | Yes |
| Transmission | 6-Speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2-3 person |
| Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY30170-61 |
| Power(kw) | 125 |
| Horsepower(HP) | 170 |
| Upper Equipment | |
| Tank Capacity | 9.5 m³/9.5 CBM/9.5 Ton |
| Tank Overall Dimension(mm) | 4100×1650 |
| Tank Material | Optional with carbon/stainless steel alloy |
| Tank Thickness(mm) | 5 |
| Hydraulic System Pressure (MPa) | 18 |
| Dumping System | Hydraulic controlled rear door and middle lifting; Hydraulic controlled with sewage drain pipe; |
| Vacuum Pump | 5-ton vacuum pump from a well-known domestic brand, with options for other domestic or international brands. |
| Suction Time(min) | ≤5 |
| Effective Auction Range | ≥8 |
| Dump Angle | ≥45 |
| Sewage Suction Hose | 1×8-meter |
| Other Parts | Oil-gas separator, water-gas separator, pressure-vacuum gauge, multi-way valve, gear pump, anti-overflow valve, and sewage discharge valve,inspect window,etc. |
| Other Services | Customized LOGO design as per customer needs! |
