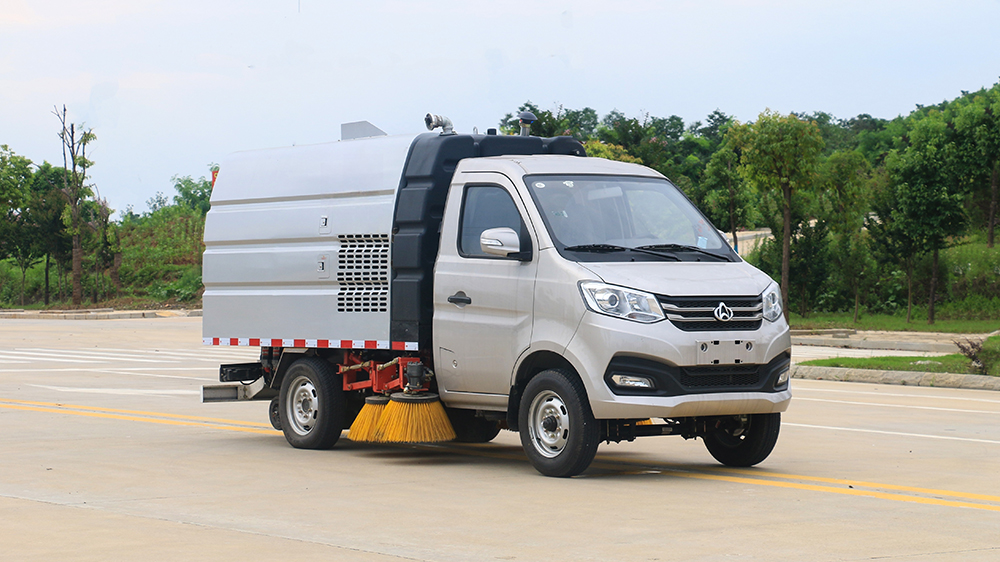

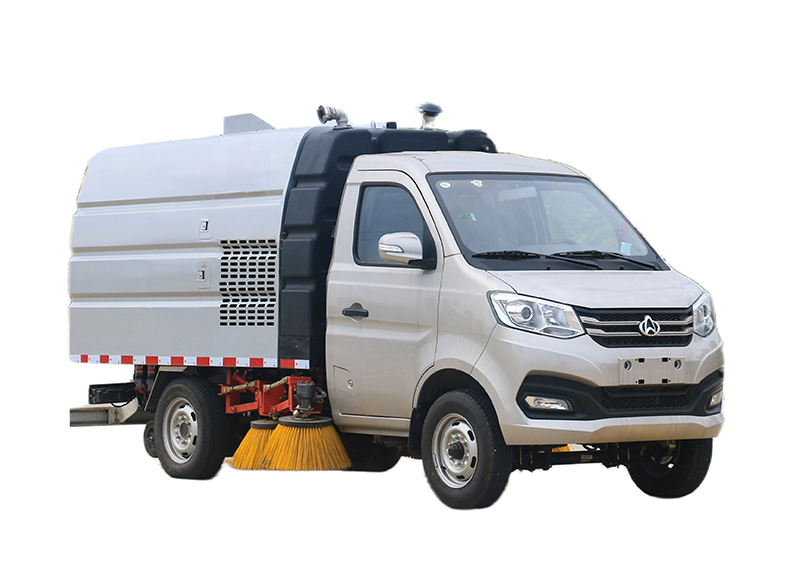

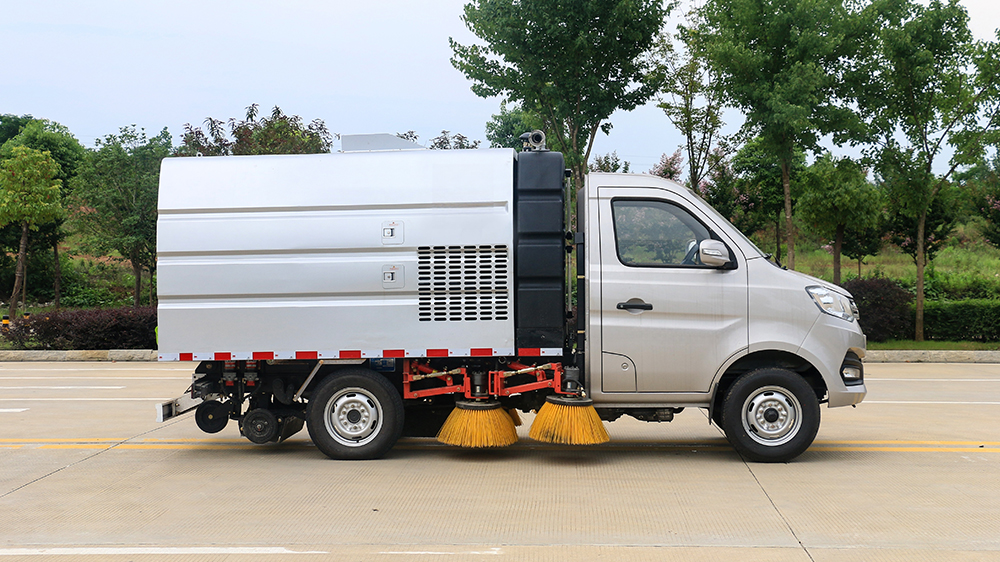

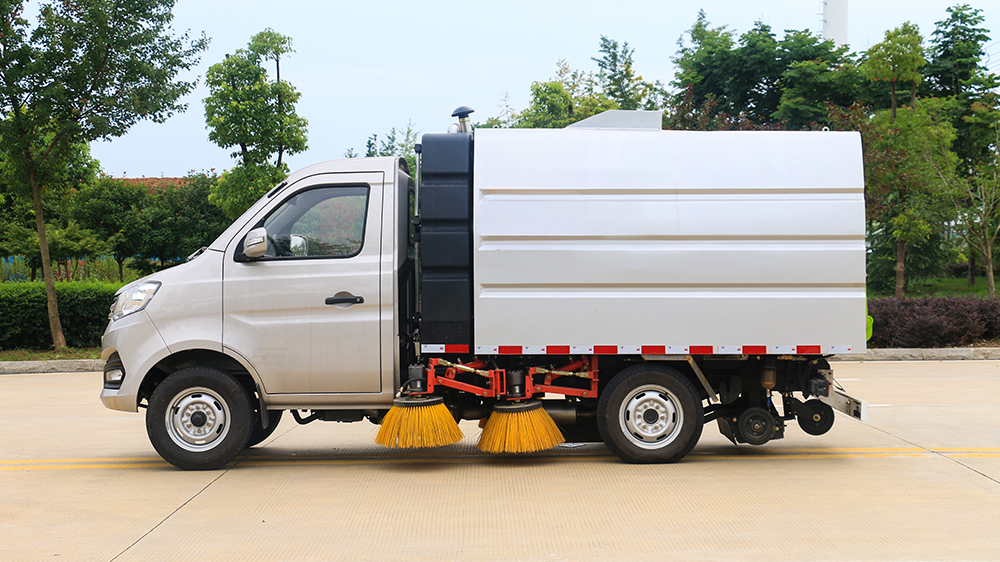

1.Optimize the internal airflow and nozzle structure design to improve pickup efficiency by 10%, with a central four-disc brush and rear suction nozzle layout to achieve higher overall cleanliness.

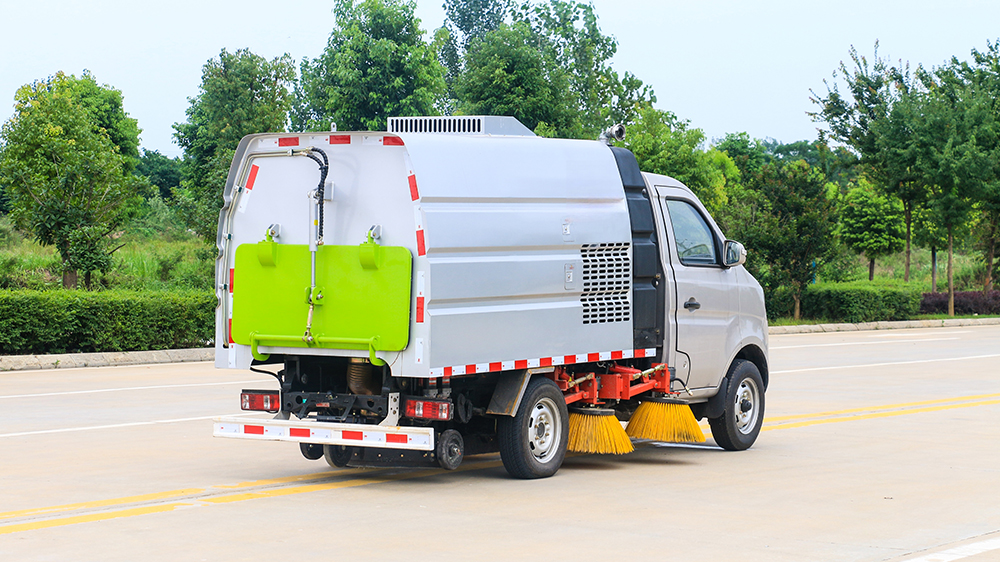

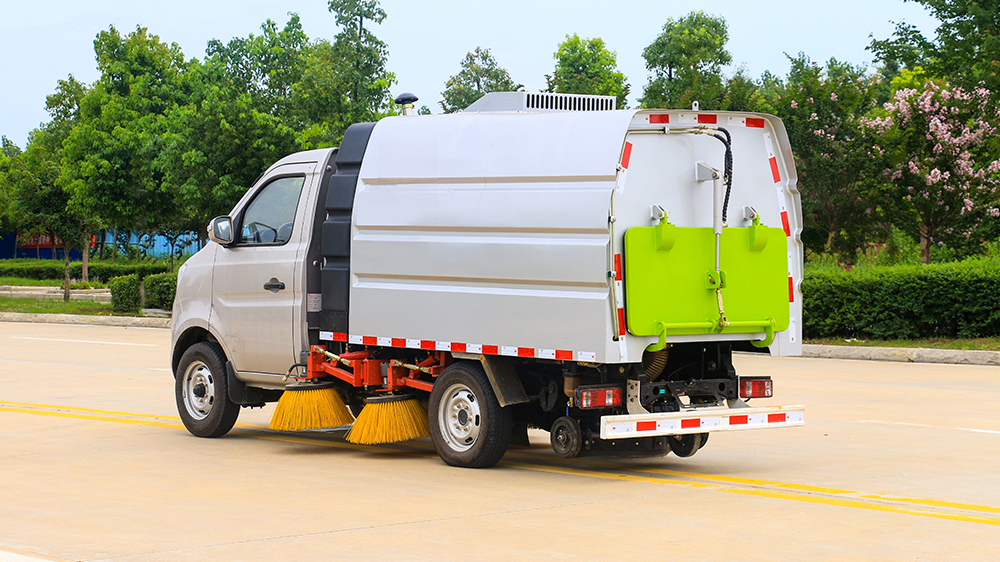

2.Extra-wide rear door (85° opening) and large tipping angle of the garbage container (>40°) for easier dumping and cleaning; adaptive brush obstacle avoidance and rebound technology extends brush life by over 15%.
3.Optimize low-noise fans with special silencers to reduce overall operating noise by 5%, and use an automatic clutch between the auxiliary engine and fan to extend service life.
4.Equipped with a fully electric driving control system, with visualized operation parameters and fault information, and the sweeping mechanism features automatic obstacle avoidance and reset.
5.Select SANYO motors and auxiliary engines from well-known brands like JMC, Yuchai, and Cummins, combined with Schneider control switches and Weisenborg hydraulic systems to ensure durability.
| Chassis | |
| Brand | Changan |
| Drive Type | Left hand drive/4×2 |
| Gross Vehicle Weight(kg) | 2840 |
| Curb Weight(kg) | 2550 |
| Loading Weight(kg) | 610 |
| Overall Dimension(mm) | 4830×1850×2150 |
| Tyre Qty. | 4 |
| Tyre Spec. | 175R14LT 8PR,165R14LT 8PR |
| Wheelbase（mm） | 2700 |
| Front/Rear Overhang (mm) | 720/1410 |
| Approach/Departure angle(°) | 40/17 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 100 |
| ABS | Yes |
| Transmission | 5-Speed |
| Cab | 2 person |
| Main Engine(Other Engines Optional) | |
| Brand | Dongan |
| Model | DAM16KR |
| Power(kw) | 90 |
| Horsepower(HP) | 122 |
| Auxiliary Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YC-57 |
| Power(kw) | 42 |
| Horsepower(HP) | 57 |
| Upper Equipment | |
| Garbage Tank | 1.5 m³ /CBM (Stainless Steel) |
| Clean Water Tank | 0.5 m³ /CBM (PE Plastic) |
| Sweeping Width(mm) | 1800-2500 |
| Sweeping Operating Speed(km/h) | 3-20 |
| Maintenance Operating Speed(km/h) | 15-20 |
| Maximum Sweeping Capacity (M²/h) | 50000 |
| Suction Particle Size (mm) | ≥120 |
| Garbage Tank Tilt Angle | ≥45° |
| Sweeping Efficiency | ≥98% |
| Main Components of Dust Suppression System | Water filter, pipelines, stainless steel spray frame, high-pressure nozzles, etc. |
| Electronic Water Pump | Shanghai Fanquan |
| Dust Suppression System Control Mode | Electronic control, one-key operation |
| Cycloid Motor | Sanyo Machinery |
| Gear Oil Pump | Wanyue Machinery |
| Hydraulic Cylinder | Wessenborg Hydraulic Cylinder |
| Hydraulic Hoses | Guangzhou Tianhe |
| Electromagnetic Valve Set | Wessenborg (Sino-German Joint Venture) |
| Hydraulic System Overflow Pressure (Mpa) | 10-15 |
| Hydraulic Tank Capacity (L) | ≥35 |
| Electrical System | Composed of chassis circuit, auxiliary electrical parts, and special device operation control circuit |
| Electrical Control Panel Composition | Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches |
| Fan Brand | Weiye Maintenance-Free Centrifugal Fan (Optional: Well-known brand Maintenance-Free Fan) |
| Fan Rated Speed (r/min) | 2700 |
| Fan Belt | Zhejiang Sanlux |
| Automatic Clutch | Well-known brand clutch, service life up to 20,000 working hours |
| Air Volume (M³/h) | 5000-7800 |
| Sweeping Brush Opening Diameter (mm) | Φ800-900 |
| Sweeping Plate Motor Speed (r/min) | 140 |
| Number of Sweeping Plates | 4 |
| Number of Brushes per Sweeping Plate | 22 |
| Front Sweeping Plate Tilt Adjustment | Forward tilt 5°-15°, backward tilt 5°-10° |
| Rear Sweeping Plate Tilt Adjustment | Forward tilt 5°-10°, backward tilt 5°-10° |
| Suction Pipe Diameter (mm) | Φ160 |
| Ground Clearance of Suction Nozzle Steel Part in Working State (mm) | 5-8 |
| Transmission Mode | Auxiliary engine, clutch, high-temperature-resistant A-belt transmission (4 belts) |
| Sweeping System Composition | Sweeping plate support, sweeping plates, hydraulic cylinder, oil pipes, connecting rods, adjusting rods, hydraulic motors, etc. |
| Auxiliary Operation System | Rear electronic control system to control lifting of main box and opening/closing of rear door |
| Electrical System | Composed of chassis electrical circuits, auxiliary engine electrical parts, and special working device operation control circuits |
| Electrical Control Panel Composition | Auxiliary engine tachometer, auxiliary engine water temperature gauge, engine oil temperature alarm device, various operation control switches |
| Other Services | Customized LOGO design as per customer needs! |
