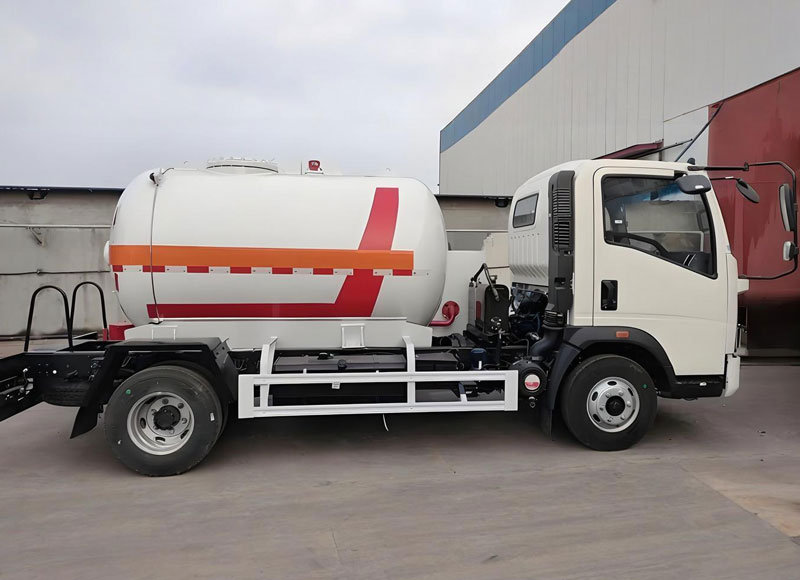

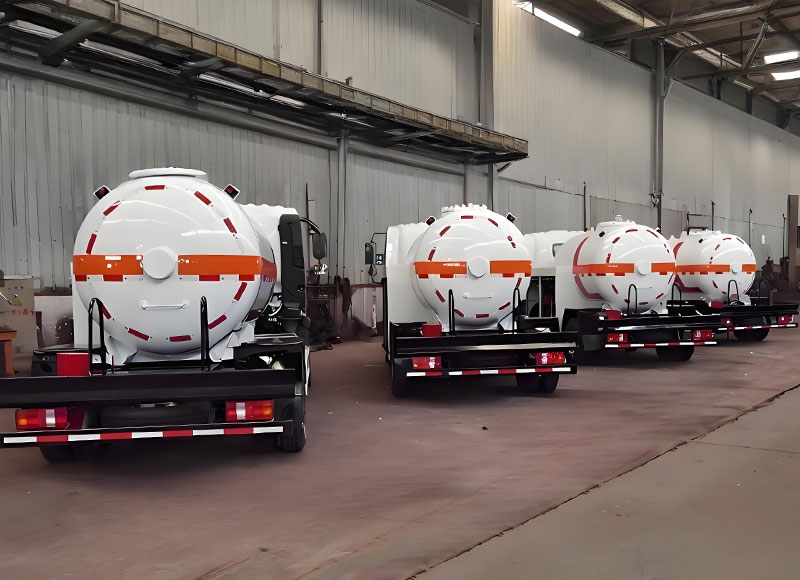

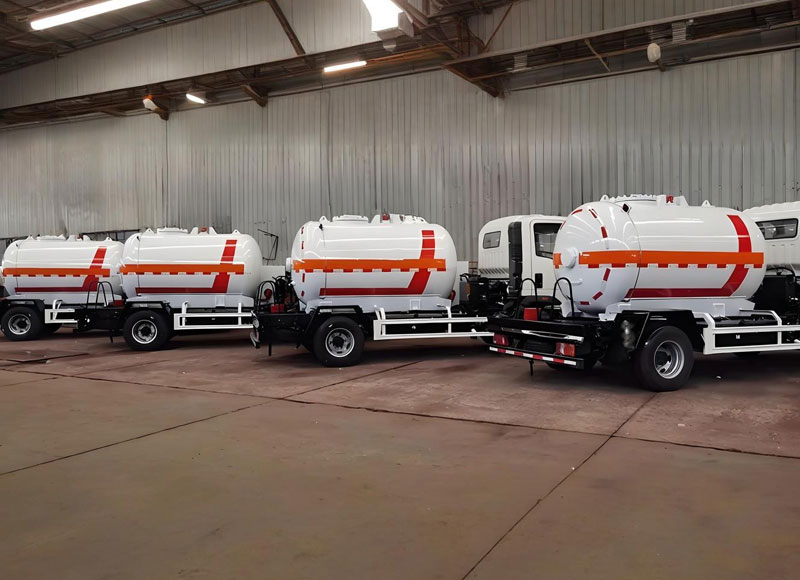

1. Dongfeng 4X2 5.5m³ 5500L LPG refueling tanker, designed to provide a reliable and efficient solution for refueling liquefied petroleum gas (LPG) cylinders. It is suitable for various applications, including filling LPG cylinders.
2.The truck uses robust Q345R carbon steel material, ensuring a durable structure capable of withstanding frequent use. Its body dimensions (5670x2300x2633mm) and tank dimensions (1600×10×3070) provide ample space for storage and transportation.
3. Equipped with a single liquid outlet pipeline to simplify piping layout, reduce leakage risks, and enforce "dedicated tank" use—mixing different liquids is strictly prohibited.
4. Sealing and pressure control are achieved through an emergency shut-off valve, safety valve, and liquid level monitoring, combined with anti-static and fire suppression devices to prevent leaks and fires.
5. Relies on a safety relief valve and check valve to stabilize pressure, anti-vibration hoses to reduce pipeline impact, and a wheeled actuator to ensure emergency gas shut-off.
Chassis | |
| Brand | Dongfeng |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 7360 |
| Curb Weight(kg) | 5130 |
| Loading Weight(kg) | 2100 |
| Overall Dimension(mm) | 5995×2000×2470 |
| Tyre Qty. | 6 |
| Tyre Spec. | 7.00R16LT 14PR |
| Wheelbase（mm） | 3308 |
| Front/Rear Overhang (mm) | 1055/1632 |
| Approach/Departure angle(°) | 19/14 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 80 |
| ABS | Yes |
| Transmission | 5-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | Accommodate 2-3 people |
Engine(Other Engines Optional) | |
| Brand | Yuchai |
| Model | YCY24155-61A |
| Power(kw) | 113 |
| Horsepower(HP) | 155 |
Upper & Equipment | |
| LPG Tank Capacity(cbm) | 5.5CMB/5.5m³/5500 liter/5.5cubic meter |
| LPG Dimension(mm) | 1600×10×3070 |
| LPG Tank Material | Q345R Carbon Steel |
| LPG Tank Thickness(mm) | 10 |
| Designed Pressure(MPa) | 1.61 |
| Filling Ratio(ton/cbm) | 0.42 |
| Working Temperature(℃) | <50 |
| LPG Tank Filling Medium | LPG |
| Corrosion Allowance(mm) | 1 |
| Core Components of LPG Vehicle | Single liquid LPG outlet, safety valve, thermometer, pressure gauge, emergency shut-off valve, flange-face connected ball valve, float-type liquid level gauge with percentage dial, iron fender, fire extinguisher, anti-static grounding tape. |
Core Components of Gas Refueling | Flow meter (with printing function), YQ15-5 liquefied gas pump, hydraulic motor, hydraulic oil cooler, safety relief valve, pipeline safety valve, pipeline pressure gauge, thermometer, wheeled actuator, anti-vibration hose, check valve, gas filling reel, 15-meter gas filling hose. |
| Remarks | Customized LOGO design as per customer needs! |
