1. High-efficiency insulated compartment – Utilizes sandwich composite bonding and XPS foam core to meet Class A national thermal insulation standards.
2. Durable FRP body construction – High-quality glass fiber-reinforced plastic panels offer anti-aging, heat resistance, and rigidity.
3. Flexible temperature control – Kelly refrigeration unit enables precise cooling from -5℃ to -15℃.
4. Energy-saving design – Labyrinth rubber seals and low-power LED lighting enhance airtightness and efficiency.
5. Robust chassis performance – 2700mm wheelbase with 175/70 tubeless tires ensures stable handling and load capacity.
6. User-friendly features – Factory-installed AC and stainless-steel fittings prioritize driver comfort and longevity.
Chassis | |
| Brand | Changan |
| Drive Type | Left hand drive/4x2 |
| Gross Vehicle Weight(kg) | 2080 |
| Curb Weight(kg) | 1320 |
| Load Weight(kg) | 630 |
| Overall Dimension(mm) | 4200×1680×2150 |
| Van Dimension(mm) | 1940×1280×1150 |
| Tyre Qty. | 4 |
| Tyre Spec. | 175/70R14 88S,175/70R14LT 8PR |
| Wheelbase（mm） | 2700 |
| Front/Rear Overhang (mm) | 615/885 |
| Approach/Departure Angle(°) | 29/25 |
| Fuel Type | Diesel |
| Maximum Speed (km/h) | 120 |
| ABS | Included |
| Transmission | 5-speed |
| Steering | Power steering, hydraulic steering with power assistance |
| Cab | 2 persons |
Engine (Other Engines Optional) | |
| Brand | Changan |
| Model | JL473QH |
| Power(kw) | 78.5 |
| Horsepower(HP) | 107 |
Upper & Equipment | |

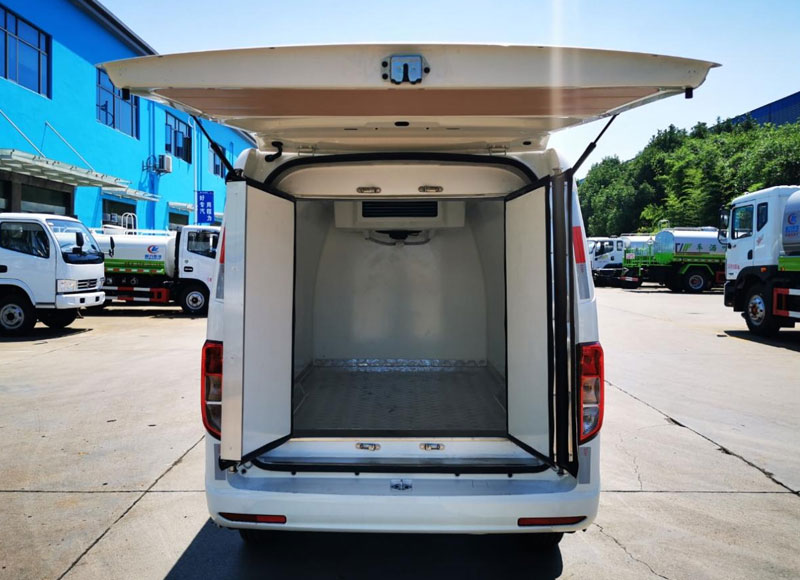

| Construction Technology | The compartment is produced via integrated vacuum adsorption and hydraulic adsorption molding production line, utilizing sandwich composite bonding to achieve Class A national standard thermal insulation performance. |
| Inner/Outer Wall Panels | High-quality domestic FRP (Fiber Reinforced Plastic) for superior properties: Non-absorbent to light Excellent thermal insulation High rigidity Anti-oxidation |
| Insulation Layer | XPS extruded polystyrene foam board (core material) |
| Floor | Aluminum tread plate |
| Door Edging | Labyrinth-type rubber sealing strips for enhanced airtightness |
| Refrigeration Unit | Kelly Refrigeration series with optional temperature ranges: -5°C or -15°C |
| Accessories | Stainless steel door locks, hinges, frames,energy-efficient LED lighting fixtures |
| Other Services | Customized LOGO design as per customer needs! |
